Product description

• Manfrotto MT055CXPRO4 Carbon Fiber Tripod
  • Manfrotto 055 Demo

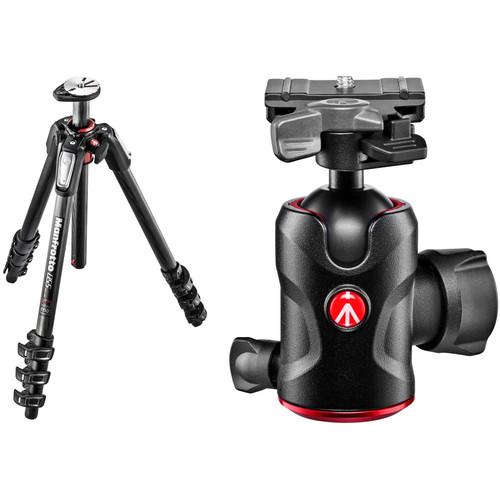

  The Manfrotto MT055CXPRO4 Carbon Fiber Tripod is a 4-section support that replaces the 055CXPRO4 tripod. It has a load capacity of 19.8 lb and extends from 3.5" to 66.9". Its carbon fiber legs are secured by the Quick Power Locks. These updated flip locks increase the tripod's rigidity by 50% compared to its predecessor.

  A redesigned center column has a "one finger" operation, and includes an Easy Link 3/8"-16 attachment for attaching accessories such as an LED light or a reflector via a compatible arm. The center column can be positioned horizontally, allowing for low-angle and macro photography. The upper disc where a tripod head is mounted has been redesigned as well, and now has a bull's eye bubble level that rotates 360° so you can locate it where you can see it. This allows you to level your camera on both the horizontal and vertical planes. UPC: 719821364658
• Manfrotto 496 Center Ball Head with 200PL-PRO Quick Release Plate
  • Manfrotto 055 Demo
  This Manfrotto 496 Center Ball Head features an integrated RC2 quick release cam lock and a 200PL-PRO Quick Release Plate. Compatible quick release plates can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent a compatible quick release plate from accidentally disconnecting.

  The 496 Center Ball Head with 200PL-PRO Quick Release Plate has a load capacity of 22 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. By loosening the head's primary locking knob, the ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. A recessed dial set within that locking knob can be rotated to apply tension control to the ball-and-socket joint's movements. Along the opposite side of the ball head, a secondary locking knob controls the ability to rotate the head 360°.

  Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the 200PL-PRO quick release plate, as well as 3/8"-16 threads via an included bushing adapter. The plate is also compatible with separately available tripod heads that feature an Arca-type clamp.
  496 Center Ball Head
  • • 22 lb load capacity
    • Compatible with tripods or support systems that feature a 3/8"-16 mount
    • Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
    • Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
    • Integrated RC2 quick release cam lock
    • Primary locking knob allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
    • Secondary locking knob allows head to rotate 360°
    • Dedicated tension control dial for the ball-and-socket joint's movements
    • Durable, aluminum-alloy construction
  200PL-PRO Quick Release Plate
  • • Compatible with Manfrotto RC2 quick release cam lock and Arca-type quick release clamps
    • 1/4"-20 mount with support for 3/8"-16 via bushing adapter
    • Durable, aluminum-alloy construction
  UPC: 719821423911

• MT055CXPRO4 Carbon Fiber Tripod erqcxtevwade
• Limited 6-Month Warranty, Extendable to 10 Years with Product Registration

• 496 Center Ball Head with 200PL-PRO Quick Release Plate

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Manfrotto MT055CXPRO4 Carbon Fiber Tripod

  Load Capacity	19.8 lb / 9 kg
  Maximum Working Height	66.9" / 169.9 cm
  Max Height without Center Column	55.1" / 140 cm
  Minimum Working Height	3.5" / 8.9 cm
  Folded Length	21.3" / 54.1 cm
  Head Mount Type	3/8"-16 Screw
  Weight	4.6 lb / 2.1 kg
  Materials	Carbon Fiber
  Bubble Level	Yes

  Leg Lock Type	Flip Lock
  Independent Leg Spread	Yes
  Leg Sections	4

  Center Column Sections	1
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	Yes

  Box Dimensions (LxWxH)	21.6 x 5.5 x 5.5"

• Manfrotto 496 Center Ball Head with 200PL-PRO Quick Release Plate

  Head Type	Ball Head
  Base Mount	3/8"-16 Female
  Camera Mounting Screw	1/4"-20 Male & 3/8"-16 with Bushing
  Quick Release Plate Type	Arca-Type, RC2
  Load Capacity	22 lb / 9.98 kg
  Number of Bubble Levels	None
  Friction Control	Yes
  Independent Pan Lock	Yes
  Material	Aluminum

  Panning Range
