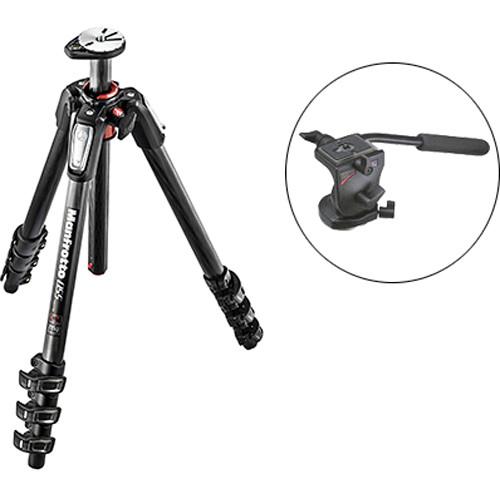

User Manual for Manfrotto MT055CXPRO4 Carbon Fiber Tripod with 700RC2 Mini Fluid Video Head Kit Click to enlarge the picture
Contents of the user manual for the Manfrotto MT055CXPRO4 Carbon Fiber Tripod with
- Product category: Tripod Systems Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripod Systems
|
User manual for the Manfrotto MT055CXPRO4 Carbon Fiber Tripod with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description The Manfrotto MT055CXPRO4 Carbon Fiber Tripod with 700RC2 Mini Fluid Video Head Kit from is designed to support compact camcorders and DSLRs weighing between 3 and 5.5 pounds. The head offers smooth 360° pan rotation, -75°/+90° tilt range, and has separate pan and tilt locks. With the head attached, the 4-section carbon fiber legs provide a maximum height of 70.7", while getting as low as 7.3" off the ground. The legs are secured using Quick Power Locks and the center column can be positioned horizontally, allowing for low-angle and macro photography. Additionally, a 3/8"-16 threaded hole is provided for attaching accessories such as an LED light or a reflector via a compatible arm. - Manfrotto MT055CXPRO4 Carbon Fiber Tripod The Manfrotto MT055CXPRO4 Carbon Fiber Tripod is a 4-section support that replaces the 055CXPRO4 tripod. It has a load capacity of 19.8 lb and extends from 3.5" to 66.9". Its carbon fiber legs are secured by the Quick Power Locks. These updated flip locks increase the tripod's rigidity by 50% compared to its predecessor.
A redesigned center column has a "one finger" operation, and includes an Easy Link 3/8"-16 attachment for attaching accessories such as an LED light or a reflector via a compatible arm. The center column can be positioned horizontally, allowing for low-angle and macro photography. The upper disc where a tripod head is mounted has been redesigned as well, and now has a bull's eye bubble level that rotates 360° so you can locate it where you can see it. This allows you to level your camera on both the horizontal and vertical planes. UPC: 719821364658 - Manfrotto 700RC2 Mini Video Fluid Head The Manfrotto 700RC2 compact video head is designed to support compact camcorders as well as still cameras with medium and long telephoto lenses. It includes a fixed length pan arm and separate locking mechanisms for the 360° pan and the -75° to +90° tilt movements. Featuring a fluid cartridge for smooth movements, the 700RC2 has a fixed drag in both its pan and tilt axes.
- Quick-release mounting plate with secondary safety lock
- Separate pan and tilt locks
- Maximum load capacity of: 5.5 lb
- Minimum load of 3 lb – anything lighter might experience backlash upon stopping a pan movement
UPC: 719821199779 In the Box - MT055CXPRO4 Carbon Fiber Tripod erqcxtevwade
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
- 700RC2 Mini Video Fluid Head
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto MT055CXPRO4 Carbon Fiber Tripod with 700RC2 Mini Fluid Video Head Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Manfrotto MT055CXPRO4 Carbon Fiber Tripod
| | | Load Capacity | 19.8 lb / 9 kg | | Maximum Working Height | 66.9" / 169.9 cm | | Max Height without Center Column | 55.1" / 140 cm | | Minimum Working Height | 3.5" / 8.9 cm | | Folded Length | 21.3" / 54.1 cm | | Head Mount Type | 3/8"-16 Screw | | Weight | 4.6 lb / 2.1 kg | | Materials | Carbon Fiber | | Bubble Level | Yes | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 4 | | | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | Yes | | | | Box Dimensions (LxWxH) | 21.6 x 5.5 x 5.5" | - Manfrotto 700RC2 Mini Video Fluid Head
| | | Camera Plate Features | Quick Release | | Camera Plate Type | 3157N | | Camera Mounting Screw | 1 x 1/4"-20 Male with Locating Pin | | | | Base Mount | 3/8"-16 Thread | | | | Drag Control | Tilt: Fixed | | Vertical Tilt | +90
