User manual
Manfrotto MT055XPRO3 Aluminum Tripod and 494

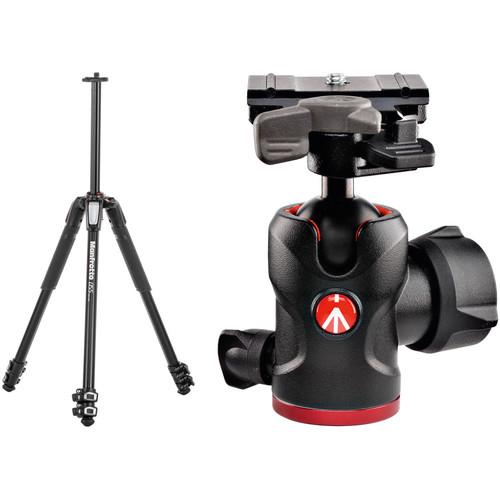

User Manual for Manfrotto MT055XPRO3 Aluminum Tripod and 494 Ball Head with 200PL-PRO Quick Release Plate Kit

• Product category: Tripods with Heads Manfrotto
• Brand: Manfrotto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Manfrotto Tripods with Heads

Product description

• Manfrotto MT055XPRO3 Aluminum Tripod
  • Manfrotto 055 Demo
  The Manfrotto MT055XPRO3 Aluminum Tripod is a three-section support that replaces the 055XPROB tripod. It has a load capacity of 19.8 lb and extends from 3.5" to 66.9". Its legs are secured by the Quick Power Locks. These updated flip locks increase the tripod's rigidity by 50%, and its load capacity by 4.4 lb over its predecessor.

  A redesigned center column has a "one finger" operation, and includes an Easy Link attachment for attaching accessories such as an LED light or a reflector. The center column can be positioned horizontally, allowing for low-angle and macro photography. The upper disc where a tripod head is mounted has been redesigned as well, and now has a bull's eye bubble level that rotates 360° so you can locate it where you can see it. This allows you to level your camera on both the horizontal and vertical planes. UPC: 719821364634
• Manfrotto 494 Center Ball Head with 200PL-PRO Quick Release Plate
  • Manfrotto 055 Demo
  This Manfrotto 494 Center Ball Head features an integrated RC2 quick release cam lock and a 200PL-PRO Quick Release Plate. Compatible quick release plates can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent a compatible quick release plate from accidentally disconnecting.

  The 494 Center Ball Head with 200PL-PRO Quick Release Plate has a load capacity of 17.6 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. By loosening the head's primary locking knob, the ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. A recessed dial set within that locking knob can be rotated to apply tension control to the ball-and-socket joint's movements. Along the opposite side of the ball head, a secondary locking knob controls the ability to rotate the head 360°.

  Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the 200PL-PRO quick release plate, as well as 3/8"-16 threads via an included bushing adapter. The plate is also compatible with separately available tripod heads that feature an Arca-type clamp.
  494 Center Ball Head
  • • 17.6 lb load capacity
    • Compatible with tripods or support systems that feature a 3/8"-16 mount
    • Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
    • Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
    • Integrated RC2 quick release cam lock
    • Primary locking knob allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
    • Secondary locking knob allows head to rotate 360°
    • Dedicated tension control dial for the ball-and-socket joint's movements
    • Durable, aluminum-alloy construction
  200PL-PRO Quick Release Plate
  • • Compatible with Manfrotto RC2 quick release cam lock and Arca-type quick release clamps
    • Measures 1.7 x 2.1 x 0.4"
    • 1/4"-20 mount with support for 3/8"-16 via bushing adapter
    • Durable, aluminum-alloy construction
  UPC: 719821423904

• MT055XPRO3 Aluminum Tripod sxuvqaewtudeyyuwyqrz

• 494 Center Ball Head with 200PL-PRO Quick Release Plate

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Manfrotto MT055XPRO3 Aluminum Tripod

  Load Capacity	19.8 lb / 9 kg
  Maximum Working Height	66.9" / 169.9 cm
  Max Height without Center Column	55.1" / 140 cm
  Minimum Working Height	3.5" / 8.9 cm
  Folded Length	24" / 61 cm
  Head Mount Type	3/8"-16 Screw
  Weight	5.5 lb / 2.5 kg
  Materials	Aluminum Alloy
  Bubble Level	Yes

  Leg Lock Type	Flip Lock
  Independent Leg Spread	Yes
  Leg Sections	3

  Center Column Sections	1
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	Yes

  Box Dimensions (LxWxH)	25.5 x 5.5 x 5.3"

• Manfrotto 494 Center Ball Head with 200PL-PRO Quick Release Plate

  Head Type	Ball Head
  Base Mount	3/8"-16 Female
  Camera Mounting Screw	1/4"-20 Male & 3/8"-16 with Bushing
  Quick Release Plate Type	Arca-Type, RC2
  Load Capacity	17.6 lb / 7.98 kg
  Number of Bubble Levels	None
  Friction Control	Yes
  Independent Pan Lock	Yes
  Material	Aluminum

  Lateral Tilt
