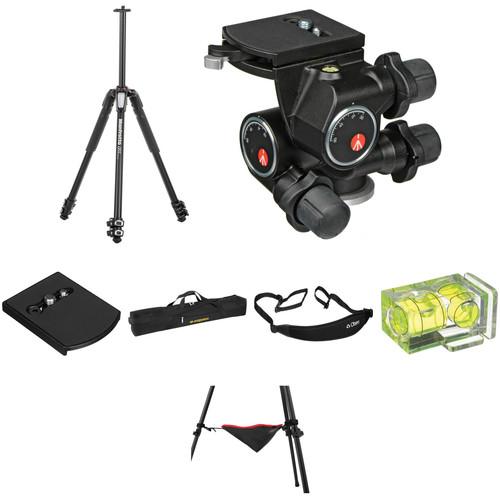

User Manual for Manfrotto MT055XPRO3 Aluminum Tripod with 410 Junior Geared Head Deluxe Kit

• Product category: Tripods with Heads Manfrotto
• Brand: Manfrotto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Manfrotto Tripods with Heads

Product description

• Manfrotto MT055XPRO3 Aluminum Tripod
  • Manfrotto 055 Demo
  The Manfrotto MT055XPRO3 Aluminum Tripod is a three-section support that replaces the 055XPROB tripod. It has a load capacity of 19.8 lb and extends from 3.5" to 66.9". Its legs are secured by the Quick Power Locks. These updated flip locks increase the tripod's rigidity by 50%, and its load capacity by 4.4 lb over its predecessor.

  A redesigned center column has a "one finger" operation, and includes an Easy Link attachment for attaching accessories such as an LED light or a reflector. The center column can be positioned horizontally, allowing for low-angle and macro photography. The upper disc where a tripod head is mounted has been redesigned as well, and now has a bull's eye bubble level that rotates 360° so you can locate it where you can see it. This allows you to level your camera on both the horizontal and vertical planes. UPC: 719821364634
• Manfrotto 410 3-Way, Geared Pan-and-Tilt Head with 410PL Quick Release Plate
  • Manfrotto 055 Demo
  This 410 3-Way, Geared Pan-and-Tilt Head from Manfrotto has a load capacity of 11.0 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC4 quick release cam lock and a 410PL Quick Release Plate. RC4 compatible quick release plates such as the 410PL can removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached.

  Cameras or accessories that are compatible with a 1/4"-20 or 3/8-16" mount can be connected to the 410PL Quick Release Plate, which measures 2.5 x 3.3 x 0.5" and has a rubberized, non-slip surface. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other and have individual, snap-lock knobs with easy-to-turn, 4-star grips. Turning each snap-lock knob allows the corresponding movement to be rapidly adjusted, and once the knob is released, the adjustment is locked into place. An additional, rubberized knob set within each snap-lock knob allows incremental, geared adjustments, which help to ensure that any device mounted to this 410 3-Way, Geared Pan-and-Tilt Head is precisely positioned relative to the subject.

  To further promote fast and repeatable device positioning, this 410 3-Way, Geared Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility.
  410 3-Way, Geared Pan-and-Tilt Head
  • • 11.0 lb load capacity
    • Compatible with tripods or support systems that feature a 3/8"-16 mount
    • Can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation
    • Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other and have individual snap-lock knobs with easy-to-turn, 4-star grips
    • Turning each snap-lock knob allows the corresponding movement to be rapidly adjusted, and once the knob is released, the adjustment is locked into place
    • An additional, rubberized knob set within each snap-lock knob allows incremental, geared adjustments
    • Dedicated angle scales for each movement that are designed for easy visibility further promote fast, repeatable, and accurate device positioning
    • Integrated, RC4 quick release cam lock
    • Built-in bubble level
    • Durable, aluminum-alloy construction
  410PL Quick Release Plate
  • • Compatible with Manfrotto RC4 quick release cam lock
    • Measures 2.5 x 3.3 x 0.5" and has a rubberized, non-slip surface
    • 1/4"-20 and 3/8"-16 mount
    • Durable, aluminum-alloy construction
  UPC: 719821287681
• Manfrotto 410PL Quick Release Plate - for RC4 Quick Release System
  • Manfrotto 055 Demo
  The Manfrotto 410PL Quick Release Plate is a low profile plate for the RC4 quick release system. It is larger than Manfrotto's standard RC2 system's plate, and it comes supplied with both 1/4"-20 and 3/8" threaded screws. Its screw travels along a 2" grooved slot, to better accommodate professional cameras of different dimensions. Replaces old part number 3271. UPC: 719821156321
• Ruggard Padded Tripod / Light Stand Case (35")
  • Manfrotto 055 Demo
  The black with yellow embroidery, 35" Padded Tripod or Light Stand Case from Ruggard is an affordable, lightweight, and functional way to store or carry your tripod, light stand, and umbrellas. The durable 400D nylon exterior is complemented by a smooth 150D nylon lining. Dual top zippers provide full-length rapid access to your tripod.

  This case can be transported by its two top carry handles, or by its very useful fixed-length shoulder sling. For added storage, there is an exterior 13.5" zippered pocket. The case is accented with a large, handsome yellow embroidered Ruggard logo. This 35" Padded Case is backed by a one-year limited warranty from Ruggard.
  • Padded, lightweight tripod bag
  • 13.5" exterior zippered accessory pocket
  • Dual-zippered access
  • Two carry handles
  • Fixed shoulder sling
  • 400D nylon exterior with 150D lining
  • Embroidered exterior yellow Ruggard logo
  UPC: 847628001718
• Oben TS-200 Tripod Strap with Two Quick Release Loops (Black)
  • Manfrotto 055 Demo
  The black TS-200 Tripod Strap with Two Quick Release Loops from Oben features two quick release loops-one each at the top and bottom to hold your tripod's legs and head. The solid 1" wide nylon strap is complemented by a 3" wide, non-slip and comfortable 9.5mm thick neoprene shoulder pad that evenly distributes the weight of your tripod. Once adjusted, the strap length back buckles to hold it at your preferred length.The leg loop adjusts to a maximum of 19" wide while the head loop is secured by a 14" maximum wide loop. The plastic quick release buckles at each end of the strap allow for fast attachment or use of your tripod. When the shot is there, you don't want to waste time fumbling with overly sophisticated attachment systems. This is a cost-effective tripod strap that fits many tripods and gives you the freedom to travel, set up and pack with speed and efficiency. The strap is backed by a one-year limited warranty from Oben.
  • Two quick release loops secured with plastic snap couplers; one for tripod head, one for tripod legs
  • Fully adjustable, back buckled strap - approx 20-44.5"
  • 1" wide nylon strap
  • Wide, comfortable 3" neoprene shoulder pad
  • Easy to attach and remove
  UPC: 847628533127
• Vello Two-Axis Hot-Shoe Bubble Level
  • Manfrotto 055 Demo
  This Two-Axis Hot Shoe Bubble Level from Vello mounts onto any standard hot shoe on a camera. It allows you to precisely align the camera on two planes, to ensure that the horizon line is absolutely straight. This is a necessary accessory for QTVR shooting sessions, for landscapes, or any other photography requiring fidelity to a horizon line or other straight-line elements.
  • Mounts on camera hot-shoe
  • Check levels in two planes
  UPC: 847628536685
• Oben Tripod Hammock
  • Manfrotto 055 Demo
  This Tripod Hammock from Oben attaches to your tripod's legs via hook-and-loop fasteners. It holds up to 20 lb, lowering the center of gravity and adding stability when using a heavy camera and lens, or when shooting in windy conditions. It can also be used as a shelf to store accessories that you need quick access to like lens caps, filters, or lenses. UPC: 847628580534

• MT055XPRO3 Aluminum Tripod bceztxwrfwvyfdyydudszwdbcbsyzzbrab

• 410 3-Way, Geared Pan-and-Tilt Head with 410PL Quick Release Plate

• 410PL Quick Release Plate - for RC4 Quick Release System

• Ruggard - Padded Tripod / Light Stand Case (35")

• Oben - TS-200 Tripod Strap with Two Quick Release Loops (Black)

• Vello - Two-Axis Hot-Shoe Bubble Level

• Oben - Tripod Hammock bceztxwrfwvyfdyydudszwdbcbsyzzbrab

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Manfrotto MT055XPRO3 Aluminum Tripod

  Load Capacity	19.8 lb / 9 kg
  Maximum Working Height	66.9" / 169.9 cm
  Max Height without Center Column	55.1" / 140 cm
  Minimum Working Height	3.5" / 8.9 cm
  Folded Length	24" / 61 cm
  Head Mount Type	3/8"-16 Screw
  Weight	5.5 lb / 2.5 kg
  Materials	Aluminum Alloy
  Bubble Level	Yes

  Leg Lock Type	Flip Lock
  Independent Leg Spread	Yes
  Leg Sections	3

  Center Column Sections	1
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	Yes

  Box Dimensions (LxWxH)	25.5 x 5.5 x 5.3"

• Manfrotto 410 3-Way, Geared Pan-and-Tilt Head with 410PL Quick Release Plate

  Head Type	Pan & Tilt Head
  Base Mount	3/8"-16 Thread
  Camera Mounting Screw	1/4"-20 Male, 3/8"-16 Male
  Quick Release Plate Type	RC4
  Load Capacity	11.0 lb / 4.99 kg
  Number of Bubble Levels	1
  Material	Aluminum

  Lateral Tilt
