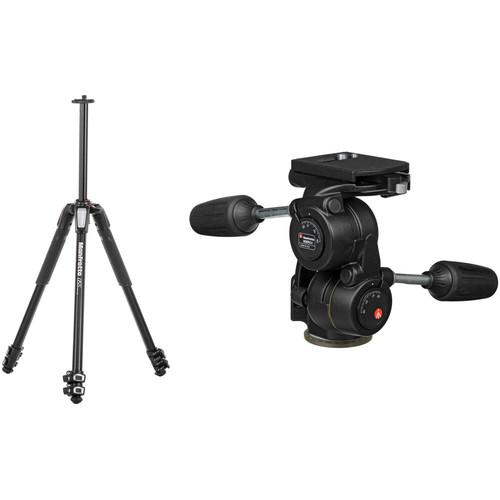

Manfrotto MT055XPRO3 Aluminum Tripod with 808RC4

User Manual for Manfrotto MT055XPRO3 Aluminum Tripod with 808RC4 3-Way Pan Tilt Head Kit

• Product category: Tripods with Heads Manfrotto
• Brand: Manfrotto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Manfrotto Tripods with Heads

Product description

• Manfrotto MT055XPRO3 Aluminum Tripod
  • Manfrotto 055 Demo
  The Manfrotto MT055XPRO3 Aluminum Tripod is a three-section support that replaces the 055XPROB tripod. It has a load capacity of 19.8 lb and extends from 3.5" to 66.9". Its legs are secured by the Quick Power Locks. These updated flip locks increase the tripod's rigidity by 50%, and its load capacity by 4.4 lb over its predecessor.

  A redesigned center column has a "one finger" operation, and includes an Easy Link attachment for attaching accessories such as an LED light or a reflector. The center column can be positioned horizontally, allowing for low-angle and macro photography. The upper disc where a tripod head is mounted has been redesigned as well, and now has a bull's eye bubble level that rotates 360° so you can locate it where you can see it. This allows you to level your camera on both the horizontal and vertical planes. UPC: 719821364634
• Manfrotto 808RC4 3-Way, Pan-and-Tilt Head with 410PL Quick Release Plate
  • Manfrotto 055 Demo
  The 808RC4 3-Way, Pan-and-Tilt Head from Manfrotto has a load capacity of 17.6 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC4 quick release cam lock and a 410PL Quick Release Plate. RC4 compatible quick release plates such as the 410PL can removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached.

  Cameras or accessories that are compatible with a 1/4"-20 or 3/16"-20 mount can be connected to the 410PL Quick Release Plate, which measures 2.5 x 3.3 x 0.5" and has a rubberized, non-slip surface. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other, have dedicated control handles, and can be locked into place by twisting each corresponding handle's rubberized grip.

  To promote fast, repeatable, and accurate device positioning, the 808RC4 3-Way, Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility. For heavier loads, built-in counterbalance springs can be user-activated to help ensure smooth as well as gradual backwards, forwards, and portrait orientation tilt movements.
  808RC4 3-Way, Pan-and-Tilt Head
  • • 17.6 lb load capacity
    • Compatible with tripods or support systems that feature a 3/8"-16 mount
    • Can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation
    • Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other, have dedicated control handles, and can be locked into place
    • Dedicated angle scales for each movement that are designed for easy visibility promote fast, repeatable, and accurate device positioning
    • Built-in counterbalance springs help ensure smooth as well as gradual backwards, forwards, or portrait orientation tilt movements for heavier loads
    • Dedicated, counterbalance spring on-off knobs for backward and forwards tilt, as well as portrait orientation tilt
    • Integrated, RC4 quick release cam lock
    • Two bubble levels for landscape orientations and one bubble level for portrait orientations
    • Durable, aluminum-alloy construction
  410PL Quick Release Plate
  • • Compatible with Manfrotto RC4 quick release cam lock
    • Measures 2.5 x 3.3 x 0.5" and has a rubberized, non-slip surface
    • 1/4"-20 and 3/8"-16 mount
    • Durable, aluminum-alloy construction
  UPC: 719821263845

• MT055XPRO3 Aluminum Tripod rddqtzuxxueqdtadxeaues

• 808RC4 3-Way, Pan-and-Tilt Head with 410PL Quick Release Plate

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Manfrotto MT055XPRO3 Aluminum Tripod

  Load Capacity	19.8 lb / 9 kg
  Maximum Working Height	66.9" / 169.9 cm
  Max Height without Center Column	55.1" / 140 cm
  Minimum Working Height	3.5" / 8.9 cm
  Folded Length	24" / 61 cm
  Head Mount Type	3/8"-16 Screw
  Weight	5.5 lb / 2.5 kg
  Materials	Aluminum Alloy
  Bubble Level	Yes

  Leg Lock Type	Flip Lock
  Independent Leg Spread	Yes
  Leg Sections	3

  Center Column Sections	1
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	Yes

  Box Dimensions (LxWxH)	25.5 x 5.5 x 5.3"

• Manfrotto 808RC4 3-Way, Pan-and-Tilt Head with 410PL Quick Release Plate

  Head Type	Pan & Tilt Head
  Base Mount	3/8"-16 Thread
  Camera Mounting Screw	1/4"-20 Male, 3/8"-16 Male
  Quick Release Plate Type	RC4
  Load Capacity	17.6 lb / 7.98 kg
  Number of Bubble Levels	3
  Material	Aluminum

  Lateral Tilt
