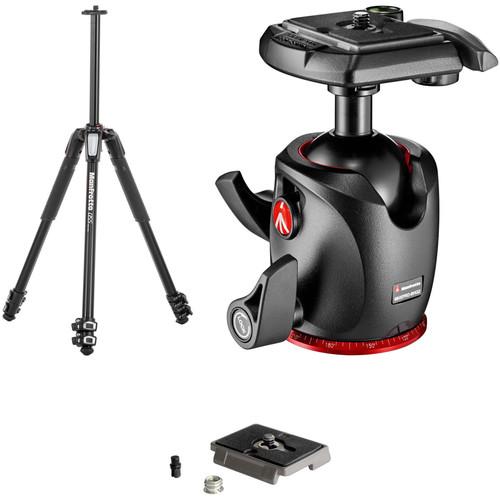

Manfrotto MT055XPRO3 Aluminum Tripod with MHXPRO-BHQ2

User Manual for Manfrotto MT055XPRO3 Aluminum Tripod with MHXPRO-BHQ2 XPRO Ball Head Kit

• Product category: Tripods with Heads Manfrotto
• Brand: Manfrotto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Manfrotto Tripods with Heads

Product description

• Manfrotto MT055XPRO3 Aluminum Tripod
  • Manfrotto 055 Demo
  The Manfrotto MT055XPRO3 Aluminum Tripod is a three-section support that replaces the 055XPROB tripod. It has a load capacity of 19.8 lb and extends from 3.5" to 66.9". Its legs are secured by the Quick Power Locks. These updated flip locks increase the tripod's rigidity by 50%, and its load capacity by 4.4 lb over its predecessor.

  A redesigned center column has a "one finger" operation, and includes an Easy Link attachment for attaching accessories such as an LED light or a reflector. The center column can be positioned horizontally, allowing for low-angle and macro photography. The upper disc where a tripod head is mounted has been redesigned as well, and now has a bull's eye bubble level that rotates 360° so you can locate it where you can see it. This allows you to level your camera on both the horizontal and vertical planes. UPC: 719821364634
• Manfrotto Manfrotto XPRO Magnesium Ball Head with 200PL-14 Quick Release Plate
  • Manfrotto 055 Demo
  This XPRO Magnesium Ball Head from Manfrotto features an integrated RC2 quick release cam lock and a 200PL-14 Quick Release Plate. RC2 compatible quick release plates such as the 200PL-14 can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent the 200PL-14, or another compatible quick release plate from accidentally disconnecting.

  The XPRO Magnesium Ball Head with 200PL-14 Quick Release Plate has a load capacity of 22.1 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. By loosening this XPRO Magnesium Ball Head's primary locking knob, its ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. Toward the ball head's base is a secondary locking knob that controls the ability to rotate the head 360°. An additional knob opposite the secondary locking knob can be rotated to apply tension control to the ball-and-socket joint's movements.

  Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the 200PL-14 quick release plate which measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface.
  XPRO Magnesium Ball Head
  • • 22.1 lb load capacity
    • Compatible with tripods or support systems that feature a 3/8"-16 mount
    • Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
    • Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
    • Integrated RC2 quick release cam lock
    • Primary locking knob allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
    • Secondary locking knob allows head to rotate 360°
    • Dedicated tension control knob for the ball-and-socket joint's movements
    • One bubble level for landscape orientations and one bubble level for portrait orientations
    • Durable, magnesium-alloy construction
  200PL-14 Quick Release Plate
  • • Compatible with Manfrotto RC2 quick release cam lock
    • Measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface
    • 1/4"-20 mount
    • Durable, aluminum-alloy construction
  UPC: 719821378297
• Manfrotto 200PL Quick Release Plate with 1/4"-20 Screw and 3/8" Bushing Adapter
  • Manfrotto 055 Demo
  The Manfrotto 200PL Quick Release Plate with 1/4"-20 Screw and 3/8" Bushing Adapter is the replacement quick release plate for all heads that use the RC2 (3157N) system. The plate comes with a 1/4"-20 camera screw and a 3/8" bushing adapter, and is compatible with 35mm and standard thread-mounted medium format cameras.
  • RC2 Quick Release System
  UPC: 719821345015

• MT055XPRO3 Aluminum Tripod aruzuqtxrwweytczerwveturs

• Manfrotto XPRO Magnesium Ball Head with 200PL-14 Quick Release Plate

• 200PL Quick Release Plate with 1/4"-20 Screw and 3/8" Bushing Adapter aruzuqtxrwweytczerwveturs

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Manfrotto MT055XPRO3 Aluminum Tripod

  Load Capacity	19.8 lb / 9 kg
  Maximum Working Height	66.9" / 169.9 cm
  Max Height without Center Column	55.1" / 140 cm
  Minimum Working Height	3.5" / 8.9 cm
  Folded Length	24" / 61 cm
  Head Mount Type	3/8"-16 Screw
  Weight	5.5 lb / 2.5 kg
  Materials	Aluminum Alloy
  Bubble Level	Yes

  Leg Lock Type	Flip Lock
  Independent Leg Spread	Yes
  Leg Sections	3

  Center Column Sections	1
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	Yes

  Box Dimensions (LxWxH)	25.5 x 5.5 x 5.3"

• Manfrotto Manfrotto XPRO Magnesium Ball Head with 200PL-14 Quick Release Plate

  Head Type	Ball Head
  Base Mount	3/8"-16 Thread
  Camera Mounting Screw	1/4"-20 Male
  Quick Release Plate Type	RC2
  Load Capacity	22.1 lb / 10.02 kg
  Number of Bubble Levels	2
  Friction Control	Yes
  Independent Pan Lock	Yes
  Material	Magnesium

  Lateral Tilt
