User Manual for Manfrotto MT057C4-G 057 Carbon Fiber Tripod with Geared Column Click to enlarge the picture
Contents of the user manual for the Manfrotto MT057C4-G 057 Carbon Fiber Tripod
- Product category: Tripod Legs Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripod Legs
 |
User manual for the Manfrotto MT057C4-G 057 Carbon Fiber Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description Manfrotto Professional Tripods and Heads Read More - Manfrotto 057 Series Demo

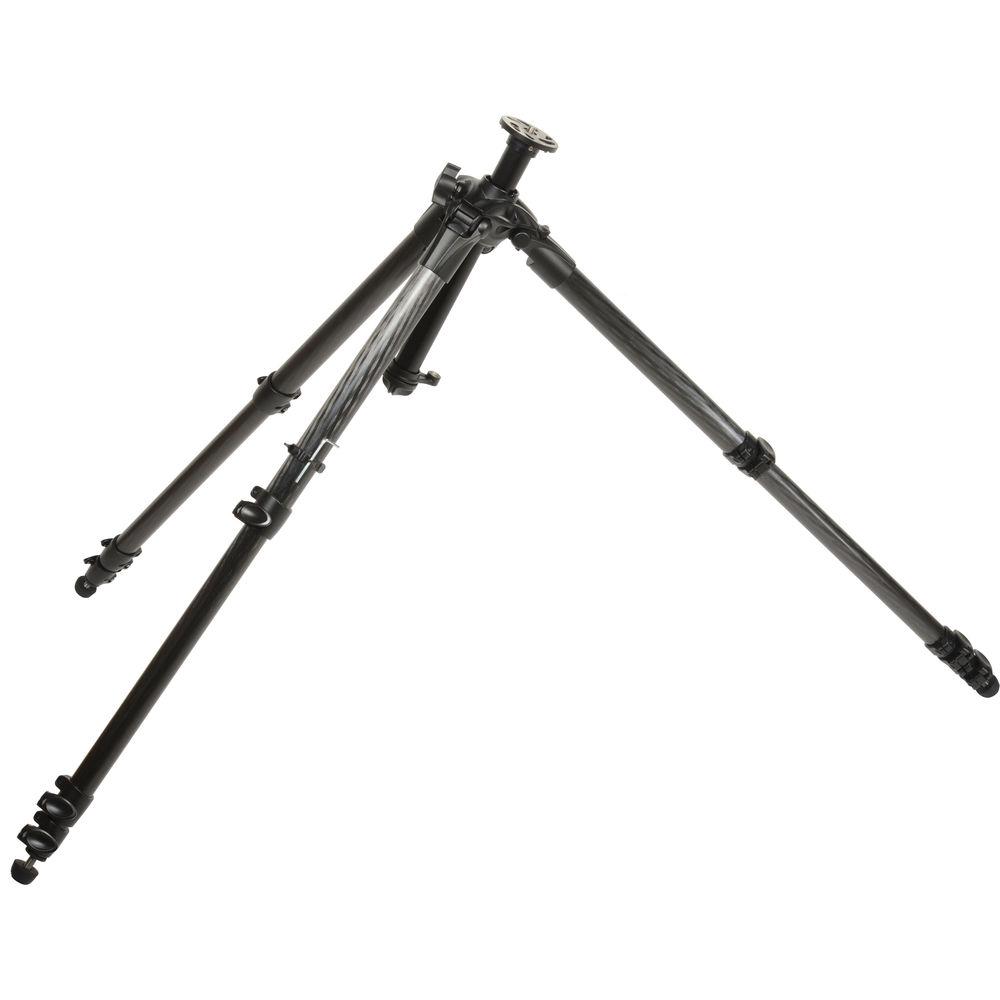

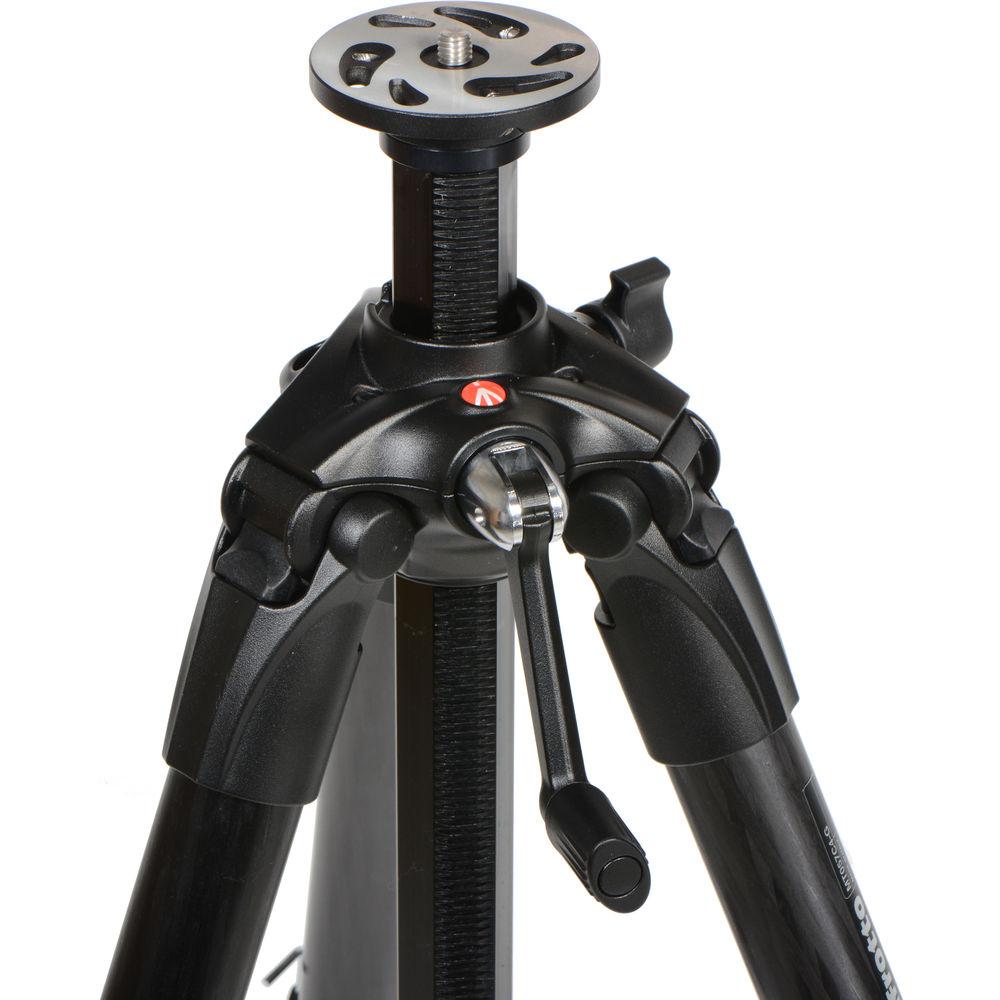

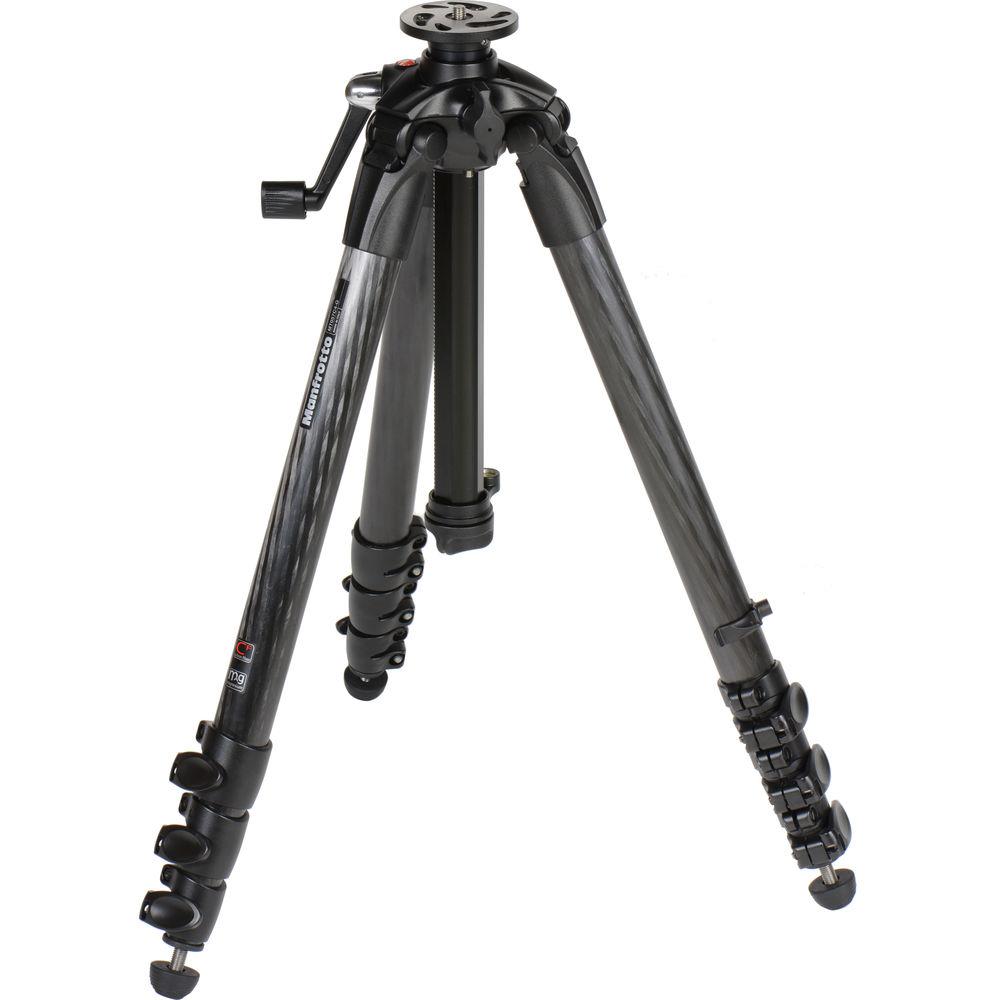

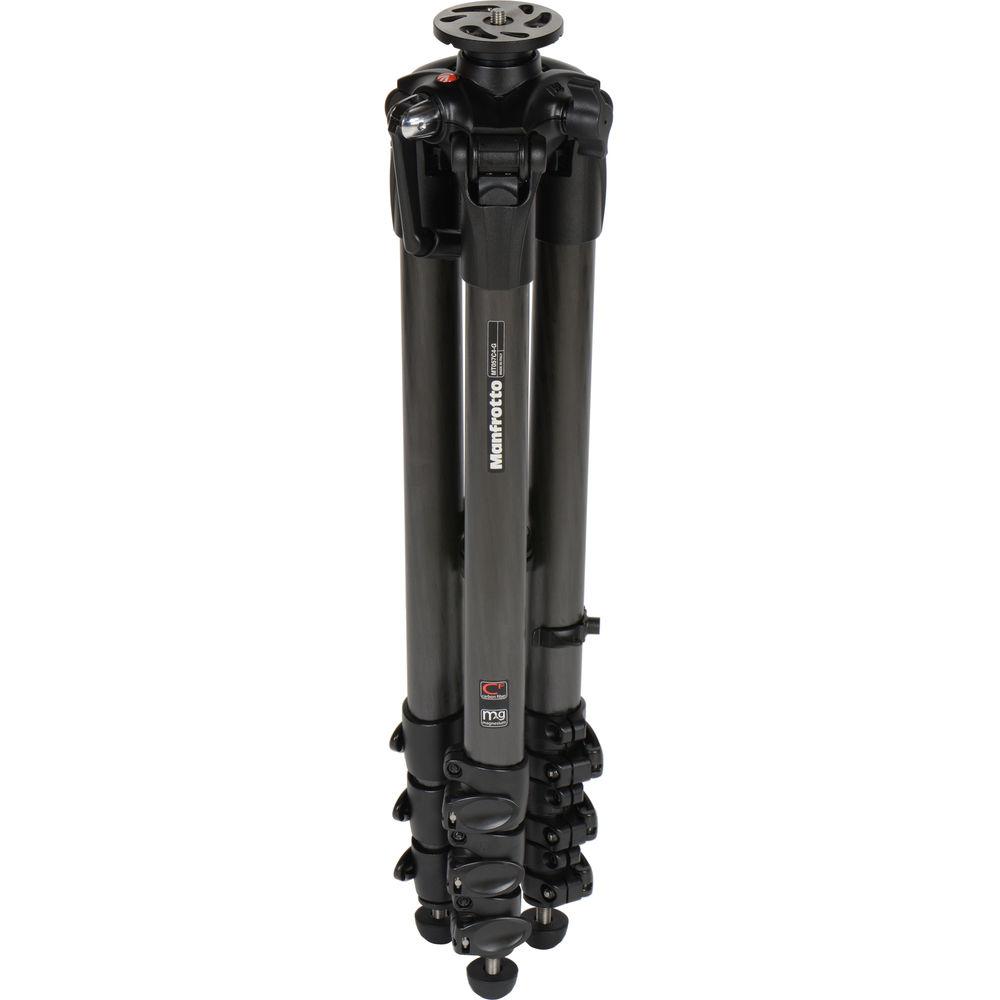

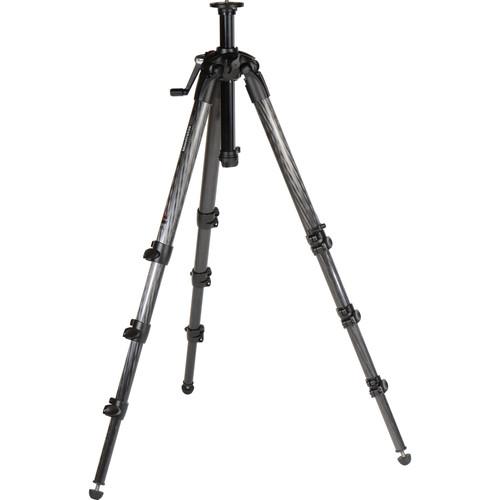

The Manfrotto 057 Carbon Fiber Tripod with Geared Column is a heavy-duty tripod that's intended for use with video cameras and large still cameras. With a 26.5 lb load capacity, the lightweight carbon fiber leg tubes of the 057 tripod provide rigid support even under a considerable amount of weight. The tripod's geared center column provides maximum precision when you're setting the camera position. The column has a non-rotating, three-faceted design for increased system stability. You can unscrew the center-post collar, remove the center column, and attach the collar directly to the included low-angle adapter (through the chassis) to enable extremely low-angle shooting. With this method the 057 tripod can achieve a minimum height of 9.0". The round carbon fiber legs feature user-adjustable flip locks to free and secure the leg stages. An included key for tightening the flip locks attaches to a leg for ever-ready access. With both the legs and the center column fully extended, the tripod reaches an extremely tall maximum height of 80.7". - Retractable spikes in feet

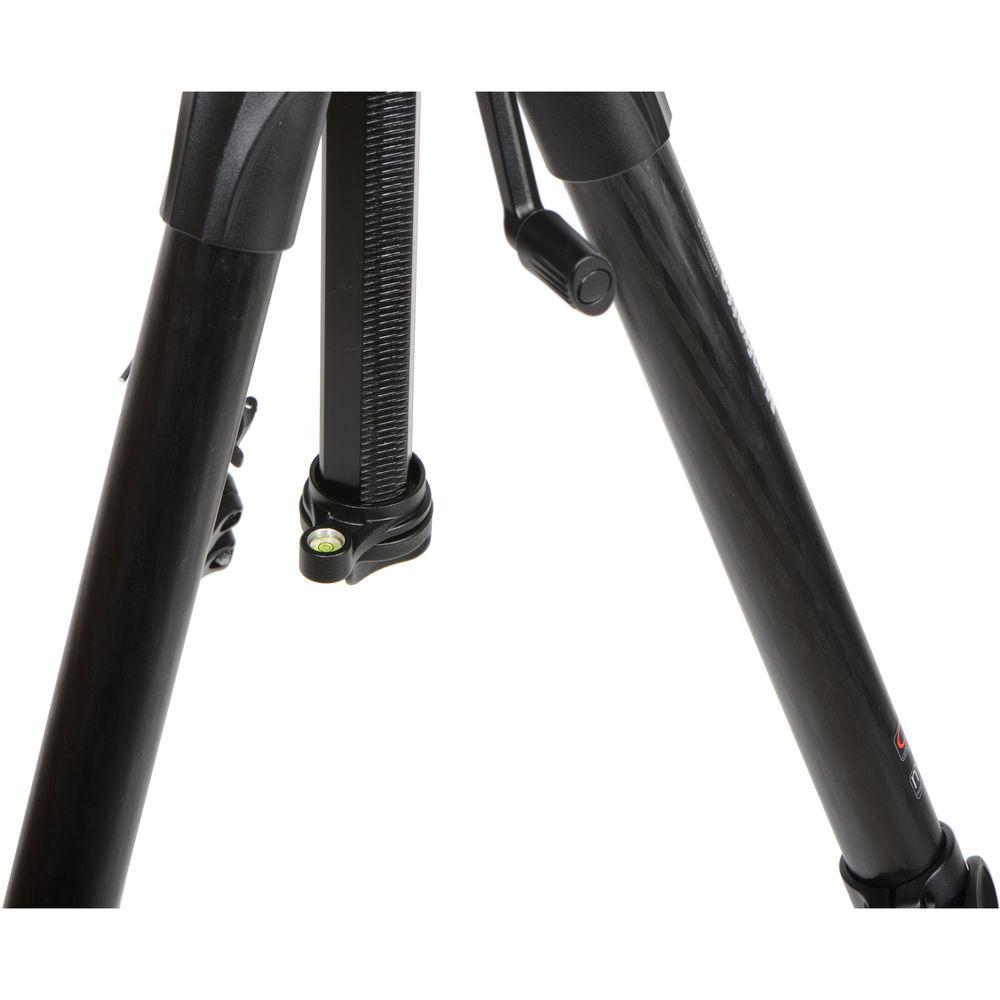

- Bubble level near bottom of center column
- Screw locks for tightening a tripod head to the center-post collar
- Manfrotto suggests its 114 Video/Movie Heavy Dolly for this tripod
UPC: 719821324195 In the Box Manfrotto MT057C4-G 057 Carbon Fiber Tripod with Geared Column Limited 6-Month Warranty, Extendable to 10 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto MT057C4-G 057 Carbon Fiber Tripod with Geared Column in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManfrotto MT057C4-G Specs | | | Load Capacity | 26.5 lb / 12 kg | | Maximum Working Height | 80.7" / 205 cm | | Max Height without Center Column | 70.9" / 180.1 cm | | Minimum Working Height | 9" / 22.9 cm | | Folded Length | 26.2" / 66.5 cm | | Head Mount Type | 3/8"-16 Screw | | Weight | 8.2 lb / 3.7 kg | | Materials | Carbon Fiber | | Bubble Level | Yes | | | | Leg Lock Type | Flip Lock | | Leg Positions | 3 Positions | | Independent Leg Spread | Yes | | Leg Sections | 4 | | Leg Diameter | 1.5" / 38.1 mm | | Feet Features | Retractable, Spiked | | | | Center Column Shape | Faceted | | Center Column Sections | 1 | | Center Column Extension Type | Geared | | Center Column Diameter | 1.4" / 35.6 mm | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 29.5 x 6.9 x 6.9" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 77 owners. Add your rating and experience with the product.
