Product description

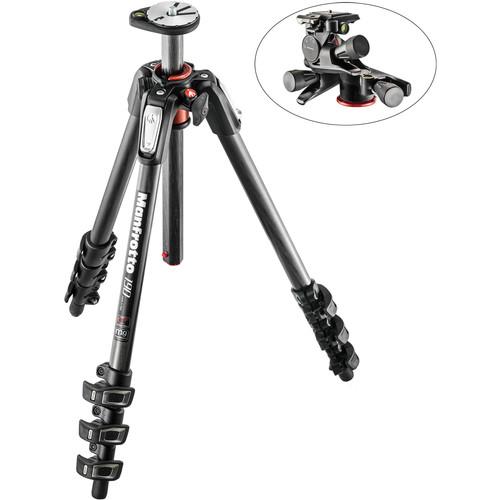

• Manfrotto MT190CXPRO4 Carbon Fiber Tripod
  • MT190 Series Video
  The black, redesigned MT190CXPRO4 Carbon Fiber Tripod from Manfrotto builds on the success and popularity of the previous 190 series with professional hardware and convenience features that make it even easier to use than its predecessor. When the three leg sections and center column are fully extended, the tripod reaches a maximum height of 63", and its load capacity of 15.4 lb makes it a good choice for larger cameras. The tripod weighs 3.6 lb, and folds down to 20.6" for transport. Set up is faster than ever with Manfrotto's Quick Power Lock System that allows you to completely extend the tripod legs with just one hand. Once set up you can use the MT190CXPRO4's rapid center column in standard vertical mode or swing it into horizontal position like a boom with Manfrotto's 90° Column feature. Enlarged tabs on the individual leg angle selectors allow you to get down to only 3.2" for macro work with the column in horizontal mode. And once you're down there you can attach any of Manfrotto's flexible or articulated arms to hold lights or reflectors via the Easy Link plug built into the tripod's spider. Convenience features include a bubble level that rotates so that you can see it easily regardless of the tripod's position. Finally, Manfrotto's insistence on form following function has yielded a tripod that you'll not only be happy to use but you'll be happy to be seen with, too.
  Fast Setup with QPL
  • The Quick Power Lock (QPL) system is one of the most eye-catching and unique features of the redesigned 190. It is a strong, ultra fast, ergonomic locking system that allows for complete extension of the legs with one hand.
  90° Column
  • One of the most innovative aspects of the 190 series is its compactness, which allows for easier portability. The redesigned patented 90° Column is accessible whenever you need it with simple one finger operation.
  Easy Link Plug
  • The plug allows instant connection between tripod and accessories, such as LED lights for macro photography and DSLR video applications using Manfrotto articulated arms and brackets.
  Rotating Leveling Bubble
  • The bubble is easy to read, whatever the shape of the head or however the tripod is positioned. Just rotate it towards you for easy viewing.
  Leg Angle Selectors
  • Each leg has user selection of four angles to accommodate uneven ground or rough terrain. The selectors are manufactured according to most innovative ergonomic standards to prevent fingers and nails being trapped in the upper casting.
  Manfrotto's Eye to Style and Design Detail
  • The entire shape of the tripod has been modified and made more manageable and stylish. The complete redesign of its functional elements shows a particular attention to aesthetics and details: the brand name, for example, appears in many sections of the new 190, including the two legwarmers made of comfortable rubber to provide a secure grip and prevent the conduction of heat and cold in extreme weather conditions.
  UPC: 719821364627
• Manfrotto XPRO 3-Way, Geared Pan-and-Tilt Head with 200PL-14 Quick Release Plate
  • MT190 Series Video
  This XPRO 3-Way, Geared Pan-and-Tilt Head from Manfrotto has a load capacity of 8.8 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC2 quick release cam lock and a 200PL-14 Quick Release Plate. RC2 compatible quick release plates such as the 200PL-14 can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be quickly reattached. The cam lock also features a safety catch to prevent the 200PL-14, or another compatible quick release plate from accidentally disconnecting.

  Cameras, sport optics, or camcorders that are compatible with a 1/4"-20 mount can be connected to the quick release plate before securing it to the pan-and-tilt head. The head can be rotated 360°, tilted 90° forwards or 20° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other and have individual, spring-clamp controls. Squeezing each clamp's two handles allows the corresponding movement to be rapidly adjusted, and once the handles are released, the adjustment is locked into place. One handle on each clamp is also an integrated twist knob that allows incremental, geared adjustments, which help to ensure that any device mounted to this XPRO 3-Way, Geared Pan-and-Tilt Head is precisely positioned relative to the subject.

  To further promote fast and repeatable device positioning, this XPRO 3-Way, Geared Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility.
  XPRO 3-Way, Geared Pan-and-Tilt Head
  • • 8.8 lb load capacity
    • Compatible with tripods or support systems that feature a 3/8"-16 mount
    • Can be rotated 360°, tilted 90° forwards or 20° backwards, as well as 90° sideways for portrait orientation
    • Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other and have individual spring-clamp controls
    • Squeezing each clamp's two handles allows the corresponding rotation, backwards and forwards tilt, or portrait orientation tilt to be rapidly adjusted; and once the handles are released, the adjustment is locked into place
    • One handle on each clamp is also an integrated twist knob that allows incremental, geared adjustments for precise device positioning
    • Dedicated angle scales for each movement that are designed for easy visibility further promote fast, repeatable, and accurate device positioning
    • Integrated, RC2 quick release cam lock
    • Two bubble levels for landscape orientations and one bubble level for portrait orientations
    • Durable and lightweight polymer and fiberglass construction
  200PL-14 Quick Release Plate
  • • Compatible with Manfrotto RC2 quick release cam lock
    • Measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface
    • 1/4"-20 mount
    • Durable, aluminum-alloy construction
  UPC: 719821376088

• MT190CXPRO4 Carbon Fiber Tripod etfcteyfu
• Limited 6-Month Warranty, Extendable to 10 Years with Product Registration

• XPRO 3-Way, Geared Pan-and-Tilt Head with 200PL-14 Quick Release Plate

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Manfrotto MT190CXPRO4 Carbon Fiber Tripod

  Load Capacity	15.4 lb / 7 kg
  Maximum Working Height	63" / 160 cm
  Max Height without Center Column	53.2" / 135.1 cm
  Minimum Working Height	3.2" / 8.1 cm
  Folded Length	20.6" / 52.3 cm
  Head Mount Type	3/8"-16 Screw
  Weight	3.5 lb / 1.6 kg
  Materials	Carbon Fiber
  Bubble Level	Yes

  Leg Lock Type	Flip Lock
  Independent Leg Spread	Yes
  Leg Sections	4
  Feet Features	Rubber

  Center Column Sections	1
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	Yes

  Box Dimensions (LxWxH)	21.9 x 5.4 x 5.4"

• Manfrotto XPRO 3-Way, Geared Pan-and-Tilt Head with 200PL-14 Quick Release Plate

  Head Type	Pan & Tilt Head
  Base Mount	3/8"-16 Thread
  Camera Mounting Screw	1/4"-20 Male
  Quick Release Plate Type	200PL-14
  Load Capacity	8.8 lb / 3.99 kg
  Number of Bubble Levels	3
  Material	Technopolymer

  Lateral Tilt
