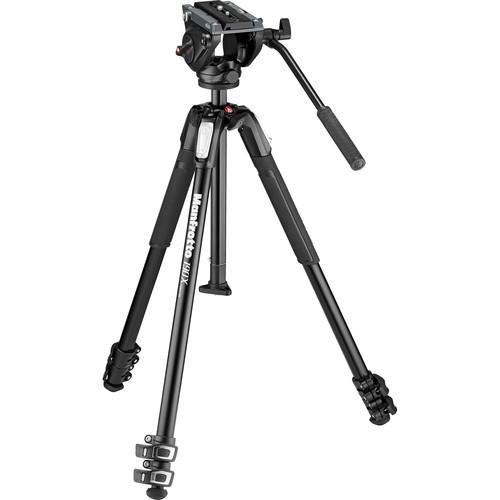

Product description The MT190X3 3-Section Aluminum Tripod with MVH500AH Fluid Head Hybrid Kit from Manfrotto is a versatile, travel-friendly package that pairs a fluid video head with a compact and lightweight photo tripod. Supporting loads up to 11 lb, the system is ideal for use with DSLRs, mirrorless cameras, and compact camcorders. It offers a standard working height of 27 to 57", with a maximum height of 67" with the center column fully extended. For ultra-low operating heights, the center column can be replaced with an included ground-level adapter to get the mounting plate as low as 3.5" above the ground with the legs set to the widest angle. The MVH500AH head features a side-lock quick release plate system that allows for fast and efficient camera mounting from above, fixed fluid pan/tilt drag, and a pre-set 5.3 lb spring-loaded counterbalance.
Please see below for more information on the components of this kit. - MT190X3 Aluminum Tripod
- Manfrotto 500 Fluid Video Head
- Manfrotto Fluid Video Head Range - Tutorial Video

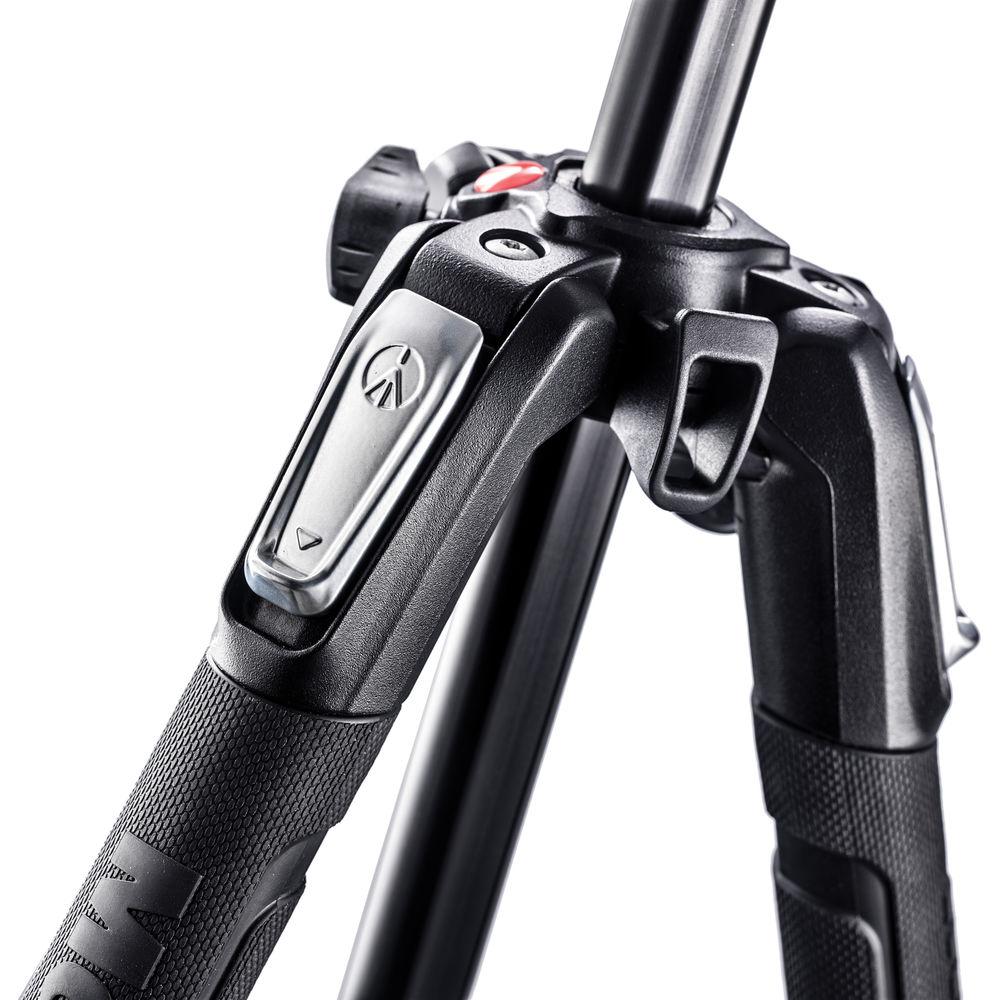

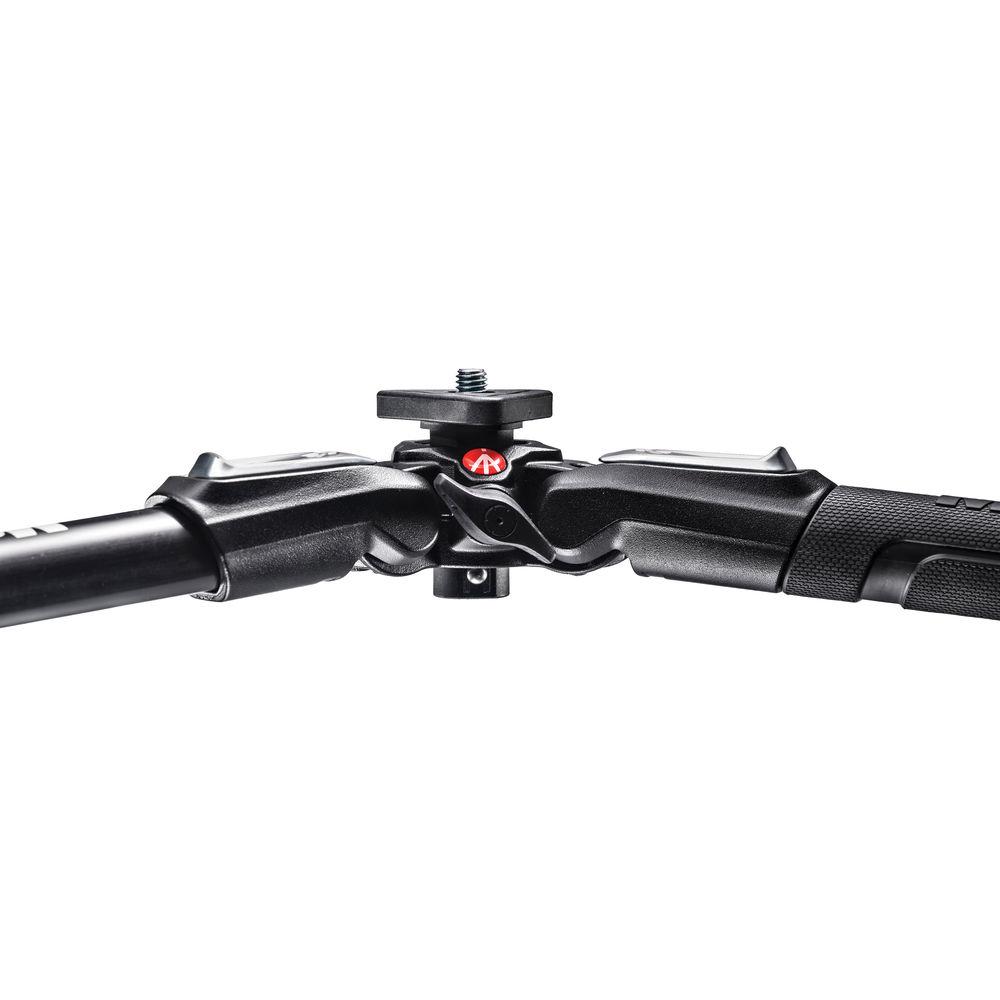

The Manfrotto MT190X3 Aluminum Tripod is an addition to the popular 190 series, adding a Quick Power Lock System, ground level adapter, and an Easy Link attachment. It can hold up to 15.4 lb of gear, and has a maximum height of 63". The ground-level adapter replaces the center column to allow the tripod's mounting plate to sit just 3.5" above the ground with the legs at their widest angle.

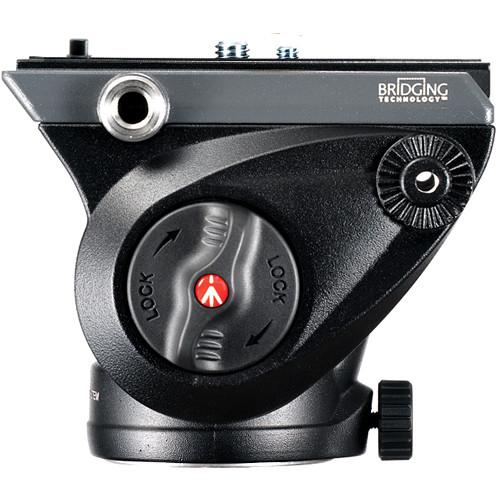

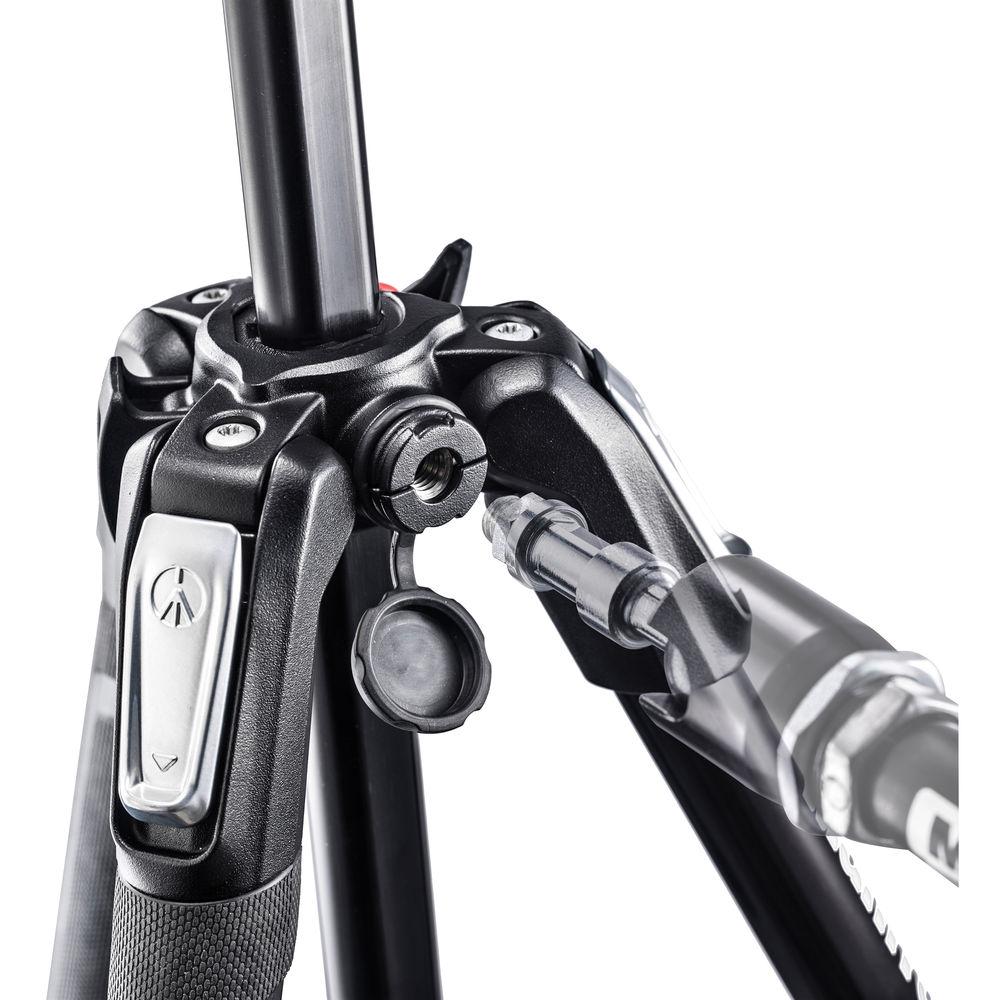

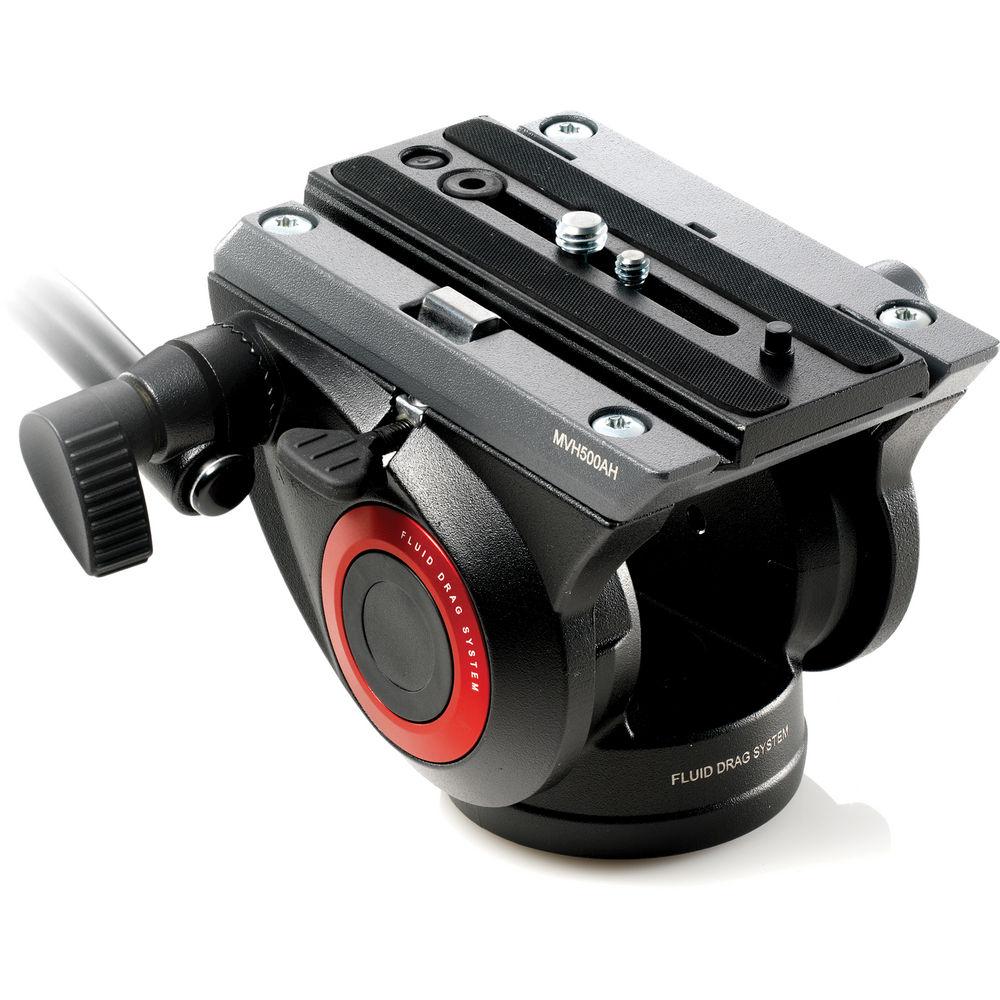

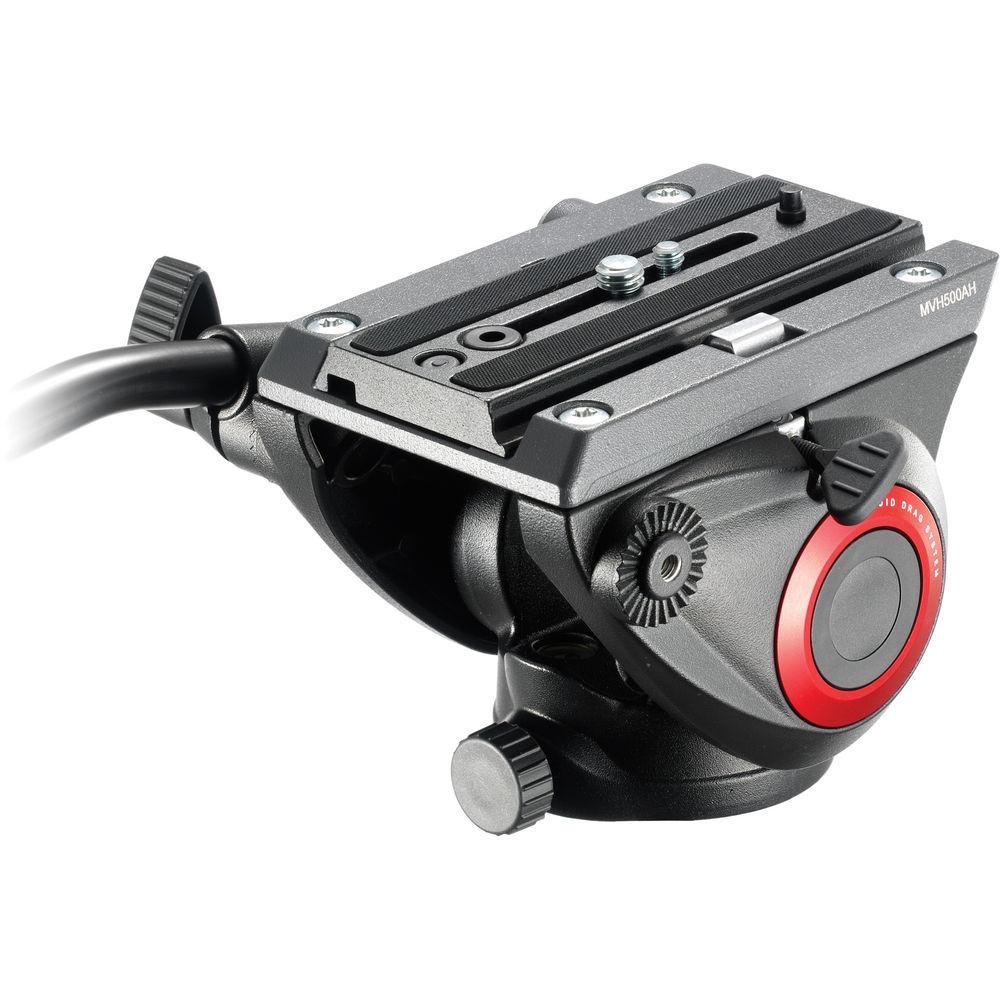

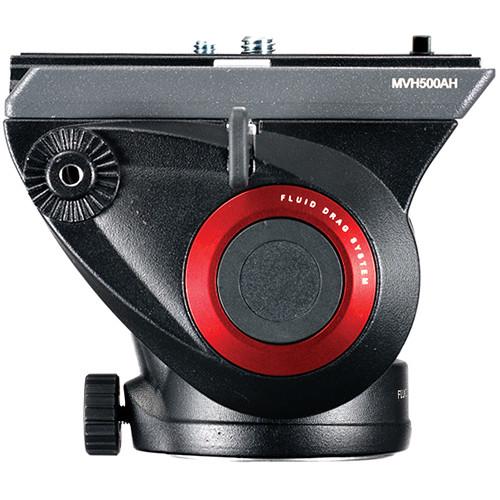

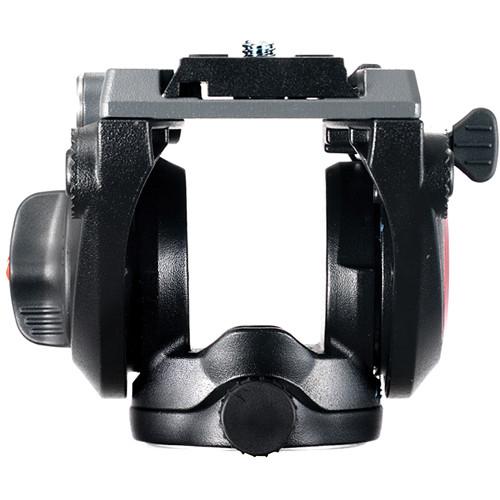

The QPL system allows the three leg sections to be completely extended with one hand for simple set up. An Easy Link adapter attachment allows instant connection between tripod and accessories, such as LED lights for macro photography and DSLR video applications using Manfrotto articulated arms and brackets. Each leg can be set at four different angles to accommodate uneven ground or rough terrain. UPC: 719821378037 - MVH500AH Fluid Video Head with Flat Base The MVH500AH Fluid Video Head with Flat Base from Manfrotto is designed with a wide platform, optimal for HDSLR camera bodies. Smooth and precise, it has a maximum weight load of 11 lb and professional quality fluid cartridges on both its pan and tilt axes. It has a pre-set spring-loaded counterbalance of 5.3 lb, its lateral tilt range is -70°/+90° and it provides 360° panning rotation.The side lock system on the MVH500AH allows the camera and sliding QR plate to click quickly into the head from above, instead of needing to be aligned and slid in from the back. This makes it easier and safer to mount your camera on this head. The head attaches to a tripod via a 3/8"-16 thread and includes a 500PLONG sliding balance plate with a captive 1/4"-20 tie-down screw and a 3/8"-16 adapter bushing. It also provides an Easy Link 3/8" connector on the side of the head to attach accessories such as a video monitor. The MVH500AH is made from aluminum alloy, measures 3.74" high and provides a bubble level and precision control handle.
- Wide platform fluid pan video head ideal for HDSLR cameras
- 5.3 lb pre-set spring-loaded counterbalance system
- Side-lock system for easier and safer camera mounting
- Aluminum alloy construction
- Includes long quick-release plate
- 11 lb maximum weight capacity
UPC: 719821346975 In the Box Bundle Items MT190X3 Aluminum Tripod dtebyqdqzzaueuzyauuvvbfyfdbq - Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
MVH500AH Fluid Video Head with Flat Base - 500PLONG Quick Release Plate
- Limited 6-Month Warranty, Extendable to 5 Years with Product Registration
Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto MT190X3 3-Section Aluminum Tripod with MVH500AH Fluid Head Hybrid Video Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Manfrotto MT190X3 3-Section Aluminum Tripod with MVH500AH Fluid Head Hybrid Video Kit can be downloaded in PDF format at the link stated below.
Technical parameters - MT190X3 Aluminum Tripod
| | | Load Capacity | 15.4 lb / 7 kg | | Maximum Working Height | 63" / 160 cm | | Max Height without Center Column | 53.1" / 135 cm | | Minimum Working Height | 3.5" / 8.9 cm | | Folded Length | 23.2" / 58.9 cm | | Head Mount Type | 3/8"-16 Screw | | Weight | 4.3 lb / 2 kg | | Materials | Aluminum Alloy | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 3 | | | | Center Column Features | Removable | | Center Column Shape | Faceted | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Box Dimensions (LxWxH) | 26.0 x 5.4 x 5.4" | - MVH500AH Fluid Video Head with Flat Base
| | | Camera Plate Features | Sliding Balance Plate, Quick Release | | Camera Plate Type | 500PLONG | | Camera Mounting Screw | 1 x 1/4"-20 Male
1 x 3/8"-16 Male | | | | Base Mount | 3/8"-16 Thread | | | | Drag Control | Fixed | | Drag Type | Fluid | | Vertical Tilt | +90
