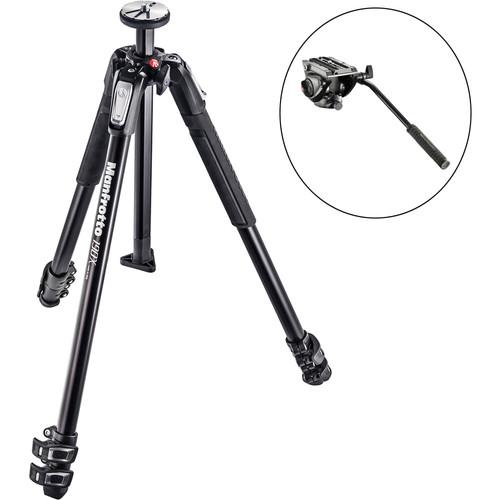

User Manual for Manfrotto MT190X3 3-Section Tripod with MVH500AH Fluid Video Head Kit Click to enlarge the picture
Contents of the user manual for the Manfrotto MT190X3 3-Section Tripod with MVH500AH
- Product category: Tripod Systems Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripod Systems
|
User manual for the Manfrotto MT190X3 3-Section Tripod with MVH500AH contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description Use this Manfrotto MT190X3 Tripod & MVH500AH Fluid Video Head Kit, from , to shoot professional videos with your DSLR camera.
The MT190X3 is a 3-leg-section aluminum tripod adjustable between ground level and a maximum height of 63". It has a ground-level adapter instead of a center column to allow the tripod's mounting plate to sit just 3.5" above the ground when the legs are set to their widest angle. Each leg can be positioned at four different angles to compensate for uneven ground or rough terrain.
The MVH500AH Fluid Head is designed with a wide platform specifically for DSLR cameras. It also has a side lock system that allows the camera to install and click in from above. This head features an 11 lb payload and 5.3 lb spring-loaded counterbalance. - Manfrotto MT190X3 Aluminum Tripod The Manfrotto MT190X3 Aluminum Tripod is an addition to the popular 190 series, adding a Quick Power Lock System, ground level adapter, and an Easy Link attachment. It can hold up to 15.4 lb of gear, and has a maximum height of 63". The ground-level adapter replaces the center column to allow the tripod's mounting plate to sit just 3.5" above the ground with the legs at their widest angle.
The QPL system allows the three leg sections to be completely extended with one hand for simple set up. An Easy Link adapter attachment allows instant connection between tripod and accessories, such as LED lights for macro photography and DSLR video applications using Manfrotto articulated arms and brackets. Each leg can be set at four different angles to accommodate uneven ground or rough terrain. UPC: 719821378037 - Manfrotto MVH500AH Fluid Video Head with Flat Base The MVH500AH Fluid Video Head with Flat Base from Manfrotto is designed with a wide platform, optimal for HDSLR camera bodies. Smooth and precise, it has a maximum weight load of 11 lb and professional quality fluid cartridges on both its pan and tilt axes. It has a pre-set spring-loaded counterbalance of 5.3 lb, its lateral tilt range is -70°/+90° and it provides 360° panning rotation.The side lock system on the MVH500AH allows the camera and sliding QR plate to click quickly into the head from above, instead of needing to be aligned and slid in from the back. This makes it easier and safer to mount your camera on this head. The head attaches to a tripod via a 3/8"-16 thread and includes a 500PLONG sliding balance plate with a captive 1/4"-20 tie-down screw and a 3/8"-16 adapter bushing. It also provides an Easy Link 3/8" connector on the side of the head to attach accessories such as a video monitor. The MVH500AH is made from aluminum alloy, measures 3.74" high and provides a bubble level and precision control handle.
- Wide platform fluid pan video head ideal for HDSLR cameras
- 5.3 lb pre-set spring-loaded counterbalance system
- Side-lock system for easier and safer camera mounting
- Aluminum alloy construction
- Includes long quick-release plate
- 11 lb maximum weight capacity
UPC: 719821346975 In the Box - MT190X3 Aluminum Tripod bbvzuafetbdxtxrtsartdfdsfsyv
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
- MVH500AH Fluid Video Head with Flat Base
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto MT190X3 3-Section Tripod with MVH500AH Fluid Video Head Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Manfrotto MT190X3 Aluminum Tripod
| | | Load Capacity | 15.4 lb / 7 kg | | Maximum Working Height | 63" / 160 cm | | Max Height without Center Column | 53.1" / 135 cm | | Minimum Working Height | 3.5" / 8.9 cm | | Folded Length | 23.2" / 58.9 cm | | Head Mount Type | 3/8"-16 Screw | | Weight | 4.3 lb / 2 kg | | Materials | Aluminum Alloy | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 3 | | | | Center Column Features | Removable | | Center Column Shape | Faceted | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Box Dimensions (LxWxH) | 26.0 x 5.4 x 5.4" | - Manfrotto MVH500AH Fluid Video Head with Flat Base
| | | Camera Plate Features | Sliding Balance Plate, Quick Release | | Camera Plate Type | 500PLONG | | Camera Mounting Screw | 1 x 1/4"-20 Male
1 x 3/8"-16 Male | | | | Base Mount | 3/8"-16 Thread | | | | Drag Control | Fixed | | Drag Type | Fluid | | Vertical Tilt | +90
