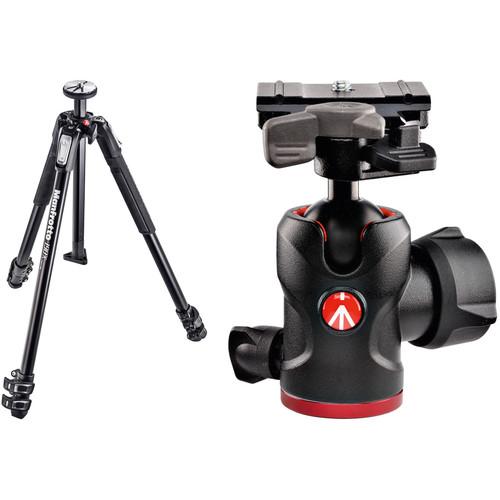

User Manual for Manfrotto MT190X3 Aluminum Tripod and 494 Ball Head with 200PL-PRO Quick Release Plate Kit Click to enlarge the picture
Contents of the user manual for the Manfrotto MT190X3 Aluminum Tripod and 494
- Product category: Tripods with Heads Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripods with Heads
|
User manual for the Manfrotto MT190X3 Aluminum Tripod and 494 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More sxuvqaewtudeyyuwyqrz Set up quickly and be ready to shoot with the Manfrotto MT190X3 Aluminum Tripod and 494 Ball Head with 200PL-PRO Quick Release Plate Kit from . Quick Power Leg Locks allow you to rapidly lock or unlock the legs effortlessly, and the 494 ball head keeps your camera stable for creating sharp images. - Manfrotto MT190X3 Aluminum Tripod The Manfrotto MT190X3 Aluminum Tripod is an addition to the popular 190 series, adding a Quick Power Lock System, ground level adapter, and an Easy Link attachment. It can hold up to 15.4 lb of gear, and has a maximum height of 63". The ground-level adapter replaces the center column to allow the tripod's mounting plate to sit just 3.5" above the ground with the legs at their widest angle.
The QPL system allows the three leg sections to be completely extended with one hand for simple set up. An Easy Link adapter attachment allows instant connection between tripod and accessories, such as LED lights for macro photography and DSLR video applications using Manfrotto articulated arms and brackets. Each leg can be set at four different angles to accommodate uneven ground or rough terrain. UPC: 719821378037 - Manfrotto 494 Center Ball Head with 200PL-PRO Quick Release Plate This Manfrotto 494 Center Ball Head features an integrated RC2 quick release cam lock and a 200PL-PRO Quick Release Plate. Compatible quick release plates can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent a compatible quick release plate from accidentally disconnecting.
The 494 Center Ball Head with 200PL-PRO Quick Release Plate has a load capacity of 17.6 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. By loosening the head's primary locking knob, the ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. A recessed dial set within that locking knob can be rotated to apply tension control to the ball-and-socket joint's movements. Along the opposite side of the ball head, a secondary locking knob controls the ability to rotate the head 360°.
Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the 200PL-PRO quick release plate, as well as 3/8"-16 threads via an included bushing adapter. The plate is also compatible with separately available tripod heads that feature an Arca-type clamp. - 494 Center Ball Head
-
- 17.6 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
- Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
- Integrated RC2 quick release cam lock
- Primary locking knob allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
- Secondary locking knob allows head to rotate 360°
- Dedicated tension control dial for the ball-and-socket joint's movements
- Durable, aluminum-alloy construction
- 200PL-PRO Quick Release Plate
-
- Compatible with Manfrotto RC2 quick release cam lock and Arca-type quick release clamps
- Measures 1.7 x 2.1 x 0.4"
- 1/4"-20 mount with support for 3/8"-16 via bushing adapter
- Durable, aluminum-alloy construction
UPC: 719821423904 In the Box - MT190X3 Aluminum Tripod sxuvqaewtudeyyuwyqrz
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
- 494 Center Ball Head with 200PL-PRO Quick Release Plate sxuvqaewtudeyyuwyqrz
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto MT190X3 Aluminum Tripod and 494 Ball Head with 200PL-PRO Quick Release Plate Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Manfrotto MT190X3 Aluminum Tripod
| | | Load Capacity | 15.4 lb / 7 kg | | Maximum Working Height | 63" / 160 cm | | Max Height without Center Column | 53.1" / 135 cm | | Minimum Working Height | 3.5" / 8.9 cm | | Folded Length | 23.2" / 58.9 cm | | Head Mount Type | 3/8"-16 Screw | | Weight | 4.3 lb / 2 kg | | Materials | Aluminum Alloy | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 3 | | | | Center Column Features | Removable | | Center Column Shape | Faceted | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Box Dimensions (LxWxH) | 26.0 x 5.4 x 5.4" | - Manfrotto 494 Center Ball Head with 200PL-PRO Quick Release Plate
| | | Head Type | Ball Head | | Base Mount | 3/8"-16 Female | | Camera Mounting Screw | 1/4"-20 Male & 3/8"-16 with Bushing | | Quick Release Plate Type | Arca-Type, RC2 | | Load Capacity | 17.6 lb / 7.98 kg | | Number of Bubble Levels | None | | Friction Control | Yes | | Independent Pan Lock | Yes | | Material | Aluminum | | | | Lateral Tilt | -90
