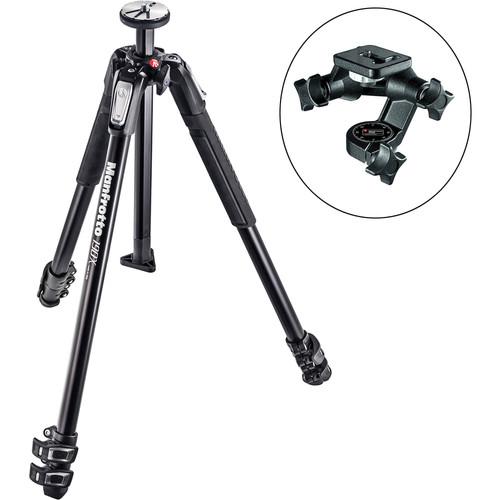

Manfrotto MT190X3 Aluminum Tripod with 056

User Manual for Manfrotto MT190X3 Aluminum Tripod with 056 3-D Junior Pan Tilt Head

• Product category: Tripods with Heads Manfrotto
• Brand: Manfrotto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Manfrotto Tripods with Heads

Product description

• Manfrotto MT190X3 Aluminum Tripod The Manfrotto MT190X3 Aluminum Tripod is an addition to the popular 190 series, adding a Quick Power Lock System, ground level adapter, and an Easy Link attachment. It can hold up to 15.4 lb of gear, and has a maximum height of 63". The ground-level adapter replaces the center column to allow the tripod's mounting plate to sit just 3.5" above the ground with the legs at their widest angle.

  The QPL system allows the three leg sections to be completely extended with one hand for simple set up. An Easy Link adapter attachment allows instant connection between tripod and accessories, such as LED lights for macro photography and DSLR video applications using Manfrotto articulated arms and brackets. Each leg can be set at four different angles to accommodate uneven ground or rough terrain. UPC: 719821378037
• Manfrotto 056 3-Way, Pan-and-Tilt Head with 1/4"-20 Mount The 056 3-Way, Pan-and-Tilt Head from Manfrotto has a load capacity of 6.6 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the head's rubberized, non-slip platform. The head can be rotated 360°, and tilted 180° forwards or 30° backwards, as well as 180° sideways. Each of these three movements function independently of each other and can be locked into place. To promote fast and repeatable device positioning, this 056 3-Way, Pan-and-Tilt Head also includes a dedicated angle scale for rotational movements that is designed for easy visibility.
  • • 6.6 lb load capacity
    • Compatible with tripods or support systems that feature a 3/8"-16 mount
    • Can be rotated 360°, tilted 180° forwards or 30° backwards, as well as 180° sideways
    • Rotation, backwards and forwards tilt, as well as sideways tilt each function independently of each other and can be locked into place
    • Rubberized, non-slip platform with 1/4"-20 mount
    • Dedicated angle scale for rotational movements that is positioned for easy visibility helps promote fast and repeatable device positioning
    • Durable, aluminum-alloy construction
  UPC: 719821284017

• MT190X3 Aluminum Tripod xvyzcbvccsbuuuawft
• Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
• Limited 6-Month Warranty, Extendable to 10 Years with Product Registration

• 056 3-Way, Pan-and-Tilt Head with 1/4"-20 Mount

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Manfrotto MT190X3 Aluminum Tripod

  Load Capacity	15.4 lb / 7 kg
  Maximum Working Height	63" / 160 cm
  Max Height without Center Column	53.1" / 135 cm
  Minimum Working Height	3.5" / 8.9 cm
  Folded Length	23.2" / 58.9 cm
  Head Mount Type	3/8"-16 Screw
  Weight	4.3 lb / 2 kg
  Materials	Aluminum Alloy

  Leg Lock Type	Flip Lock
  Independent Leg Spread	Yes
  Leg Sections	3

  Center Column Features	Removable
  Center Column Shape	Faceted
  Center Column Sections	1
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	No

  Box Dimensions (LxWxH)	26.0 x 5.4 x 5.4"

• Manfrotto 056 3-Way, Pan-and-Tilt Head with 1/4"-20 Mount

  Head Type	Pan & Tilt Head
  Base Mount	3/8"-16 Thread
  Camera Mounting Screw	1/4"-20 Male
  Quick Release Plate Type	No Quick Release
  Load Capacity	6.6 lb / 2.99 kg
  Number of Bubble Level(s)	None
  Material	Aluminum

  Lateral Tilt
