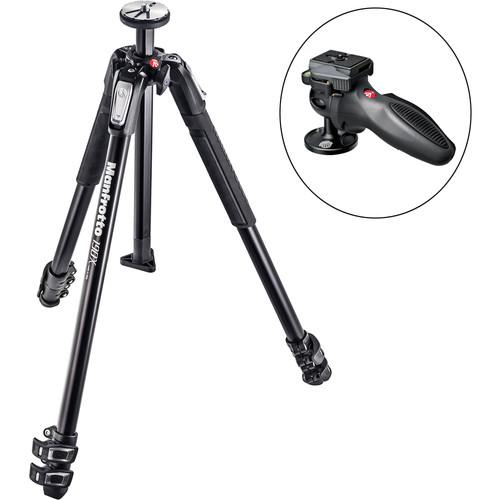

Product description Time-Lapse Tips and Tools Read More This kit from B&H Photo pairs the MT190X3 Aluminum Tripod with the 324RC2 Joystick Head. The tripod features a Quick Power Lock System, ground level adapter, and an Easy Link attachment. It can hold up to 7.7 lb of gear, and has a maximum height of 67". The ground-level adapter replaces the center column to allow the tripod's mounting plate to sit just 7.5" above the ground with the legs at their widest angle.
The QPL system allows the three leg sections to be completely extended with one hand for simple set up. An Easy Link adapter attachment allows instant connection between tripod and accessories, such as LED lights for macro photography and DSLR video applications using Manfrotto articulated arms and brackets. Each leg can be set at four different angles to accommodate uneven ground or rough terrain.
The joystick head is constructed of Adapto, an ultra-durable and lightweight technopolymer, optimized for compactness and transportability with a high load capacity and reduced weight. The joystick design offers a uniquely ergonomic way of quickly unlocking, moving and blocking your camera. You can frame and reposition the head freely and frequently to get the perfect photo: grip the head to move the camera and as soon as you release, it locks securely in place. The Joystick Head has a single locking lever, making control of all movements fast. The head features 360° panoramic rotation, -19°/ +90° lateral, and -90°/ +90° front tilt. Cameras are attached to the ball head with the 200PL-14 Plate with 1/4"-20 male threads. This 0.95 lb lightweight head has a 7.7 lb load capacity. - Manfrotto MT190X3 Aluminum Tripod The Manfrotto MT190X3 Aluminum Tripod is an addition to the popular 190 series, adding a Quick Power Lock System, ground level adapter, and an Easy Link attachment. It can hold up to 15.4 lb of gear, and has a maximum height of 63". The ground-level adapter replaces the center column to allow the tripod's mounting plate to sit just 3.5" above the ground with the legs at their widest angle.
The QPL system allows the three leg sections to be completely extended with one hand for simple set up. An Easy Link adapter attachment allows instant connection between tripod and accessories, such as LED lights for macro photography and DSLR video applications using Manfrotto articulated arms and brackets. Each leg can be set at four different angles to accommodate uneven ground or rough terrain. UPC: 719821378037 - Manfrotto 324RC2 Ball Head with 200PL-14 Quick Release Plate This 324RC2 Ball Head from Manfrotto has a load capacity of 7.7 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an RC2 quick release cam lock and a 200PL-14 Quick Release Plate. RC2 compatible quick release plates such as the 200PL-14 can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent a quick release plate from accidentally disconnecting.
The 324RC2 features a ball-and-socket joint with an easy-to-grip control handle. By squeezing the control handle's integrated trigger, the ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. A thumbwheel set within the underside of the control handle can be rotated to apply tension control to the ball-and-socket joint's movements. Once the squeeze trigger is released, any adjustments to the position of the ball-and-socket joint are locked into place.
Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the 200PL-14 quick release plate, which measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface. The 324RC2 is initially configured for use with the right hand. An included hex key allows the RC2 quick release cam lock to be repositioned along with the control handle, enabling left-handed use. - 324RC2 Ball Head
-
- 7.7 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Uses ball-and-socket joint with easy-to-grip control handle to help maximize pan-and-tilt flexibility
- By squeezing the control handle's integrated trigger, the ball-and-socket joint can be quickly swiveled 360°, fully tilted down to a 90° angle, or returned to its upright position
- When the control handle's squeeze trigger is released, any adjustments to the position of the ball-and-socket joint are locked into place
- A thumbwheel set within the underside of the control handle can be rotated to apply tension control to the ball-and-socket joint's movements
- RC2 quick release cam lock
- Built-in bubble level
- Can be configured for left-handed use
- Durable and lightweight aluminum, polymer, and fiberglass construction
- Hex key to adjust position of RC2 quick release cam lock
- Hex key to adjust tension on ball-and-socket joint
- 200PL-14 Quick Release Plate
-
- Compatible with Manfrotto RC2 quick release cam lock
- Measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface
- 1/4"-20 mount
- Durable, aluminum-alloy construction
UPC: 719821312529 In the Box - MT190X3 Aluminum Tripod
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
- 324RC2 Ball Head with 200PL-14 Quick Release Plate xvyzcbvccsbuuuawft
