Manfrotto MT190X3 Aluminum Tripod with 391RC2

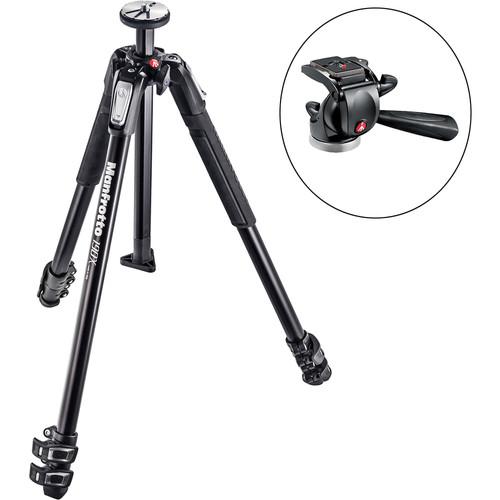

User Manual for Manfrotto MT190X3 Aluminum Tripod with 391RC2 Junior 3-Way Pan Tilt Head

• Product category: Tripods with Heads Manfrotto
• Brand: Manfrotto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Manfrotto Tripods with Heads

Product description

• Manfrotto MT190X3 Aluminum Tripod The Manfrotto MT190X3 Aluminum Tripod is an addition to the popular 190 series, adding a Quick Power Lock System, ground level adapter, and an Easy Link attachment. It can hold up to 15.4 lb of gear, and has a maximum height of 63". The ground-level adapter replaces the center column to allow the tripod's mounting plate to sit just 3.5" above the ground with the legs at their widest angle.

  The QPL system allows the three leg sections to be completely extended with one hand for simple set up. An Easy Link adapter attachment allows instant connection between tripod and accessories, such as LED lights for macro photography and DSLR video applications using Manfrotto articulated arms and brackets. Each leg can be set at four different angles to accommodate uneven ground or rough terrain. UPC: 719821378037
• Manfrotto 391RC2 3-Way, Pan-and-Tilt Head with 200PL-14 Quick Release Plate The 391RC2 3-Way, Pan-and-Tilt Head from Manfrotto has a load capacity of 11 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC2 quick release cam lock and a 200PL-14 Quick Release Plate. RC2 compatible quick release plates such as the 200PL-14 can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be quickly reattached.

  Cameras, sport optics, or camcorders that are compatible with a 1/4"-20 mount can be connected to the quick release plate before securing it to the pan-and-tilt head. The head can be rotated 360°, and tilted 90° backwards or forwards, as well as sideways for portrait orientation. Each of these three movements function independently of each other and can be locked into place.
  391RC2 3-Way, Pan-and-Tilt Head
  • • 11 lb load capacity
    • Compatible with tripods or support systems that feature a 3/8"-16 mount
    • Can be rotated 360°, and tilted 90° backwards or forwards, as well as sideways for portrait orientation
    • Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other and can be locked into place
    • Integrated, RC2 quick release cam lock
    • Durable, aluminum-alloy construction
  200PL-14 Quick Release Plate
  • • Compatible with Manfrotto RC2 quick release cam lock
    • Measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface
    • 1/4"-20 mount
    • Removable, anti-twist index pin
    • Durable, aluminum-alloy construction
  UPC: 719821297666

• MT190X3 Aluminum Tripod
• Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
• Limited 6-Month Warranty, Extendable to 10 Years with Product Registration

• 391RC2 3-Way, Pan-and-Tilt Head with 200PL-14 Quick Release Plate

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Manfrotto MT190X3 Aluminum Tripod

  Load Capacity	15.4 lb / 7 kg
  Maximum Working Height	63" / 160 cm
  Max Height without Center Column	53.1" / 135 cm
  Minimum Working Height	3.5" / 8.9 cm
  Folded Length	23.2" / 58.9 cm
  Head Mount Type	3/8"-16 Screw
  Weight	4.3 lb / 2 kg
  Materials	Aluminum Alloy

  Leg Lock Type	Flip Lock
  Independent Leg Spread	Yes
  Leg Sections	3

  Center Column Features	Removable
  Center Column Shape	Faceted
  Center Column Sections	1
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	No

  Box Dimensions (LxWxH)	26.0 x 5.4 x 5.4"

• Manfrotto 391RC2 3-Way, Pan-and-Tilt Head with 200PL-14 Quick Release Plate

  Head Type	Pan & Tilt Head
  Base Mount	3/8"-16 Thread
  Camera Mounting Screw	1/4"-20 Male
  Quick Release Plate Type	200PL-14
  Load Capacity	11.0 lb / 4.99 kg
  Number of Bubble Level(s)	None
  Material	Aluminum

  Lateral Tilt
