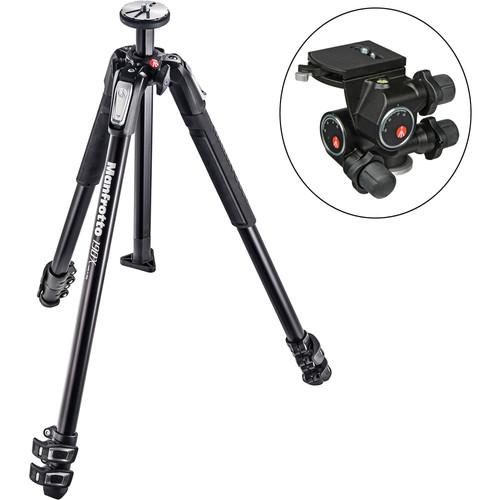

User Manual for Manfrotto MT190X3 Aluminum Tripod with 410 Junior Geared Head Click to enlarge the picture
Contents of the user manual for the Manfrotto MT190X3 Aluminum Tripod with 410
- Product category: Tripods with Heads Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripods with Heads
|
User manual for the Manfrotto MT190X3 Aluminum Tripod with 410 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More vcudcswdatbtduewytxfewbyuyxretxb This kit from Photo pairs the MT190X3 Aluminum Tripod with the 410 Junior Geared Head. The tripod features a Quick Power Lock System, ground level adapter, and an Easy Link attachment. It can hold up to 11 lb of gear, and has a maximum height of 68.1". The ground-level adapter replaces the center column to allow the tripod's head to sit just 8.6" above the ground with the legs at their widest angle.
The QPL system allows the three leg sections to be completely extended with one hand for simple set up. An Easy Link adapter attachment allows instant connection between tripod and accessories, such as LED lights for macro photography and DSLR video applications using Manfrotto articulated arms and brackets. Each leg can be set at four different angles to accommodate uneven ground or rough terrain.
The head is a compact geared head that uses easily adjustable knobs and offers precise geared movement in three directions: 360° of pan, +90 to -30° of front tilt & +90 to -30° of lateral tilt. This professional head has a large camera platform and a leveling bubble, and the camera screw travels in a 2" slot to facilitate perfect balancing of the camera's center of gravity. - Manfrotto MT190X3 Aluminum Tripod The Manfrotto MT190X3 Aluminum Tripod is an addition to the popular 190 series, adding a Quick Power Lock System, ground level adapter, and an Easy Link attachment. It can hold up to 15.4 lb of gear, and has a maximum height of 63". The ground-level adapter replaces the center column to allow the tripod's mounting plate to sit just 3.5" above the ground with the legs at their widest angle.
The QPL system allows the three leg sections to be completely extended with one hand for simple set up. An Easy Link adapter attachment allows instant connection between tripod and accessories, such as LED lights for macro photography and DSLR video applications using Manfrotto articulated arms and brackets. Each leg can be set at four different angles to accommodate uneven ground or rough terrain. UPC: 719821378037 - Manfrotto 410 3-Way, Geared Pan-and-Tilt Head with 410PL Quick Release Plate This 410 3-Way, Geared Pan-and-Tilt Head from Manfrotto has a load capacity of 11.0 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC4 quick release cam lock and a 410PL Quick Release Plate. RC4 compatible quick release plates such as the 410PL can removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached.
Cameras or accessories that are compatible with a 1/4"-20 or 3/8-16" mount can be connected to the 410PL Quick Release Plate, which measures 2.5 x 3.3 x 0.5" and has a rubberized, non-slip surface. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other and have individual, snap-lock knobs with easy-to-turn, 4-star grips. Turning each snap-lock knob allows the corresponding movement to be rapidly adjusted, and once the knob is released, the adjustment is locked into place. An additional, rubberized knob set within each snap-lock knob allows incremental, geared adjustments, which help to ensure that any device mounted to this 410 3-Way, Geared Pan-and-Tilt Head is precisely positioned relative to the subject.
To further promote fast and repeatable device positioning, this 410 3-Way, Geared Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility. - 410 3-Way, Geared Pan-and-Tilt Head
-
- 11.0 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation
- Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other and have individual snap-lock knobs with easy-to-turn, 4-star grips
- Turning each snap-lock knob allows the corresponding movement to be rapidly adjusted, and once the knob is released, the adjustment is locked into place
- An additional, rubberized knob set within each snap-lock knob allows incremental, geared adjustments
- Dedicated angle scales for each movement that are designed for easy visibility further promote fast, repeatable, and accurate device positioning
- Integrated, RC4 quick release cam lock
- Built-in bubble level
- Durable, aluminum-alloy construction
- 410PL Quick Release Plate
-
- Compatible with Manfrotto RC4 quick release cam lock
- Measures 2.5 x 3.3 x 0.5" and has a rubberized, non-slip surface
- 1/4"-20 and 3/8"-16 mount
- Durable, aluminum-alloy construction
UPC: 719821287681 In the Box - MT190X3 Aluminum Tripod
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
- 410 3-Way, Geared Pan-and-Tilt Head with 410PL Quick Release Plate
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto MT190X3 Aluminum Tripod with 410 Junior Geared Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Manfrotto MT190X3 Aluminum Tripod
| | | Load Capacity | 15.4 lb / 7 kg | | Maximum Working Height | 63" / 160 cm | | Max Height without Center Column | 53.1" / 135 cm | | Minimum Working Height | 3.5" / 8.9 cm | | Folded Length | 23.2" / 58.9 cm | | Head Mount Type | 3/8"-16 Screw | | Weight | 4.3 lb / 2 kg | | Materials | Aluminum Alloy | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 3 | | | | Center Column Features | Removable | | Center Column Shape | Faceted | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Box Dimensions (LxWxH) | 26.0 x 5.4 x 5.4" | - Manfrotto 410 3-Way, Geared Pan-and-Tilt Head with 410PL Quick Release Plate
| | | Head Type | Pan & Tilt Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male, 3/8"-16 Male | | Quick Release Plate Type | RC4 | | Load Capacity | 11.0 lb / 4.99 kg | | Number of Bubble Levels | 1 | | Material | Aluminum | | | | Lateral Tilt | -90
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
