Manfrotto MT190X3 Aluminum Tripod with 468MGRC2

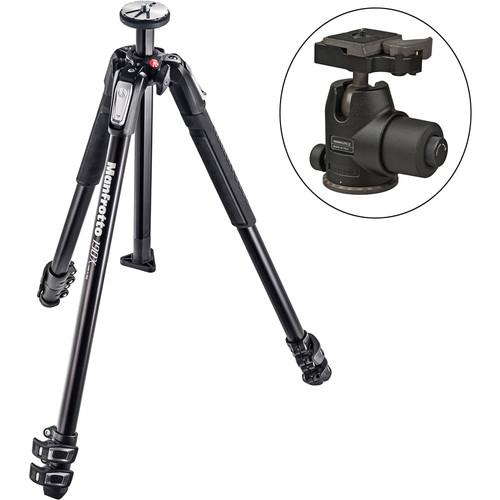

User Manual for Manfrotto MT190X3 Aluminum Tripod with 468MGRC2 Hydrostatic Ball Head and RC2 Quick Release

• Product category: Tripods with Heads Manfrotto
• Brand: Manfrotto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Manfrotto Tripods with Heads

Product description

• Manfrotto MT190X3 Aluminum Tripod The Manfrotto MT190X3 Aluminum Tripod is an addition to the popular 190 series, adding a Quick Power Lock System, ground level adapter, and an Easy Link attachment. It can hold up to 15.4 lb of gear, and has a maximum height of 63". The ground-level adapter replaces the center column to allow the tripod's mounting plate to sit just 3.5" above the ground with the legs at their widest angle.

  The QPL system allows the three leg sections to be completely extended with one hand for simple set up. An Easy Link adapter attachment allows instant connection between tripod and accessories, such as LED lights for macro photography and DSLR video applications using Manfrotto articulated arms and brackets. Each leg can be set at four different angles to accommodate uneven ground or rough terrain. UPC: 719821378037
• Manfrotto 468MG Hydrostatic Ball Head with 200PL-14 Quick Release Plate This 468MG Hydrostatic Ball Head from Manfrotto includes an integrated RC2 quick release cam lock and a 200PL-14 Quick Release Plate. RC2 compatible quick release plates such as the 200PL-14 can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent the 200PL-14, or another compatible quick release plate from accidentally disconnecting.

  The 468MG Hydrostatic Ball Head with 200PL-14 Quick Release Plate features a ball-and-socket joint that utilizes pressurized fluid, which helps to provide a 22.1 lb load capacity and an easy-to-tighten locking mechanism. By loosening the 468MG Hydrostatic Ball Head's primary locking knob, the ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. An additional knob set within that locking knob can be rotated to apply tension control to the ball-and-socket joint's movements. Along the opposite side of the ball head, a secondary locking knob controls the ability to rotate the head 360°.

  Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the 200PL-14 quick release plate, which measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface.
  468MG Hydrostatic Ball Head
  • • 22.1 lb load capacity
    • Compatible with tripods or support systems that feature a 3/8"-16 mount
    • Easy-to-tighten hydrostatic ball-and-socket joint that utilizes pressurized fluid, which helps maximize pan-and-tilt flexibility while enhancing load capacity
    • Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
    • Dual, ball-and-socket joint notches enable two-sided tilt capability
    • Integrated RC2 quick release cam lock
    • Primary locking knob allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
    • Secondary locking knob allows head to rotate 360°
    • Dedicated tension control knob for the ball-and-socket joint's movements
    • Durable, magnesium-alloy construction
  200PL-14 Quick Release Plate
  • • Compatible with Manfrotto RC2 quick release cam lock
    • Measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface
    • 1/4"-20 mount
    • Durable, aluminum-alloy construction
  UPC: 719821246725

• MT190X3 Aluminum Tripod vcudcswdatbtduewytxfewbyuyxretxb
• Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
• Limited 6-Month Warranty, Extendable to 10 Years with Product Registration

• 468MG Hydrostatic Ball Head with 200PL-14 Quick Release Plate

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Manfrotto MT190X3 Aluminum Tripod

  Load Capacity	15.4 lb / 7 kg
  Maximum Working Height	63" / 160 cm
  Max Height without Center Column	53.1" / 135 cm
  Minimum Working Height	3.5" / 8.9 cm
  Folded Length	23.2" / 58.9 cm
  Head Mount Type	3/8"-16 Screw
  Weight	4.3 lb / 2 kg
  Materials	Aluminum Alloy

  Leg Lock Type	Flip Lock
  Independent Leg Spread	Yes
  Leg Sections	3

  Center Column Features	Removable
  Center Column Shape	Faceted
  Center Column Sections	1
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	No

  Box Dimensions (LxWxH)	26.0 x 5.4 x 5.4"

• Manfrotto 468MG Hydrostatic Ball Head with 200PL-14 Quick Release Plate

  Head Type	Ball Head
  Base Mount	3/8"-16 Thread
  Camera Mounting Screw	1/4"-20 Male
  Quick Release Plate Type	200PL-14
  Load Capacity	22.1 lb / 10.02 kg
  Number of Bubble Level(s)	None
  Friction Control	Yes
  Independent Pan Lock	Yes
  Material	Magnesium

  Lateral Tilt
