Product description

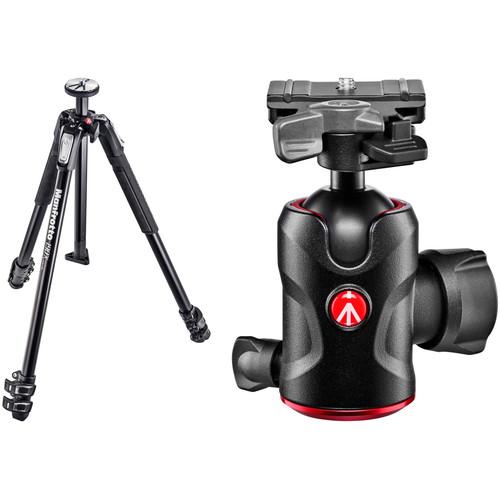

• Manfrotto MT190X3 Aluminum Tripod The Manfrotto MT190X3 Aluminum Tripod is an addition to the popular 190 series, adding a Quick Power Lock System, ground level adapter, and an Easy Link attachment. It can hold up to 15.4 lb of gear, and has a maximum height of 63". The ground-level adapter replaces the center column to allow the tripod's mounting plate to sit just 3.5" above the ground with the legs at their widest angle.

  The QPL system allows the three leg sections to be completely extended with one hand for simple set up. An Easy Link adapter attachment allows instant connection between tripod and accessories, such as LED lights for macro photography and DSLR video applications using Manfrotto articulated arms and brackets. Each leg can be set at four different angles to accommodate uneven ground or rough terrain. UPC: 719821378037
• Manfrotto 496 Center Ball Head with 200PL-PRO Quick Release Plate This Manfrotto 496 Center Ball Head features an integrated RC2 quick release cam lock and a 200PL-PRO Quick Release Plate. Compatible quick release plates can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent a compatible quick release plate from accidentally disconnecting.

  The 496 Center Ball Head with 200PL-PRO Quick Release Plate has a load capacity of 22 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. By loosening the head's primary locking knob, the ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. A recessed dial set within that locking knob can be rotated to apply tension control to the ball-and-socket joint's movements. Along the opposite side of the ball head, a secondary locking knob controls the ability to rotate the head 360°.

  Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the 200PL-PRO quick release plate, as well as 3/8"-16 threads via an included bushing adapter. The plate is also compatible with separately available tripod heads that feature an Arca-type clamp.
  496 Center Ball Head
  • • 22 lb load capacity
    • Compatible with tripods or support systems that feature a 3/8"-16 mount
    • Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
    • Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
    • Integrated RC2 quick release cam lock
    • Primary locking knob allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
    • Secondary locking knob allows head to rotate 360°
    • Dedicated tension control dial for the ball-and-socket joint's movements
    • Durable, aluminum-alloy construction
  200PL-PRO Quick Release Plate
  • • Compatible with Manfrotto RC2 quick release cam lock and Arca-type quick release clamps
    • 1/4"-20 mount with support for 3/8"-16 via bushing adapter
    • Durable, aluminum-alloy construction
  UPC: 719821423911

• MT190X3 Aluminum Tripod vcudcswdatbtduewytxfewbyuyxretxb
• Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
• Limited 6-Month Warranty, Extendable to 10 Years with Product Registration

• 496 Center Ball Head with 200PL-PRO Quick Release Plate

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Manfrotto MT190X3 Aluminum Tripod

  Load Capacity	15.4 lb / 7 kg
  Maximum Working Height	63" / 160 cm
  Max Height without Center Column	53.1" / 135 cm
  Minimum Working Height	3.5" / 8.9 cm
  Folded Length	23.2" / 58.9 cm
  Head Mount Type	3/8"-16 Screw
  Weight	4.3 lb / 2 kg
  Materials	Aluminum Alloy

  Leg Lock Type	Flip Lock
  Independent Leg Spread	Yes
  Leg Sections	3

  Center Column Features	Removable
  Center Column Shape	Faceted
  Center Column Sections	1
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	No

  Box Dimensions (LxWxH)	26.0 x 5.4 x 5.4"

• Manfrotto 496 Center Ball Head with 200PL-PRO Quick Release Plate

  Head Type	Ball Head
  Base Mount	3/8"-16 Female
  Camera Mounting Screw	1/4"-20 Male & 3/8"-16 with Bushing
  Quick Release Plate Type	Arca-Type, RC2
  Load Capacity	22 lb / 9.98 kg
  Number of Bubble Levels	None
  Friction Control	Yes
  Independent Pan Lock	Yes
  Material	Aluminum

  Panning Range
