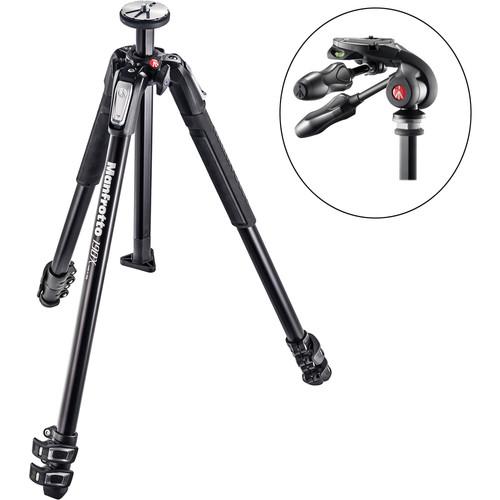

User Manual for Manfrotto MT190X3 Aluminum Tripod with MH293D3-Q2 3-Way Photo Head Click to enlarge the picture
Contents of the user manual for the Manfrotto MT190X3 Aluminum Tripod with MH293D3-Q2
- Product category: Tripods with Heads Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripods with Heads
|
User manual for the Manfrotto MT190X3 Aluminum Tripod with MH293D3-Q2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More vcudcswdatbtduewytxfewbyuyxretxb This kit from Photo pairs the MT190X3 Aluminum Tripod with the MH293D3-Q2 3-Way Photo Head. The tripod features a Quick Power Lock System, ground level adapter, and an Easy Link attachment. It can hold up to 8.8 lb of gear, and has a maximum height of 66.5". The ground-level adapter replaces the center column to allow the tripod's mounting plate to sit just 7" above the ground with the legs at their widest angle.
The QPL system allows the three leg sections to be completely extended with one hand for simple set up. An Easy Link adapter attachment allows instant connection between tripod and accessories, such as LED lights for macro photography and DSLR video applications using Manfrotto articulated arms and brackets. Each leg can be set at four different angles to accommodate uneven ground or rough terrain.
The head is fabricated from a lightweight polymer called Adapto that offers great strength and functionality without the weight of metal. A unique mechanism allows you to fold the handles parallel to the tripod for tighter, more convenient packing. Other features include +90° / -30° lateral and front tilt, and three bubble levels for accurate framing. It has a quick release and camera plate with a 1/4"-20 mounting screw. - Manfrotto MT190X3 Aluminum Tripod The Manfrotto MT190X3 Aluminum Tripod is an addition to the popular 190 series, adding a Quick Power Lock System, ground level adapter, and an Easy Link attachment. It can hold up to 15.4 lb of gear, and has a maximum height of 63". The ground-level adapter replaces the center column to allow the tripod's mounting plate to sit just 3.5" above the ground with the legs at their widest angle.
The QPL system allows the three leg sections to be completely extended with one hand for simple set up. An Easy Link adapter attachment allows instant connection between tripod and accessories, such as LED lights for macro photography and DSLR video applications using Manfrotto articulated arms and brackets. Each leg can be set at four different angles to accommodate uneven ground or rough terrain. UPC: 719821378037 - Manfrotto MH293D3-Q2 3-Way, Pan-and-Tilt Head with 200PL-14 Quick Release Plate This MH293D3-Q2 3-Way, Pan-and-Tilt Head from Manfrotto has a load capacity of 8.8 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC2 quick release cam lock and a 200PL-14 Quick Release Plate. RC2 compatible quick release plates such as the 200PL-14 can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be quickly reattached.
Cameras, sport optics, or camcorders that are compatible with a 1/4"-20 mount can be connected to the quick release plate before securing it to the pan-and-tilt head. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Both the 360° rotation as well as the backward and forward tilt movements function simultaneously, however for changing from a landscape to portrait orientation, the sideways tilt can be independently adjusted and secured.
The control handle for the combined backwards and forwards tilt plus 360° rotation, and the control handle for portrait orientation can each be used to lock their corresponding movements by twisting each handle's ergonomic grip. For storage and transport, the MH293D3-Q2 3-Way, Pan-and-Tilt Head can be positioned so that both of its handles are arranged parallel to each other as well as to the legs of a folded tripod the head is mounted on. This configuration measures approximately 3.0 x 5.0 x 7.3" with a slim profile, helping to ensure that the the MH293D3-Q2 3-Way, Pan-and-Tilt Head fits within a bag or case whether carried alone or attached to a tripod. - MH293D3-Q2 3-Way, Pan-and-Tilt Head
-
- 8.8 lb load capacity
- Compatible with tripods or support systems that feature a 3/8"-16 mount
- Can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation
- Rotation as well as the backward and forward tilt movements function simultaneously, sideways tilt for portrait orientation can be independently adjusted and secured
- Control handle for combined backwards and forwards tilt plus 360° rotation, and control handle for portrait orientation can each be used to lock their corresponding movements by twisting each handle's ergonomic grip
- Can be adjusted for storage and transport to measure approximately 3.0 x 5.0 x 7.3" with a slim profile so that both handles are arranged parallel to each other as well as to the legs of a folded tripod the head is mounted on
- Compact storage and transport configuration helps to ensure a successful fit within a bag or case when carried alone or attached to a tripod
- Integrated, RC2 quick release cam lock
- Two bubble levels for landscape orientations and one bubble level for portrait orientations
- Durable and lightweight polymer and fiberglass construction
- 200PL-14 Quick Release Plate
-
- Compatible with Manfrotto RC2 quick release cam lock
- Measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface
- 1/4"-20 mount
- Durable, aluminum-alloy construction
UPC: 719821346173 In the Box - MT190X3 Aluminum Tripod vcudcswdatbtduewytxfewbyuyxretxb
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
- MH293D3-Q2 3-Way, Pan-and-Tilt Head with 200PL-14 Quick Release Plate
Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto MT190X3 Aluminum Tripod with MH293D3-Q2 3-Way Photo Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Manfrotto MT190X3 Aluminum Tripod
| | | Load Capacity | 15.4 lb / 7 kg | | Maximum Working Height | 63" / 160 cm | | Max Height without Center Column | 53.1" / 135 cm | | Minimum Working Height | 3.5" / 8.9 cm | | Folded Length | 23.2" / 58.9 cm | | Head Mount Type | 3/8"-16 Screw | | Weight | 4.3 lb / 2 kg | | Materials | Aluminum Alloy | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 3 | | | | Center Column Features | Removable | | Center Column Shape | Faceted | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Box Dimensions (LxWxH) | 26.0 x 5.4 x 5.4" | - Manfrotto MH293D3-Q2 3-Way, Pan-and-Tilt Head with 200PL-14 Quick Release Plate
| | | Head Type | Pan & Tilt Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Quick Release Plate Type | 200PL-14 | | Load Capacity | 8.8 lb / 3.99 kg | | Number of Bubble Levels | 3 | | Material | Technopolymer | | | | Lateral Tilt | -90
