Manfrotto MT190XPRO4 Aluminum Tripod Kit with

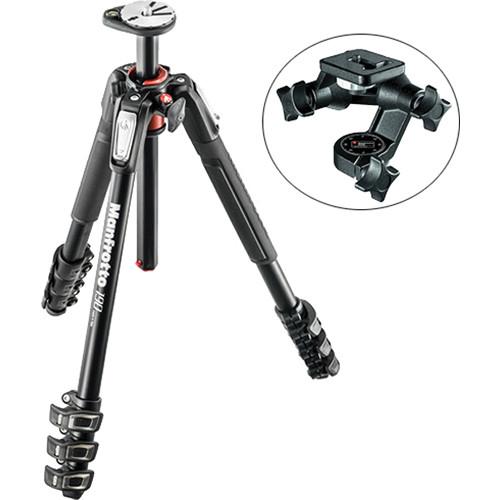

User Manual for Manfrotto MT190XPRO4 Aluminum Tripod Kit with 056 3D Junior Head

• Product category: Tripods with Heads Manfrotto
• Brand: Manfrotto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Manfrotto Tripods with Heads

Product description

• Manfrotto MT190XPRO4 Aluminum Tripod
  • MT190 Series Video
  • MT190 Series Q90 Column Video
  • MT190 Series Quick Power Lock Video
  The black, redesigned MT190XPRO4 Aluminum Tripod from Manfrotto builds on the success and popularity of the previous 190 series with professional hardware and convenience features that make it even easier to use than its predecessor. Set up is faster than ever with Manfrotto's Quick Power Lock System that allows you to completely extend the tripod legs with just one hand. Once set up you can use the MT190XPRO4's rapid center column in standard vertical mode or swing it into horizontal position like a boom with Manfrotto's 90° Column feature. Enlarged tabs on the individual leg angle selectors allow you to get down to only 3.2" for macro work with the column in horizontal mode. And once you're down there you can attach any of Manfrotto's flexible or articulated arms to hold lights or reflectors via the Easy Link plug built into the tripod's spider. Convenience features include grippy, rubber leg warmers on two legs for cold or inclement weather and a bubble level that rotates so that you can see it easily regardless of the tripod's position. Finally, Manfrotto's insistence on form following function has yielded a tripod that you'll not only be happy to use but you'll be happy to be seen with, too.
  Fast Setup with QPL
  • The Quick Power Lock (QPL) system is one of the most eye-catching and unique features of the redesigned 190. It is a strong, ultra fast, ergonomic locking system that allows for complete extension of the legs with one hand.
  90° Column
  • One of the most innovative aspects of the 190 series is its compactness, which allows for easier portability. The redesigned patented 90° Column is accessible whenever you need it with simple one finger operation.
  Easy Link Plug
  • The plug allows instant connection between tripod and accessories, such as LED lights for macro photography and DSLR video applications using Manfrotto articulated arms and brackets.
  Rotating Leveling Bubble
  • The bubble is easy to read, whatever the shape of the head or however the tripod is positioned. Just rotate it towards you for easy viewing.
  Leg Angle Selectors
  • Each leg has user selection of 4 angles to accommodate uneven ground or rough terrain. The selectors are manufactured according to most innovative ergonomic standards to prevent fingers and nails being trapped in the upper casting.
  Manfrotto's Eye to Style and Design Detail
  • The entire shape of the tripod has been modified and made more manageable and stylish. The complete redesign of its functional elements shows a particular attention to aesthetics and details: the brand name, for example, appears in many sections of the new 190, including the two legwarmers made of comfortable rubber to provide a secure grip and prevent the conduction of heat and cold in extreme weather conditions.
  UPC: 719821364603
• Manfrotto 056 3-Way, Pan-and-Tilt Head with 1/4"-20 Mount
  • MT190 Series Video
  • MT190 Series Q90 Column Video
  • MT190 Series Quick Power Lock Video
  The 056 3-Way, Pan-and-Tilt Head from Manfrotto has a load capacity of 6.6 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the head's rubberized, non-slip platform. The head can be rotated 360°, and tilted 180° forwards or 30° backwards, as well as 180° sideways. Each of these three movements function independently of each other and can be locked into place. To promote fast and repeatable device positioning, this 056 3-Way, Pan-and-Tilt Head also includes a dedicated angle scale for rotational movements that is designed for easy visibility.
  • • 6.6 lb load capacity
    • Compatible with tripods or support systems that feature a 3/8"-16 mount
    • Can be rotated 360°, tilted 180° forwards or 30° backwards, as well as 180° sideways
    • Rotation, backwards and forwards tilt, as well as sideways tilt each function independently of each other and can be locked into place
    • Rubberized, non-slip platform with 1/4"-20 mount
    • Dedicated angle scale for rotational movements that is positioned for easy visibility helps promote fast and repeatable device positioning
    • Durable, aluminum-alloy construction
  UPC: 719821284017

• MT190XPRO4 Aluminum Tripod uswwqfeswuafvbczwayfzfsuwwxqze
• Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
• Limited 6-Month Warranty, Extendable to 10 Years with Product Registration

• 056 3-Way, Pan-and-Tilt Head with 1/4"-20 Mount

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Manfrotto MT190XPRO4 Aluminum Tripod

  Load Capacity	15.4 lb / 7 kg
  Maximum Working Height	63" / 160 cm
  Max Height without Center Column	53.2" / 135.1 cm
  Minimum Working Height	3.2" / 8.1 cm
  Folded Length	19.2" / 48.8 cm
  Head Mount Type	3/8"-16 Screw
  Weight	4.6 lb / 2.1 kg
  Materials	Aluminum Alloy
  Bubble Level	Yes

  Leg Lock Type	Flip Lock
  Independent Leg Spread	Yes
  Leg Sections	4
  Feet Features	Rubber

  Center Column Sections	1
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	Yes

  Box Dimensions (LxWxH)	21.9 x 5.4 x 5.4"

• Manfrotto 056 3-Way, Pan-and-Tilt Head with 1/4"-20 Mount

  Head Type	Pan & Tilt Head
  Base Mount	3/8"-16 Thread
  Camera Mounting Screw	1/4"-20 Male
  Quick Release Plate Type	No Quick Release
  Load Capacity	6.6 lb / 2.99 kg
  Number of Bubble Level(s)	None
  Material	Aluminum

  Lateral Tilt
