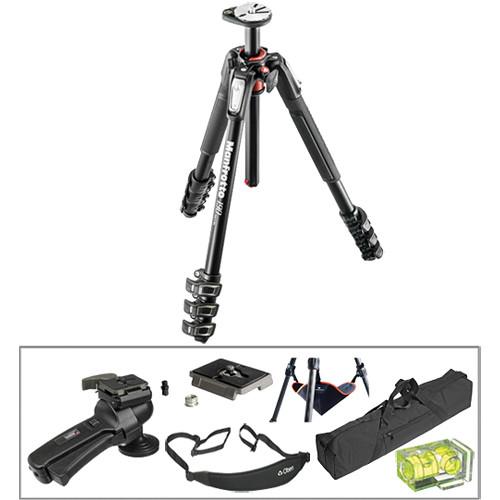

Manfrotto MT190XPRO4 Aluminum Tripod with 322RC2

User Manual for Manfrotto MT190XPRO4 Aluminum Tripod with 322RC2 Grip Action Ball Head Deluxe Kit

• Product category: Tripods with Heads Manfrotto
• Brand: Manfrotto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Manfrotto Tripods with Heads

Product description

• Manfrotto MT190XPRO4 Aluminum Tripod
  • MT190 Series Video
  • MT190 Series Q90 Column Video
  • MT190 Series Quick Power Lock Video
  The black, redesigned MT190XPRO4 Aluminum Tripod from Manfrotto builds on the success and popularity of the previous 190 series with professional hardware and convenience features that make it even easier to use than its predecessor. Set up is faster than ever with Manfrotto's Quick Power Lock System that allows you to completely extend the tripod legs with just one hand. Once set up you can use the MT190XPRO4's rapid center column in standard vertical mode or swing it into horizontal position like a boom with Manfrotto's 90° Column feature. Enlarged tabs on the individual leg angle selectors allow you to get down to only 3.2" for macro work with the column in horizontal mode. And once you're down there you can attach any of Manfrotto's flexible or articulated arms to hold lights or reflectors via the Easy Link plug built into the tripod's spider. Convenience features include grippy, rubber leg warmers on two legs for cold or inclement weather and a bubble level that rotates so that you can see it easily regardless of the tripod's position. Finally, Manfrotto's insistence on form following function has yielded a tripod that you'll not only be happy to use but you'll be happy to be seen with, too.
  Fast Setup with QPL
  • The Quick Power Lock (QPL) system is one of the most eye-catching and unique features of the redesigned 190. It is a strong, ultra fast, ergonomic locking system that allows for complete extension of the legs with one hand.
  90° Column
  • One of the most innovative aspects of the 190 series is its compactness, which allows for easier portability. The redesigned patented 90° Column is accessible whenever you need it with simple one finger operation.
  Easy Link Plug
  • The plug allows instant connection between tripod and accessories, such as LED lights for macro photography and DSLR video applications using Manfrotto articulated arms and brackets.
  Rotating Leveling Bubble
  • The bubble is easy to read, whatever the shape of the head or however the tripod is positioned. Just rotate it towards you for easy viewing.
  Leg Angle Selectors
  • Each leg has user selection of 4 angles to accommodate uneven ground or rough terrain. The selectors are manufactured according to most innovative ergonomic standards to prevent fingers and nails being trapped in the upper casting.
  Manfrotto's Eye to Style and Design Detail
  • The entire shape of the tripod has been modified and made more manageable and stylish. The complete redesign of its functional elements shows a particular attention to aesthetics and details: the brand name, for example, appears in many sections of the new 190, including the two legwarmers made of comfortable rubber to provide a secure grip and prevent the conduction of heat and cold in extreme weather conditions.
  UPC: 719821364603
• Manfrotto 322RC2 Ball Head with 200PL-14 Quick Release Plate and 322RA Quick Release Adapter
  • MT190 Series Video
  • MT190 Series Q90 Column Video
  • MT190 Series Quick Power Lock Video
  The 322RC2 Ball Head from Manfrotto can be attached to tripods or other support systems that feature a 3/8"-16 mount. By squeezing the control handle's integrated trigger, the head's ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. A thumbwheel set within the control handle can be rotated to apply tension control to the ball-and-socket joint's movements. Once the squeeze trigger is released, any adjustments to the position of the ball-and-socket joint are locked into place.

  The control handle is initially oriented to provide a horizontal grip for the right hand. However, the included 322RA Quick Release Adapter with 200PL-14 Quick Release Plate are detachable and can be repositioned to enable left-handed use with a horizontal grip. Alternatively, the 322RC2 can be transformed into a joystick-grip ball head suitable for right or left-handed use with the control handle oriented vertically and the quick release adapter attached to the top of the configuration.

  When oriented for a horizontal grip, the 322RC2 has a load capacity of 11.0 lb, and 7.0 lb when configured as joystick for a vertical grip. The 322RA Quick Release Adapter features an RC2 quick release cam lock for the 200PL-14 Quick Release Plate. RC2 compatible quick release plates can be removed from the quick release adapter by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent a quick release plate from accidentally disconnecting.

  Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the quick release plate, which measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface.
  322RC2 Ball Head
  • • Compatible with tripods or support systems that feature a 3/8"-16 mount
    • Uses ball-and-socket joint with easy-to-grip control handle to help maximize pan-and-tilt flexibility
    • By squeezing the control handle's integrated trigger, the ball-and-socket joint can be quickly swiveled 360°, fully tilted down to a 90° angle, or returned to its upright position
    • When the control handle's squeeze trigger is released, any adjustments to the position of the ball-and-socket joint are locked into place
    • A thumbwheel set within the control handle can be rotated to apply tension control to the ball-and-socket joint's movements
    • Built-in tension-control indicator within the control handle
    • Can provide a horizontal grip for either right or left-handed use
    • Available joystick-grip ball head configuration for right or left-handed use
    • When oriented for a horizontal grip, has a load capacity of 11.0 lb, and 7.0 lb when configured as joystick for a vertical grip
    • 322RA Quick Release Adapter with RC2 quick release cam lock and built-in bubble level
    • Hex key to adjust position of 322RA Quick Release Adapter and tension on ball-and-socket joint
  200PL-14 Quick Release Plate
  • • Compatible with Manfrotto RC2 quick release cam lock
    • Measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface
    • 1/4"-20 mount
    • Durable, aluminum-alloy construction
  UPC: 719821236429
• Manfrotto 200PL Quick Release Plate with 1/4"-20 Screw and 3/8" Bushing Adapter
  • MT190 Series Video
  • MT190 Series Q90 Column Video
  • MT190 Series Quick Power Lock Video
  The Manfrotto 200PL Quick Release Plate with 1/4"-20 Screw and 3/8" Bushing Adapter is the replacement quick release plate for all heads that use the RC2 (3157N) system. The plate comes with a 1/4"-20 camera screw and a 3/8" bushing adapter, and is compatible with 35mm and standard thread-mounted medium format cameras.
  • RC2 Quick Release System
  UPC: 719821345015
• Ruggard Padded Tripod / Light Stand Case (35")
  • MT190 Series Video
  • MT190 Series Q90 Column Video
  • MT190 Series Quick Power Lock Video
  The black with yellow embroidery, 35" Padded Tripod or Light Stand Case from Ruggard is an affordable, lightweight, and functional way to store or carry your tripod, light stand, and umbrellas. The durable 400D nylon exterior is complemented by a smooth 150D nylon lining. Dual top zippers provide full-length rapid access to your tripod.

  This case can be transported by its two top carry handles, or by its very useful fixed-length shoulder sling. For added storage, there is an exterior 13.5" zippered pocket. The case is accented with a large, handsome yellow embroidered Ruggard logo. This 35" Padded Case is backed by a one-year limited warranty from Ruggard.
  • Padded, lightweight tripod bag
  • 13.5" exterior zippered accessory pocket
  • Dual-zippered access
  • Two carry handles
  • Fixed shoulder sling
  • 400D nylon exterior with 150D lining
  • Embroidered exterior yellow Ruggard logo
  UPC: 847628001718
• Oben TS-200 Tripod Strap with Two Quick Release Loops (Black)
  • MT190 Series Video
  • MT190 Series Q90 Column Video
  • MT190 Series Quick Power Lock Video
  The black TS-200 Tripod Strap with Two Quick Release Loops from Oben features two quick release loops-one each at the top and bottom to hold your tripod's legs and head. The solid 1" wide nylon strap is complemented by a 3" wide, non-slip and comfortable 9.5mm thick neoprene shoulder pad that evenly distributes the weight of your tripod. Once adjusted, the strap length back buckles to hold it at your preferred length.The leg loop adjusts to a maximum of 19" wide while the head loop is secured by a 14" maximum wide loop. The plastic quick release buckles at each end of the strap allow for fast attachment or use of your tripod. When the shot is there, you don't want to waste time fumbling with overly sophisticated attachment systems. This is a cost-effective tripod strap that fits many tripods and gives you the freedom to travel, set up and pack with speed and efficiency. The strap is backed by a one-year limited warranty from Oben.
  • Two quick release loops secured with plastic snap couplers; one for tripod head, one for tripod legs
  • Fully adjustable, back buckled strap - approx 20-44.5"
  • 1" wide nylon strap
  • Wide, comfortable 3" neoprene shoulder pad
  • Easy to attach and remove
  UPC: 847628533127
• Vello Two-Axis Hot-Shoe Bubble Level
  • MT190 Series Video
  • MT190 Series Q90 Column Video
  • MT190 Series Quick Power Lock Video
  This Two-Axis Hot Shoe Bubble Level from Vello mounts onto any standard hot shoe on a camera. It allows you to precisely align the camera on two planes, to ensure that the horizon line is absolutely straight. This is a necessary accessory for QTVR shooting sessions, for landscapes, or any other photography requiring fidelity to a horizon line or other straight-line elements.
  • Mounts on camera hot-shoe
  • Check levels in two planes
  UPC: 847628536685
• Oben Tripod Hammock
  • MT190 Series Video
  • MT190 Series Q90 Column Video
  • MT190 Series Quick Power Lock Video
  This Tripod Hammock from Oben attaches to your tripod's legs via hook-and-loop fasteners. It holds up to 20 lb, lowering the center of gravity and adding stability when using a heavy camera and lens, or when shooting in windy conditions. It can also be used as a shelf to store accessories that you need quick access to like lens caps, filters, or lenses. UPC: 847628580534

• MT190XPRO4 Aluminum Tripod fcstfcrbfvtexrqeuceszbefvrqvzerxc
• Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
• Limited 6-Month Warranty, Extendable to 10 Years with Product Registration

• 322RC2 Ball Head with 200PL-14 Quick Release Plate and 322RA Quick Release Adapter

• 200PL Quick Release Plate with 1/4"-20 Screw and 3/8" Bushing Adapter

• Ruggard - Padded Tripod / Light Stand Case (35")

• Oben - TS-200 Tripod Strap with Two Quick Release Loops (Black)

• Vello - Two-Axis Hot-Shoe Bubble Level

• Oben - Tripod Hammock

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Manfrotto MT190XPRO4 Aluminum Tripod

  Load Capacity	15.4 lb / 7 kg
  Maximum Working Height	63" / 160 cm
  Max Height without Center Column	53.2" / 135.1 cm
  Minimum Working Height	3.2" / 8.1 cm
  Folded Length	19.2" / 48.8 cm
  Head Mount Type	3/8"-16 Screw
  Weight	4.6 lb / 2.1 kg
  Materials	Aluminum Alloy
  Bubble Level	Yes

  Leg Lock Type	Flip Lock
  Independent Leg Spread	Yes
  Leg Sections	4
  Feet Features	Rubber

  Center Column Sections	1
  Center Column Extension Type	Rapid
  Lateral / 90-Degree Center Column	Yes

  Box Dimensions (LxWxH)	21.9 x 5.4 x 5.4"

• Manfrotto 322RC2 Ball Head with 200PL-14 Quick Release Plate and 322RA Quick Release Adapter

  Head Type	Ball Head
  Base Mount	3/8"-16 Thread
  Camera Mounting Screw	1/4"-20 Male
  Quick Release Plate Type	200PL-14
  Load Capacity	11.0 lb / 4.99 kg
  Number of Bubble Levels	1
  Friction Control	Yes
  Independent Pan Lock	No
  Material	Magnesium

  Lateral Tilt
