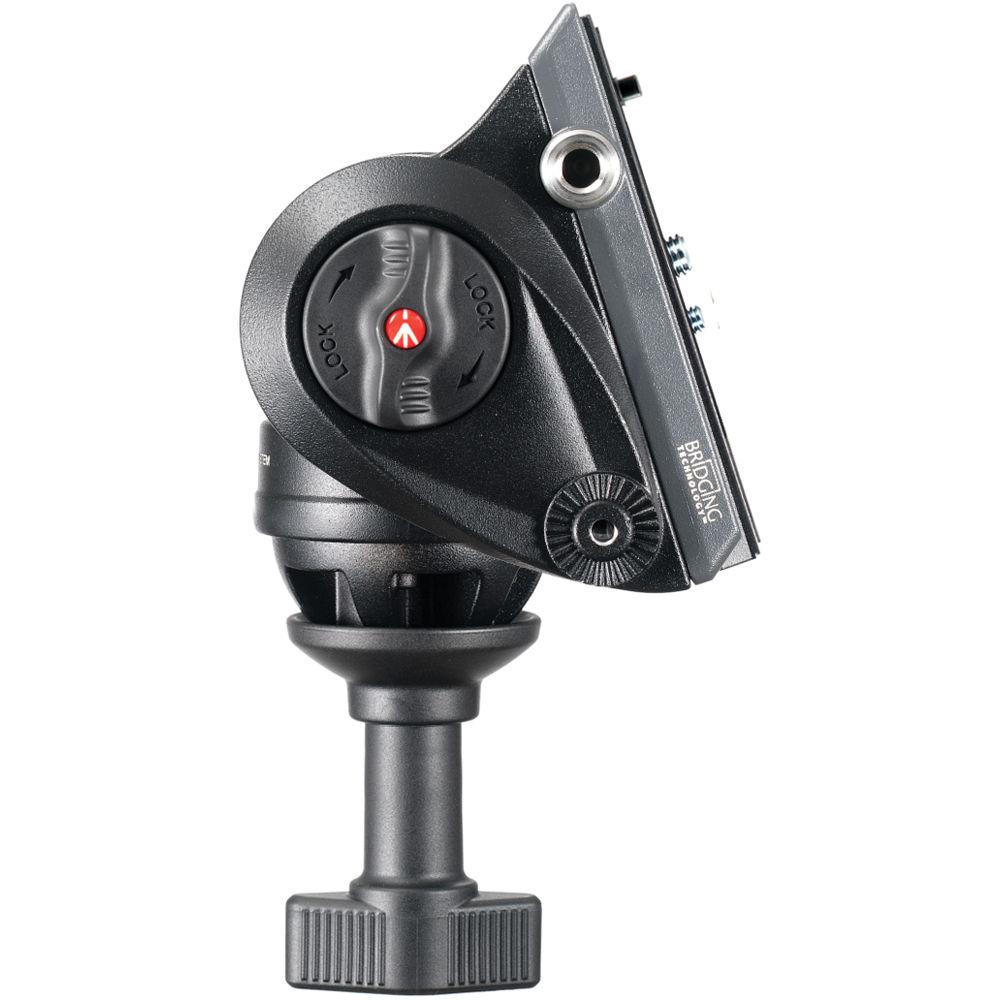

User Manual for Manfrotto MVH500A Half Ball Fluid Head & 535 Tripod with Carrying Bag Click to enlarge the picture
Contents of the user manual for the Manfrotto MVH500A Half Ball Fluid Head
- Product category: Tripod Systems Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripod Systems
 |
User manual for the Manfrotto MVH500A Half Ball Fluid Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description - Manfrotto 500 Fluid Video Head
- Manfrotto Fluid Video Head Range - Tutorial Video

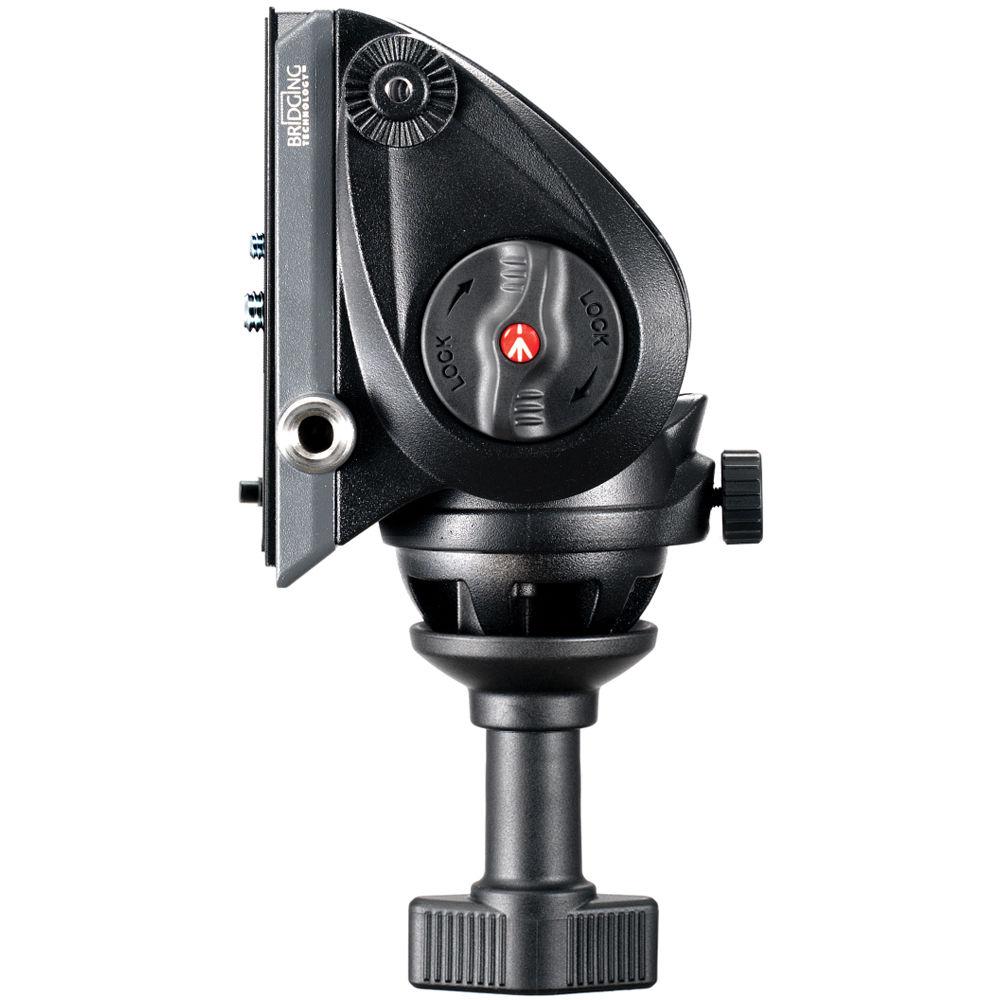

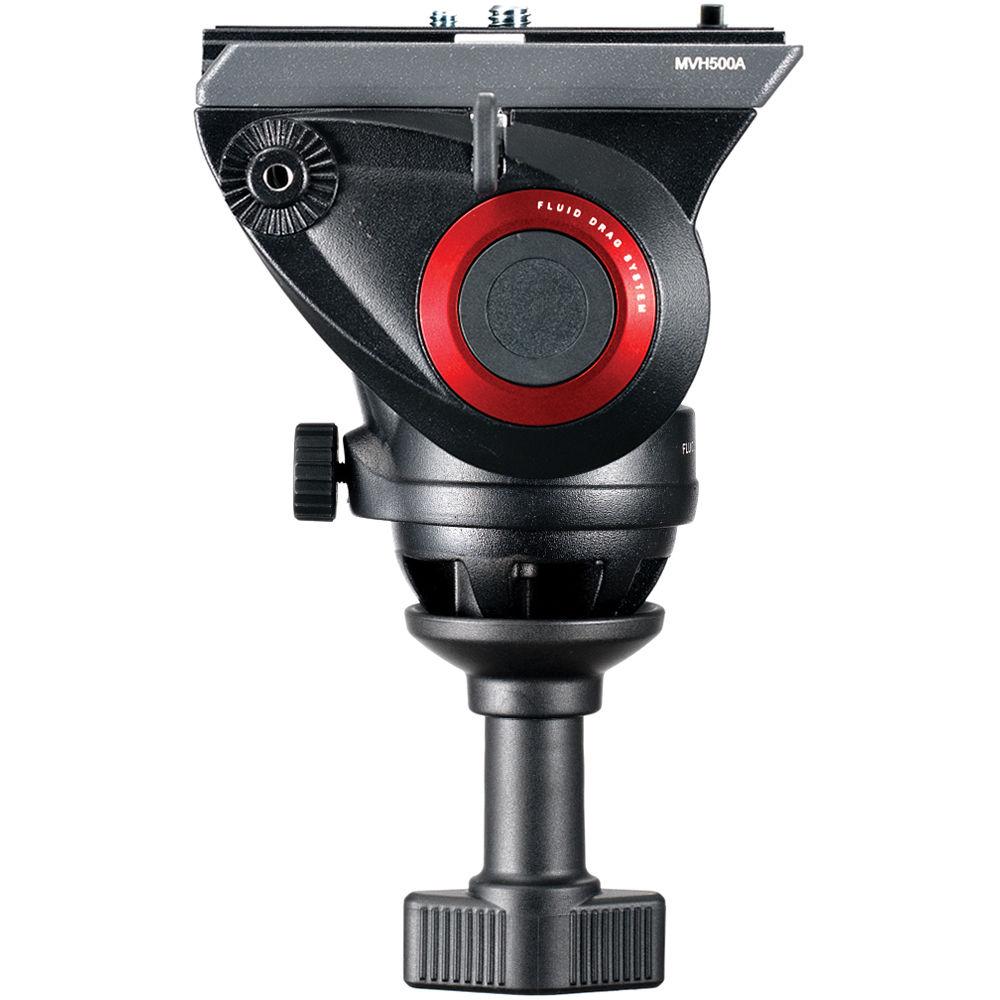

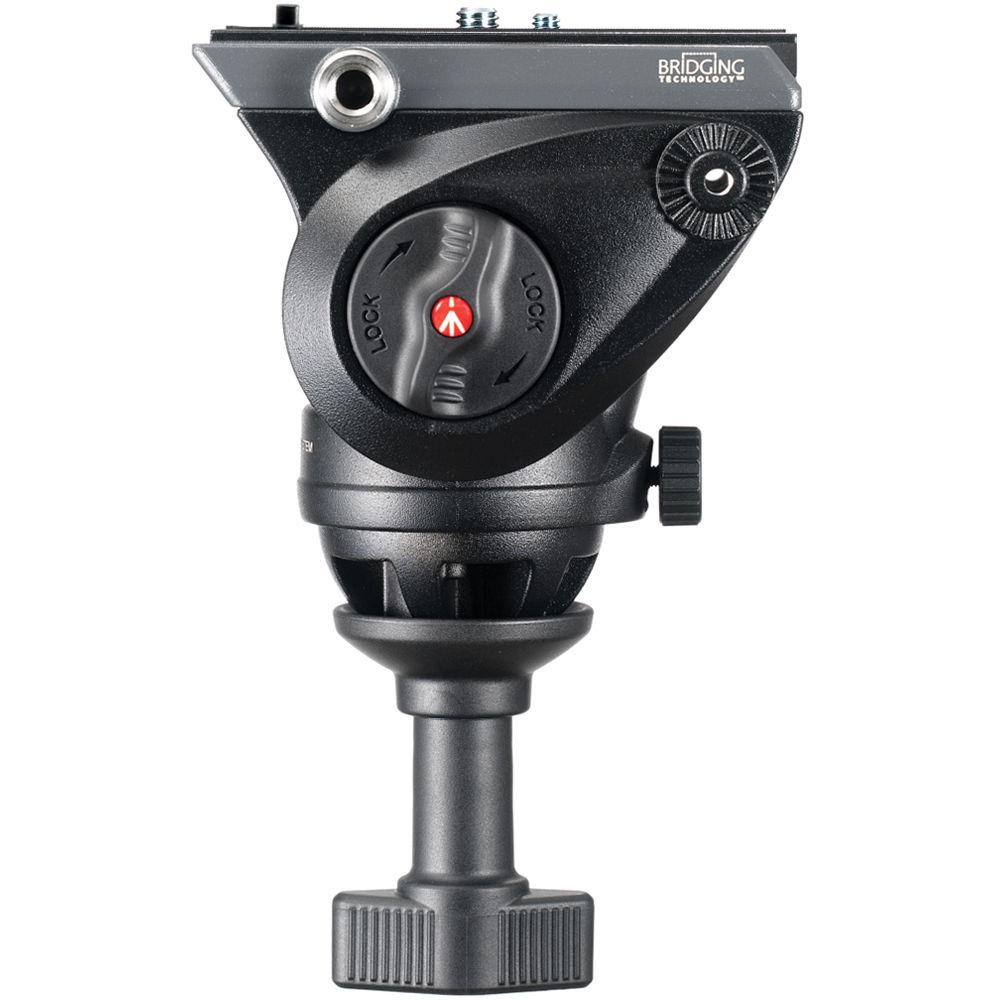

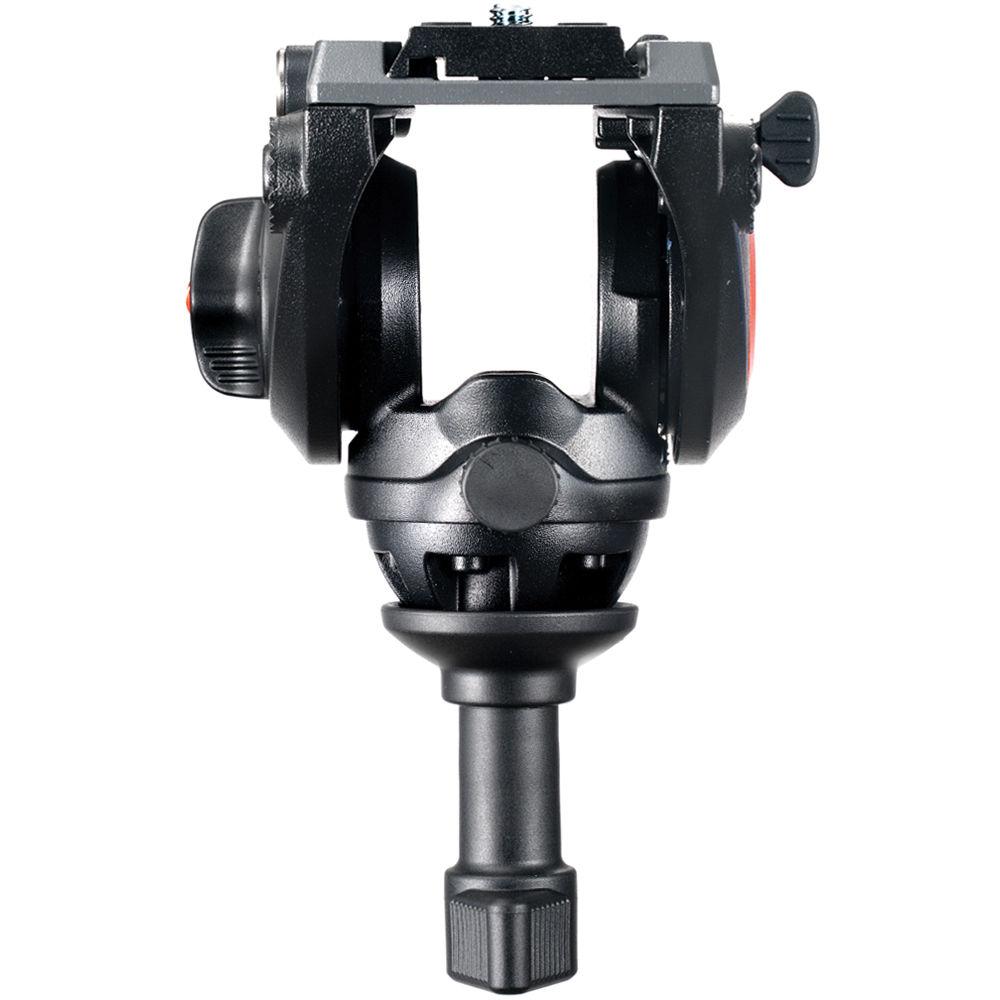

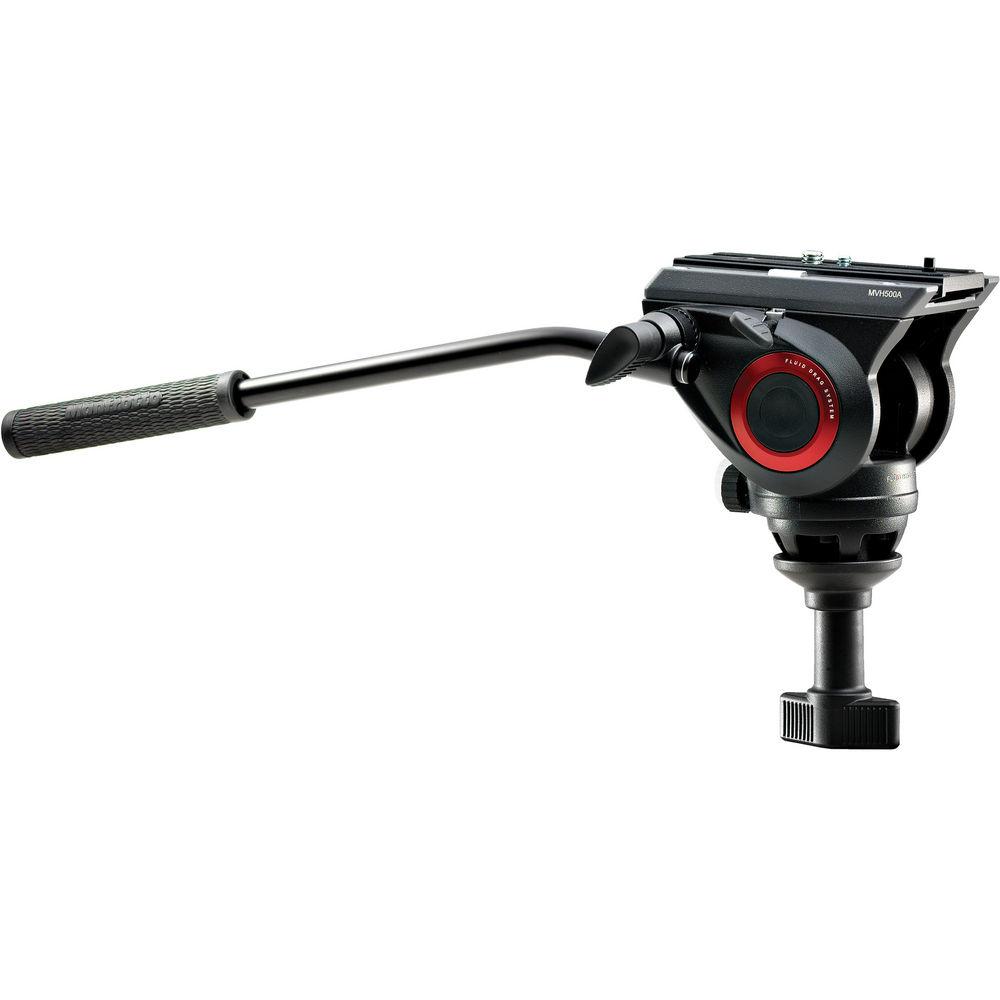

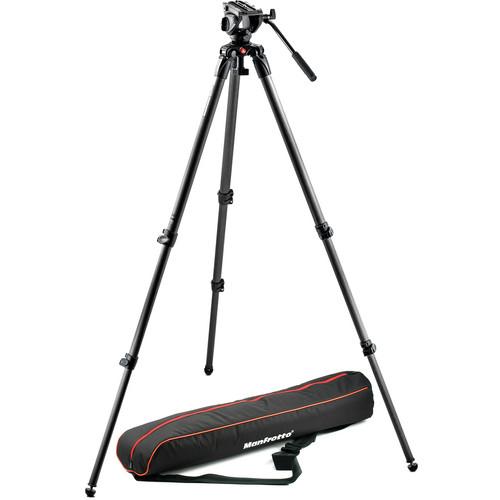

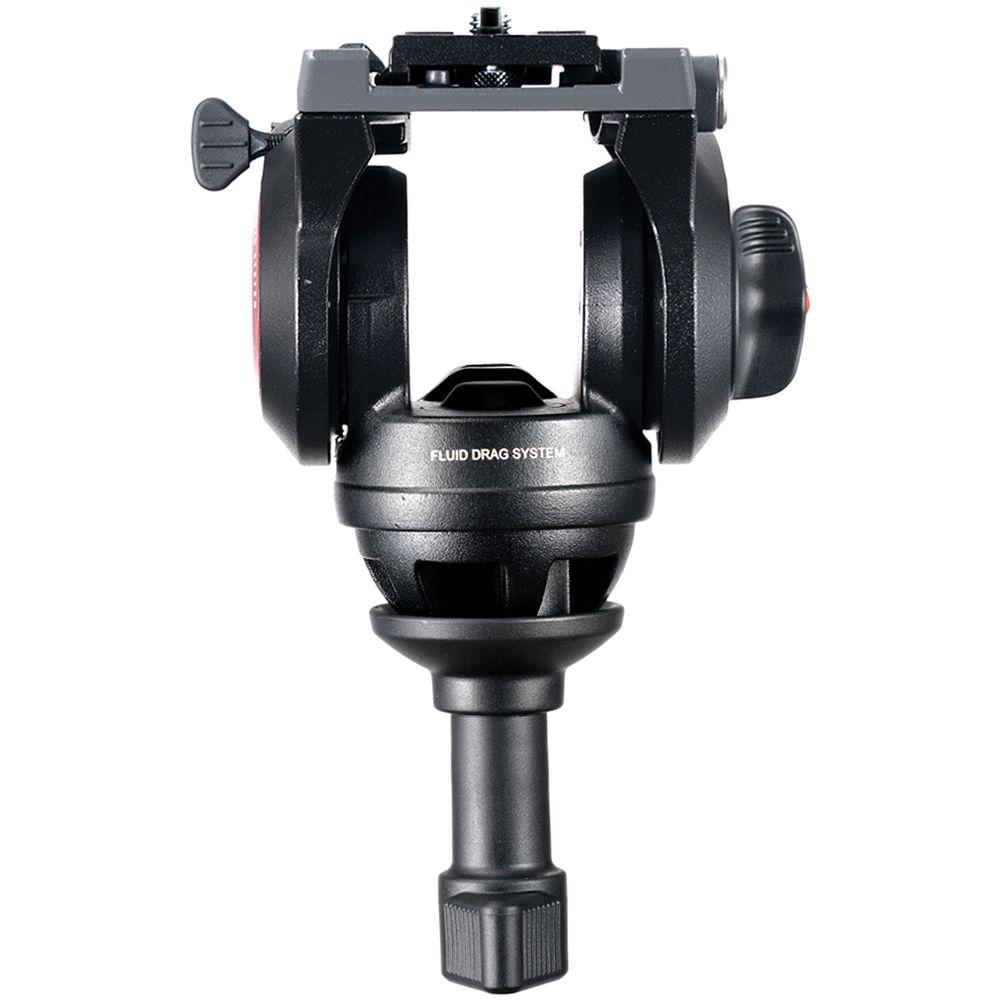

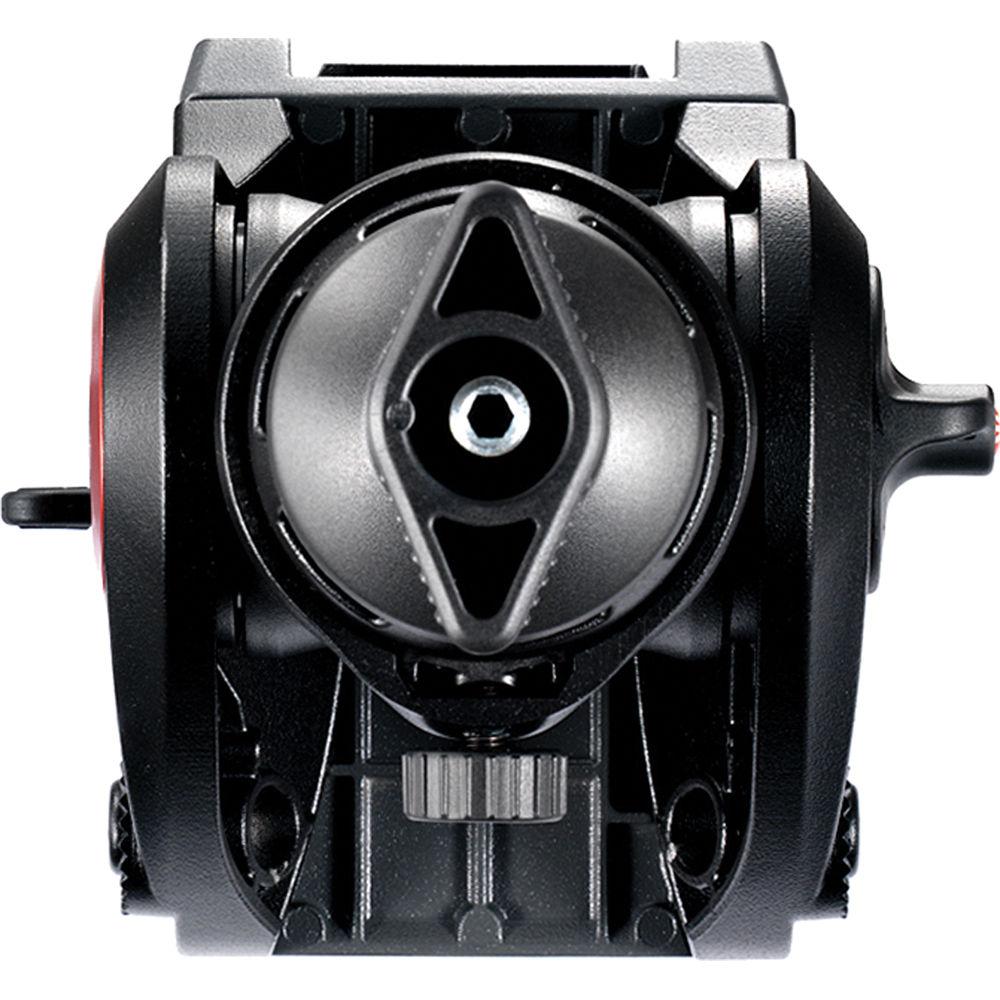

The MVH500A Half Ball Fluid Head & 535 Tripod with Carrying Bag from Manfrotto includes a 60mm half ball fluid video head, a 75mm bowl tripod, a 75mm to 60mm bowl adapter, and a black and red over-the-shoulder carrying bag. The bowl adapter will allow the fluid head to fit on the tripod. The carrying bag is padded, has a zipper running along its full length, and fits the tripod and the head.
The head features a wider than standard platform to provide better support for DSLRs. The maximum load capacity is 11 lb. A 500PLONG quick release plate is included, and a side lock system on the head allows the plate to efficiently attach and click in from above, instead of aligning and sliding in from one end. Fluid cartridges on both the pan and tilt axes provide resistance for smooth, controlled pan and tilt. The tilt range is -70° / +90° and the pan rotation is 360°. The spring-loaded counterbalance is preset at 5.3 lb. The camera plate has both 1/4" and 3/8" camera screws, and the head has a 3/8" thread on the side for attaching accessories, such as a video monitor. - 60mm Half Ball Fluid Video Head
-
- Wide platform ideal for DSLRs
- 11 lb load capacity
- Side lock system allows the included camera plate to attach from above
- Fluid cartridges provide resistance for smooth pan and tilt
- -70° / +90° tilt range
- 360° pan rotation
- Spring-loaded counterbalance preset at 5.3 lb
- 3/8" thread on the side for attaching accessories
- 75mm Bowl 2-Stage Tripod with 60mm Adapter
-
- Extends in two stages to 67" max height
- 10.6" minimum height with legs spread wide
- Carbon fiber leg tubes
- A 75mm to 60mm bowl adapter is included for fitting the 60mm half ball head on this tripod
- Over-the-Shoulder Carrying Bag
-
- Fits the tripod and head
- Padded
- A zipper runs across the full length
- Red and black
UPC: 719821347026 In the Box Manfrotto MVH500A Half Ball Fluid Head & 535 Tripod with Carrying Bag MVH500A Pro Fluid Video Head with 60mm Half Ball aeyfqrqeatavtbazdtevzxtsyqyerbfc 535 Carbon Fiber Video Tripod 75mm to 60mm Tripod Bowl Adapter Red & Black Tripod Carrying Bag Limited 6-Month Warranty, Extendable to 5 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto MVH500A Half Ball Fluid Head & 535 Tripod with Carrying Bag in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManfrotto MVK500C Specs | | | Load Capacity | 11 lb (5 kg) | | Ball | 60 mm half ball | | Camera Screw | 1/4" and 3/8" | | Material | Aluminum | | Counter Balance System | Yes, counterbalance range preset to 5.3 lb (2.4 kg) | | Camera Plate | 500PLONG quick release plate | | Tilt Drag | Yes, fluid cartridge with fixed drag | | Tilt Range | -70° / +90° | | Tilt Lock | Yes | | Spring Loaded Counter Balance | Yes | | Pan Lock | Yes | | Pan Range | 360° | | Pan Bar | 1 pan bar included | | Leveling Bubble / Illuminated | Yes / No | | Temperature Range | -4 to 140°F (-20 to 60°C) | | Working Height | 4.96" (12.6 cm) | | Weight | 2.47 lb (1.1 kg) | | | | Load Capacity | 44 lb (7 kg) | | Head Bowl | 75 mm (75 mm to 60 mm adapter included) | | Material | Carbon fiber tubing and magnesium castings | | Maximum Height | 67" (171 cm) | | Minimum Height | 10.6" (27 cm) | | Leg Stages | 2 | | Leg Sections | 3 | | Leg Lock Type | Flip-lever | | Folded Length | 28.7" (73 cm) | | Leg Tube Diameters | 34.2, 29.2, 24.8 mm | | Weight | 5.1 lb (2.3 kg) | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 38.0 x 9.0 x 9.0" |
