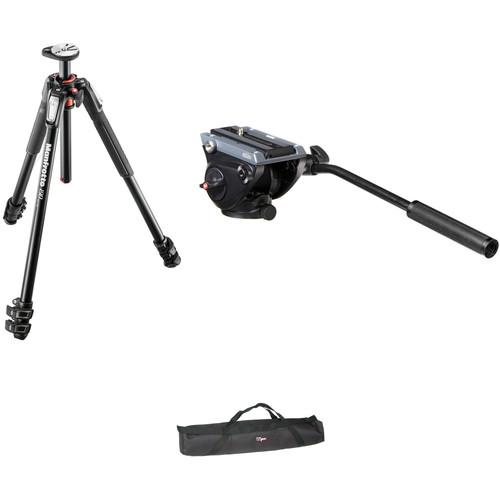

User Manual for Manfrotto MVH500AH Flat Base Fluid Head, MT190XPRO3 Tripod Legs, Padded Case Kit

• Product category: Tripod Systems Manfrotto
• Brand: Manfrotto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Manfrotto Tripod Systems

Product description

• Manfrotto MVH500AH Fluid Video Head with Flat Base
  • Manfrotto 500 Fluid Video Head
  The MVH500AH Fluid Video Head with Flat Base from Manfrotto is designed with a wide platform, optimal for HDSLR camera bodies. Smooth and precise, it has a maximum weight load of 11 lb and professional quality fluid cartridges on both its pan and tilt axes. It has a pre-set spring-loaded counterbalance of 5.3 lb, its lateral tilt range is -70°/+90° and it provides 360° panning rotation.The side lock system on the MVH500AH allows the camera and sliding QR plate to click quickly into the head from above, instead of needing to be aligned and slid in from the back. This makes it easier and safer to mount your camera on this head. The head attaches to a tripod via a 3/8"-16 thread and includes a 500PLONG sliding balance plate with a captive 1/4"-20 tie-down screw and a 3/8"-16 adapter bushing. It also provides an Easy Link 3/8" connector on the side of the head to attach accessories such as a video monitor. The MVH500AH is made from aluminum alloy, measures 3.74" high and provides a bubble level and precision control handle.
  • Wide platform fluid pan video head ideal for HDSLR cameras
  • 5.3 lb pre-set spring-loaded counterbalance system
  • Side-lock system for easier and safer camera mounting
  • Aluminum alloy construction
  • Includes long quick-release plate
  • 11 lb maximum weight capacity
  UPC: 719821346975
• Manfrotto MT190XPRO3 Aluminum Tripod
  • Manfrotto 500 Fluid Video Head
  The black, redesigned MT190XPRO3 Aluminum Tripod from Manfrotto builds on the success and popularity of the previous 190 series with professional hardware and convenience features that make it even easier to use than its predecessor. Set up is faster than ever with Manfrotto's Quick Power Lock System that allows you to completely extend the tripod legs with just one hand. Once set up you can use the MT190XPRO3's rapid center column in standard vertical mode or swing it into horizontal position like a boom with Manfrotto's 90° Column feature. Enlarged tabs on the individual leg angle selectors allow you to get down to only 3.5" for macro work with the column in horizontal mode. And once you're down there you can attach any of Manfrotto's flexible or articulated arms to hold lights or reflectors via the Easy Link plug built into the tripod's spider. Convenience features include grippy, rubber leg warmers on two legs for cold or inclement weather and a bubble level that rotates so that you can see it easily regardless of the tripod's position. Finally, Manfrotto's insistence on form following function has yielded a tripod that you'll not only be happy to use but you'll be happy to be seen with, too.
  Fast Setup with QPL
  • The Quick Power Lock (QPL) system is one of the most eye-catching and unique features of the redesigned 190. It is a strong, ultra fast, ergonomic locking system that allows for complete extension of the legs with one hand.
  90° Column
  • One of the most innovative aspects of the 190 series is its compactness, which allows for easier portability. The redesigned patented 90° Column is accessible whenever you need it with simple one finger operation.
  Easy Link Plug
  • The plug allows instant connection between tripod and accessories, such as LED lights for macro photography and DSLR video applications using Manfrotto articulated arms and brackets.
  Rotating Leveling Bubble
  • The bubble is easy to read, whatever the shape of the head or however the tripod is positioned. Just rotate it towards you for easy viewing.
  Leg Angle Selectors
  • Each leg has user selection of 4 angles to accommodate uneven ground or rough terrain. The selectors are manufactured according to most innovative ergonomic standards to prevent fingers and nails being trapped in the upper casting.
  Manfrotto's Eye to Style and Design Detail
  • The entire shape of the tripod has been modified and made more manageable and stylish. The complete redesign of its functional elements shows a particular attention to aesthetics and details: the brand name, for example, appears in many sections of the new 190, including the two legwarmers made of comfortable rubber to provide a secure grip and prevent the conduction of heat and cold in extreme weather conditions.
  UPC: 719821364597
• Vidpro TC35 Tripod Case
  • Manfrotto 500 Fluid Video Head
  The lined TC-35 Tripod Case from Vidpro is made to carry a tripod with head up to 34" long. It is made of heavy-duty Cordura nylon. The case has a zippered exterior pocket and strap handles.
  • Heavy-duty, lined, Cordura webbed nylon case made to carry a tripod up to 34" long
  • Zippered exterior pocket for cable release or other accessories
  • Attached carrying strap handles to transport the tripod
  UPC: 026127320401

• MVH500AH Fluid Video Head with Flat Base zasqyurbdryywqtbxrsdazw
• 500PLONG Quick Release Plate
• Handle
• Limited 6-Month Warranty, Extendable to 5 Years with Product Registration

• MT190XPRO3 Aluminum Tripod

• Vidpro - TC35 Tripod Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Manfrotto MVH500AH Fluid Video Head with Flat Base

  Camera Plate Features	Sliding Balance Plate, Quick Release
  Camera Plate Type	500PLONG
  Camera Mounting Screw	1 x 1/4"-20 Male 1 x 3/8"-16 Male

  Base Mount	3/8"-16 Thread

  Drag Control	Fixed
  Drag Type	Fluid
  Vertical Tilt	+90 Rating 94% users recommend this product to others. And what about you? This product has already been rated by 76 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
