User Manual for Manfrotto MVH500AH Fluid Head & 755CX3 MagFibre Tripod with Carrying Bag Click to enlarge the picture
Contents of the user manual for the Manfrotto MVH500AH Fluid Head & 755CX3
- Product category: Tripod Systems Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripod Systems
 |
User manual for the Manfrotto MVH500AH Fluid Head & 755CX3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|
Product description - Manfrotto 500 Fluid Video Head
- Manfrotto Fluid Video Head Range - Tutorial Video

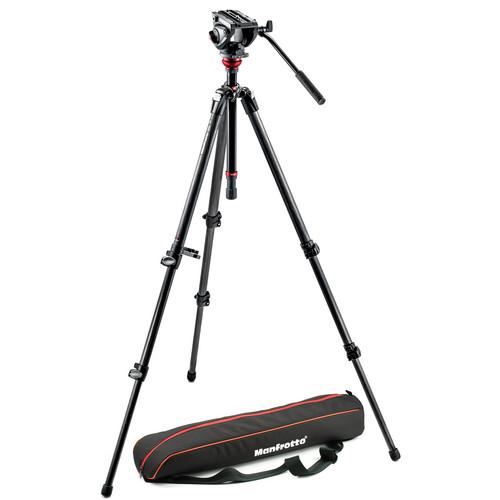

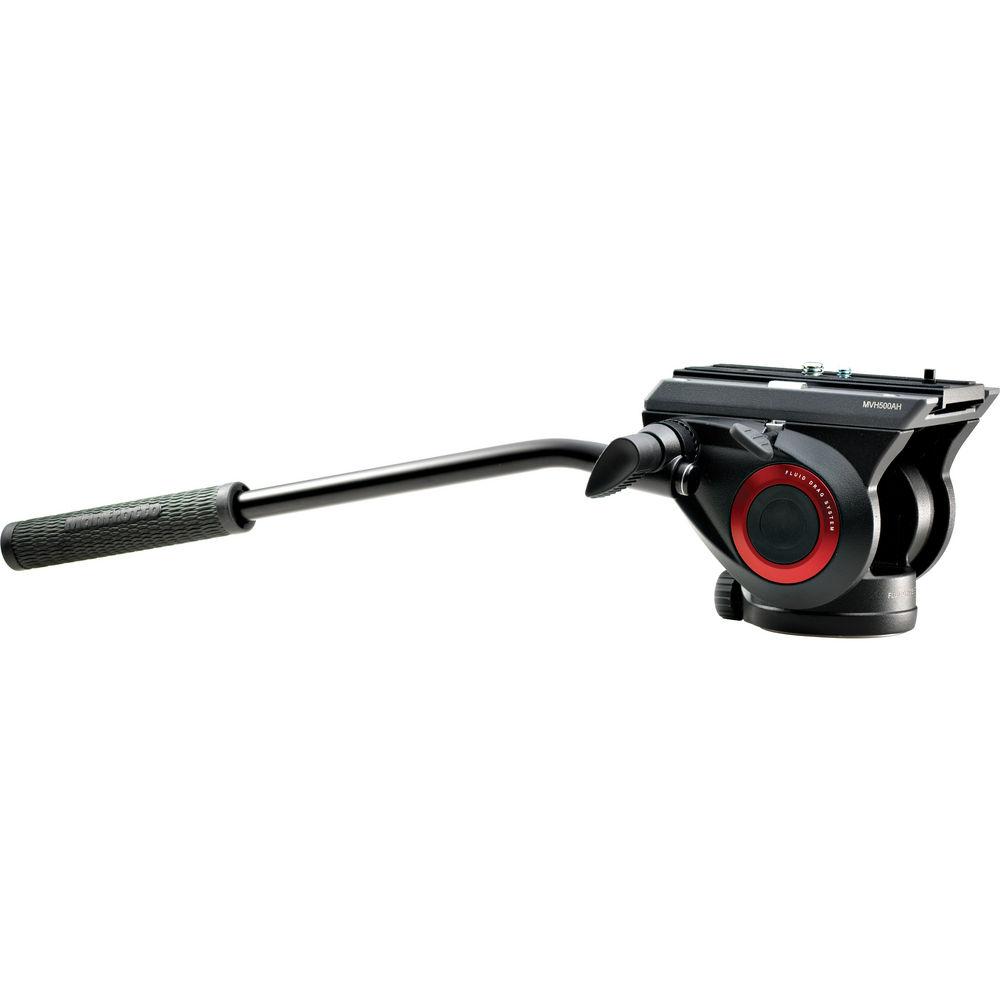

The MVH500AH Fluid Head & 755CX3 MagFibre Tripod with Carrying Bag from Manfrotto includes a flat base fluid video head, a flat base two-stage tripod, and a black and red over-the-shoulder carrying bag. The bag is padded, has a zipper running along its full length, and fits the tripod and head.

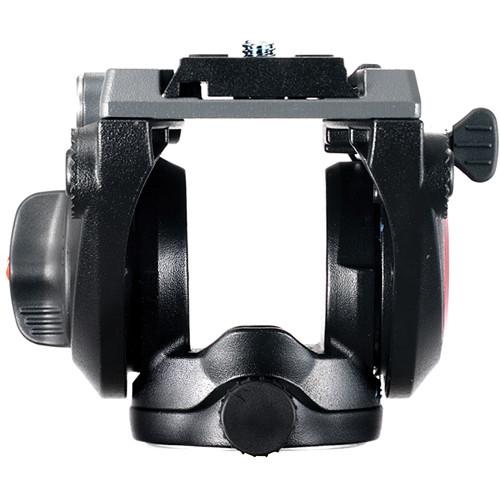

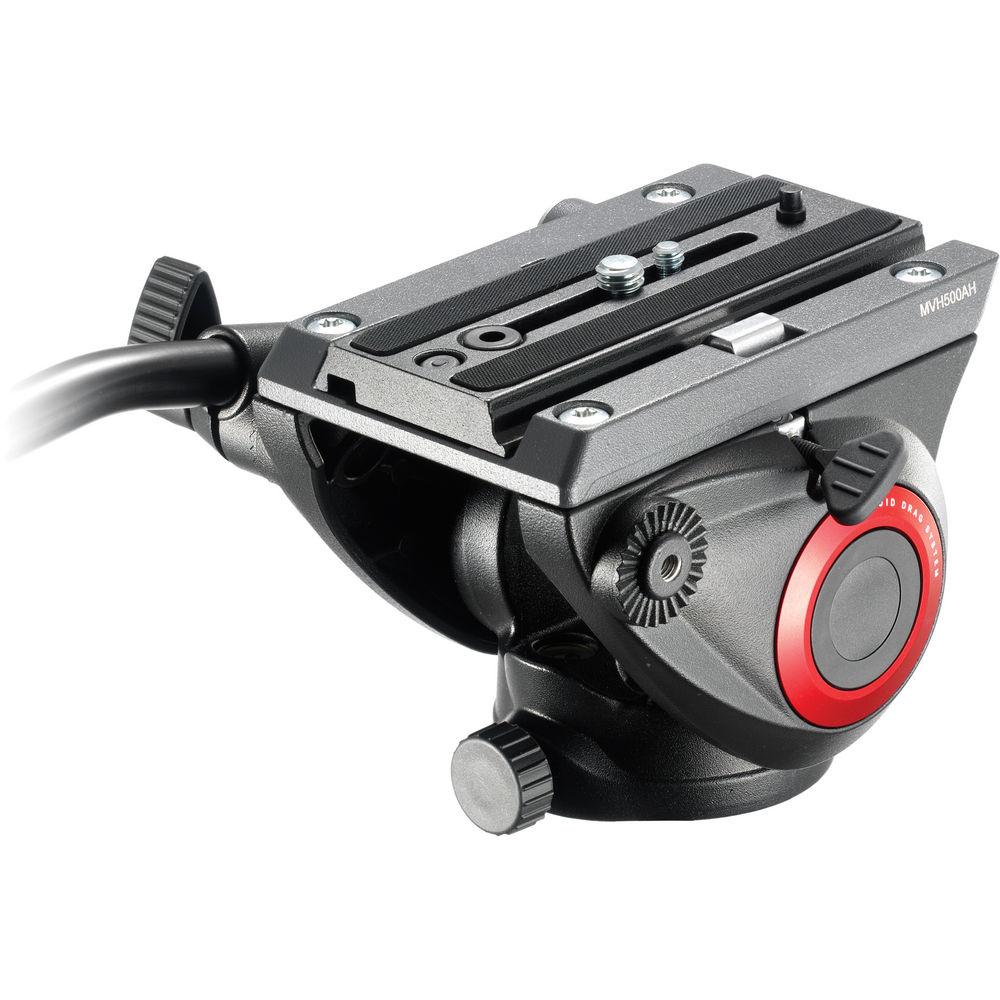

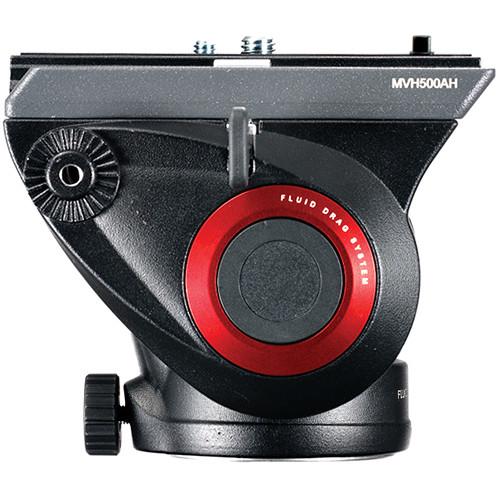

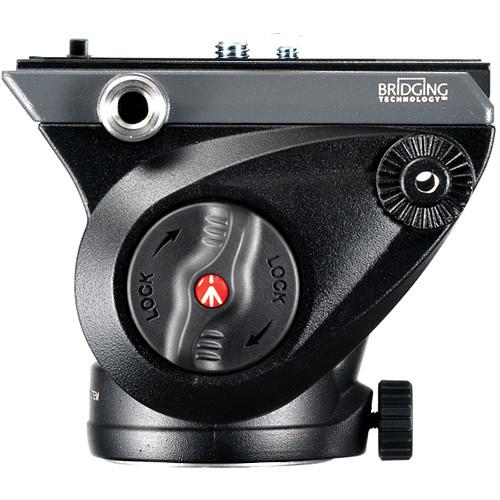

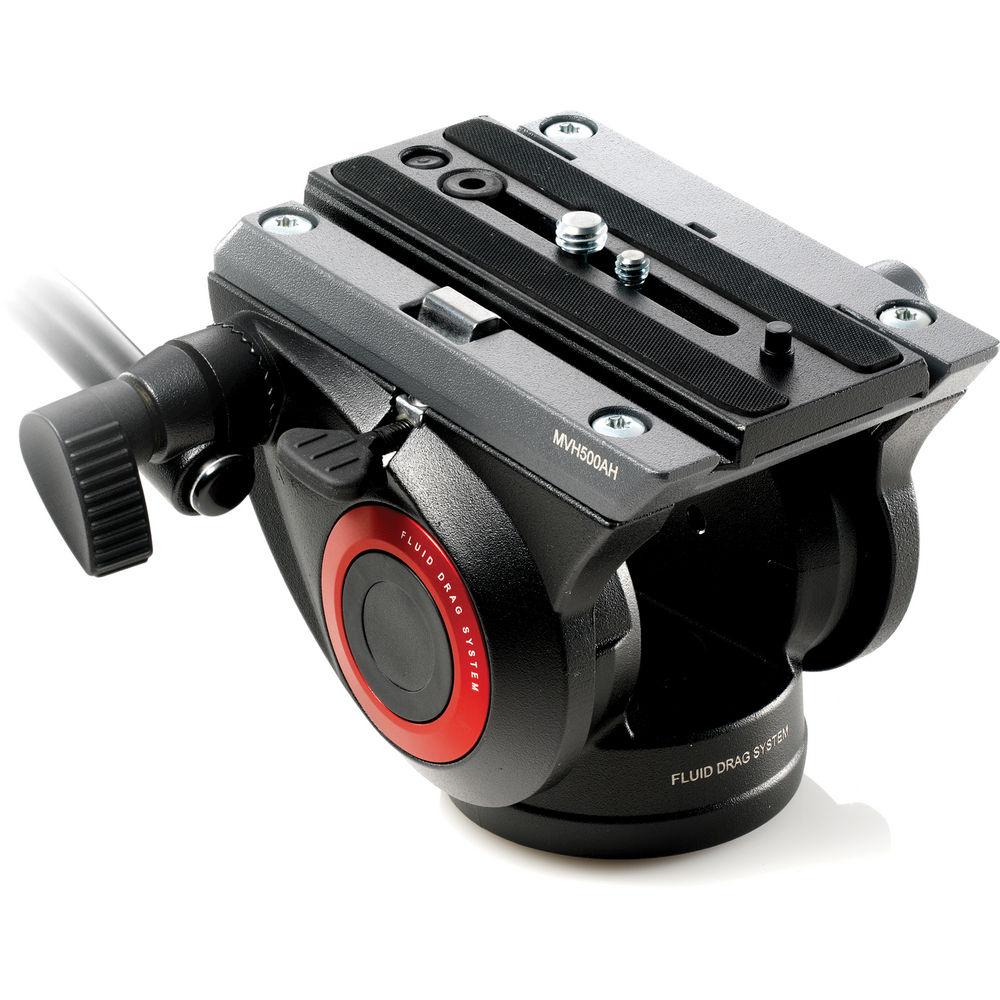

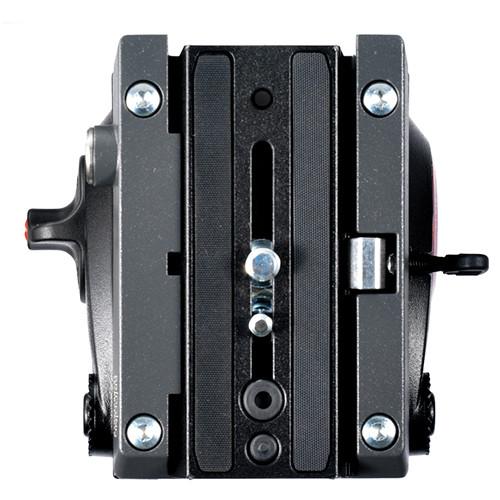

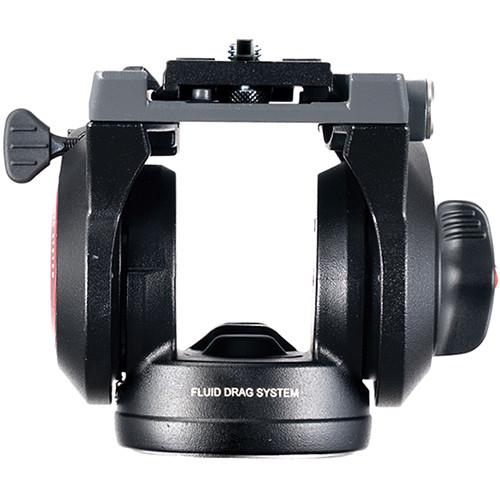

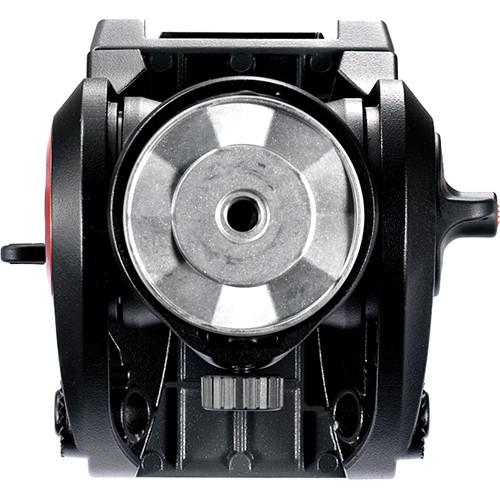

The head features a wider-than-standard platform to provide better support for DSLRs. The maximum load capacity is 11 lb. A 500PLONG quick release plate is included, and a side lock system on the head allows the plate to efficiently attach and click in from above, instead of aligning and sliding in from one end. Fluid cartridges on both the pan and tilt axes provide resistance for smooth, controlled pan and tilt. The tilt range is -70° / +90° and the pan rotation is 360°. The spring-loaded counterbalance is preset at 5.3 lb. The camera plate has both 1/4"-20 and 3/8"-16 camera screws, and the head has a 3/8"-16 tripod mounting thread, with a 3/8" thread on the side for attaching accessories, such as a video monitor.
The tripod extends in two stages from 18.3 to 54.7" at the release of flip-lever lock clamps. Additionally, a center column is adjustable up and down to extend the maximum height to 64.6". The center column can also be removed entirely and used handheld with a camera still attached. The tripod legs are made of carbon fiber, which is lightweight in comparison to aluminum, absorbs vibrations better, and is immune to corrosion from water, including salt-water. - Flat Base Fluid Video Head
-
- Wide platform ideal for DSLRs
- 11 lb Load capacity
- Side lock system allows the included camera plate to attach from above
- Fluid cartridges provide resistance for smooth pan and tilt
- -70° / +90° Tilt range
- 360° Pan rotation
- Spring-loaded counterbalance preset at 5.3 lb
- 3/8"-16 Thread on the side for attaching accessories
- Flat Base Two-Stage Tripod
-
- Extends in two stages from 18.3 to 54.7"
- Carbon fiber leg tubes
- Vertically adjustable and completely removable center column
- 64.6" Maximum height with the center column raised
- Over-the-Shoulder Carrying Bag
-
- Fits the tripod and head
- Padded
- A zipper runs across the full length
- Red and black
UPC: 719821347002 In the Box Manfrotto MVH500AH Fluid Head & 755CX3 MagFibre Tripod with Carrying Bag MVH500AH Fluid Video Head with Flat Base cfexefuu 755CX3 MagFibre Video Tripod Legs with Rapid Center Column Red & Black Tripod Carrying Bag Limited 6-Month Warranty, Extendable to 5 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto MVH500AH Fluid Head & 755CX3 MagFibre Tripod with Carrying Bag in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManfrotto 755CX3 Specs | | | Load Capacity | 11 lb (5 kg) | | Tripod Mounting Thread | 3/8"-16 | | Camera Screw | 1/4"-20 and 3/8"-16 | | Material | Aluminum alloy | | Counter Balance System | Yes, counterbalance range preset to 5.3 lb (2.4 kg) | | Camera Plate | 500PLONG Quick release plate | | Tilt Drag | Yes, fluid cartridge with fixed drag | | Tilt Range | -70° / +90° | | Tilt Lock | Yes | | Spring Loaded Counter Balance | Yes | | Pan Lock | Yes | | Pan Range | 360° | | Pan Bar | One pan bar included | | Leveling Bubble / Illuminated | Yes / No | | Temperature Range | -4 to 140°F (-20 to 60°C) | | Working Height | 3.74" (9.5 cm) | | Weight | 2 lb (.9 kg) | | | | Load Capacity | 15.4 lb (7 kg) | | Material | Carbon fiber | | Fluid Head Screw | 3/8"-16 | | Minimum Height | 18.3" (46.5 cm) | | Maximum Height | 54.7" (139 cm) | | Maximum Height with Column | 64.6" (164 cm) | | Leg Stages | 2 | | Leg Sections | 3 | | Leg Lock Type | Flip-lever | | Center Brace / Mid-Level Spreader | No | | Spiked / Retractable Feet | No | | Center Column | 1, sliding | | Folded Length | 25" (63.5 cm) | | Weight | 4.25 lb (1.9 kg) | | | | Package Weight | 8.4 lb | | Box Dimensions (LxWxH) | 32.5 x 8.0 x 8.0" |
