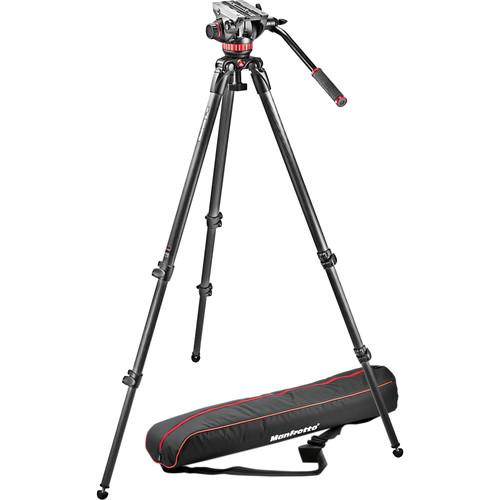

The MVH502A Fluid Head and 535 CF Tripod System from Manfrotto is designed with HDSLR and interchangeable lens cameras in mind. It combines the MVH502A Fluid Video Head with the 3-section, single-tube 535 Carbon Fiber Video Tripod.
The MVH502A is a professional video head with a 75mm half ball. It features a 15.4 lb load capacity, independent and adjustable pan and tilt, and a pre-set 8.8 lb counterbalance to accommodate rigs with accessories such as external monitors, lights, or microphones. The head also has two 3/8" Easy Link connectors which allow accessories to be fitted directly on the head.
The 3-section, single tube 535 Carbon Fiber Video Tripod has a 75mm half bowl and supports loads up to 44.1 pounds. It's carbon-fiber construction with magnesium die castings makes the tripod strong yet lightweight. Each leg features an angle selector, letting you select between 23°, 50°, and 70° angles. When combined with the MVH502A head, the legs provide a maximum height of 72.83" and a minimum height of 16.14". A padded carrying case comes include for easy transport and storage. -
- Supports loads up to 15.4 lb
- 8.8 lb counterbalance
- Independent and adjustable pan and tilt
- 3/8" Easy Link threaded connector holes on head for accessory mounting
- 75mm half bowl carbon fiber tubes and magnesium die castings
- Three-section 75mm legs
- Leg angle selector: 23°, 50°, 70°
- Padded carrying bag
UPC: 719821362319 In the Box Manfrotto MVH502A Fluid Head and 535 CF Tripod System with Carrying Bag 502A Pro Video Head with 75mm Half Ball 535 Carbon Fiber Video Tripod Padded Carrying Bag Limited 6-Month Warranty, Extendable to 5 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto MVH502A Fluid Head and 535 CF Tripod System with Carrying Bag in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManfrotto MVK502C-1 Specs | | | Load Capacity | 15.43 lb (7 kg) | | Maximum Height | 72.83" (185 cm) | | Minimum Height | 16.14" (41 cm) | | Folded Length | 34.45" (87.5 cm) | | Weight | 9.48 lb (4.3 kg) | | | | Load Capacity | 15.43 lb (7 kg) | | Counterbalance System | Spring-loaded | | Counterbalance Weight | 8.8 lb (4 kg) | | Center of Gravity | 2.16" (55 mm) | | Camera Screw(s) | 1/4"-20 and 3/8"-16 | | Mounting Thread | 3/8"-16 | | Head Bowl | 75 mm | | Tilt Range | -80° / +90° | | Tilt Drag | Continuously adjustable from 0 to max level | | Tilt Range | -80° / +90° | | Tilt Lock | Yes | | Pan Range | 360° | | Pan Drag | Continuously adjustable from 0 to max level | | Pan Lock | Yes | | Bubble Level | One | | Quick Release/Wedge Plate | 504PLONG | | Sliding Travel of Plate | 3.27" (83 mm) | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Weight | 9.48 lb (4.3 kg) | | | | Material | Carbon fiber tubing
Magnesium castings | | Load Capacity | 44.09 lb (20 kg) | | Head Bowl | 75 mm | | Leg Stages/Sections | 3 | | Leg Angles | 38°, 50°, 70° | | Independent Leg Spread | Yes | | Spiked/Retractable Feet | Yes | | Maximum Height | 67.32" (171 cm) | | Minimum Height | 10.63" (27 cm) | | Closed Length | 28.91" (73.5 cm) | | Weight | 5.07 lb (2.3 kg) | | | | Package Weight | 14.05 lb | | Box Dimensions (LxWxH) | 38.9 x 8.8 x 8.5" |
