User Manual for Manfrotto MVH502A Fluid Head and MVT502AM Tripod with Carrying Bag Click to enlarge the picture
Contents of the user manual for the Manfrotto MVH502A Fluid Head and MVT502AM
- Product category: Tripod Systems Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripod Systems
 |
User manual for the Manfrotto MVH502A Fluid Head and MVT502AM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|

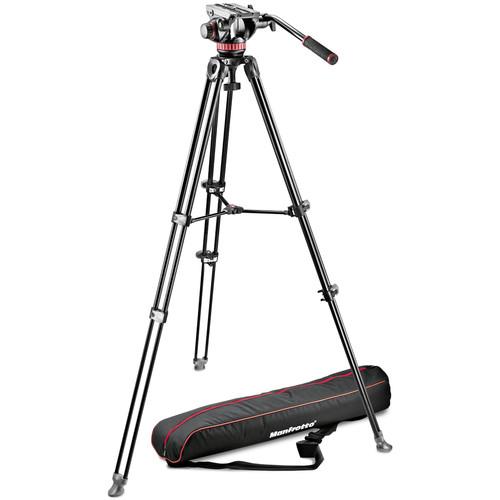

Product description The Manfrotto MVH502A Fluid Head and MVT502AM Tripod with Carrying Bag is a lightweight tripod system designed for use with camcorders and HDSLR cameras. The system features the MVH502A 75mm half ball professional video head, and the telescopic aluminum twin-tube MVT502AM tripod. A padded carrying case is included for transport and storage.

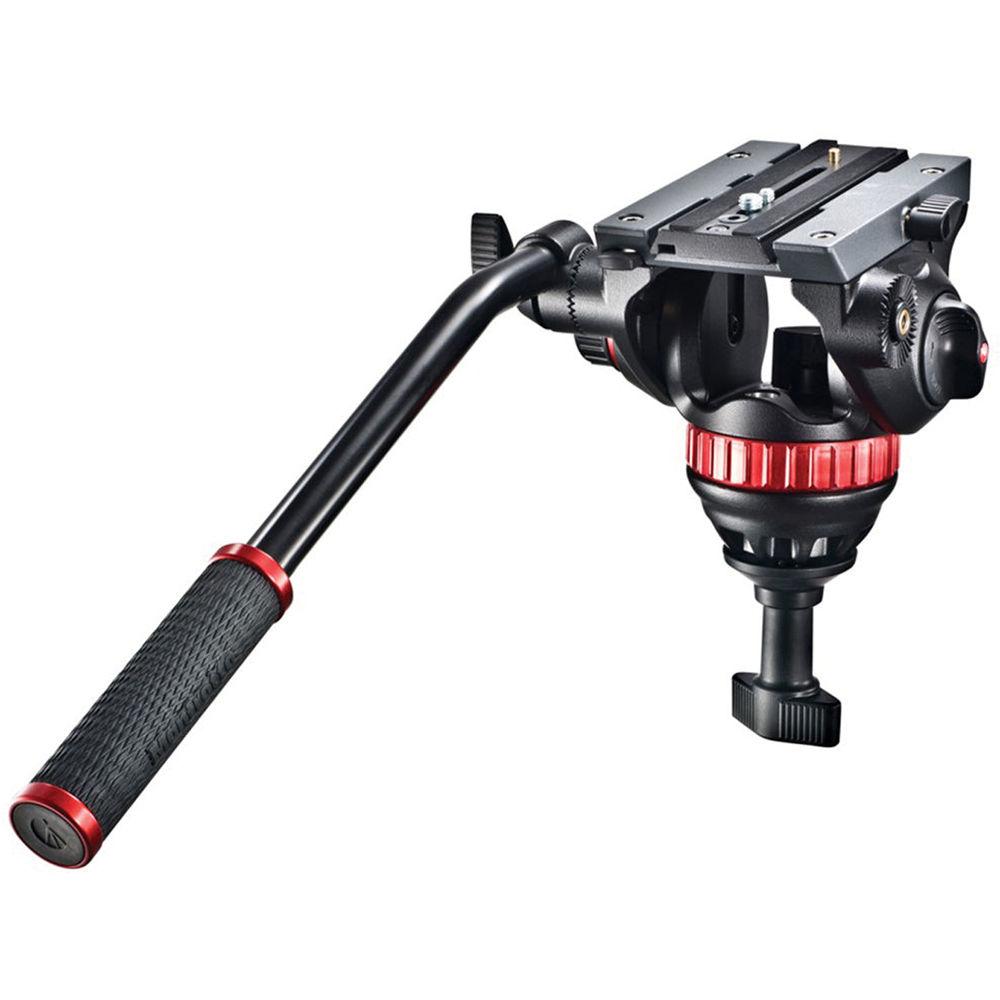

The MVH502A Pro Video Head is a professional fluid head with a 75mm half ball tripod mount. The head has a spring-loaded counterbalance system which supports up to 8.8 pounds, while the head has a payload capacity of 15.4 pounds. There are independent locks for pan and tilt, with drag continuously adjustable for both.

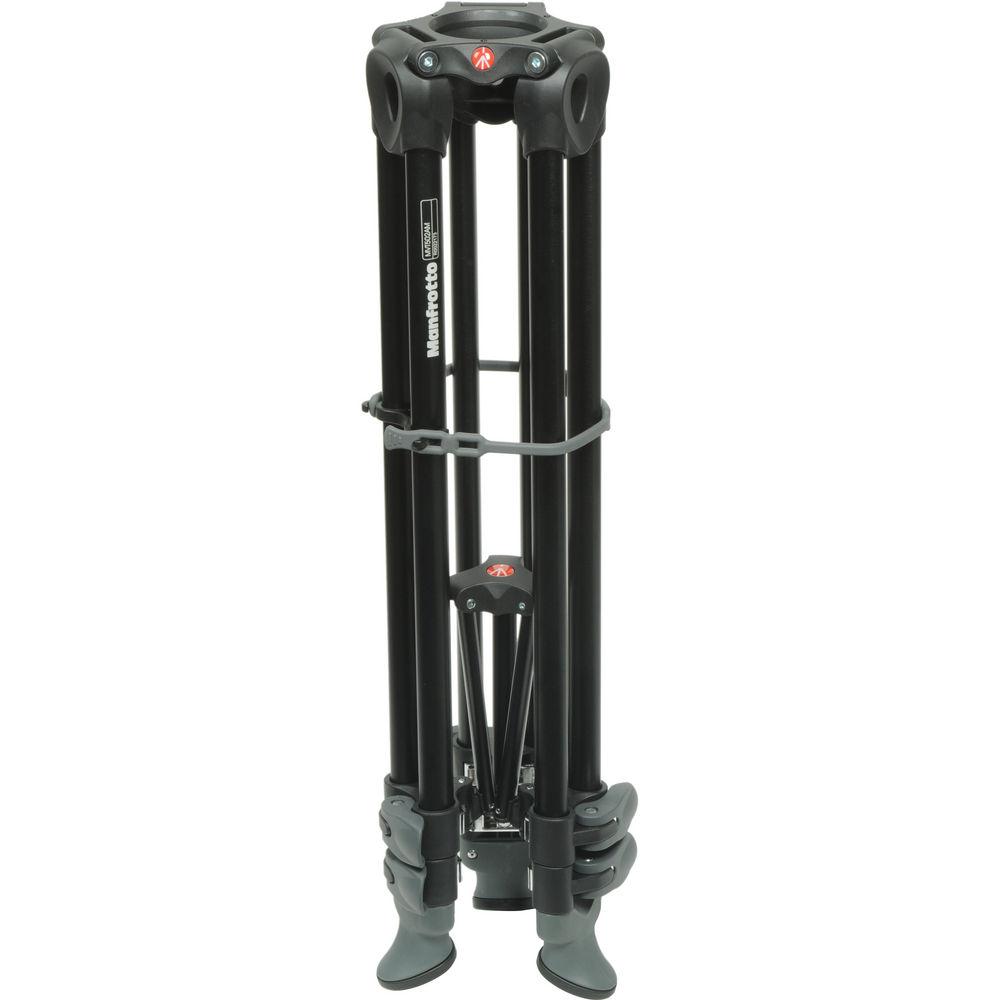

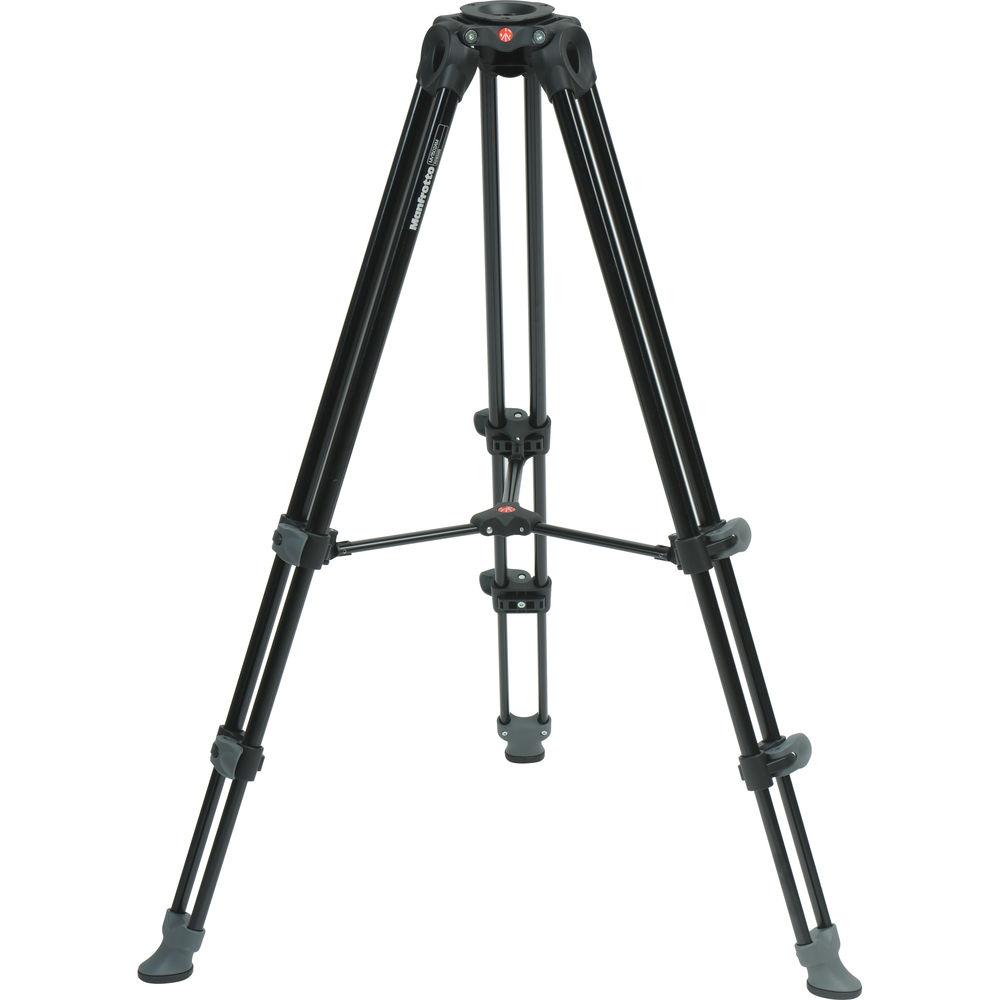

The MVT502AM video tripod is a lightweight 2-stage, aluminum twin-tube video tripod. It features telescopic aluminum legs for compactness and reduced weight, and its ellipse-profile tubing with redesigned leg locking collars and a mid-level spreader give it added levels of rigidity and stability. The tripod's rubber feet improve grip on all floor and ground surfaces.
Please see the links before for more information on the components of this bundle. - 502A Pro Video Head with 75mm Half Ball
- Manfrotto 502 Heads - Tutorial Video
- Manfrotto Fluid Video Head Range - Tutorial Video
The Manfrotto 502A Pro Video Head with 75mm Half Ball is an affordable yet remarkably fully featured professional head that represents an advance over the popular 501HDV, with sturdier construction and a half ball for precise leveling on a corresponding tripod. The 502A comes in two versions—the "A" ball-base version such as this one, and the "AH" flat-base version which is separately available.Featuring Manfrotto's patented bridging technology (inherited from the 509 and 504 heads), the 502A is designed for executing cinematic moves with compact camcorders and DSLR video cameras. The weight limit is 15.43 lb and counterbalance supports up to 8.8 lb. The balance plate's 3.27" range allows you to correct for uneven payloads that might be due to matte boxes or exotic DSLR rig configurations.The bridging technology ensures that the pan friction control is intuitive and easy to set, but also protected against knocks. There are independent locks for pan and tilt, and drag for both is selectable in a continuous range from zero to the max level. This allows you to operate the head in a confident, smooth manner using the included pan bar. - For video tripods with 75mm half balls
- 75mm half ball connects to the corresponding bowl in a tripod
- Pan drag and tilt drag are continuously adjustable from 0 (no drag) to the maximum level
- Sliding quick release plate secured by secondary safety system

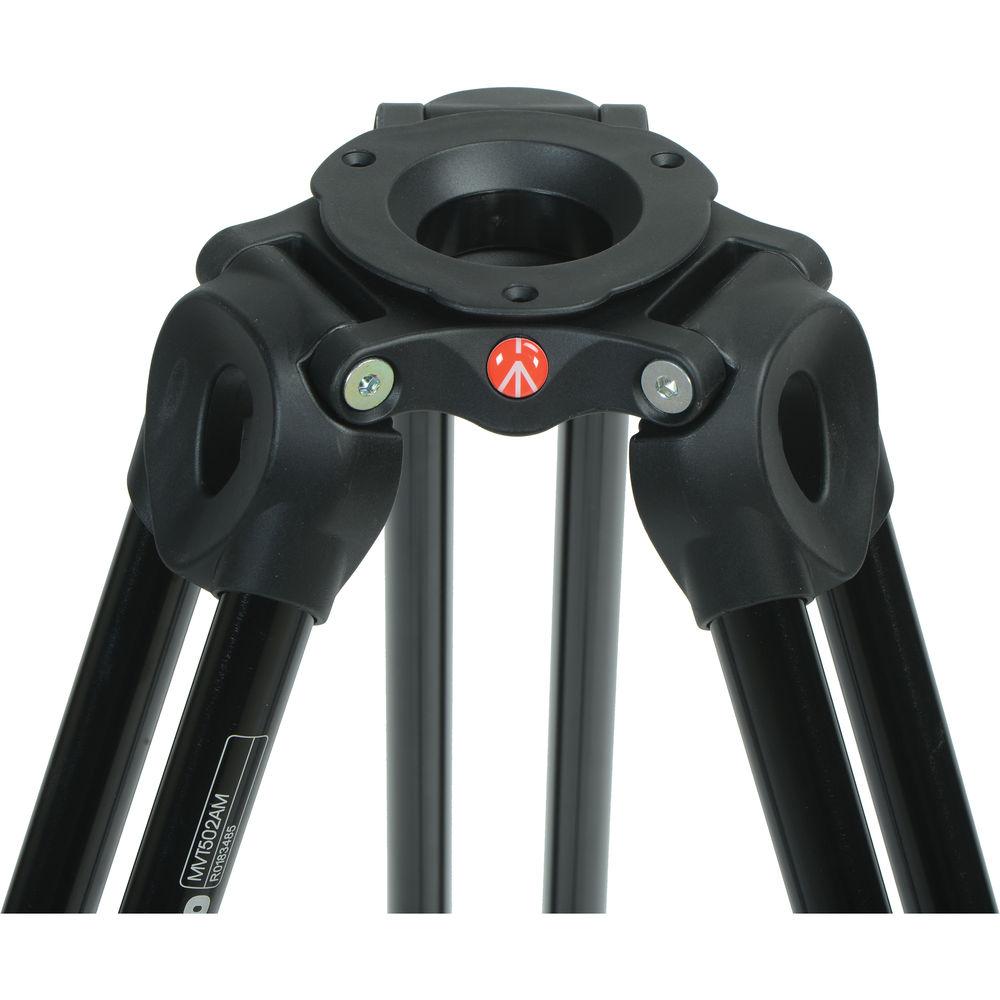

UPC: 719821334644 - MVT502AM Aluminum Telescopic Twin Leg Video Tripod Manfrotto's MVT502AM Aluminum Telescopic Twin Leg Video Tripod is a lightweight support designed for DSLRs, camcorders and light video cameras. The telescopic twin-leg structure and ellipse-profile aluminum tubes provide a rigid and secure support, along with leg locking collars, first-stage spreader and high-grip rubber feet. The 2-stage/3-section MVT502AM has a 75mm bowl (with a 60 mm adapter) for compatibility with professional video heads.
- Ideal high-performance tripod for HDSLRs and camcorders with accessories
- Rigid and stable telescopic twin-leg design with mid-level spreader
- Compact when closed, easy to transport with built-in carrying handle
- Compatible with all professional 75mm/60mm half-ball video heads

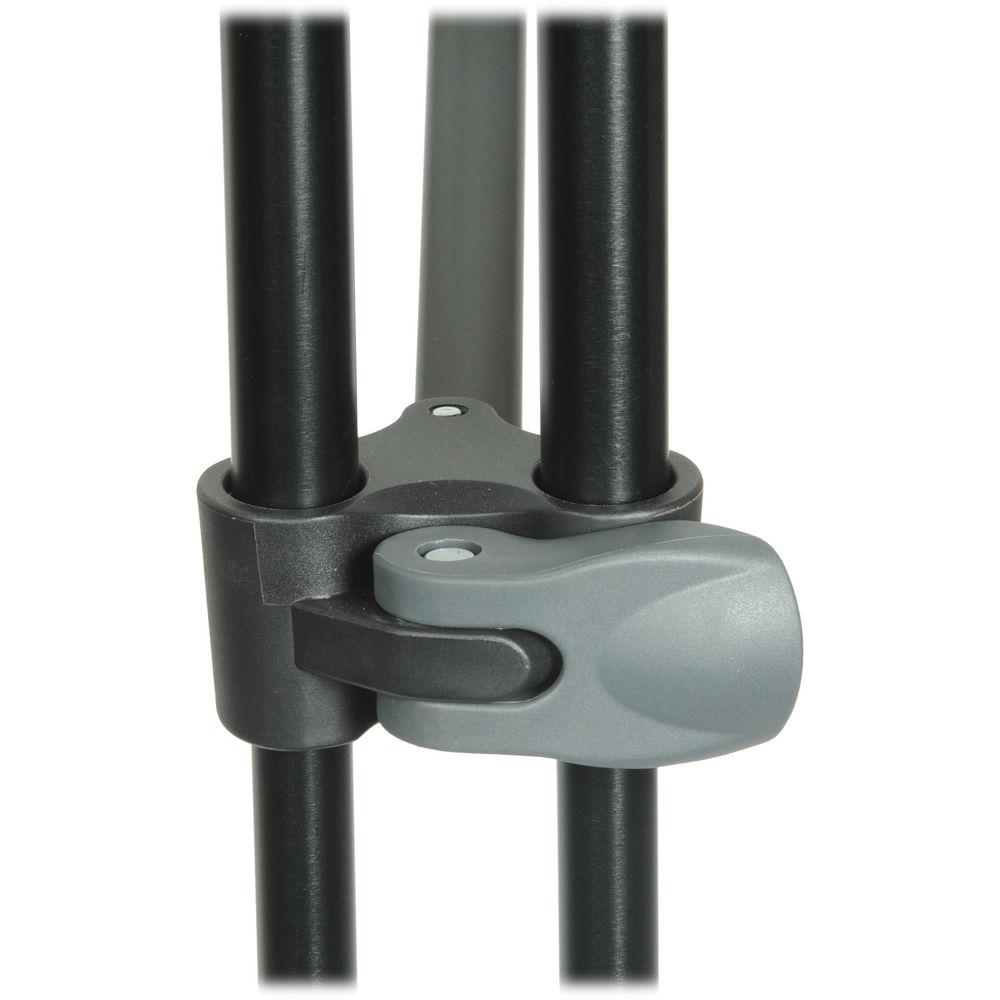

- Fast, simple and smooth set-up with ergonomic quick-release leg locking collars and new rubber feet that grip all surfaces and protect delicate floors
UPC: 719821338734 In the Box Bundle Items 502A Pro Video Head with 75mm Half Ball dwfvzqwavvrurfteducuaqbdwbcarf - 504PLONG Long Quick Release Mounting Plate
- Limited 6-Month Warranty, Extendable to 5 Years with Product Registration
MVT502AM Aluminum Telescopic Twin Leg Video Tripod - Limited 6-Month Warranty, Extendable to 5 Years with Product Registration
- Limited 6-Month Warranty, Extendable to 5 Years with Product Registration
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto MVH502A Fluid Head and MVT502AM Tripod with Carrying Bag in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 502A Pro Video Head with 75mm Half Ball
| | | Camera Mounting Screw | 1 x 1/4"-20 Male
1 x 3/8"-16 Male | | Balance Plate Sliding Range | 3.3" / 83 mm | | | | Load Capacity | 15.43 lb / 7 kg | | Counter Balance | Fixed (8.8 lb / 4 kg) | | Dimensions | 5.91" / 15 cm | | | | Box Dimensions (LxWxH) | 15.0 x 8.5 x 8.5" | - MVT502AM Aluminum Telescopic Twin Leg Video Tripod
| | | Head Mount Type | 75 mm Bowl | | Load Capacity | 33 lb / 15 kg | | Maximum Working Height | 56.5" / 143.5 cm | | Minimum Working Height | 22.44" / 57 cm | | Folded Length | 24.21" / 61.5 cm | | Materials | Aluminum | | Weight | 4.23 lb / 2 kg | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | No | | Leg Sections | 3 | | Feet Features | Rubber | | | | Center Column Features | Center Brace | | | | Box Dimensions (LxWxH) | 24.5 x 6.7 x 6.0" |
