Product description

• Nitrotech N12 Video Head
  • Nitrotech Fluid Video Heads
  • Counterbalancing Nitrotech Fluid Video Heads

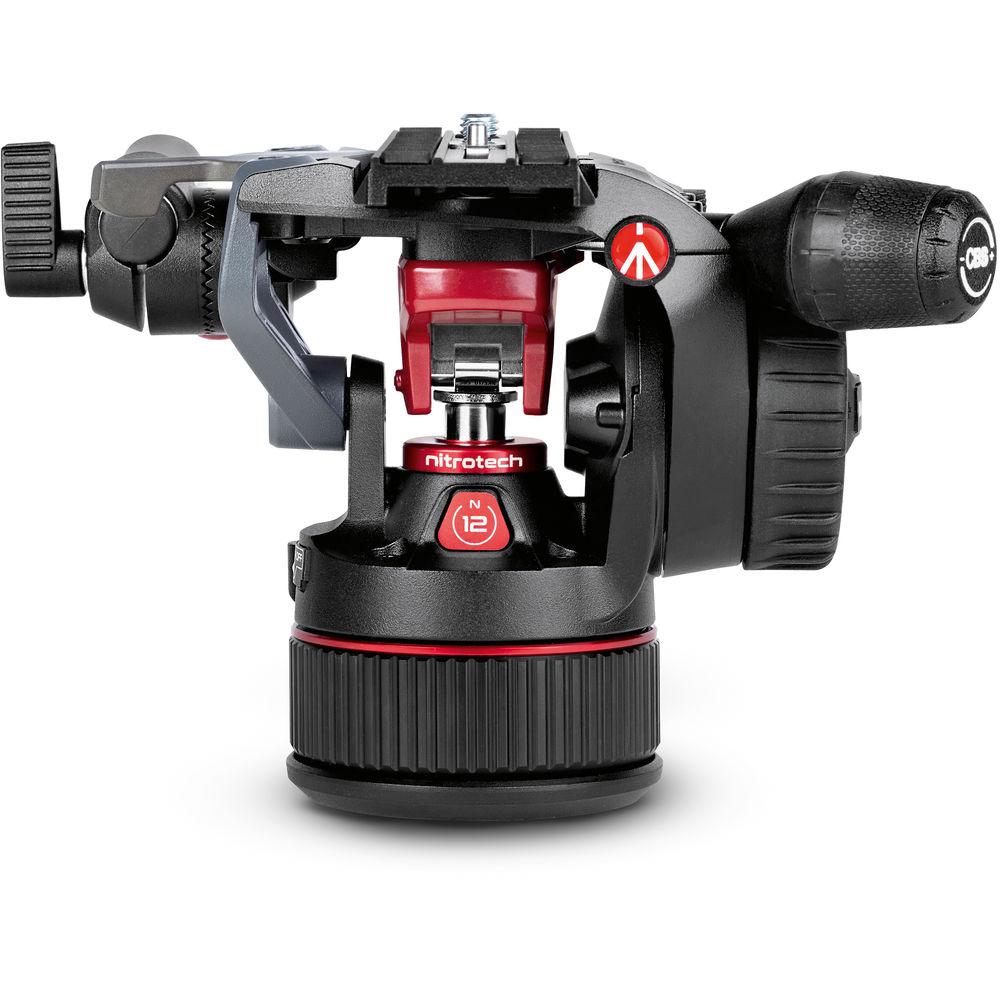

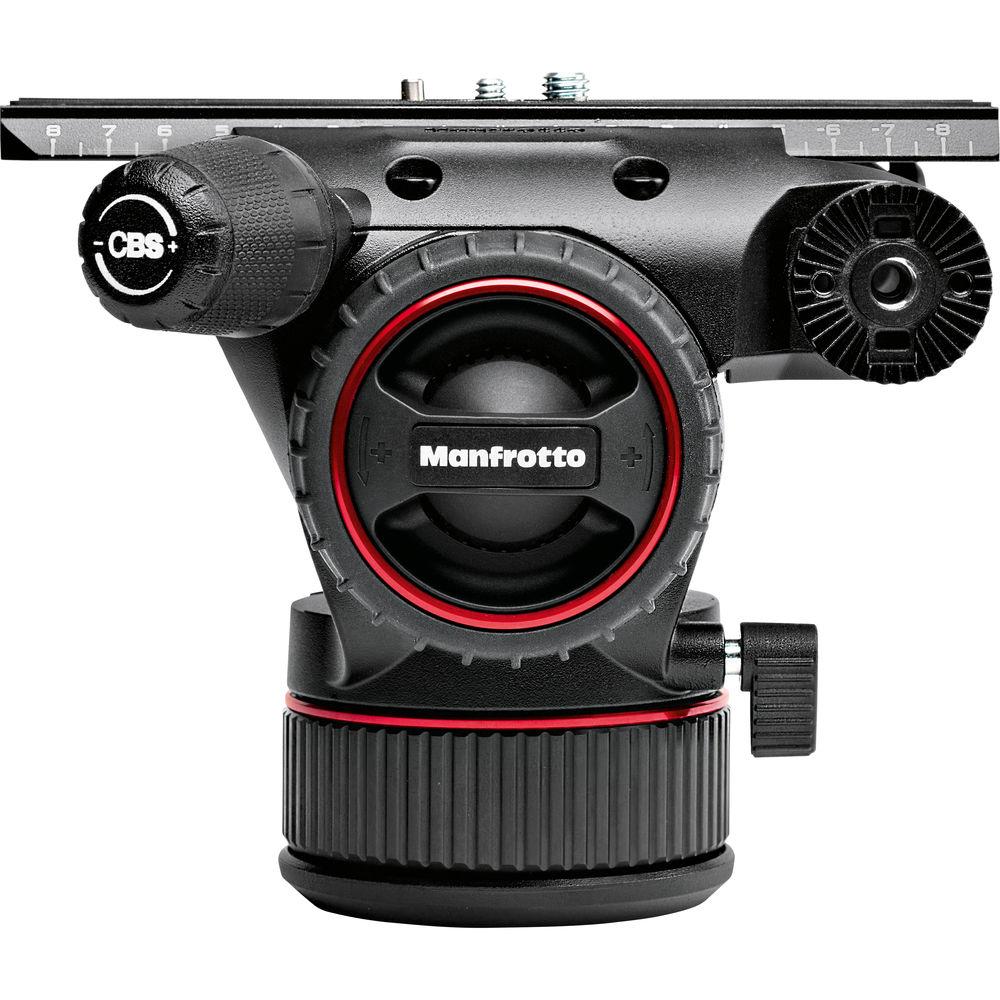

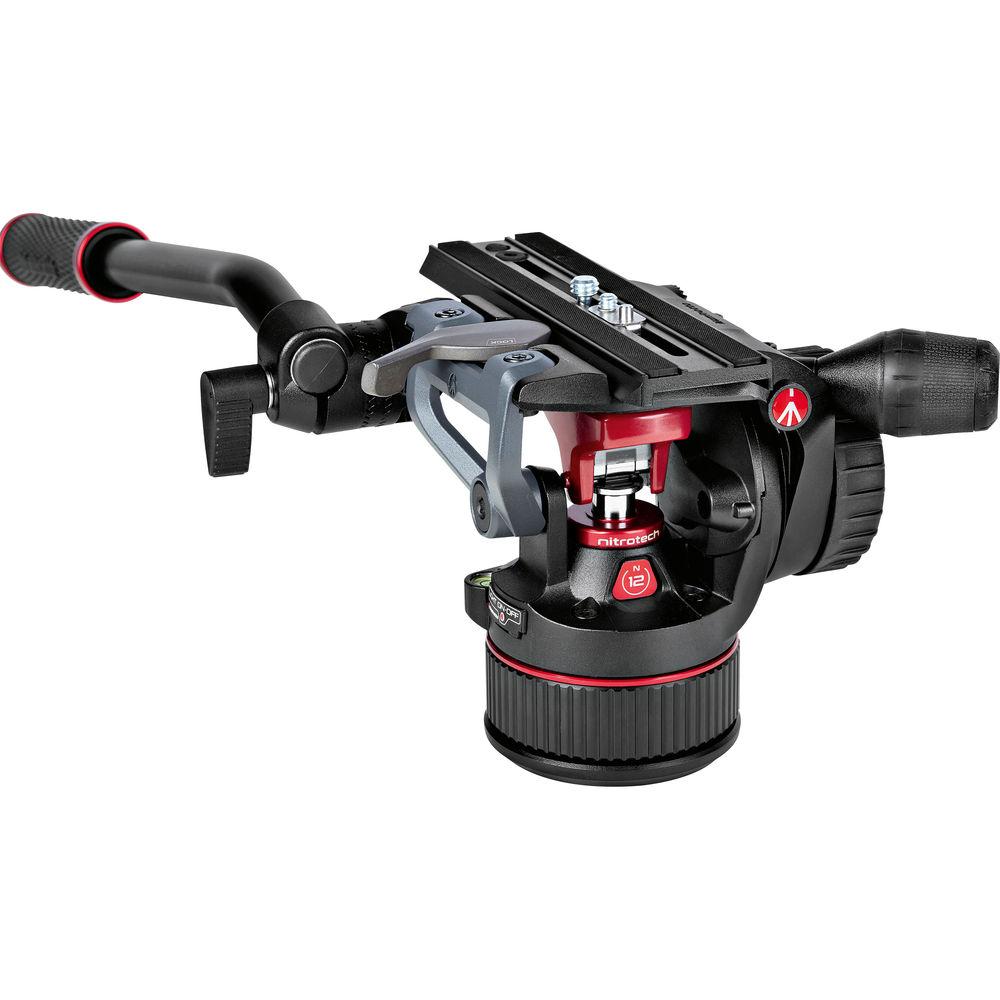

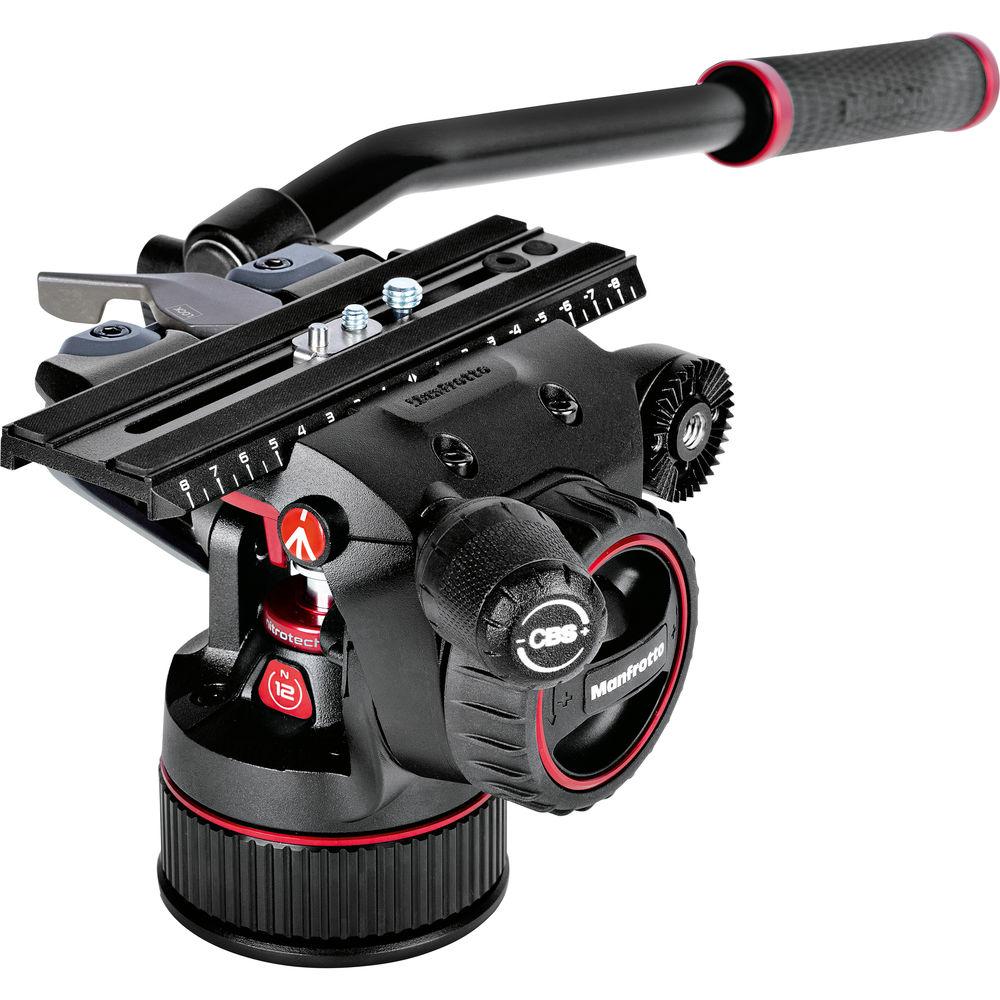

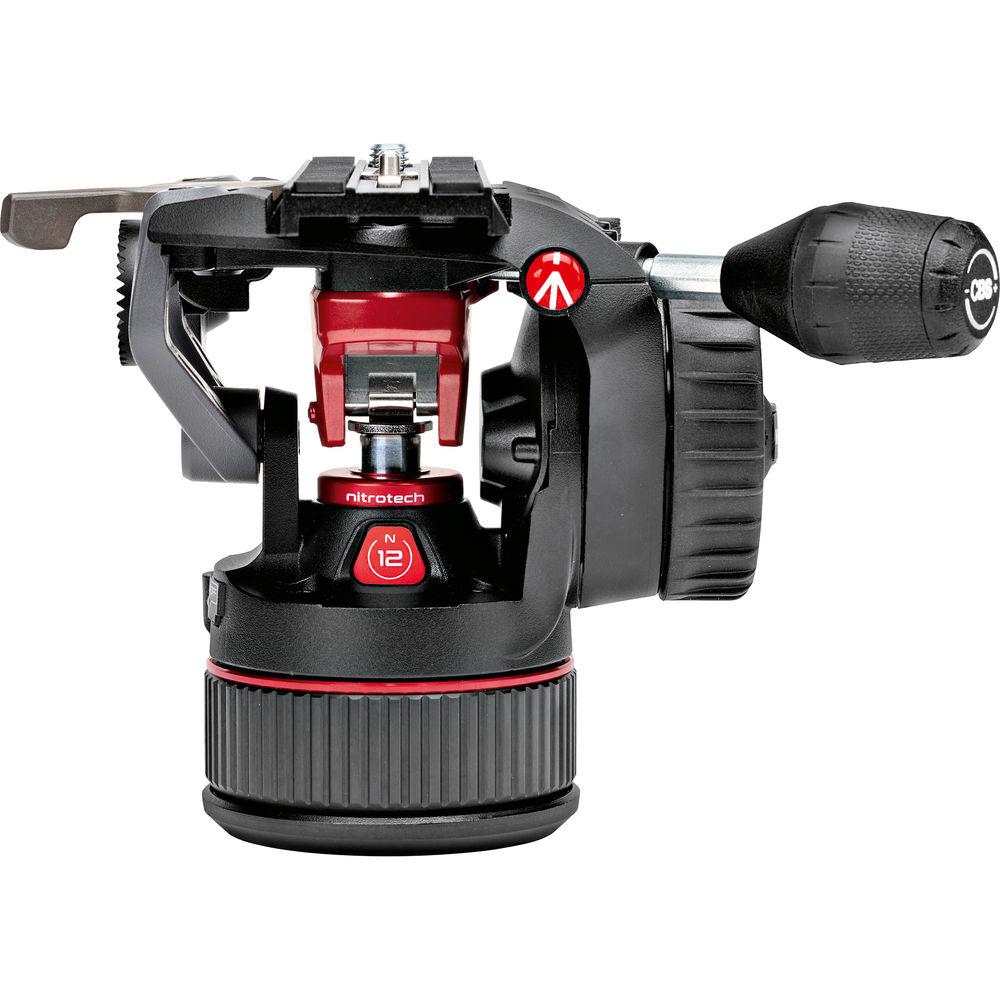

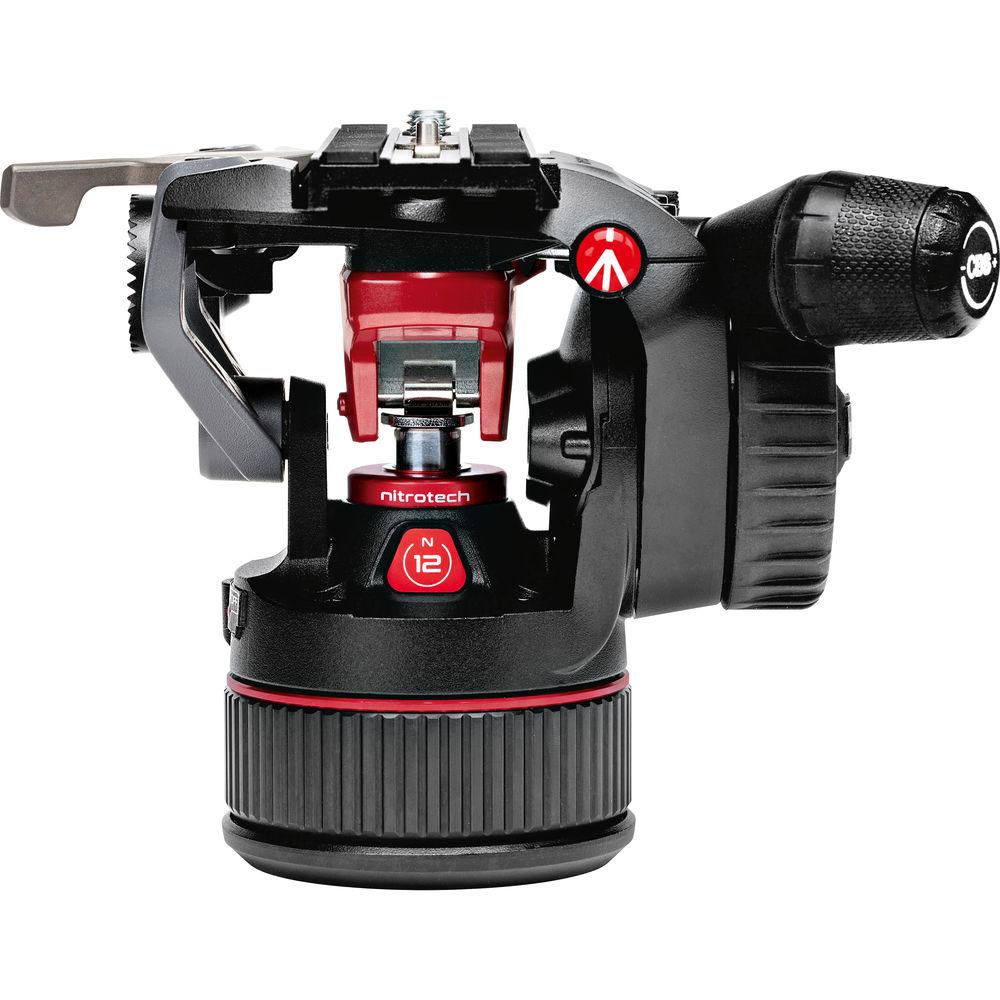

  The Manfrotto Nitrotech N12 Video Head features an innovative, continuous counterbalance system based on a nitrogen-piston mechanism. Unlike heads with stepped levels of counterbalance, the Nitrotech N12 can be precisely adjusted to the weight of your camera rig. Adjust the counterbalance by twisting the knob on the left side towards the front of the head. The knob itself can be extended with a pull, adding room useful with a wider camera. With a maximum payload capacity of 26.4 pounds, the Nitrotech N12 is designed to be used with a variety of video or DSLR/MFT camera rigs. This 75mm flat-base head can be used with a half-ball adapter (available separately) for maximum flexibility in mounting to tripods, sliders, hi-hats, or other supports.

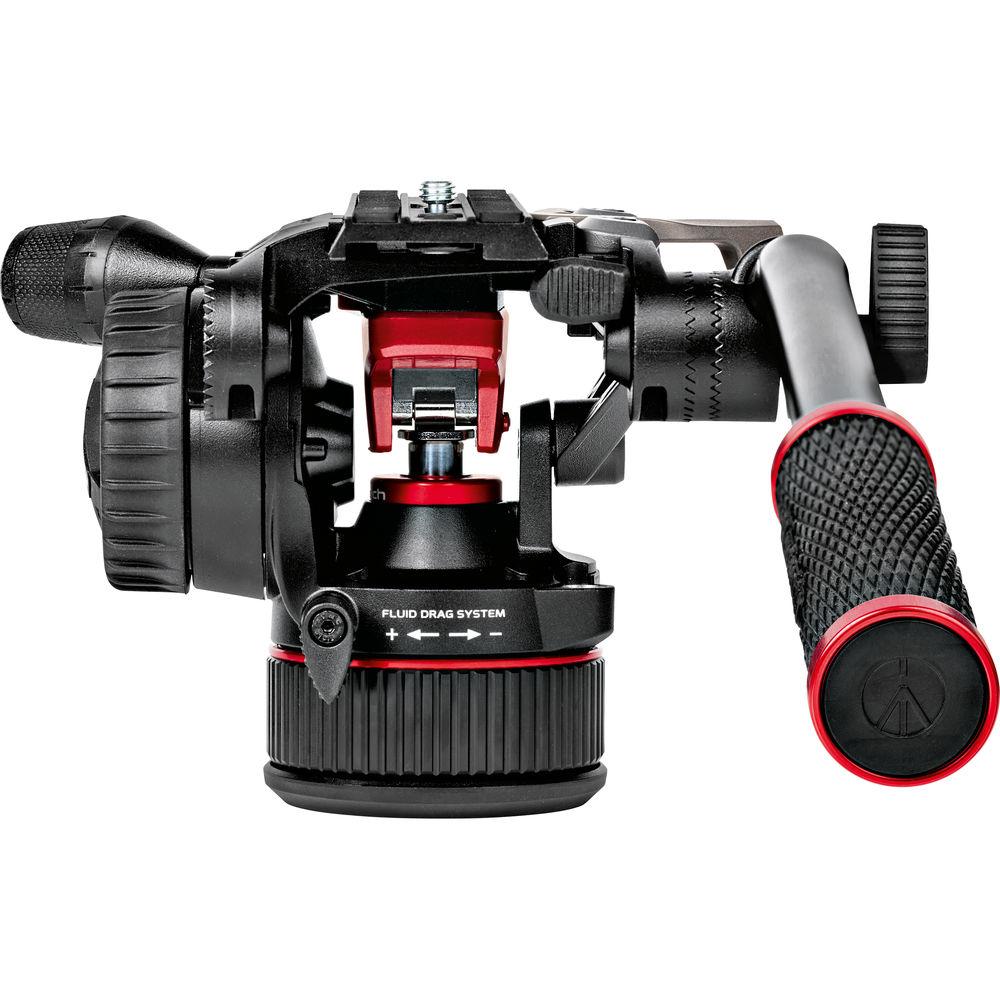

  The Nitrotech N12 includes several pro-style features for reliable, efficient use of the head. The included camera mounting plate locks in from the side, and it has a sliding design to help balance the rig on the head. Smooth panning and tilting moves are enabled by the Nitrotech N12's variable fluid drag systems. A push-button illuminated bubble at the rear of the head lets you see at a glance if the head is leveled. Unlike some other Manfrotto heads, the N12's controls are on the left side of the head, freeing your right hand to operate the panhandle. Looking to lessen the weight of accessories on your camera rig? Attach your monitor, rangefinder, light, flag, etc. to the 3/8"-threaded Easy Link Connector built into the side of the Nitrotech N12. This transfers the weight of the accessory away from the camera and to the head, making the camera less top-heavy.
  • Innovative nitrogen-piston counterbalance system provides precise adjustment based on your camera rig's weight

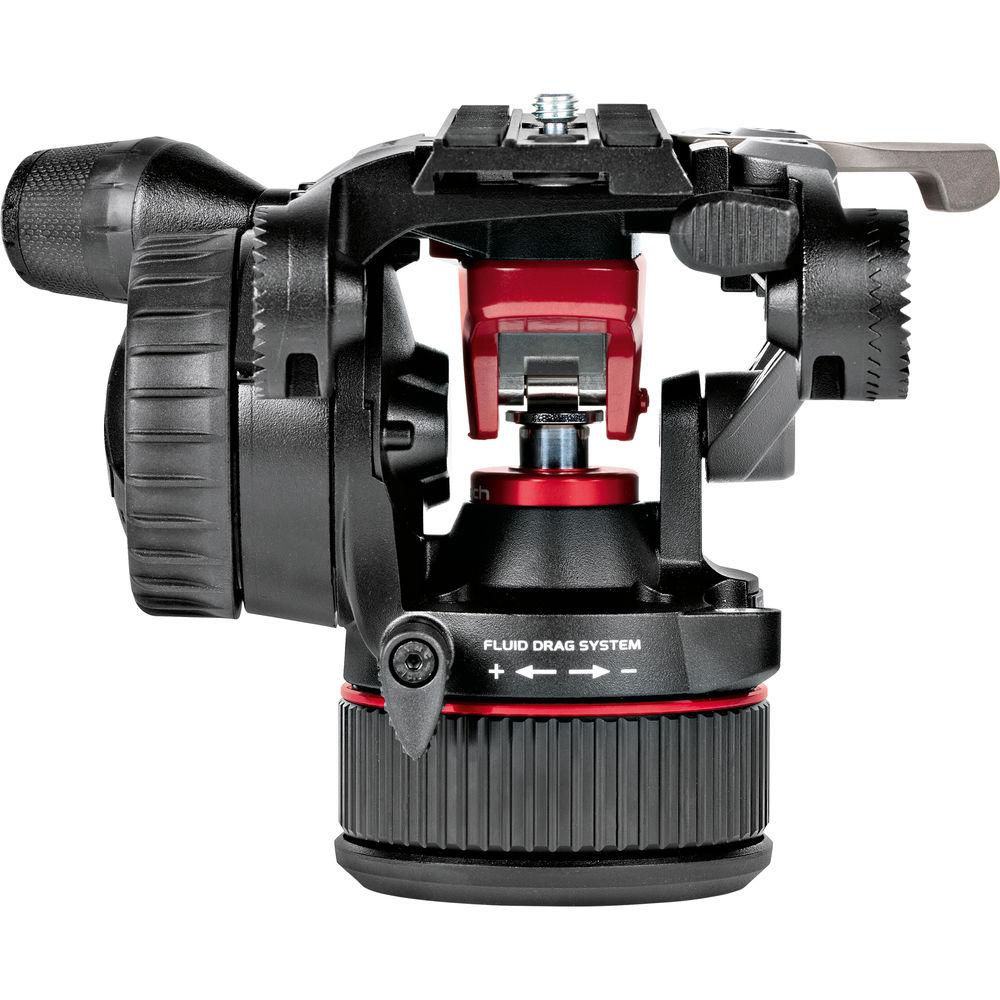

  • Fluid drag system for smooth pan and tilt moves
  • Lightweight head with 75mm flat base can be used with a half-ball adapter (available separately) for flexible configurations when using tripods, sliders etc.
  • An Easy Link Connector is embedded in each panhandle mounting rosette, which enables the attachment of an accessory to the head itself, reducing weight on the camera body
  • Left-sided controls free your right hand for operating the panhandle
  UPC: 719821421276

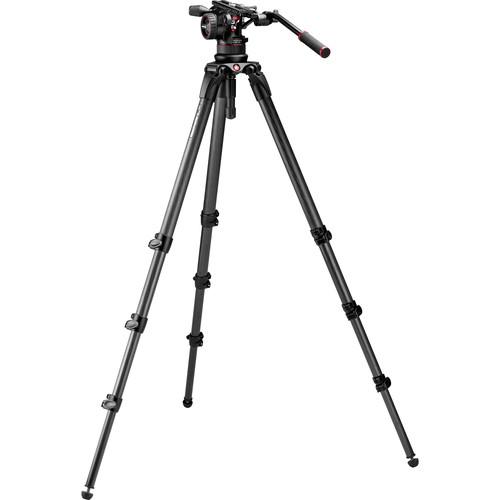

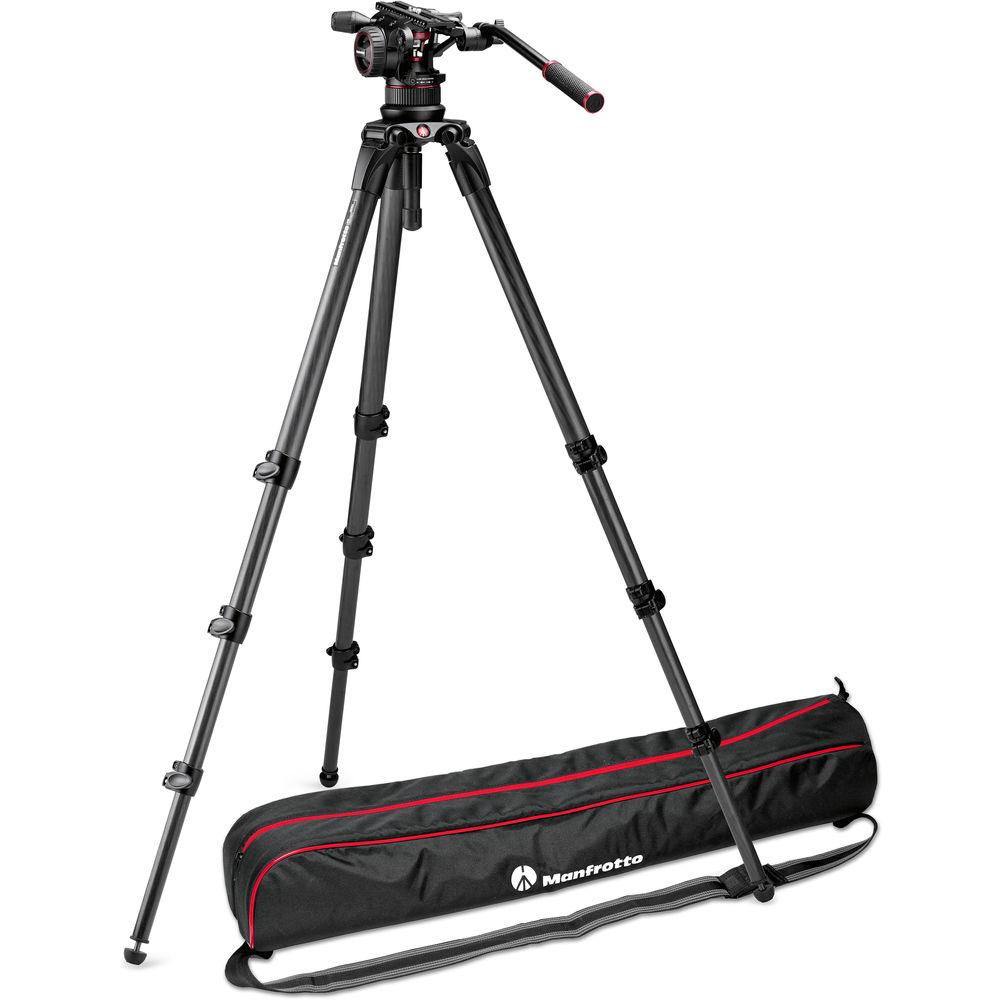

• 536 Carbon Fiber Video Tripod The Manfrotto 536 Carbon Fiber Video Tripod has four sections and a 75/100mm bowl adapter ring for industry standard fluid heads. With carbon fiber tubes and magnesium die castings, the 536 boasts great stability, high load capability, and a light weight.
  Materials
  • Thanks to carbon fiber single tube and magnesium die castings, this tripod provides great stability and load capability in a lightweight, ergonomic, easy-to-use and compact design
  Angle Selector
  • An angle selector is offered for adjusting the leg angle in an easy and precise way
  Bowl Adapter Ring
  • A screw-in bowl adapter ring offers the user the ability to work with 75 or 100mm half ball heads
  UPC: 719821290582

• Panhandle

• Ruled 504PLONG Plate

• Limited 2-Year Warranty (Additional 3 Years with Registration)

• Bowl Adapter Ring

• Limited 2-Year Warranty

• Limited 3-Year Warranty Extension with Online Registration

Also Includes

• Half Ball Adapter
• Padded Carrying Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Nitrotech N12 Video Head

  Camera Plate Features	Sliding Balance Plate
  Camera Mounting Screw	1 x 1/4"-20 Male 1 x 3/8"-16 Male

  Base Mount	3/8"-16 Thread

  Drag Control	Continuous
  Drag Type	Fluid
  Vertical Tilt	+90 Rating 100% users recommend this product to others. And what about you? This product has already been rated by 25 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
