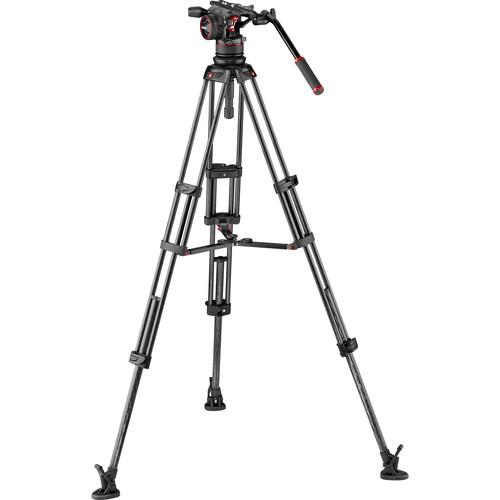

User Manual for Manfrotto Nitrotech N12 Head & Carbon Fiber Twin Leg Video Tripod Kit

• Product category: Tripod Systems Manfrotto
• Brand: Manfrotto
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Manfrotto Tripod Systems

Product description

• Nitrotech N12 Video Head The Manfrotto Nitrotech N12 Video Head features an innovative, continuous counterbalance system based on a nitrogen-piston mechanism. Unlike heads with stepped levels of counterbalance, the Nitrotech N12 can be precisely adjusted to the weight of your camera rig. Adjust the counterbalance by twisting the knob on the left side towards the front of the head. The knob itself can be extended with a pull, adding room useful with a wider camera. With a maximum payload capacity of 26.4 pounds, the Nitrotech N12 is designed to be used with a variety of video or DSLR/MFT camera rigs. This 75mm flat-base head can be used with a half-ball adapter (available separately) for maximum flexibility in mounting to tripods, sliders, hi-hats, or other supports.

  The Nitrotech N12 includes several pro-style features for reliable, efficient use of the head. The included camera mounting plate locks in from the side, and it has a sliding design to help balance the rig on the head. Smooth panning and tilting moves are enabled by the Nitrotech N12's variable fluid drag systems. A push-button illuminated bubble at the rear of the head lets you see at a glance if the head is leveled. Unlike some other Manfrotto heads, the N12's controls are on the left side of the head, freeing your right hand to operate the panhandle. Looking to lessen the weight of accessories on your camera rig? Attach your monitor, rangefinder, light, flag, etc. to the 3/8"-threaded Easy Link Connector built into the side of the Nitrotech N12. This transfers the weight of the accessory away from the camera and to the head, making the camera less top-heavy.
  • Innovative nitrogen-piston counterbalance system provides precise adjustment based on your camera rig's weight
  • Fluid drag system for smooth pan and tilt moves
  • Lightweight head with 75mm flat base can be used with a half-ball adapter (available separately) for flexible configurations when using tripods, sliders etc.
  • An Easy Link Connector is embedded in each panhandle mounting rosette, which enables the attachment of an accessory to the head itself, reducing weight on the camera body
  • Left-sided controls free your right hand for operating the panhandle
  UPC: 719821421276
• Carbon Fiber Twin Leg Video Tripod Legs with Mid-Level Spreader (100/75mm Bowl) The Manfrotto Carbon Fiber Twin Leg Video Tripod Legs with Mid-Level Spreader is suitable for use on flat, smooth surfaces as well as uneven terrain, and it features carbon fiber tubes that are both strong and lightweight while being corrosion resistant. The legs incorporate a 100mm half bowl and include a 75mm adapter ring, so you can use them with heads that have either a 100 or 75mm half ball. The legs support up to 44.1 pounds, which allows you to mount an appropriately sized fluid head, camera, and accessories without straining the capacity of the legs.

  With the included mid-level spreader attached the height of the legs can be adjusted from just under 2 to over 5 feet high, and the legs collapse to under 28 inches in length for transport and storage. Removing the included rubber feet reveals the dual spiked feet, which are useful for soft surfaces such as gravel, dirt, or sand. The legs weigh a mere 6.61 pounds, making them easy to take almost anywhere you can go.
  • The integrated lever locks are strong, durable, and increase the torsional stability of the legs.
  • The included adapter ring is removable and attaches with three mounting screws. Attaching the adapter converts the 100mm bowl into a 75mm bowl.
  • The removable mid-level spreader enables using the legs on uneven terrain, and can be used to stabilize the legs on uneven surfaces such as stairs.
  UPC: 719821433972

• Panhandle

• Ruled 504PLONG Plate

• Limited 2-Year Warranty (Additional 3 Years with Registration)

• 100 to 75mm Adapter Ring

• 3 x Rubber Foot

• Limited 6-Month Warranty, Extendable to 5 Years with Product Registration

Also Includes

• Padded Carry Bag

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Nitrotech N12 Video Head

  Camera Plate Features	Sliding Balance Plate
  Camera Mounting Screw	1 x 1/4"-20 Male 1 x 3/8"-16 Male

  Base Mount	3/8"-16 Thread

  Drag Control	Continuous
  Drag Type	Fluid
  Vertical Tilt	+90 Rating 100% users recommend this product to others. And what about you? This product has already been rated by 75 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
