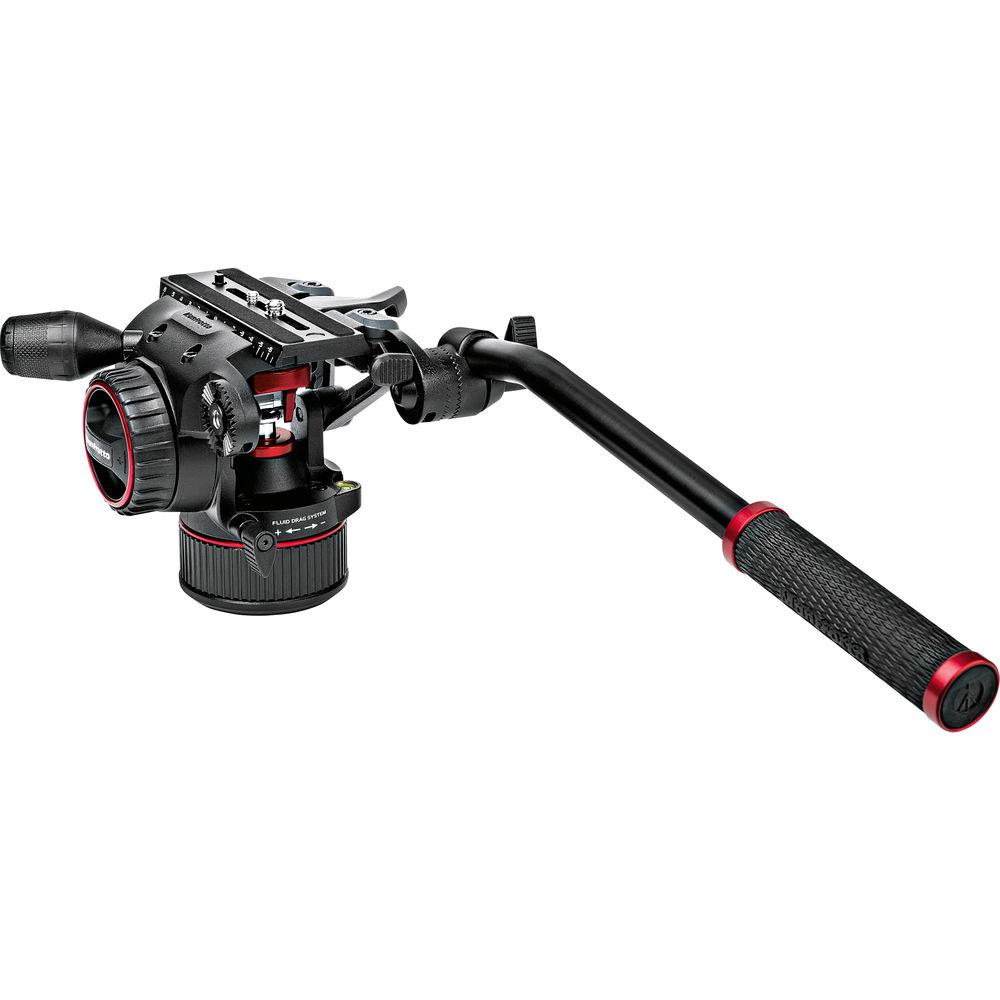

User Manual for Manfrotto Nitrotech N8 Video Head & 546B Pro Tripod with Mid-Level Spreader Click to enlarge the picture
Contents of the user manual for the Manfrotto Nitrotech N8 Video Head &
- Product category: Tripod Systems Manfrotto
- Brand: Manfrotto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manfrotto Tripod Systems
 |
User manual for the Manfrotto Nitrotech N8 Video Head & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manfrotto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manfrotto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manfrotto product will considerably shorten its lifespan!
|

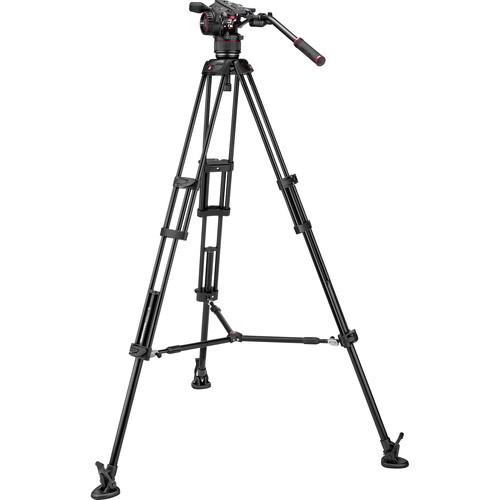

Product description Manfrotto Keeps It Cool with a New Fluid Head Read More The Manfrotto Nitrotech N8 Video Head & 546B Pro Tripod kit features an innovative counterbalance system based on a nitrogen piston mechanism. Unlike heads where the counterbalance clicks into place at set levels, the Nitrotech N8 can be precisely adjusted to the weight of your camera rig. With a maximum payload capacity of 17.6 pounds, the N8 is suitable for use with a variety of video cameras. Head features include a sliding camera plate with safety lock, fluid-drag pan and tilt functions, and an illuminated bubble level. This 75mm flat-base head can be used with the included half-ball adapter for maximum flexibility in mounting to the tripod, or to a slider, hi-hat, or other support. The 546B Pro Video Tripod with Mid-Level Spreader is a two-stage, 75mm-bowl aluminum tripod. This tripod can support up to 44 pounds and it has a height range of 12-61". Its mid-level spreader stabilizes the legs while allowing for some clearance above the ground. The 546B's spiked feet come with rubber overshoes, enabling setups on both smooth floors and uneven surfaces. The spreader can be detached, and each leg can be adjusted independently for use on a staircase or other location with varying-height surfaces. A padded bag is included for carrying this tripod system. - Nitrotech N8 Video Head
- Manfrotto Nitrotech - Head With A Core
- How to counterbalance your camera on the Manfrotto Nitrotech Fluid Video Head
- A closer look at the Manfrotto Nitrotech Fluid Video Heads

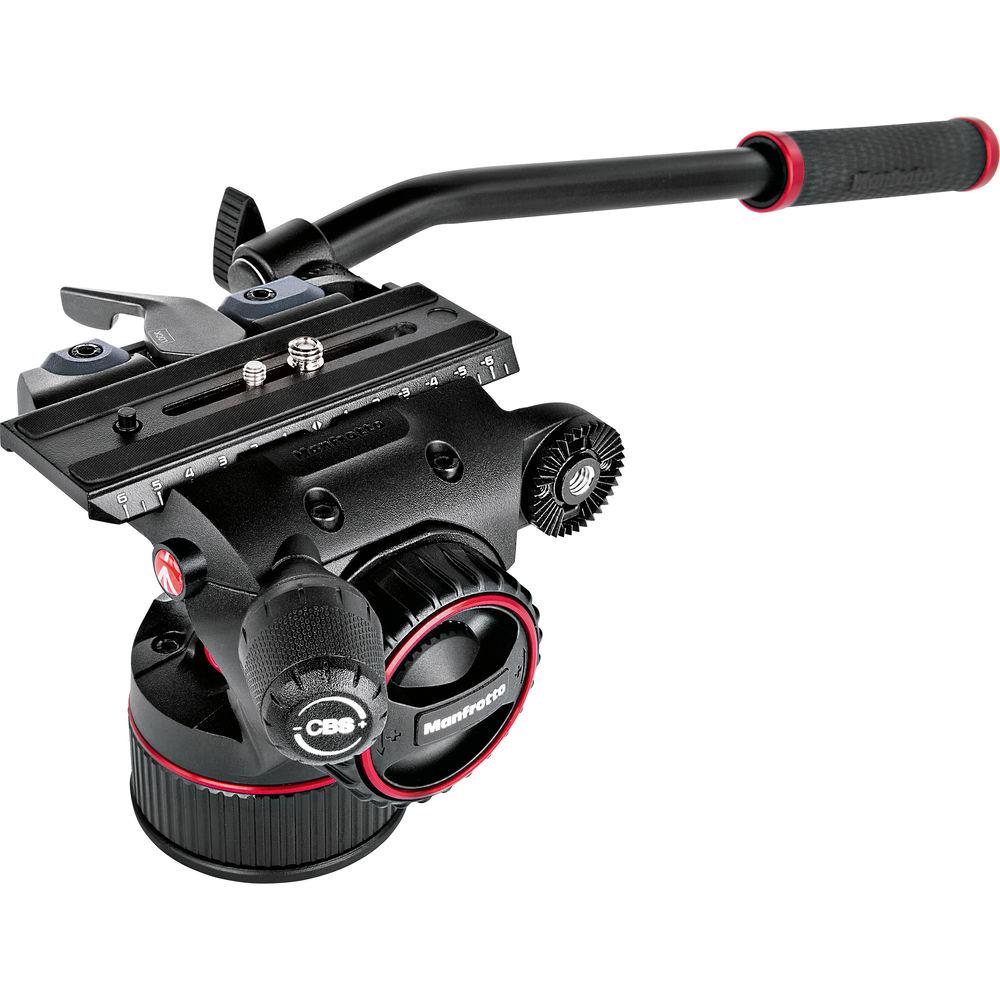

The Manfrotto Nitrotech N8 Video Head features an innovative, continuous counterbalance system based on a nitrogen-piston mechanism. Unlike heads with stepped levels of counterbalance, the Nitrotech N8 can be precisely adjusted to the weight of your camera rig. Adjust the counterbalance by twisting the knob on the left side towards the front of the head. The knob itself can be extended with a pull, adding room useful with a wider camera. With a maximum payload capacity of 17.6 pounds, the Nitrotech N8 is designed to be used with a variety of video or DSLR/MFT camera rigs. This 75mm flat-base head can be used with a half-ball adapter (available separately) for maximum flexibility in mounting to tripods, sliders, hi-hats, or other supports.

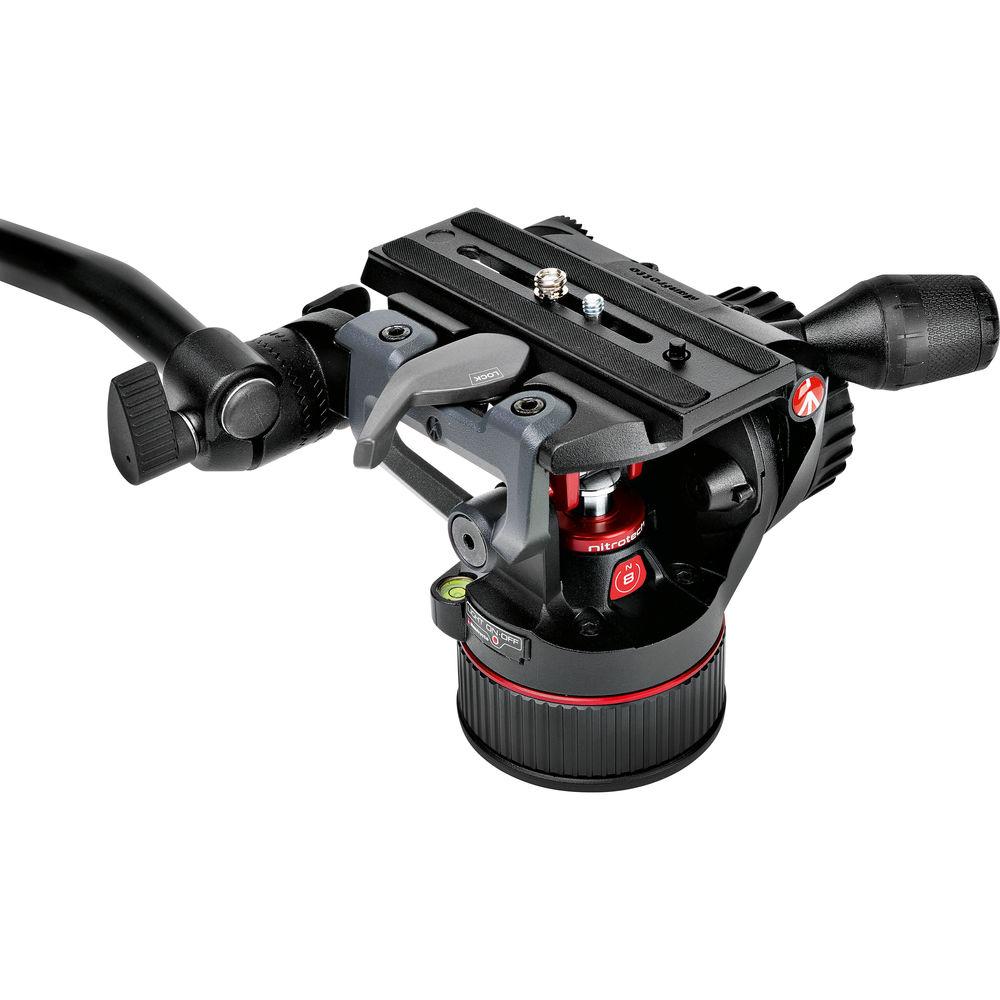

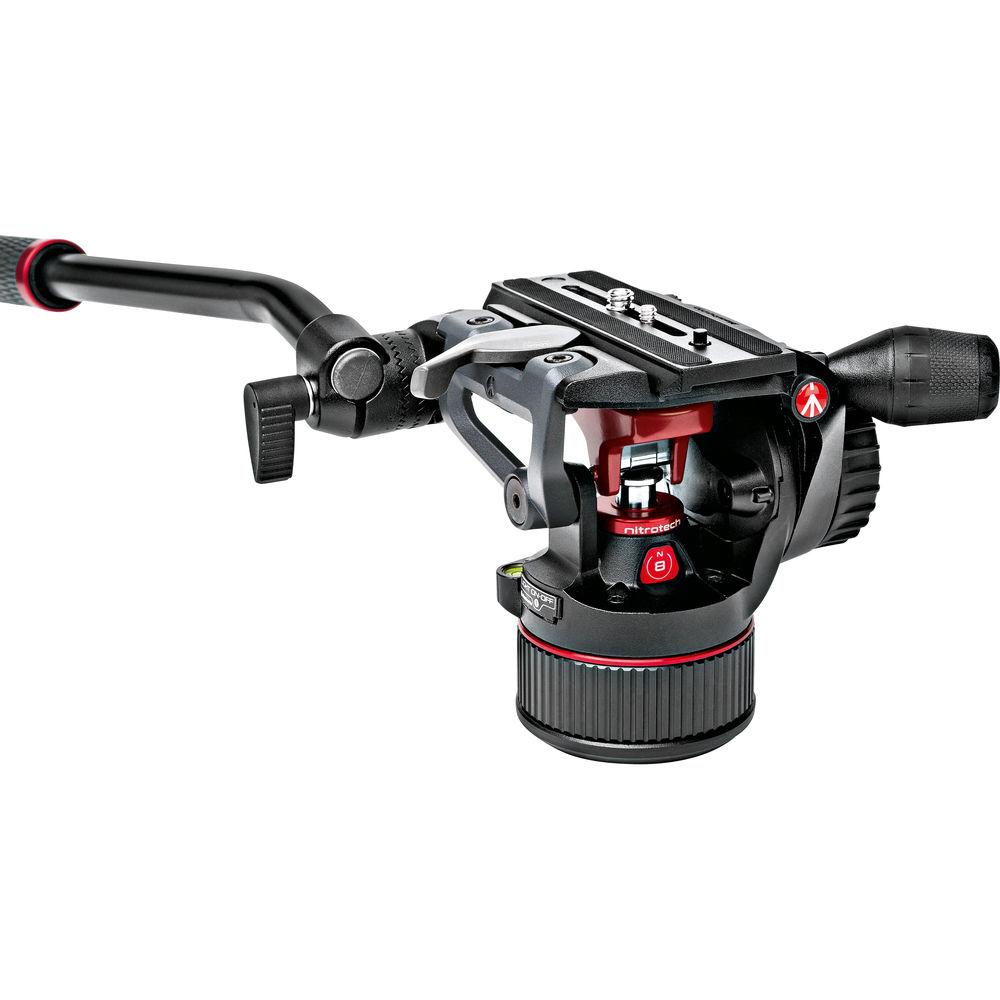

The Nitrotech N8 includes several pro-style features for reliable, efficient use of the head. The included camera mounting plate locks in from the side, and it has a sliding design to help balance the rig on the head. Smooth panning and tilting moves are enabled by the Nitrotech N8's variable fluid drag systems. A push-button illuminated bubble at the rear of the head lets you see at a glance if the head is leveled. Unlike some other Manfrotto heads, the N8's controls are on the left side of the head, freeing your right hand to operate the panhandle. Looking to lessen the weight of accessories on your camera rig? Attach your monitor, rangefinder, light, flag, etc. to the 3/8"-threaded Easy Link Connector built into the side of the Nitrotech N8. This transfers the weight of the accessory away from the camera and to the head, making the camera less top-heavy. - Innovative nitrogen-piston counterbalance system provides precise adjustment based on your camera rig's weight
- Fluid drag system for smooth pan and tilt moves
- Lightweight head with 75mm flat base can be used with a half-ball adapter (available separately) for flexible configurations when using tripods, sliders etc.

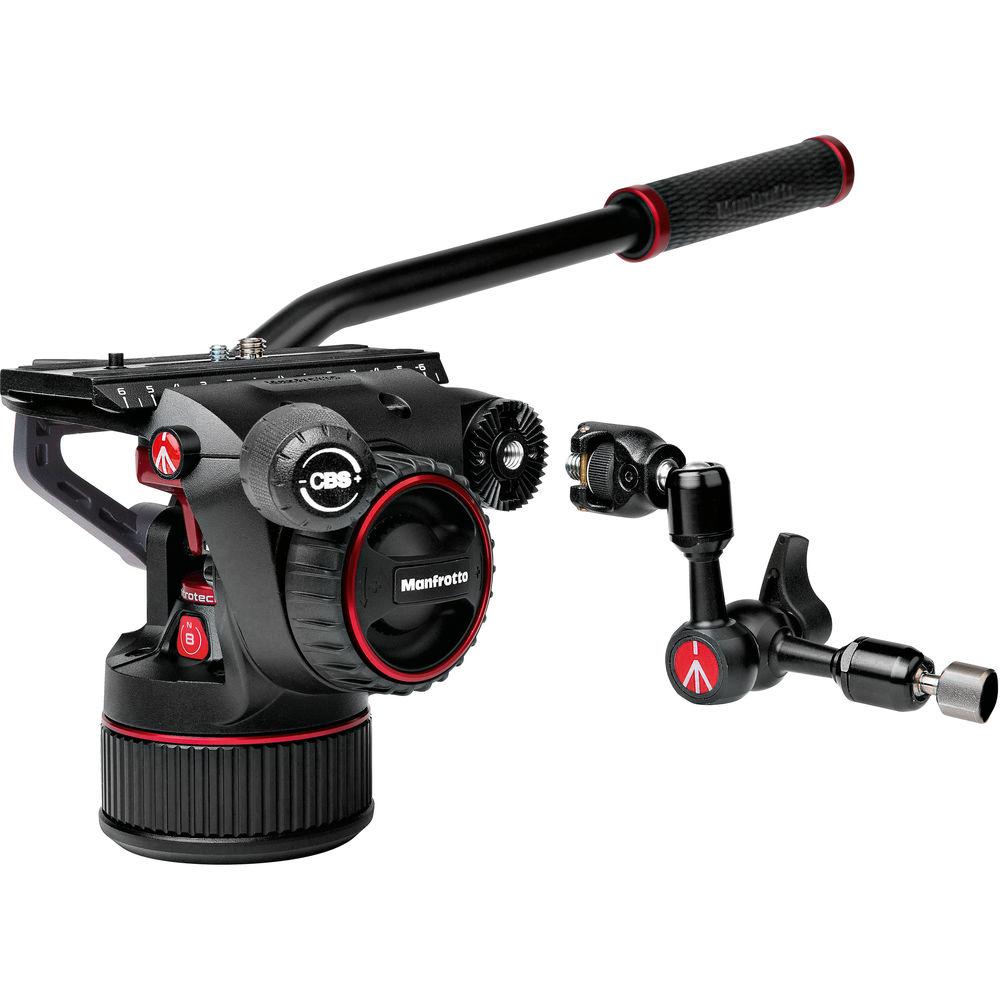

- An Easy Link Connector is embedded in each panhandle mounting rosette, which enables the attachment of an accessory to the head itself, reducing weight on the camera body
- Left-sided controls free your right hand for operating the panhandle

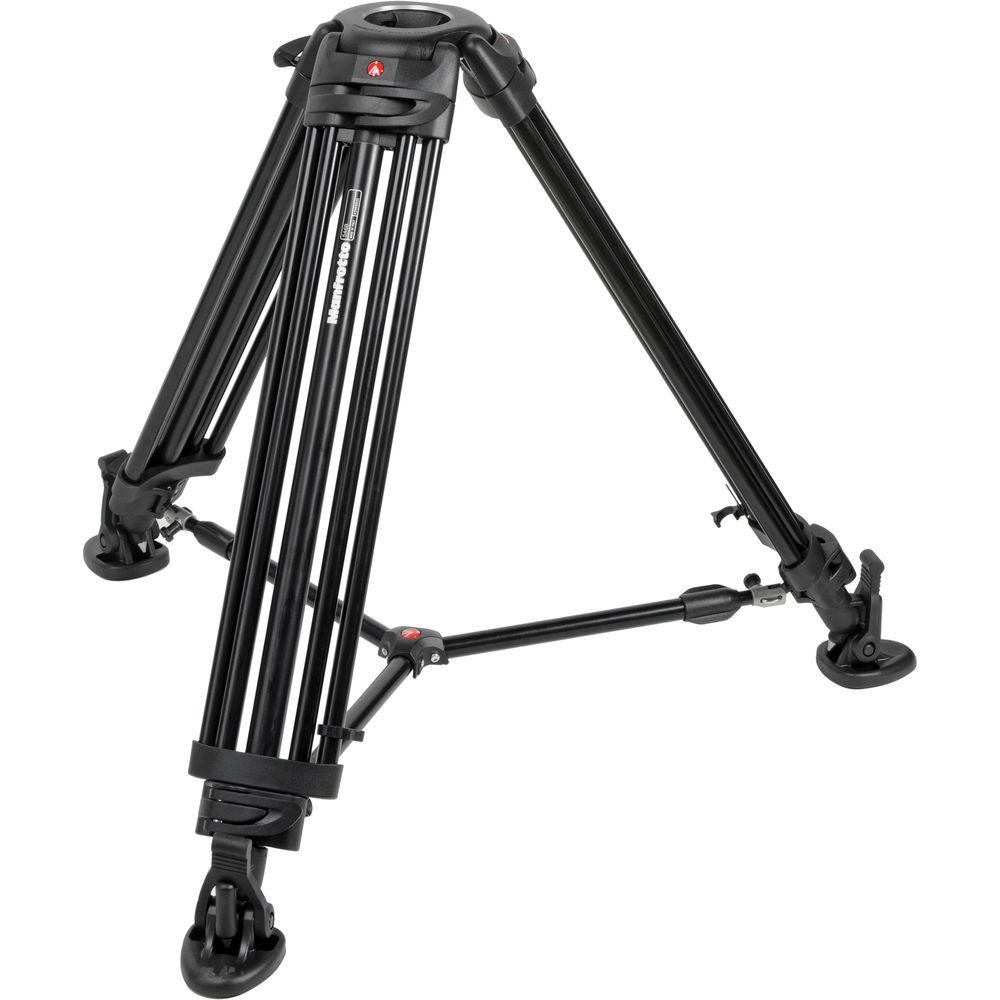

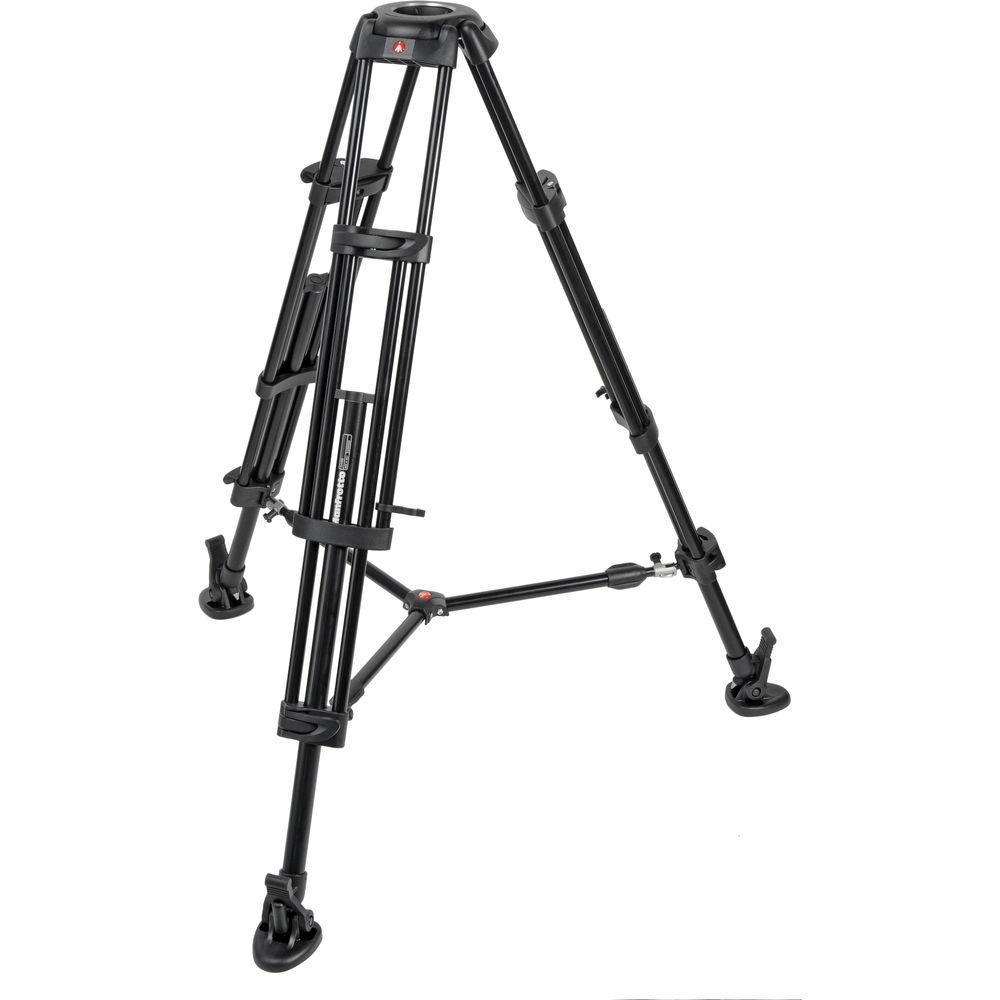

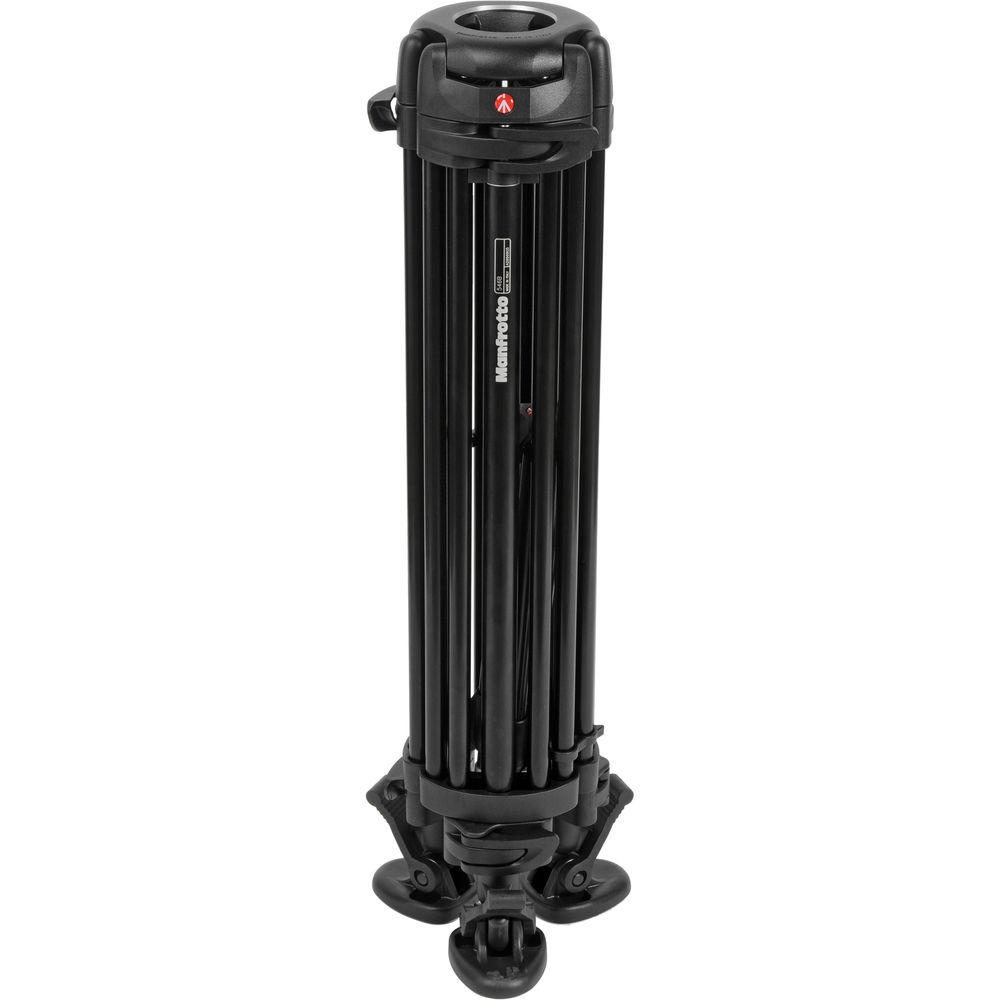

UPC: 719821397540 - 546B Pro Video Tripod with Mid-level Spreader The Manfrotto 546B Pro Video Tripod with Mid-Level Spreader is an aluminum two-stage tripod that combines stability and strength with affordability. Reaching a maximum height of 60.6" (154 cm), the 546B is capable of supporting up to 44 lbs (20 kg). Its spiked feet come with rubber overshoes, allowing setups on both smooth floors and uneven surfaces, while a mid-level telescopic spreader keeps the legs exactly where you need them. UPC: 719821305446
In the Box Bundle Items Nitrotech N8 Video Head wueexdbvcy - Quick Release Camera Plate with Metric Ruler for Select Fluid Heads
- Limited 2-Year Warranty (Additional 3 Years with Registration)
546B Pro Video Tripod with Mid-level Spreader - Limited 6-Month Warranty, Extendable to 5 Years with Product Registration
- Limited 6-Month Warranty, Extendable to 5 Years with Product Registration
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Manfrotto Nitrotech N8 Video Head & 546B Pro Tripod with Mid-Level Spreader in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Nitrotech N8 Video Head
| | | Camera Plate Features | Sliding Balance Plate | | Camera Mounting Screw | 1 x 1/4"-20 Male
1 x 3/8"-16 Male | | | | Base Mount | 3/8"-16 Thread | | | | Drag Control | Continuous | | Drag Type | Fluid | | Vertical Tilt | +90
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 75 owners. Add your rating and experience with the product.
