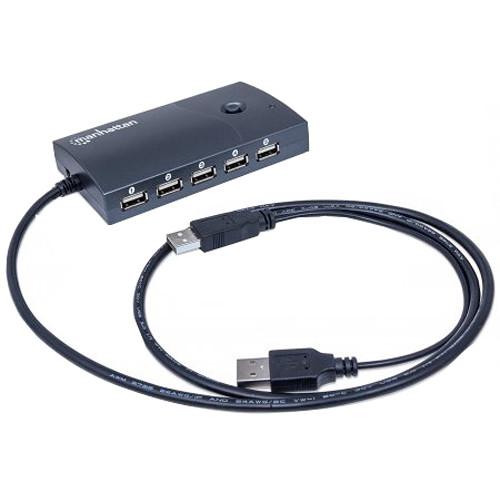

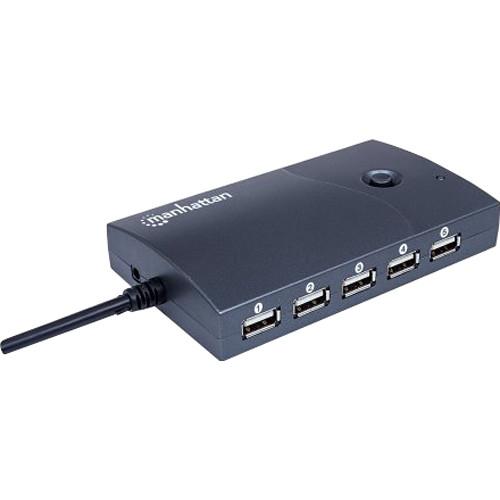

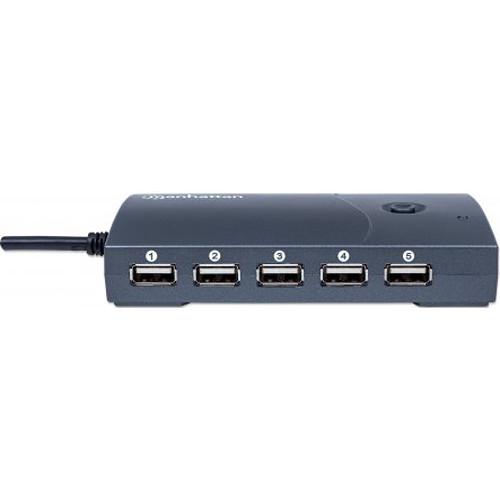

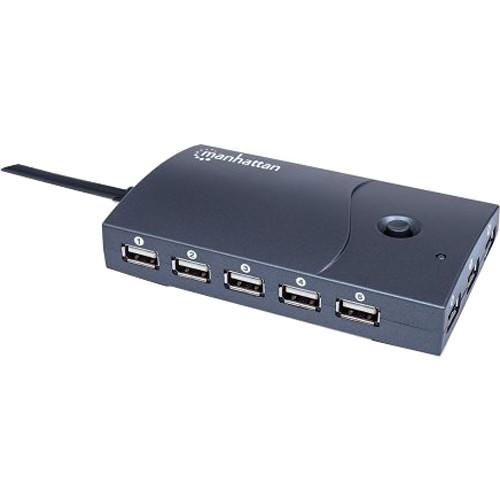

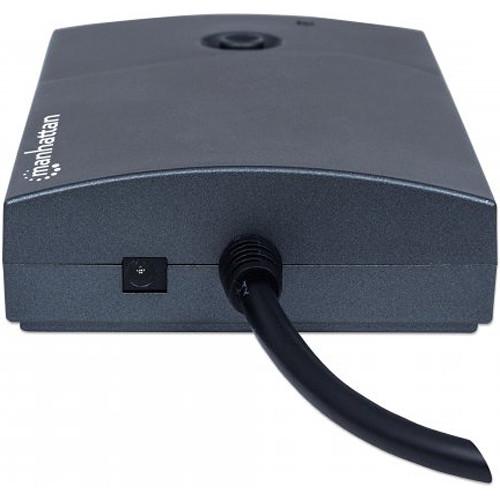

User Manual for Manhattan 13-Port USB 2.0 Desktop Hub Click to enlarge the picture
Contents of the user manual for the Manhattan 13-Port USB 2.0 Desktop Hub
- Product category: Hubs Manhattan
- Brand: Manhattan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manhattan Hubs
 |
User manual for the Manhattan 13-Port USB 2.0 Desktop Hub contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manhattan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manhattan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manhattan product will considerably shorten its lifespan!
|

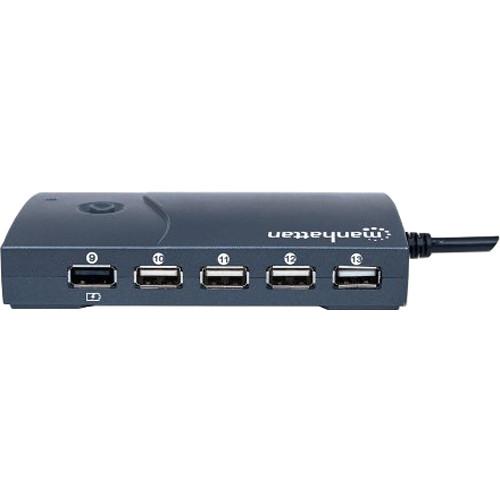

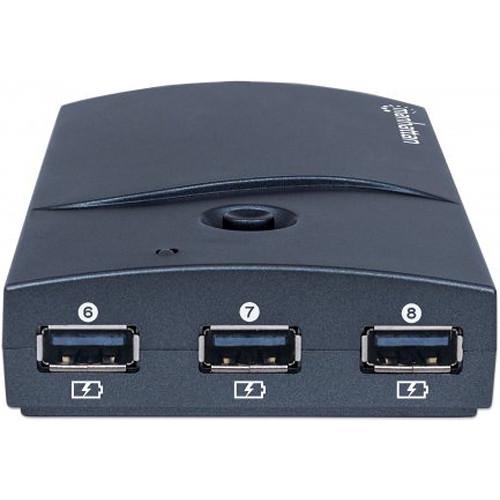

Product description Featuring a 4A power adapter, the 13-Port Desktop USB Hub from Manhattan can charge USB devices, connect peripherals, and transfer files from USB drives to your computer. Four of the thirteen USB ports can be turned from data transfer to charging mode, allowing for power output up to 2.4A, though only one can be used at a time.

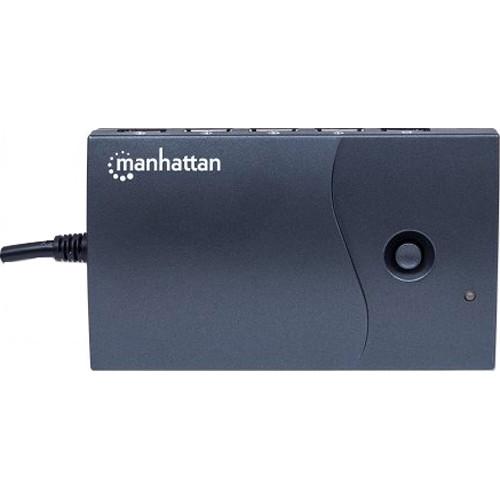

This durable hub can be bus-powered via the integrated USB cable or plugged into a wall with the included AC adapter. Automatic overcurrent protection and hot-swappable, plug-and-play connections ensure smooth operation. There is a button on the top of the hub to toggle quick-charge on or off. All of the USB ports are backward compatible with USB 1.0 and 1.1. - Provides 13 powered USB 2.0 ports for additional peripherals
- Recharges mobile devices and connects flash drives, receivers, card readers, and more
- Multiple Transaction Translator (MTT) capable in five ports
UPC: 766623162463 In the Box Manhattan 13-Port USB 2.0 Desktop Hub Power Adapter Limited 3-Year Warranty Brochure PDF 489.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Manhattan 13-Port USB 2.0 Desktop Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManhattan 162463 Specs | Inputs | 13 x USB 2.0 Type-A female | | Output | Integrated cable with 2 x USB Type-A male connectors | | Data Transfer Rate | Up to 480 Mb/s | | Material | ABS plastic housing | | LED Indicator | LED power indicator | | Power | Input Power: 100-240 V, 50/60 Hz @ 0.68 A, maximum
Output Power: 5 VDC @ 4 A
All USB Ports: Up to 500 mA | | Cable Length | Power Adapter: 6' (1.8 m)
USB Cable: 3.3' (1 m) | | Dimensions | 4.8 x 2.8 x 1" (121 x 71 x 25 mm) | | Weight | 5.2 oz (147 g) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 8.3 x 6.0 x 2.6" |
