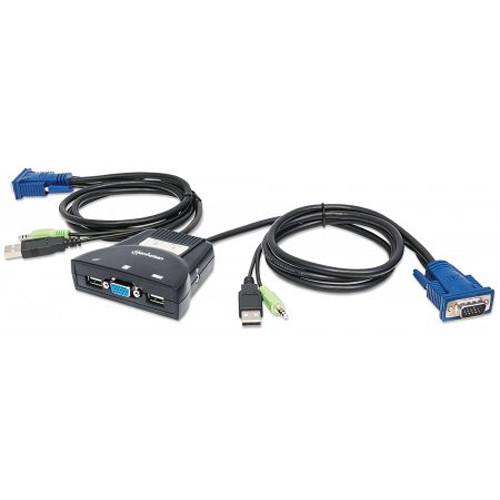

User Manual for Manhattan 2-Port Mini KVM Switch Click to enlarge the picture
Contents of the user manual for the Manhattan 2-Port Mini KVM Switch
- Product category: KVM Switches Manhattan
- Brand: Manhattan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manhattan KVM Switches
 |
User manual for the Manhattan 2-Port Mini KVM Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manhattan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manhattan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manhattan product will considerably shorten its lifespan!
|

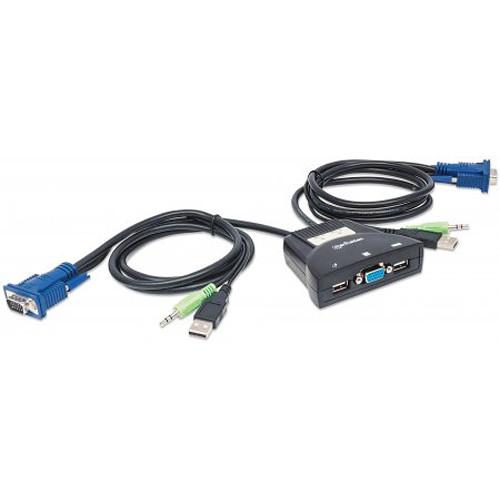

Product description Multi-Monitors: Maximizing Multitasking Read More Manage two PCs with a single keyboard, mouse, and monitor using the 2-Port Mini KVM Switch from Manhattan. This switch has integrated cables that provide two USB Type-A, two 3.5mm, and two VGA connectors to access your systems. The main console sports two USB Type-A ports for your mouse and keyboard along with a 3.5mm audio jack, letting you connect speakers or headphones. For video, it supports VGA-enabled monitors and resolutions up to 1920 x 1440. Additionally, you can switch between both systems utilizing hotkey commands and see which system is active with the built-in LED indicators on the console. - Operate two USB computers with one keyboard, mouse, and monitor
- Full keyboard and mouse emulation for error-free booting
- Hotkey commands and LED indicators for computer selection
- Audio output for speaker connection
- No software or power required
- Compatible with most operating systems
- Supports resolutions up to 1920 x 1440 pixels
UPC: 766623151245 In the Box Manhattan 2-Port Mini KVM Switch Limited Lifetime Warranty Brochure PDF 463.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Manhattan 2-Port Mini KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManhattan 151245 Specs | Connections | PC: 2
Console: 1 | | Connectors | 2 x USB Type-A male (keyboard, mouse)
2 x HD15 male (video)
2 x 3.5mm jack (sound card input)
Integrated connection cables | | Ports | Keyboard:1 x USB Type-A female
Mouse:1 x USB Type-A female
Monitor:1 x HD15 female
Speaker (output):1 x 3.5 mm jack | | Computer Selection Method | Hotkey commands | | Resolution | 1920 x 1440 max
250 MHz max bandwidth | | LEDs | One LED per channel | | Certifications | FCC Class B, CE, RoHS | | Scan Interval | 3 seconds | | Temperature | Operating: 32 to 122°F / 0 to 50°C
Storage: -4 to 140°F / -20 to 60°C | | Cable Length | 3.9' / 1.2 m | | Dimensions (W x D x H) | 3.3 x 3.0 x 1.0" / 85 x 75 x 26 mm | | Weight | 12.7 oz / 360 g | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 7.4 x 4.5 x 2.9" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
