User Manual for Manhattan 3-Port USB 3.0 Hub with Gigabit Ethernet Adapter Click to enlarge the picture
Contents of the user manual for the Manhattan 3-Port USB 3.0 Hub with
- Product category: Hubs Manhattan
- Brand: Manhattan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manhattan Hubs
 |
User manual for the Manhattan 3-Port USB 3.0 Hub with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manhattan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manhattan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manhattan product will considerably shorten its lifespan!
|

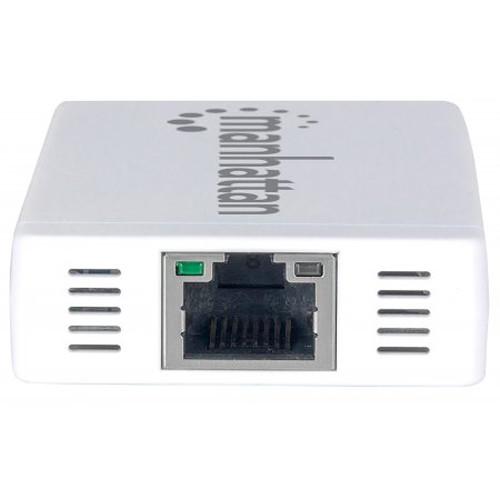

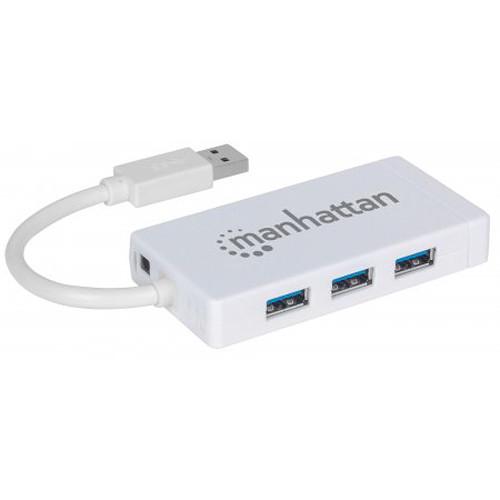

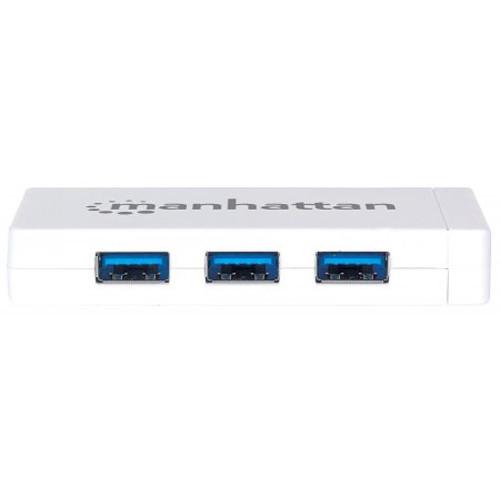

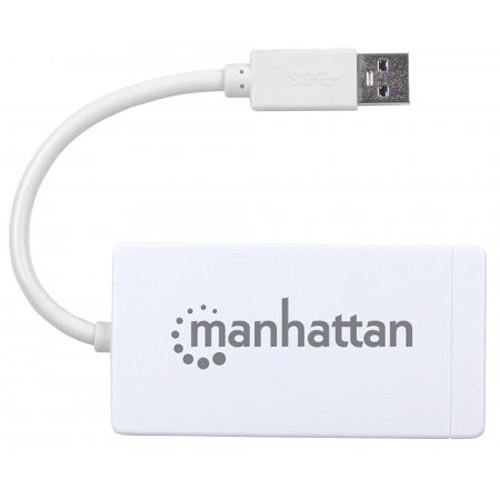

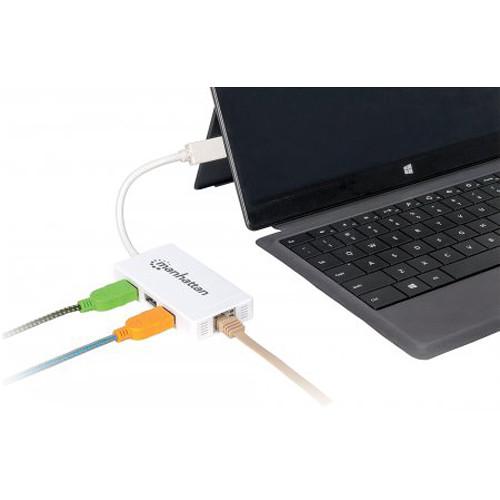

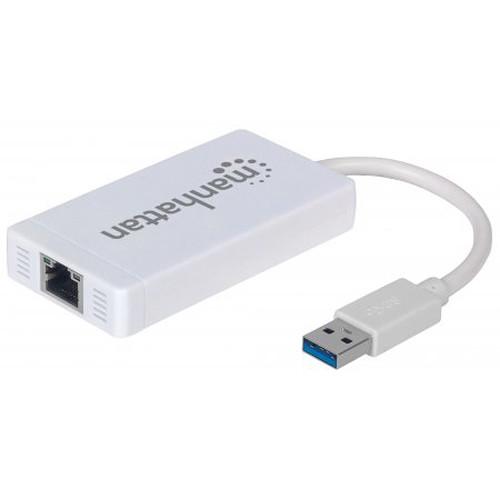

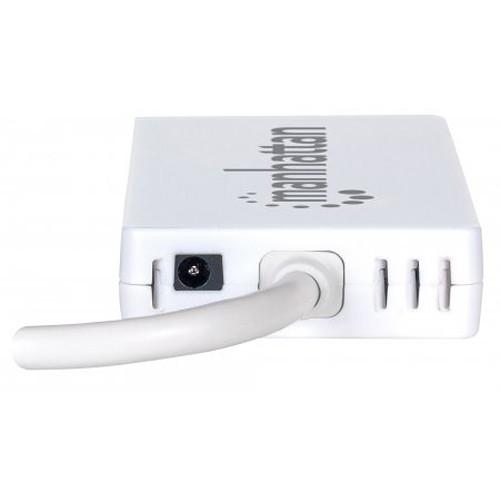

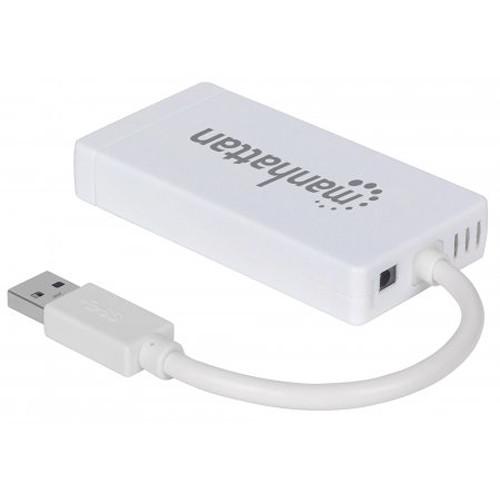

Product description Connect multiple USB peripherals such as mice, keyboards, hard drives and more to your computer's USB port using the 3-Port USB 3.0 Hub with Gigabit Ethernet Adapter from Manhattan. This adapter features three USB 3.0 ports and a single RJ-45 Gigabit Ethernet port supporting up to 2 Gbps full-duplex transfer rates. With the built-in Gigabit Ethernet port users can connect to a local area network for a fast reliable network connection. The USB Hub and Gigabit Ethernet Adapter from Manhattan comes compatible with Windows XP, Vista, 7, 8/8.1, and 10 and can even be used with Apple Mac OS 10.6 to 10.11 by downloading the free drivers. - Adds a high-speed Gigabit network connection and three USB 3.0 ports for notebooks, 2-in-1s, Ultrabooks, Surface devices, MacBook and Chromebook.
- Three SuperSpeed USB 3.0 hub ports support speeds of up to 5 Gbps
- One Gigabit Ethernet port (RJ-45) supports up to 2 Gbps full-duplex transfer speed
- Replaces a malfunctioning internal Gigabit Ethernet RJ-45 port on a laptop and provides additional USB 3.0 ports for USB peripherals
- Energy-saving Energy Efficient Ethernet (IEEE 802.3az) technology
- Works with Ultrabooks, laptops and PCs running Windows 7, Windows 8, Windows 8.1 or Windows 10
- Compatible with Apple MacBook (driver download available)
- Provides legacy support for devices running Windows XP and Vista.
- One 1000Base-T RJ45 Gigabit Ethernet port with Auto MDI-X (auto uplink) support
- Supports jumbo frames up to 4 kBytes
- Wake-On-LAN (WOL) support
- Compliant with the USB 3.0 specification and backward compatible to USB 2.0 and USB 1.1 devices
UPC: 766623507578 In the Box Manhattan 3-Port USB 3.0 Hub with Gigabit Ethernet Adapter Driver CD (Mini Format) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Manhattan 3-Port USB 3.0 Hub with Gigabit Ethernet Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManhattan 507578 Specs | | | USB | 3 x USB 3.1 Gen 1 Type-A | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | | | System Connection | USB (Unspecified Type) Type-A Male | | Connection Type | Integrated Cable | | | | Power Source | Bus Powered | | Power Port | 3.5 mm Barrel Connector | | | | Certifications | RoHS, as per Manufacturer | | Operating Humidity | 10 to 85% | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 167°F / -20 to 75°C | | | | Cable Length | 3.9" / 10 cm | | Dimensions | 0.9 x 1.77 x 0.55" / 22.8 x 45 x 14 mm | | Weight | 0.1 lb / 0.048 kg | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 7.9 x 5.3 x 1.3" |
