Manhattan 4-Port Compact KVM Switch

Search your instruction manual in PDF to download

User Manual for Manhattan 4-Port Compact KVM Switch

Click to enlarge the picture
Manhattan 4-Port Compact KVM Switch Contents of the user manual for the Manhattan 4-Port Compact KVM Switch
  • Product category: KVM Switches Manhattan
  • Brand: Manhattan
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Manhattan KVM Switches

Manhattan 4-Port Compact KVM Switch Manhattan 4-Port Compact KVM Switch Manhattan 4-Port Compact KVM Switch
User manual for the Manhattan 4-Port Compact KVM Switch contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Manhattan product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Manhattan user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Manhattan product will considerably shorten its lifespan!



Product description

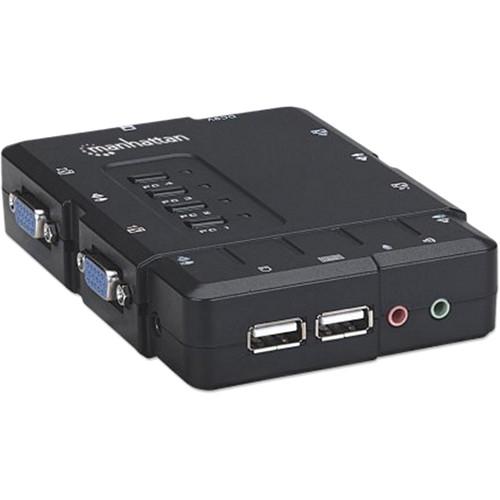

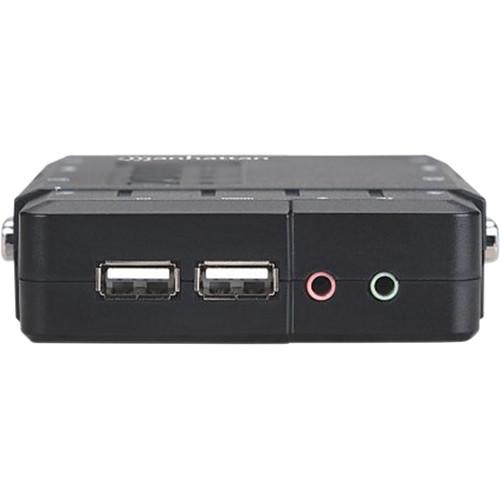

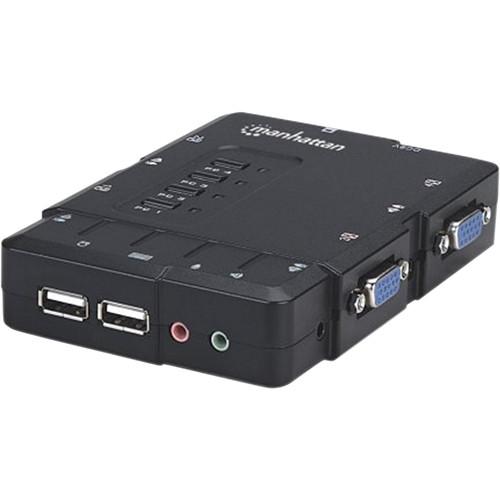

Multi-Monitors: Maximizing Multitasking Read More Control up to four computers from one keyboard, mouse, and monitor with the 4-Port Compact KVM Switch from Manhattan. Four KVM connection cables are included for connecting the switch to your computers. Each KVM cable is removable and compatible with host systems that have a VGA interface and a USB port. For audio, the cables also support microphone and speaker-out connectivity. In addition to the cables, the switch comes with two USB Type-A ports for keyboards and mice as well as two 3.5mm jacks for microphones and speakers. The switch also features a VGA port and supports resolutions up to 1600 x 900. Once connected, you can select which system is active by utilizing hotkey commands or the built-in push buttons on the switch.
  • Manage/control four computers from one keyboard, monitor, and mouse
  • Audio and microphone switching for uninterrupted multimedia experience across multiple platforms
  • Hot-plugging PCs for maintenance without powering down the KVM switch or PCs
  • Channel selection via push buttons and keyboard hotkeys
  • Supports resolutions up to 1600 x 900 pixels
  • LED indicators for easy status monitoring
  • USB bus-powered: no external power adapter required
  • Includes four connection cables for computer, speaker, and microphone connections

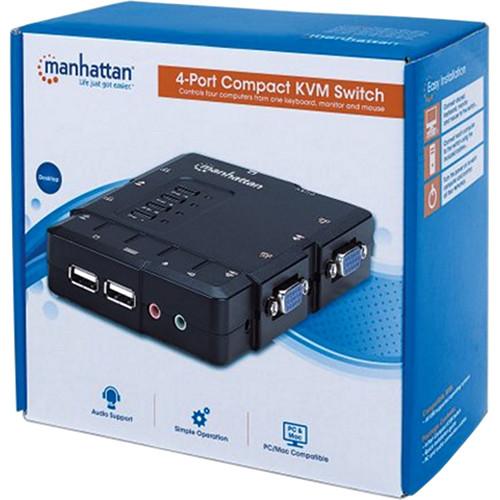

UPC: 766623151269 In the Box Manhattan 4-Port Compact KVM Switch
  • Package of PC and Audio Cables
  • Limited Lifetime Warranty
  • Brochure PDF 691.9kb Table of Contents




    Upload User Manual

    Have you got an user manual for the Manhattan 4-Port Compact KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for Manhattan 4-Port Compact KVM Switch can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for Manhattan 4-Port Compact KVM Switch can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the Manhattan 4-Port Compact KVM Switch can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Manhattan 4-Port Compact KVM SwitchDownload PDF User Manual - https://www.search-manual.com/ upload/ manhattan-4-port-compact-kvm-switch-198396-user-manual.pdf
    (PDF file, 3.61 MB)


    Technical parameters

    Manhattan 151269 Specs

    Interface USB 1.1
    Connections PC: 4
    Console: 1
    PC Ports Four KVM connection cables with a USB Type-A (keyboard, mouse), 3.5mm (audio) jack, and HD15 male (video) connector on each cable
    Console Ports 2 x USB Type-A (keyboard, mouse)
    1 x HD15 female (video)
    Audio Connectors 2 x 3.5mm jack (mic input & speaker output)
    Computer Selection Method Buttons and hotkey commands
    Maximum Resolution 1600 x 900
    Indicators 1 LED per channel
    Power USB bus-powered
    Certification FCC Class B, CE, RoHS
    Temperature Operating: 14 to 122°F / -10 to 50°C
    Storage: -4 to 140°F / -20 to 60°C
    Humidity Operating: 0 to 90% RH, non-condensing
    Cable Length 6.0' / 1.8 m
    Dimensions (L x W x H) 4.9 x 3.4 x 1.0" / 125 x 86 x 26 mm
    Weight 2.0 lb / 0.9 kg
    Package Weight 2.7 lb
    Box Dimensions (LxWxH) 8.5 x 7.7 x 3.7"
