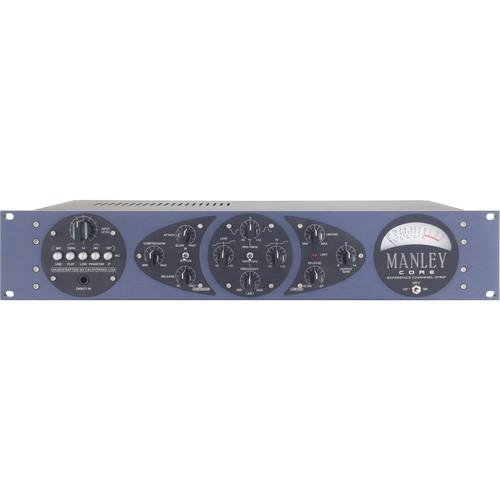

Product description The CORE Tube Reference Channel Strip from Manley Labs is a single-channel signal processor with an intuitive front panel layout that allows for quick and easy adjustment over mic preamp, compressor, EQ, and limiter settings. The CORE incorporates many of Manley's technological innovations including the preamp from the VOXBOX, featuring a hand-wound iron transformer with nickel laminations, negative feedback gain circuit, and triode vacuum tube circuit. The direct input offers an all discrete solid-state path with a 10 MΩ impedance. The ELOP compressor, also borrowed from the VOXBOX, is an electro-optical (LA-2A style) limiter with a set ratio of 3:1. While other manufacturer's designs have the compressor post mic pre, the Core places the circuit before the mic preamp making it near impossible to clip. This also shortens the signal path and ensures a quality, low noise signal. The unit also features a Baxandall shelf EQs with a sweepable mid frequency and a fast FET "brickwall" limiter. The large VU meters offer a 3-way toggle switch for monitoring the compressor output, gain reduction and main output. Handmade in the USA, the unit is housed in 2U steel chassis with a CNC machined 1/4" faceplate and inlaid with laser engraved inserts. The CORE ships with an IEC power cable. - Preamplifier
-

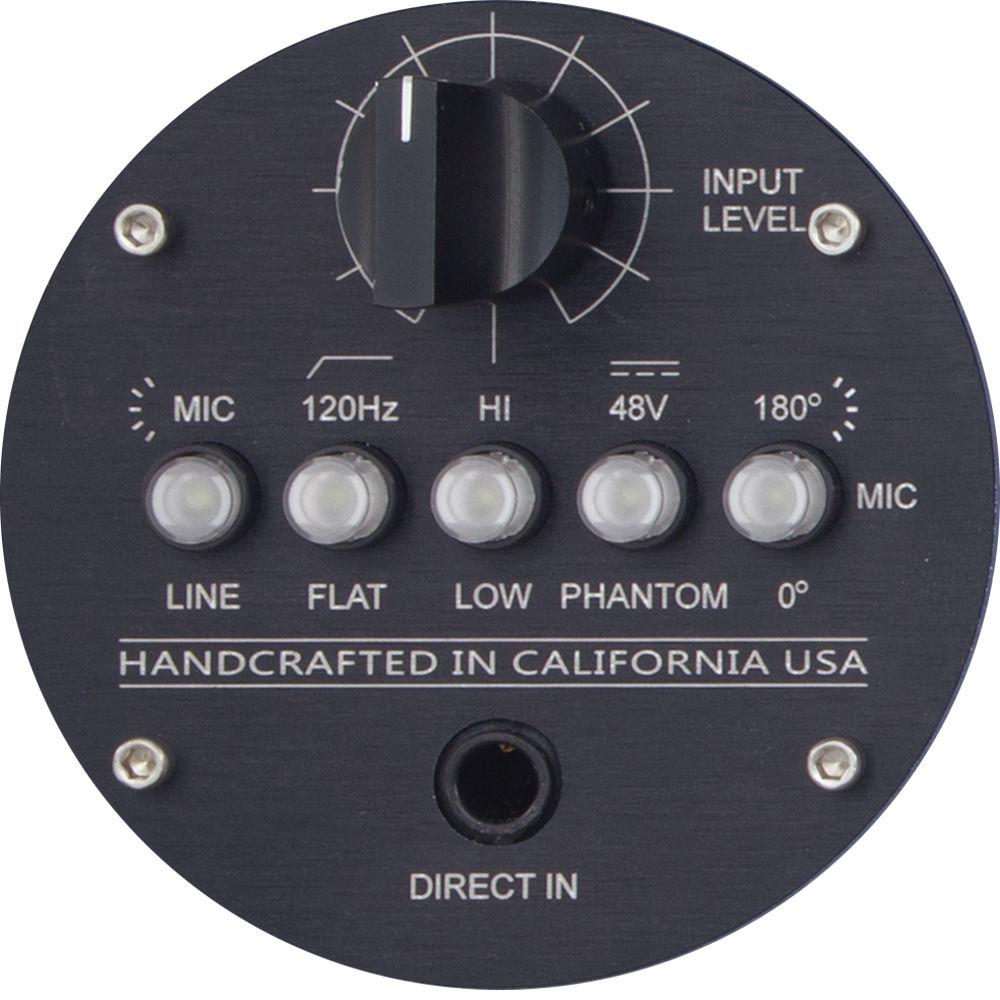

- Input Level: Input attenuator or variable pad for mic, line, and DI
- Mic/Line: Switches between microphone and line/DI input
- High Pass Filter Switch: 120 Hz
- Mic Preamp Selectable Gain: 40 to 60 dB
- Line Amp Selectable Gain: 20 to 40 dB
- 48 Volt Phantom: 48v power for microphones requiring phantom power
- Phase reverse switch
- Direct In: 1/4" direct Injection (DI) input for instruments

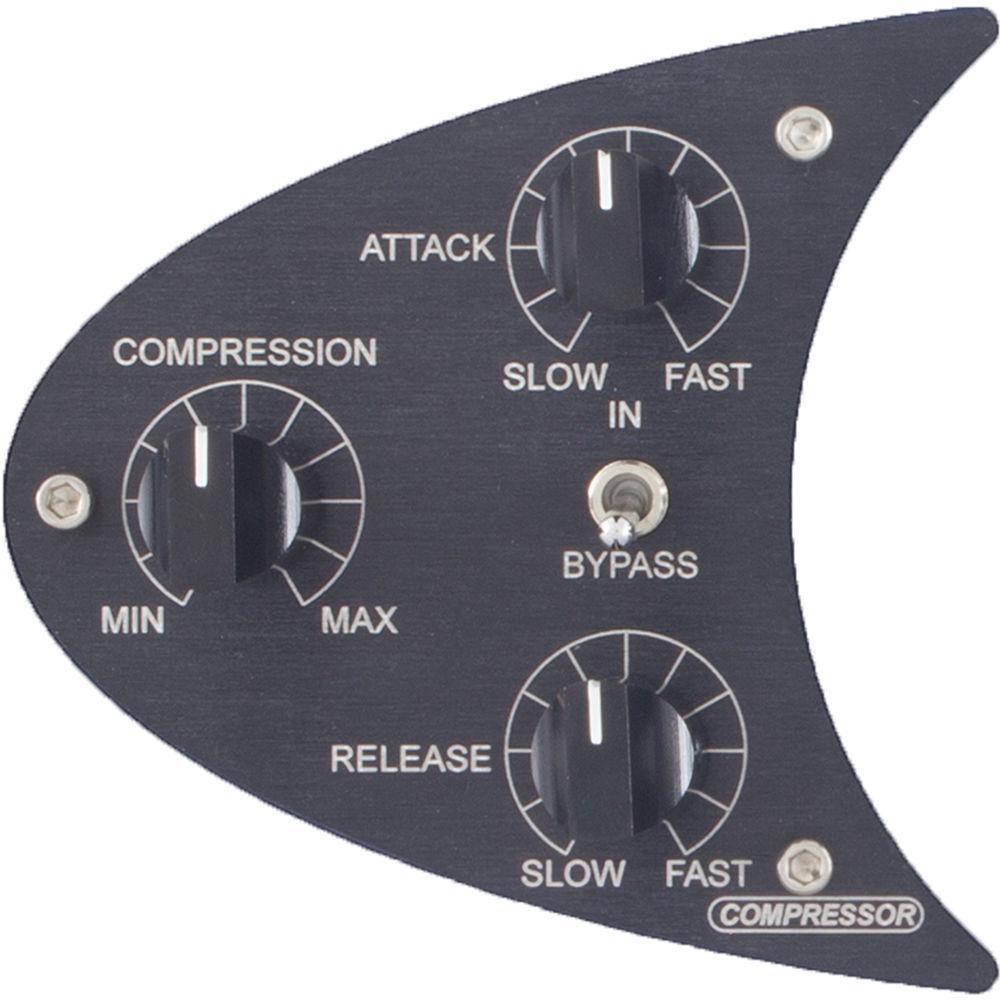

- Compressor
-
- ELOP compressor (Electro-Optical Limiter)
- 3.1 ratio
- Continuously variable attack, release and, threshold control knobs
- Silent bypass switch

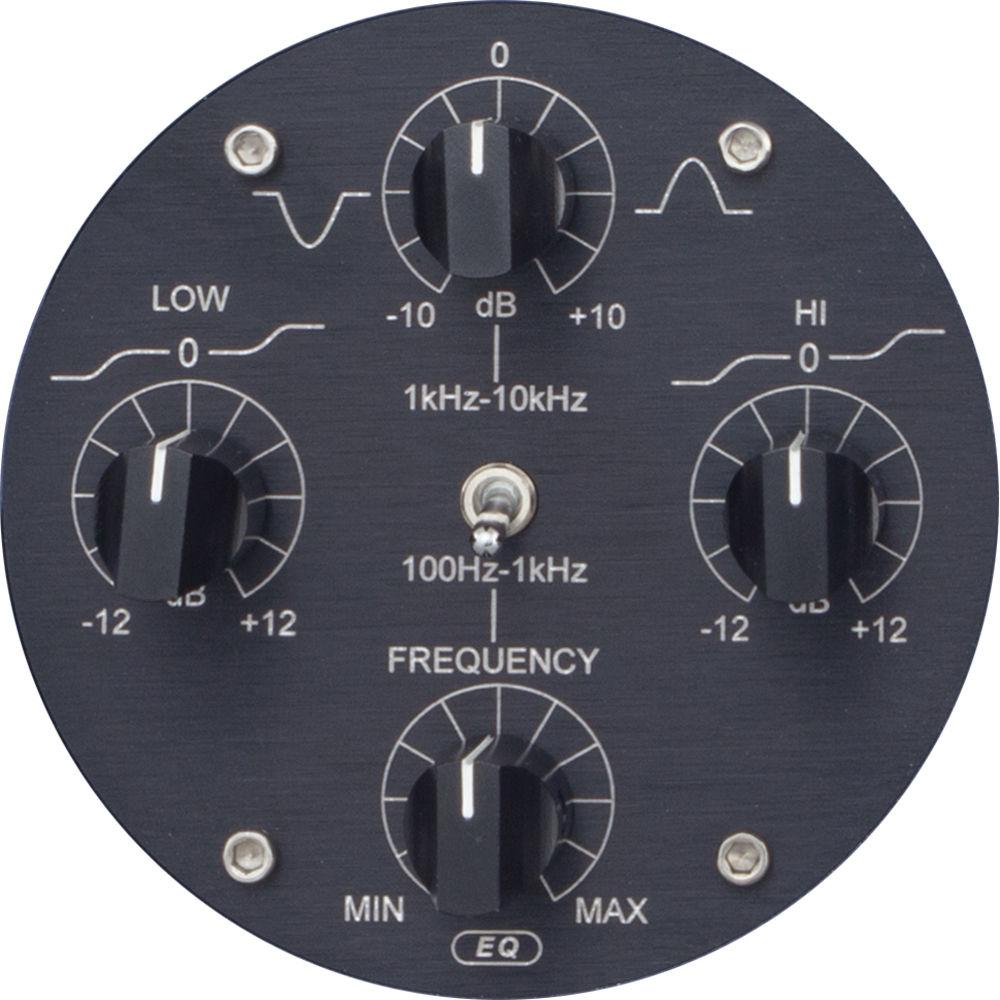

- EQ
-
- Low Shelf Baxandall EQ: 80 Hz ±12 dB
- High Shelf Baxandall EQ: 12 kHz ±12 dB
- Sweepable Midrange Bell EQ: Switchable 100 Hz to 1 kHz or 1 to 10 kHz ±10 dB

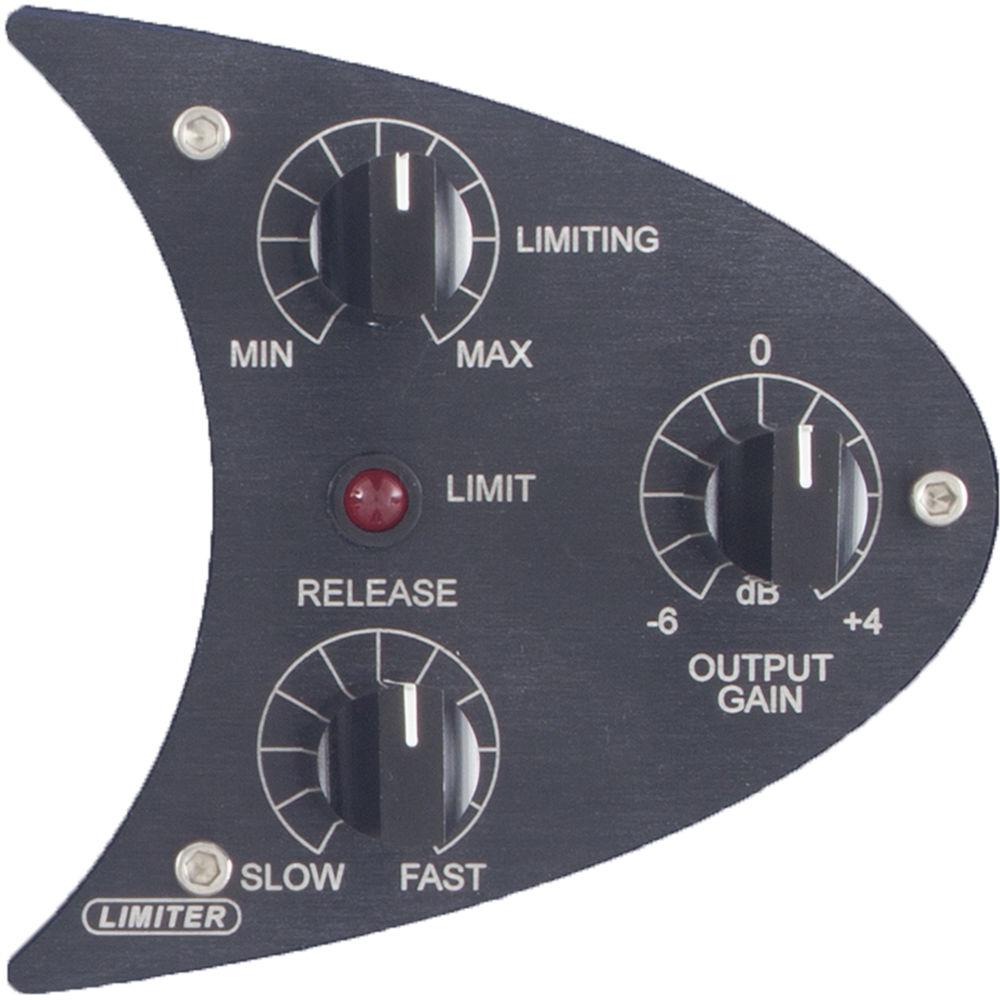

- Limiter
-
- FET "brickwall" limiter
- High ratio
- Fast attack
- Continuously variable threshold and release control knobs
- Peak limit LED indicator
- Output Range: -10 to +4 dB

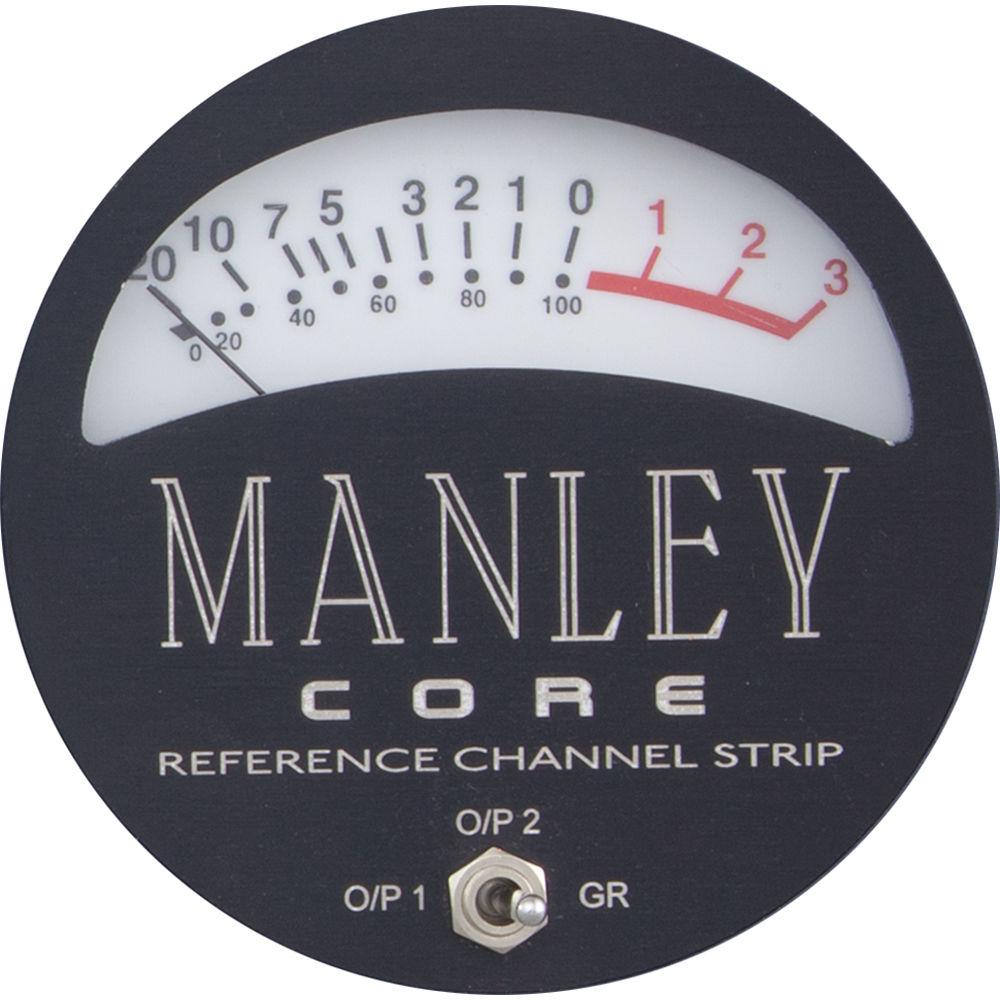

- VU Meter
-
- Large illuminated analog display
- 3-way Toggle Switch: O/P 1, O/P 2, and GR
- O/P 1: Direct output of preamp and compressor
- O/P 2: Main output
- GR: Compressor gain reduction
- Additional Features
-
- Auto Mute Warm-up Delay: 30 seconds

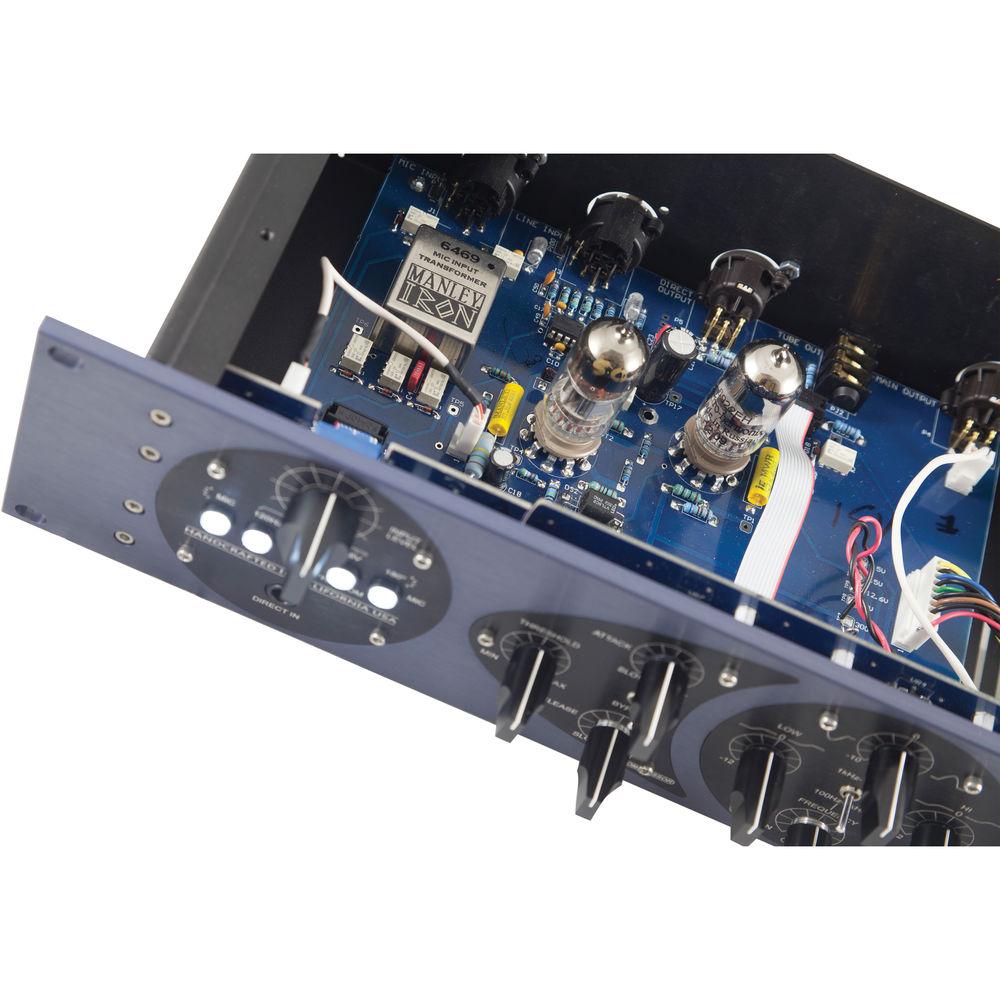

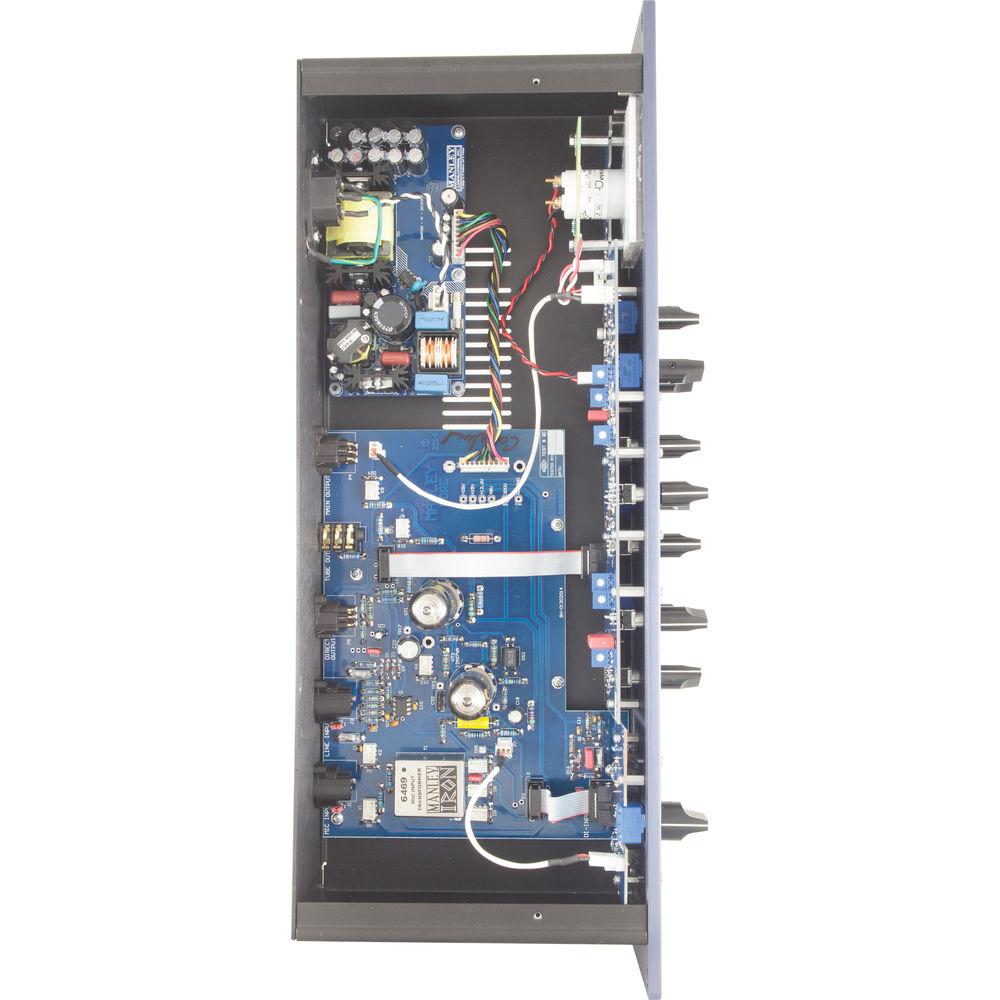

- Hand-wound Manley iron input transformer
- Silent conductive plastic input attenuator
- Class A circuit topology

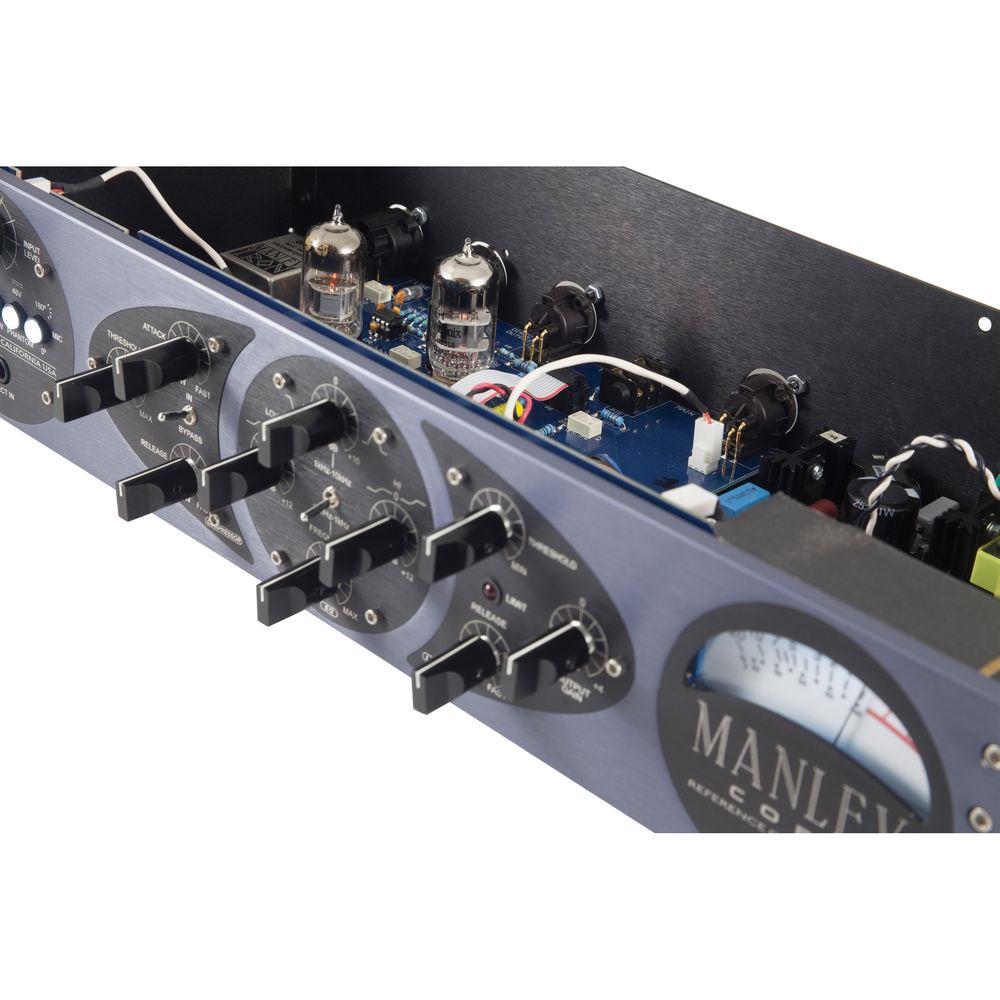

- Triode vacuum tubes on 300V B+ power supply
UPC: 890833001851 In the Box Manley Labs CORE Tube Reference Channel Strip IEC Power Cable Limited 90-Day Warranty, Extends to 5 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Manley Labs CORE Tube Reference Channel Strip in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

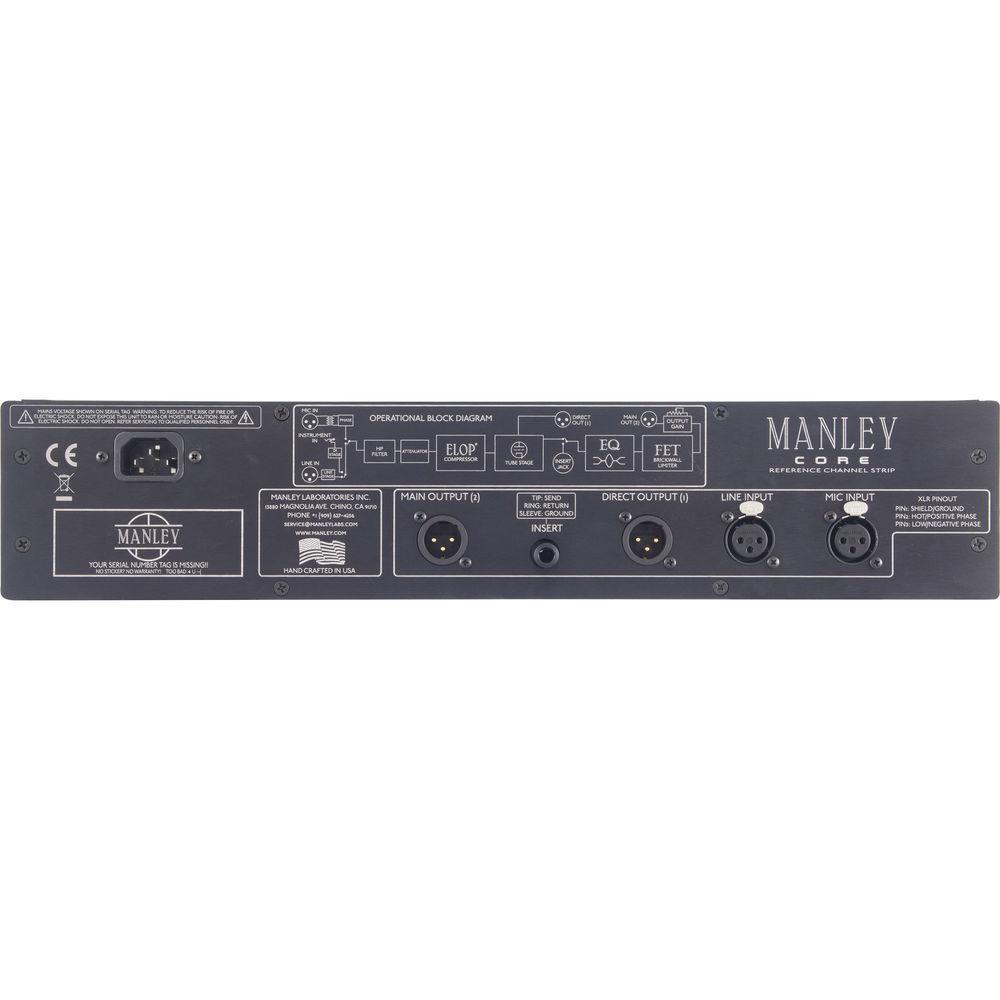

Technical parametersManley Labs MCORE Specs | Input / Output | 1 x Mic Input: Balanced transformer coupled XLR at 1.2 kΩ
1 x Line Input: Balanced XLR at 10 kΩ
1 x Direct Input: Unbalanced 1/4" at 10 MΩ
1 x Main Output: Balanced XLR at 50 Ω
1 x Direct Output: Balanced XLR at 50 Ω
1 x Insert: 1/4" TRS send at 50 Ω return at 13 kΩ | | EQ Section | Baxandall Low Shelf: 90 Hz ±12 dB
Baxandall High Shelf: 12 kHz ±12 dB
Mid-Range Switchable Bell EQ: 100Hz to 1kHz or 1kHz to 10kHz ±10 dB | | Compressor | Maximum Gain Reduction: 16 dB
Attack Time: 14 to 150 ms for 6dB compression
Release Time: 2.63 to 150 ms for 6dB compression | | Limiter | Attack Time: 115 μs
Release Time: 2.3 to 300 ms | | Tubes | 1 x 12AX7WA for gain
1 x 6922 White Follower output | | Maximum Input | Maximum Mic Input
Low Gain Setting: -5 dBu or 435mV RMS @ 0.5% THD
High Gain Setting: -25 dBu or 44mV RMS @ 0.5% THD
Max Line Input
Low Gain Setting: +13 dBu or 3.5V RMS @ 0.5% THD
High Gain Setting: -8 dBu or 300mV RMS @ 0.5% THD
Direct Input
Low Gain Setting: +24 dBu or 12V RMS @ 0.5% THD
High Gain Setting: +17 dBu or 5.5V RMS @ 0.5% THD
Insert Return: +20 dBu or 7.8V RMS @ 0.5% THD | | Maximum Output | Maximum Preamp Output (Insert Send): +35 dBu or 43V RMS @ 0.5% THD
Maximum Main Output: +20 dBu
Main Output Impedance: 50 Ohms
Direct Output Headroom (Referenced to +4 dBv): 31 dB
Main Output Headroom (Referenced to +4 dBv): 16 dB | | Dynamic Range | >90 dB | | Frequency Response (Audio) | 10 Hz to 20 kHz ±0.5 dB | | THD & Noise | THD & Noise (1kHz @ +4 dBm): 0.02% at Low Gain setting | | Noise Floor | Noise Floor (Gain Set to Minimum): -70 dB wideband typical | | Gain | Microphone Input: 40 or 60 dB
Line Input: 20 or 40dB
EQ and Limiter Section: 10 dB | | Power | Universal Power Supply: 90 to 254 VAC
Power Consumption: 35 W
Mains Voltage Frequency: 50~60 Hz | | Rackmountable | 2U | | Dimensions (W x H x D) | 19.0 x 3.5 x 7.0" / 48 x 9.0 x 18 cm | | Weight | 8 lb / 4 kg | | | | Package Weight | 11.7 lb | | Box Dimensions (LxWxH) | 23.4 x 11.1 x 8.9" |
