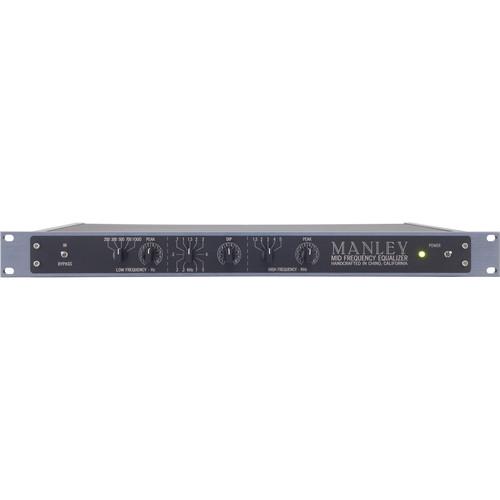

Product description The Enhanced Mid Frequency Pultec Equalizer from Manley Labs is a modern version of the classic single-channel, mid-band EQ from Pulse Technique. The Mid EQ's controls are designed to compliment Manley's EQP1A enhanced EQ by using sharper bell-shaped curves, which provide precise control over the mid-range frequencies that producer-engineers find so vital. The Mid EQ is divided up into three fixed bandwidth sections: Low frequency peak, high frequency dip, and high frequency peak. Utilizing the EQ's cut and boost controls on overlapping frequencies can result in unique shapes for custom tailoring your sound. Professional-grade components are used throughout and include conductive plastic potentiometers, sealed gold-contact switches, polystyrene capacitors, rolled film capacitors, foil capacitors, custom-wound transformers, and a B+ power supply with regulated and balanced heater supply. The all-tube make-up gain block is used to amplify the passive inductor-based circuit providing high output and low distortion. Enhanced features not found in the original Pultec design include transformerless inputs and outputs, a gain set preset for adjusting the feedback over the line amplifier, and a 3-way toggle switch on the rear of the unit providing phase reversal. The up position retains 0°, while the down position switches the balanced transformer wiring 180° out of phase. The center position switches off the transformer, optimizing the unbalanced 1/4" input to an impedance of 5000Ω. Handmade in the USA, the unit is housed in a 1U steel chassis with a CNC-machined 1/4" faceplate that is also inlaid with laser-engraved inserts. The Mid EQ ships with an IEC power cable. - EQ Frequency
-
- Low-Mid Frequency Peak: 200, 300, 500, 700, 1000 Hz
- High-Mid Frequency Dip: 200, 300, 500, 700, 1000, 1500, 2000, 3000, 4000, 5000, 7000 Hz
- High-Mid Frequency Peak: 1500, 2000, 3000, 4000, 5000 Hz
- Additional Features
-
- Sharp bell-shaped curves for precise control over mid-range frequencies
- Manley input and output transformers
- Phase reverse for balanced XLR input
- 1/4" transformerless input and output
- Bypass Switch
- Auto-mute with warm-up delay
- Silent conductive plastic boost and cut controls
- Sealed gold-contact Greyhill frequency select switches
- Vacuum Tubes: 1 x 12AX7WA (gain) and 1 x 6414 (or 5965) White Follower
UPC: 890833000212 In the Box Manley Labs Enhanced Mid Frequency Pultec Equalizer IEC Power Cable Limited 90-Day Warranty, Extends to 5 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Manley Labs Enhanced Mid Frequency Pultec Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManley Labs MIDEQ Specs | Number of Channels | 1 | | Input & Output | Input
1 x XLR balanced transformer-coupled (fully floating / 5000 Ω)
1 x 1/4" unbalanced (5000 Ω)
Output
1 x XLR balanced transformer-coupled (600 Ω or higher / 2000 Ω or higher preferred)
1 x 1/4" unbalanced (<50 Ω) | | Maximum Input | +30 dBv (Bypass through Line Amplifier) | | Maximum Output | +30 dBv | | Headroom | 26 dB (Referenced to +4 dBv) | | Frequency Response | 10 Hz to 70 kHz ±0.5 dB | | THD & Noise | 0.015% (1 kHz @ +4 dBm) | | Noise Floor | -80 dB wideband (Gain Set to Minimum) | | Signal to Noise Ratio | 116 dB typical (A weighted) | | Maximum Gain | 5 to -5 dB (via Trim on Back) | | Equalizer | Maximum EQ Boost: 12 dB low mids, 10 dB high mids
Maximum EQ Cut: 12 dB (10 dB some frequencies) | | Tube Type | 1 x 12AX7WA
1 x 6414 (or 5965) White Follower | | Rackmountable | 1 U | | Power Supply | 0.35 A @ 115 VAC
Fuse: 1 A Slo-Blo
Power Consumption: 18 W | | Dimensions (W x H x D) | 19.0 x 1.8 x 10.0" / 48.3 x 4.4 x 25.4 cm | | Weight | 10.0 lb / 4.5 kg | | | | Package Weight | 12.65 lb | | Box Dimensions (LxWxH) | 22.5 x 14.6 x 6.6" |
