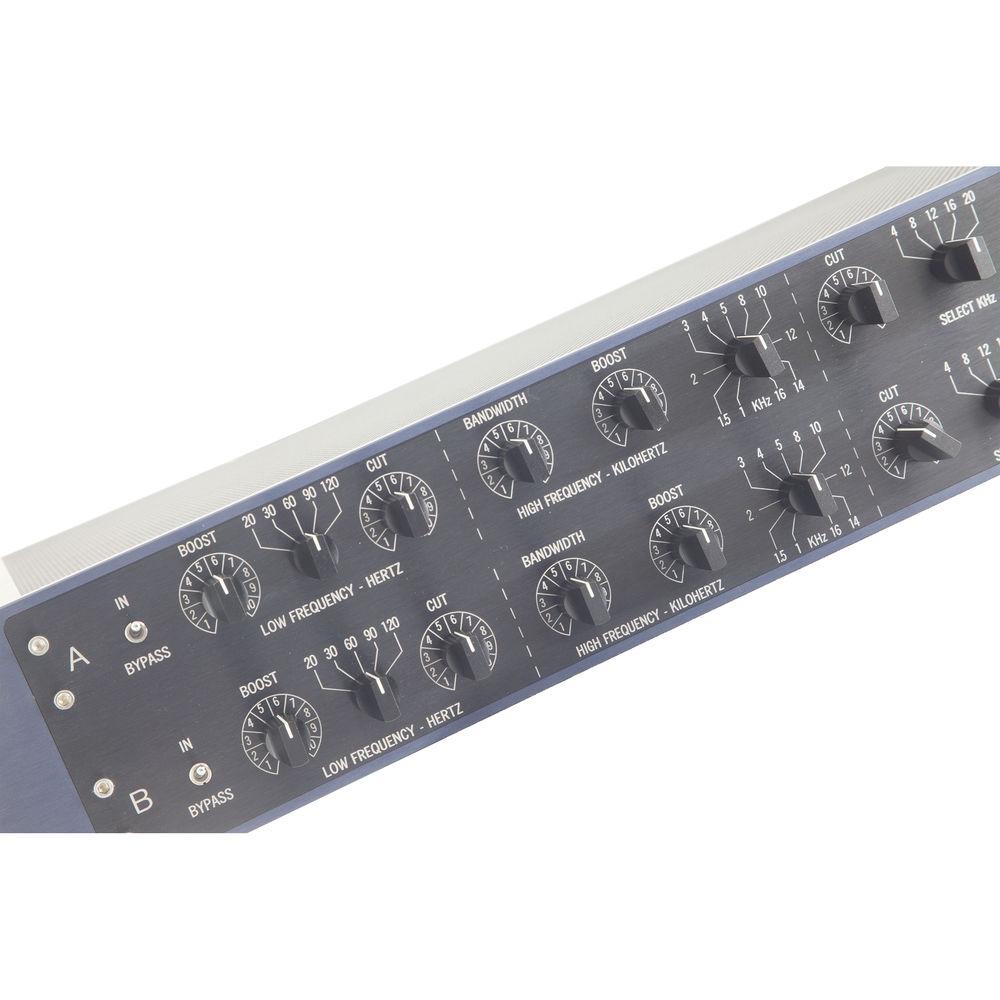

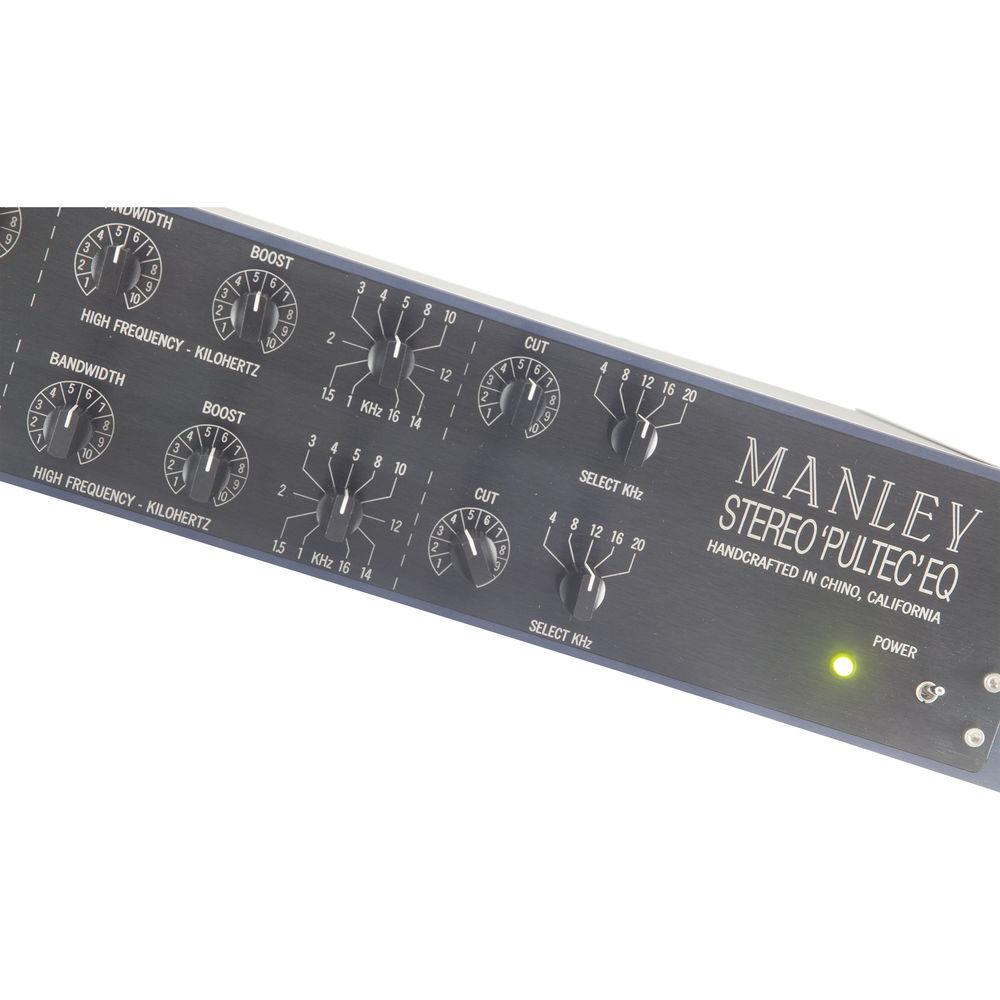

Product description The Enhanced Stereo Pultec EQP1-A Equalizer from Manley Labs is a modern version of the two-channel, two-band classic Pulse Technique EQ featuring low and high frequency control, each with simultaneous boost and cut capabilities. Professional-grade components are used throughout and include conductive plastic potentiometers, sealed gold-contact switches, polystyrene capacitors, rolled film capacitors, foil capacitors, custom-wound transformers and a B+ power supply with regulated and balanced heater supply. The all-tube make-up gain block is used to amplify the passive inductor-based circuit providing high output and low distortion. Each channel of the Enhanced Pultec is divided up into three sections. Low frequency offers a shelf-style filter with frequency selection, boost and cut, while the high frequency boost is a peak filter featuring a variable bandwidth control, frequency selection and boost control. The high frequency cut offers a shelf filter with frequency selection and cut control. Utilizing both cut and boost controls simultaneously results in unique shapes for custom tailoring your sound. Features not found in the original design include an expanded frequency selection, transformerless inputs and outputs, and a gain set preset for adjusting the feedback over the line amplifier. The 3-way toggle switch on the rear of the unit provides phase reversal. The up position retains 0°, while the down position switches the balanced transformer wiring 180° out of phase. The center position switches off the transformer, optimizing the unbalanced 1/4" input to an impedance of 5000Ω. Handmade in the USA, the unit is housed in a 2U steel chassis with a CNC-machined 1/4" faceplate that is also inlaid with laser-engraved inserts. The Enhanced Pultec ships with an IEC power cable. - EQ Frequency per Channel
-
- Low Frequency Boost/Cut: 20,30,60,90,120 Hz
- High Frequency Boost: 1, 1.5, 2, 3, 5, 8, 10, 12, 14, 16 kHz
- High Frequency Cut: 4, 8, 12, 15, 20 kHz
- Additional Features
-
- Manley input and output transformers
- Phase reverse for balanced XLR input
- 1/4" transformerless input
- Bypass Switch
- Auto-mute with warm-up delay
- Silent conductive plastic boost and cut controls
- Sealed gold-contact Greyhill frequency select switches
- Vacuum Tubes: 2 x 12AX7WA (gain) and 2 x 6414 (or 5965) White Follower
UPC: 890833000205 In the Box Manley Labs Enhanced Stereo Pultec EQP1-A Equalizer IEC Power Cable Limited 90-Day Warranty, Extends to 5 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Manley Labs Enhanced Stereo Pultec EQP1-A Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

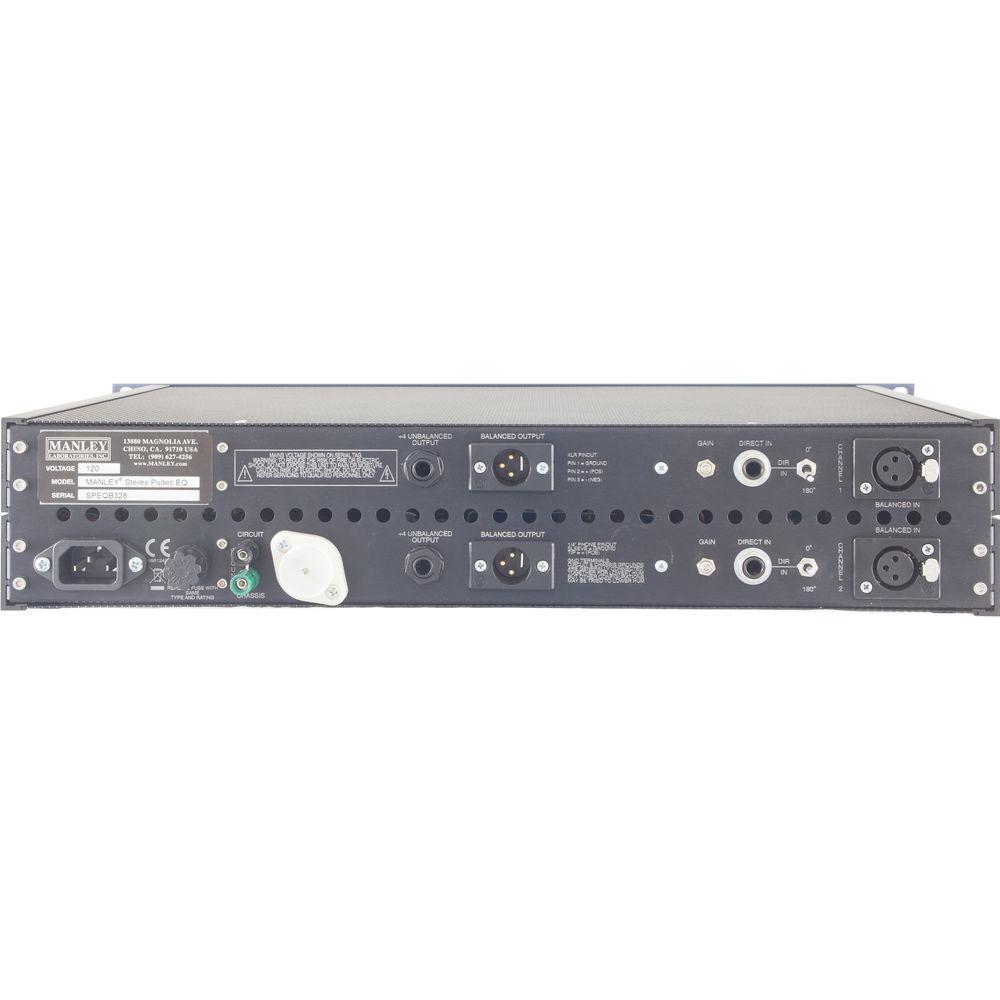

Technical parametersManley Labs SPEQ Specs | Number of Channels | 2 | | Input & Output | Input
2 x XLR balanced transformer-coupled (fully floating / 5000 Ω)
2 x 1/4" unbalanced (5000 Ω)
Output
2 x XLR balanced transformer-coupled (600 Ω or higher / 2000 Ω or higher preferred)
2 x 1/4" unbalanced (<50 Ω) | | Max Input | Maximum Input (Bypass through Line Amplifier): +30 dBv | | Max Output | Maximum Output: +30 dBv | | Headroom | Headroom (Referenced to +4 dBv): 26 dB | | Frequency Response | 10 Hz to 70 kHz ±0.5 dB | | THD & Noise | THD & Noise (1 kHz @ +4 dBm): 0.015% | | Noise Floor | Noise Floor (Gain Set to Minimum): -80 dB wideband | | Signal to Noise Ratio | 116 dB typical (A weighted) | | Maximum Gain | Maximum Gain (via Trim on Back): 5 to -5 dB | | Equalizer | Maximum EQ Boost: 16 dB lows, 11 to 20 dB highs
Maximum EQ Cut: 20 dB lows, 11 to 21 dB highs | | Tube Type | 2 x 12AX7WA
2 x 6414 (or 5965) White Follower | | Rackmountable | 2 U | | Power Supply | 0.35 A @115 VAC
Fuse: 1 A Slo-Blo
Power Consumption: 18 W | | Dimensions (W x H x D) | 19.0 x 3.5 x 10.0" / 48.3 x 8.9 x 25.4 cm | | Weight | 18.0 lb / 8.2 kg |
