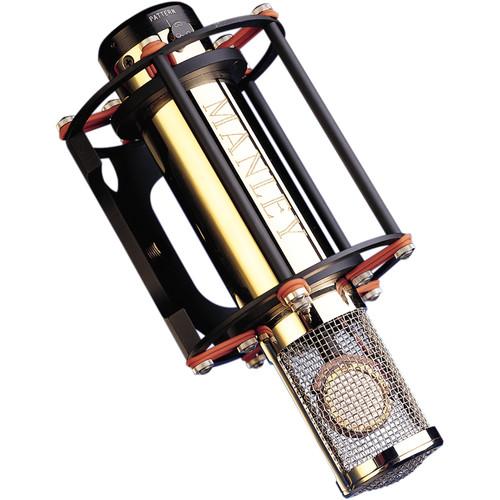

Product description The mono Gold Reference Microphone from Manley Labs is a multi-pattern large diaphragm condenser offering a wide frequency response and accurate transient performance without coloration or any perceivable sonic signature. Its designed application is to capture truly accurate musical recordings. The Gold Reference features a 1" gold sputtered diaphragm that is 5 microns thick and has the ability to withstand sound pressure levels up to 150 dB. The open weave stainless-steel grill allows the capsule to capture signals with zero-loss acoustical transmission, which translates to less dampening of high frequency content.The electronics of the Gold Reference include two triodes in cascade forming an entire gain-block. The dual-triode 12AT7 tube is easily obtainable and was chosen for its high gain and low noise properties. The audio signal and power connect from the microphone to the filtered B+ power supply via single 30' 6-pin XLR cable. The audio output exits the power supply via 3-pin XLR through a custom-wound output transformer, which employs nickel laminations and "hum-bucking" bifilar windings, all encased in mu-metal. The continuously variable multi-pattern control offers Omni, Cardioid, and Figure 8 patterns with the ability to dial in a desired proximity effect.The mic's body is machined from brass, which provides excellent shielding properties. The casing is polished to high luster and plated with 24 karat gold. The proprietary suspension system is attached directly to the casing, while the capsule itself is mounted to a neoprene-rubber shock-mount to prevent unwanted vibrations from being picked up by the diaphragm. Handmade in the USA, the Gold Reference ships with a leather capsule cover, locking carrying case, and IEC power cable. - Open weave stainless-steel grille for zero-loss acoustical transmission
- Neoprene-rubber shockmount
- All Tube Design with 12AT7 dual triode
- Power Supply: Filtered B+, regulated heater voltages
- 30' 6-pin XLR power cable
- Hand-wound output transformer with nickel laminations and mu-metal casing
- Precision suspension system
- Leather capsule protector
UPC: 890833000304 In the Box Manley Labs Gold Reference Multi-Pattern Microphone (Mono) Power Supply 30' Power Cable (Mic to Power Supply) IEC Power Cable Suspension Shock Mount Leather Capsule Protector Locking Carrying Case Limited 90-Day Warranty (Aditional Limited 5-Year Warranty After Registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the Manley Labs Gold Reference Multi-Pattern Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManley Labs REFGOLD Specs | | | Diaphragm | 1.0" / 25.40 mm | | Tube | Yes | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 10 Hz to 30 kHz | | Maximum SPL | 150 dB SPL | | Pad | -10 dB | | Impedance | 200 Ohms | | Sensitivity | 17 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 70 mA | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Length | 9.7" / 246.38 mm | | Diameter | 4.5" / 114.30 mm | | Weight | 2.25 lb / 1.02 kg | | | | Package Weight | 17.15 lb | | Box Dimensions (LxWxH) | 22.5 x 14.7 x 10.6" |
