Manley Labs Nu Mu Stereo Limiter

Search your instruction manual in PDF to download

User Manual for Manley Labs Nu Mu Stereo Limiter and Compressor

Click to enlarge the picture
Manley Labs Nu Mu Stereo Limiter and Compressor Contents of the user manual for the Manley Labs Nu Mu Stereo Limiter
  • Product category: Dynamics Processors Manley Labs
  • Brand: Manley Labs
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Manley Labs Dynamics Processors

Manley Labs Nu Mu Stereo Limiter and Compressor Manley Labs Nu Mu Stereo Limiter and Compressor
User manual for the Manley Labs Nu Mu Stereo Limiter contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Manley Labs product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Manley Labs user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Manley Labs product will considerably shorten its lifespan!



Product description

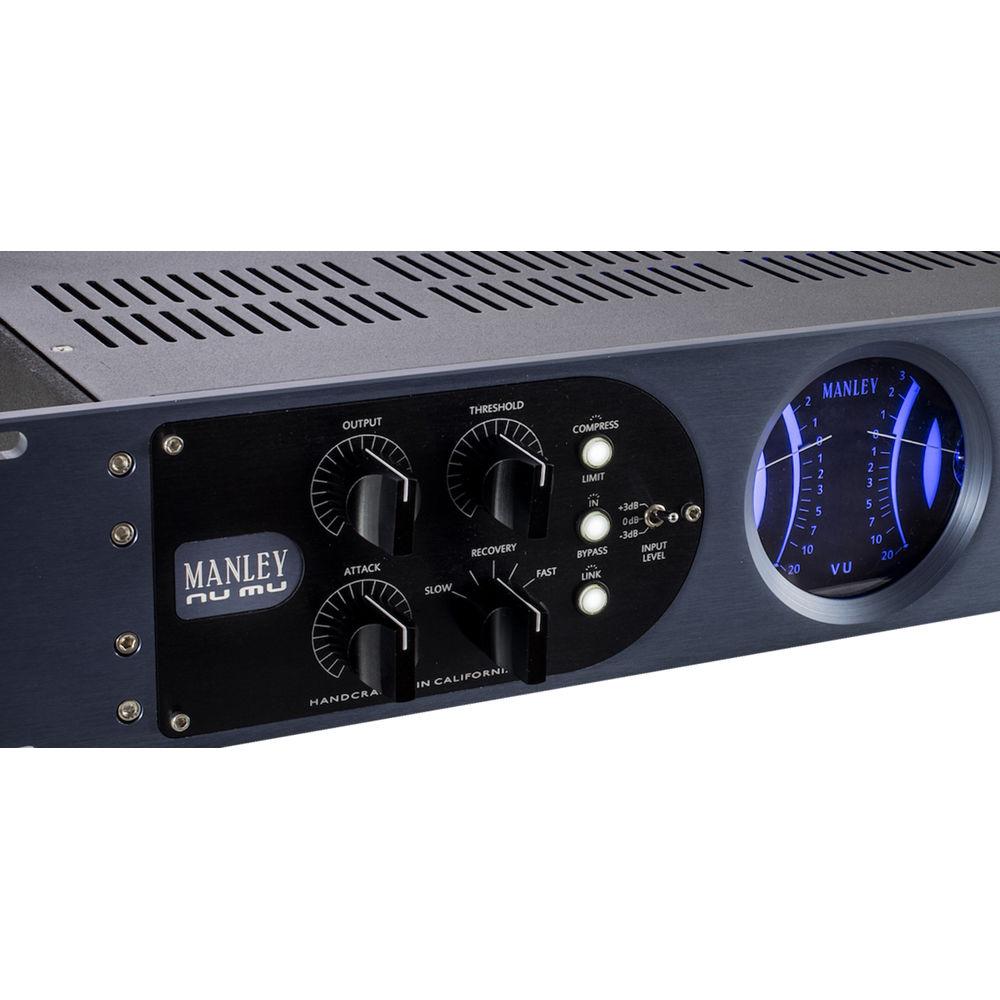

Featuring a hybrid tube/solid-state design, switchable input levels, and Manley IRON balanced-input transformers, the Nu Mu is a dual-channel compressor and limiter suitable for use on the stereo buss. The unit itself comes stocked with the same tube front-end of the well regarded Variable Mu—four hand-matched 6BA6 vacuum tubes on the valve side—while offering a FET solid-state amplifying and output stage, which provides its faster, punchier path. As such, it’s a compressor well suited for electronic pop productions, or other mixes where one desires a more transparent stereo-buss compressor, rather than a color piece.The Nu Mu provides output controls for both the left and right channels, as well as independent bypass, threshold, ratio, attack, and recovery selectors. Both the attack and recovery settings are continuously variable, reacting to the music pumped through the channels. Still, you can roughly dictate how slowly or quickly these controls operate. You’ll note the independent three-position toggle switches, which dictate the input level, giving you a choice of +3, 0, or -3 dB. Separate VU meters can be configured to read gain reduction or overall output levels.On the left of the unit, you’ll find a link button, which will turn the left channel into the master channel, thereby ganging threshold, attack, and recovery controls. In this way, you can achieve a cohesive stereo picture when processing a dual-channel source. On the right, you’ll note the HP SC switch, which operates the internal sidechain detector circuit, factory set to 100 Hz. This global control is useful for allowing bass signal to pass through the NU MU without triggering gain reduction, thereby securing yourself a fuller, more bass-heavy sound.The unit provides two different ratios, one offering compression at approximately 3:1, and the other offering limiting at 10:1—or thereabouts; the ratio, like the attack and recovery times, is program dependent.Perhaps the most interesting feature of this unit is the Hip control, accessible on the right side of the front panel. When engaged, the Hip control does not operate as hard on intrinsically louder signals as it does on audio with a lower amount of level, effectively allowing your louder material to shine through uncompressed. Using this circuit can obviate the need for parallel compression in certain situations. The unit takes up 2 RU of rack space and comes with its own power supply.
    Features at a Glance
  • •Variable attack and release controls, which can be set between slow and fast
    •2 ratios for compression or limiting
    •Hip control for preserving dynamics of loud sections
    •Suitable for use as a stereo-buss compressor on electronic production, or other material where clean, punchy gain-reduction is called for
    •4 x hand-matched 6BA6 vacuum tubes with FET solid-state amp and output stage
    •Stereo link establishes left-master dynamic control
    •Illuminated stereo VU meters read gain reduction or output level
    •High-voltage SMPS custom designed for Manley Labs' vacuum tube audio circuits
UPC: 890833001905 In the Box Manley Labs Nu Mu Stereo Limiter and Compressor
  • IEC Power Cable
  • Limited 90-Day Warranty (Limited 5-Year Warranty on Registration within 30 Days)
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Manley Labs Nu Mu Stereo Limiter and Compressor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Manley Labs NU MU Specs

    Transformer Manley IRON input transformers
    Tubes 4 x hand-matched 6BA6 vacuum tubes

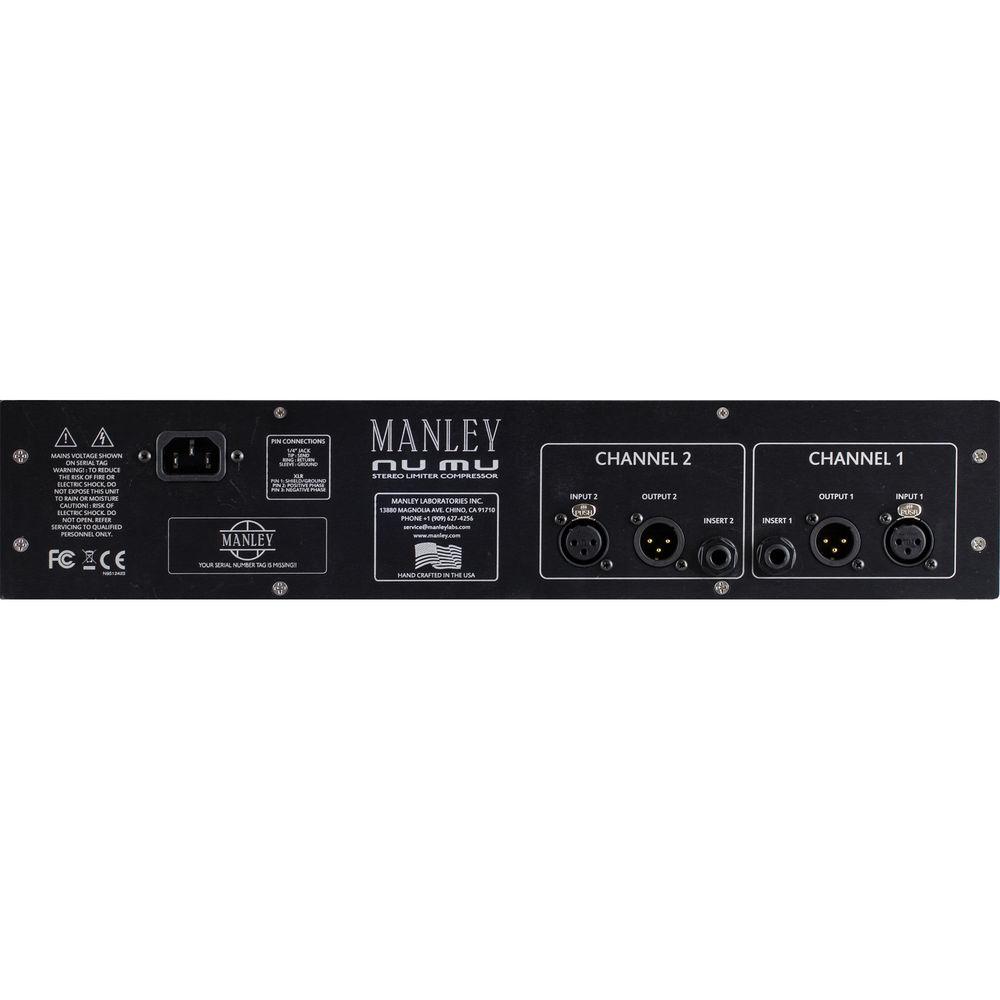

    Connectors 2 x balanced XLR inputs
    2 x balanced XLR outputs
    2 x 1/4" insert inputs, phone type
    Attack Continuously variable, 13 to 130 ms
    Recovery 0.1 to 3.9 seconds, depending on gain reduction via 5-step switch
    Switch Hardwired relay bypass switch
    Mode Ratio mode switches between Limit (1.5:1 to 12:1) or Compress (1.2:1 to 3:1)
    Sidechain 1/4" stereo TRS insert point on each channel
    Sidechain Filter High-pass internal sidechain filter @ 100 Hz, 6 dB per octave
    Metering Switchable between output level or gain reduction
    Maximum Input Level @ 1 kHz sine, <0.3% THD+N
    -3 = +25 dBu
    0 = +21 dBu
    +3 = +18 dBu
    Maximum Gain 13 dB
    Make-up Gain 10 dB (above unity)
    Headroom 23 dB output (reference to +4 dBu)
    Maximum Output @1 kHz sine, < 0.3% THD+N, BW 20 Hz to 20 kHz
    +27 dBu (18 Vrms) into 100-kOhm load
    +24.5 dBu (13 Vrms) into 600-Ohm load
    Frequency Response - 0.8 dB @ 20 Hz, -0.5 dB @ 50 kHz
    Total Harmonic Distortion @ 1 kHz sine, +4 dBu, BW: 20 Hz to 22 kHz
    <0.05% THD+N
    Noise Floor -85 dB typical (BW: 20 Hz to 22 kHz)
    Dynamic Range 112 dB
    Signal to Noise Ratio 89 dB, referenced to +4 dBu, BW: 20 Hz to 22 kHz
    CMRR 74 dB (+4 dBu, BW: 20 Hz to 22 kHz)
    Impedance Input: 1 kOhm @ -3 dB, 2.5 kOhms @ 0 dB, 4.5 kOhms @+3 dB
    Output: 100 Ohms
    Sidechain Insert: 50-Ohm send, 50-kOhm return
    Warm-Up Time 30-second mute timer
    Power Supply Universal internal power supply
    90 to 254 VAC; 50/60 Hz
    Rack space 2 RU
    Dimensions 19.0 x 3.5 x 7.0" / 48.3 x 8.9 x 17.8 cm
    Weight 8 lb / 3.63 kg
    Package Weight 11.95 lb
    Box Dimensions (LxWxH) 23.0 x 11.0 x 8.0"
