Product description - Mic Roundup Part 1: Mics Inspired by the Neumann U47 and AKG C12

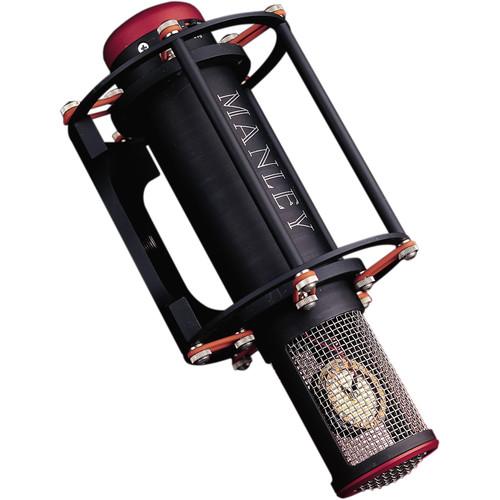

The Reference Cardioid Microphone from Manley Labs is a large diaphragm condenser offering a wide frequency response and accurate transient performance without coloration or any perceivable sonic signature. The rich tonal balance and liquid character make this center-fixed cardioid mic an excellent choice for recording guitars, drums, brass and especially vocals. The Reference Mic features a 1" gold sputtered diaphragm that is 6 microns thick and has the ability to withstand sound pressure levels up to 150 dB. The open-weave stainless-steel grille allows the capsule to capture signals with zero-loss acoustical transmission, which translates to less dampening of high frequency content.The electronics of the Reference Cardioid include two triodes in cascade forming an entire gain-block. The dual-triode 12AT7 tube is easily obtainable and was chosen for its high gain and low noise properties. The audio signal and power connect from the microphone to the filtered B+ power supply via single 30' 6-pin XLR cable. The audio output exits the power supply via 3-pin XLR through a custom-wound output transformer, which employs nickel laminations and "hum-bucking" bifilar windings, all encased in mu-metal.The Reference Cardioid features a proprietary suspension system that is attached to the black anodized casing. The capsule itself is mounted to a neoprene-rubber shock-mount to prevent unwanted vibrations from being picked up by the diaphragm. Handmade in the USA, the Reference Cardioid ships with a leather capsule cover, locking carrying case, and IEC power cable. - Open weave stainless-steel grille for zero-loss acoustical transmission
- Neoprene-rubber shockmount
- All Tube Design with 12AT7 dual triode
- Filtered B+, regulated heater voltages
- 30' 6-pin XLR power cable
- Hand-wound output transformer with nickel laminations and mu-metal casing
- Precision suspension system
- Leather capsule protector
UPC: 890833000298 In the Box Manley Labs Reference Cardioid Microphone Power Supply 30' Power Cable (Mic to Power Supply) IEC Power Cable Suspension Shock Mount Leather Capsule Protector Locking Carrying Case Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Manley Labs Reference Cardioid Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersManley Labs REFCARD Specs | | | Diaphragm | 1.0" / 25.40 mm | | Tube | Yes | | Polar Pattern | Cardioid | | Frequency Range | 10 Hz to 30 kHz | | Maximum SPL | 150 dB SPL | | Pad | -10 dB | | Impedance | 200 Ohms | | Sensitivity | 17 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 70 mA | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Length | 9.7" / 246.38 mm | | Diameter | 4.5" / 114.30 mm | | Weight | 2.25 lb / 1.02 kg | | | | Package Weight | 16.45 lb | | Box Dimensions (LxWxH) | 22.4 x 14.8 x 10.2" |
