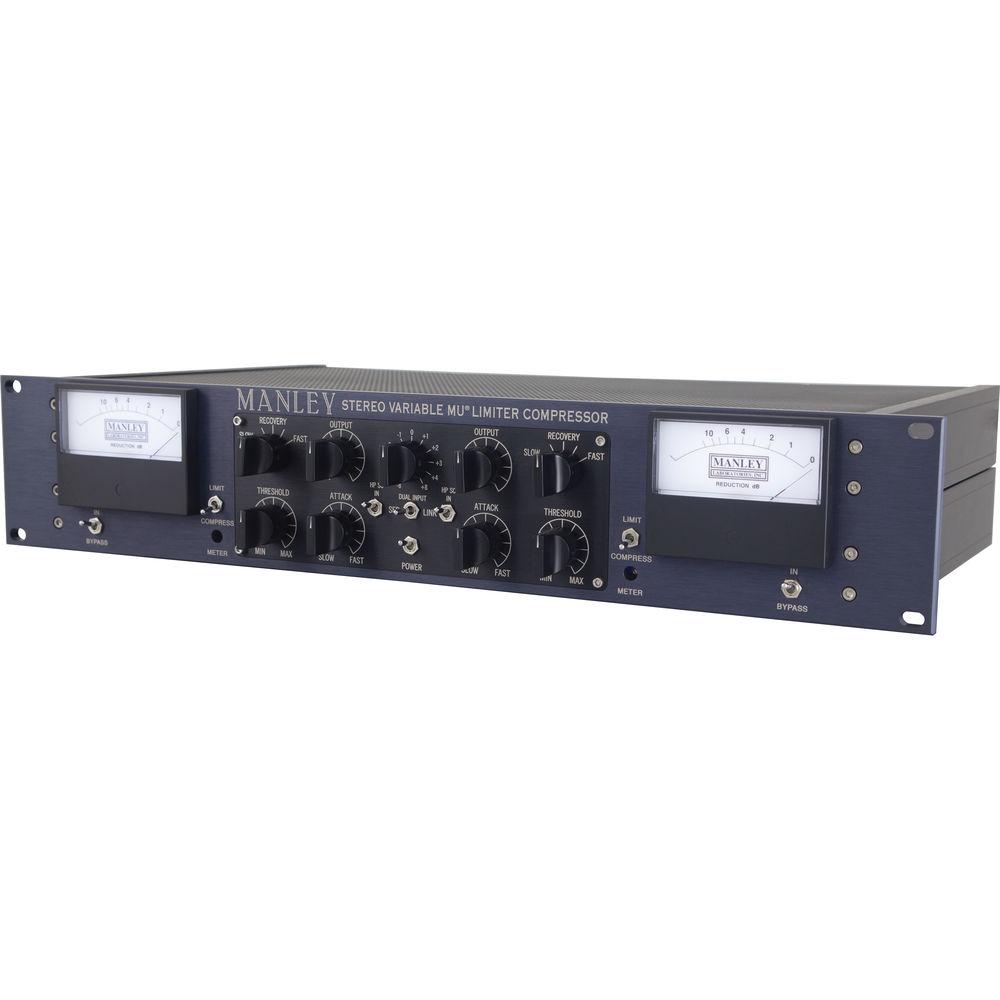

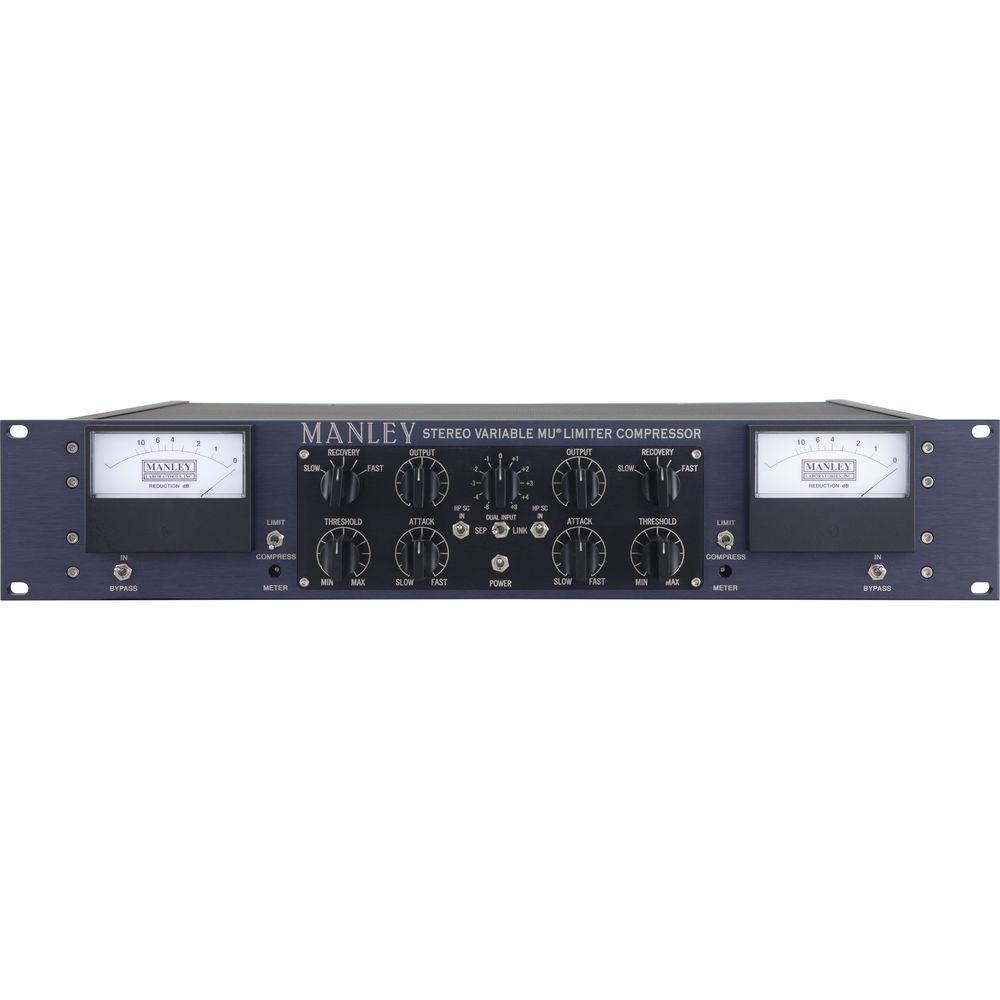

User Manual for Manley Labs Stereo Variable MU Limiter Compressor Click to enlarge the picture
Contents of the user manual for the Manley Labs Stereo Variable MU Limiter
- Product category: Dynamics Processors Manley Labs
- Brand: Manley Labs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Manley Labs Dynamics Processors
 |
User manual for the Manley Labs Stereo Variable MU Limiter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Manley Labs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Manley Labs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Manley Labs product will considerably shorten its lifespan!
|

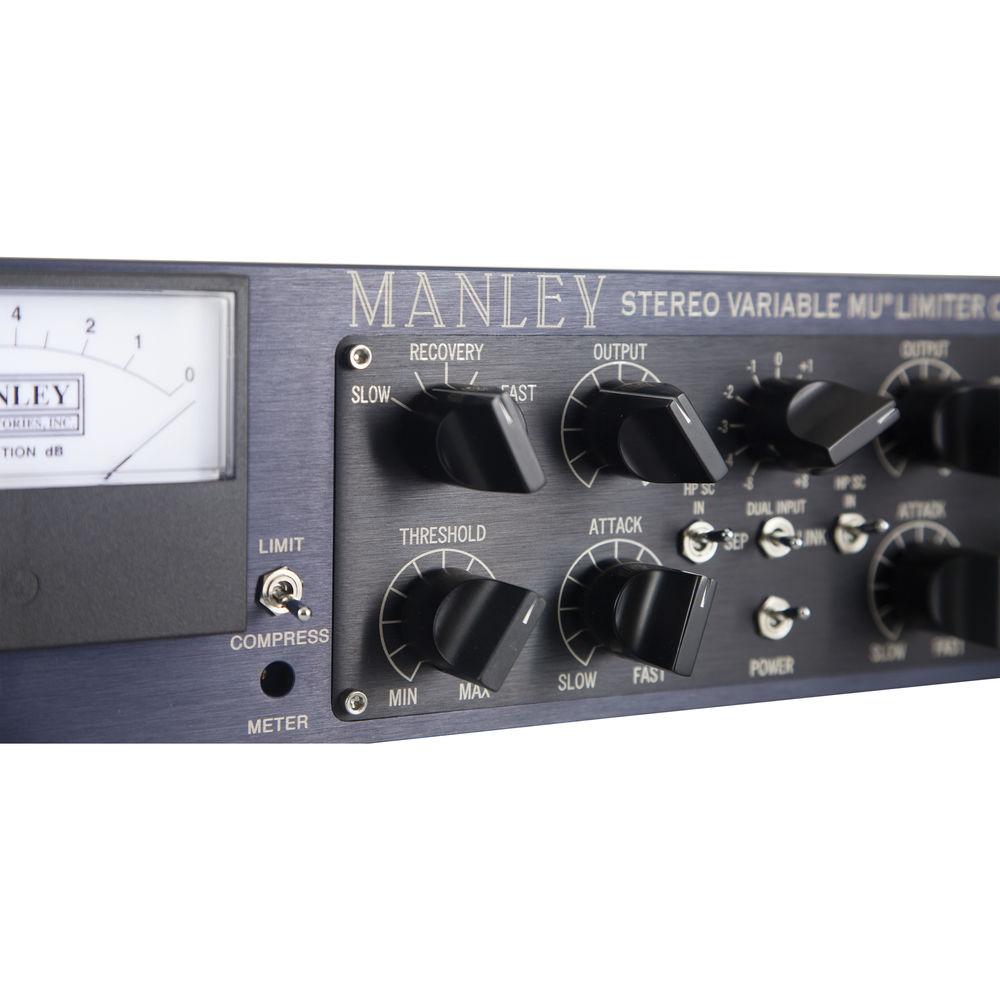

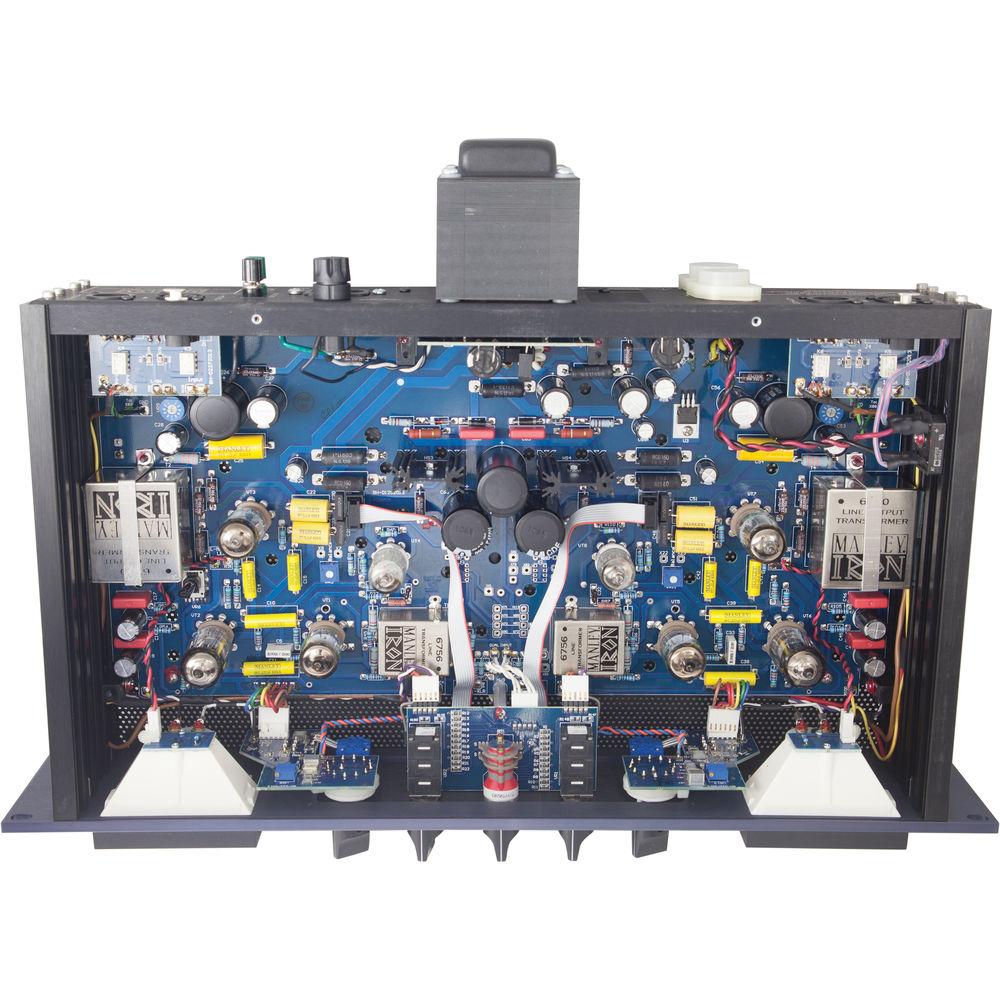

Product description The Stereo Variable MU Limiter Compressor from Manley Labs is a dynamic signal processor using a 5670 dual triode tube for peak reduction and compression. The tube is constantly re-biased by the vacuum tube rectified side chain control voltages, resulting in a smooth change in gain. The compressor setting offers a soft-knee 1.5:1 ratio, while the limit mode offers a sharper knee with ratios ranging from 4:1 to 20:1. With higher limiting settings, the knee will start to soften. Distortion effects can be achieved by turning up the input and lowering the output while using little or no compression. The side chain high pass filter uses a 1-pole, 6 dB/octave filter that attenuates 1 to 3 dB at 100 Hz and 4 to 6 dB at 50 Hz. Once engaged, the compressor / limiter will not respond as strongly to low frequency content and will prevent audible "pumping" when processing bass-heavy music. The input of the Variable MU is ganged, but can still process two independent channels with separate threshold and output controls. With the link switch engaged, the unit operates in true stereo mode and excels at processing 2-track, final mix, or mastering compression and limiting. Handmade in the USA, the unit is housed in a 2U steel chassis with a CNC-machined 1/4" faceplate that is also inlaid with laser-engraved inserts. The Variable MU ships with an IEC power cable. -
- Manley input and output transformers with nickel laminations in mu-metal cases
- Balanced inputs and outputs (600 Ω)
- Independently regulated B+ and heater supplies
- Bypass Switch: Hardwire true bypass
- Input Attenuator: -8 to +8 dB stepped Greyhill switch
- Variable Attack: 25 to 70 ms
- Threshold: Continuously variable
- 5-Step Recovery Switch: .2, .4, .6, 4, 8 sec
- Compression Ratio: 1.5:1
- Limit Ratio: 4:1 to 20:1
- Large Illuminated Sifam Meters: Displays the amount of dB gain reduction
- Stereo link switch
UPC: 890833000724 In the Box Manley Labs Stereo Variable MU Limiter Compressor IEC Power Cable Limited 90-Day Warranty, Extends to 5 Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Manley Labs Stereo Variable MU Limiter Compressor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

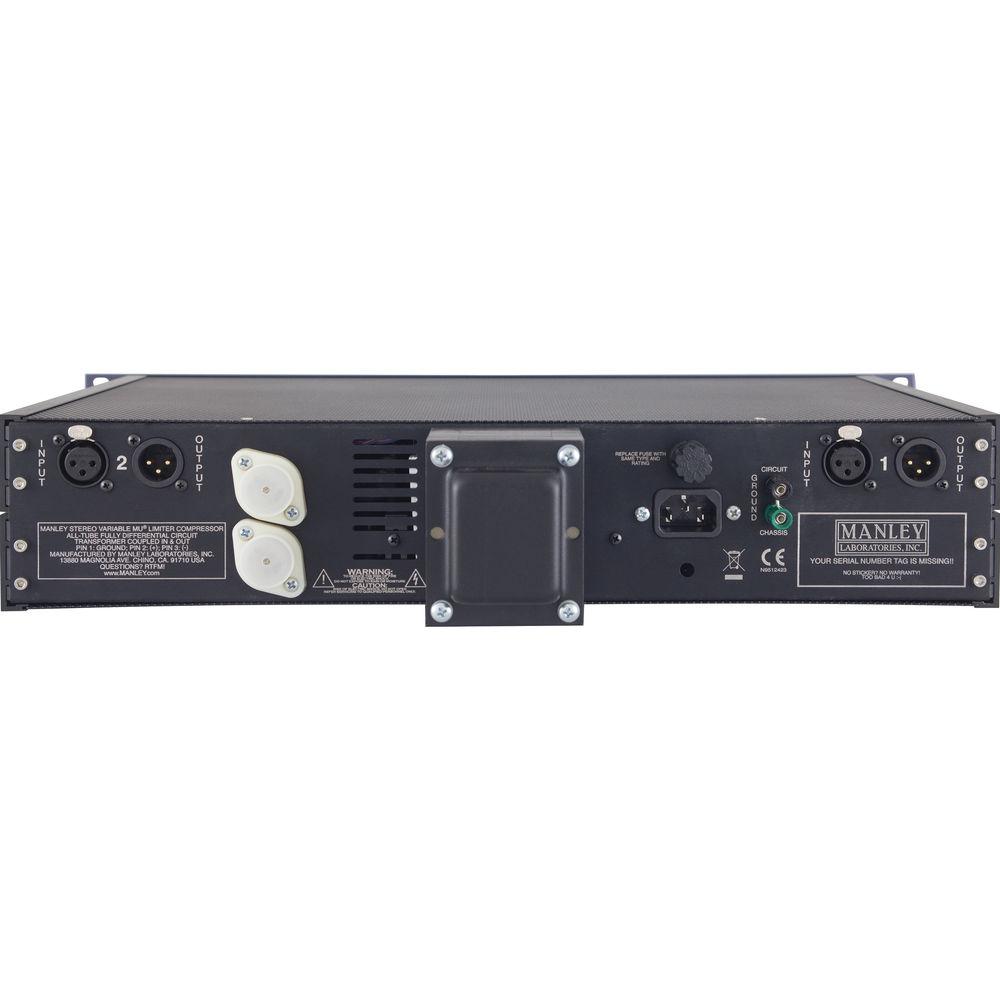

Technical parametersManley Labs MSLCHP Specs | Number of Channels | 2 | | Inputs | 2 x XLR transformer balanced (600 Ω) | | Outputs | 2 x XLR transformer balanced (600 Ω) | | Input Level | Input Level Switch: -8, -4, -2, -1, 0, +1, +2, +4, and +8 dB | | Compression Threshold | Continuously variable threshold for compression and limiting | | Ratio | Compressor: 1.5:1
Limiter: 4:1 to 20:1 | | Attack Time | Variable Attack: 25 to 70 ms | | Release Time | Recovery 5 Steps: 0.2, 0.4, 0.6, 4.0, 8.0 sec | | Maximum Output Level | +30 dBu (26 Vrms) 26 dB Headroom | | Make-up Gain | +35 dB | | Frequency Response | 20 Hz to 25 kHz | | THD & Noise | <0.1% THD @ 1 kHz
Noise Floor: -85 dB typical | | Meter | Illuminated Sifam meters | | Tubes per Side | Fully Differential All-Tube Circuitry: 5670, 5751 (or 12AX7), 7044 (or 5687), & 12AL5 | | High Pass Filter | HP SC: High Pass Side Chain Filter:
-1 to -3 dB @ 100 Hz
-4 to -6 dB @ 50 Hz | | Rackmountable | 2 U | | Power Supply | 120 VAC, 80 W, 60 Hz | | Fuse | Mains Fuse Value: 1.25 A
Mains Fuse Type: MDA or MDL SLO-BLO Time Delay: 1-1/4" x 1/4" | | Dimensions (WxHxD) | 19.0 x 3.5 x 10.0" / 48.3 x 8.9 x 25.4 cm
Power Transformer protrudes 3.5" / 8.9 cm out back of chassis | | Weight | 14.0 lb / 6.4 kg | | | | Package Weight | 21.75 lb | | Box Dimensions (LxWxH) | 22.6 x 18.1 x 8.6" |
