User Manual for Marantz CD6006 CD Player Click to enlarge the picture
Contents of the user manual for the Marantz CD6006 CD Player
- Product category: CD Players & Changers Marantz
- Brand: Marantz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marantz CD Players & Changers
 |
User manual for the Marantz CD6006 CD Player contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marantz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marantz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marantz product will considerably shorten its lifespan!
|

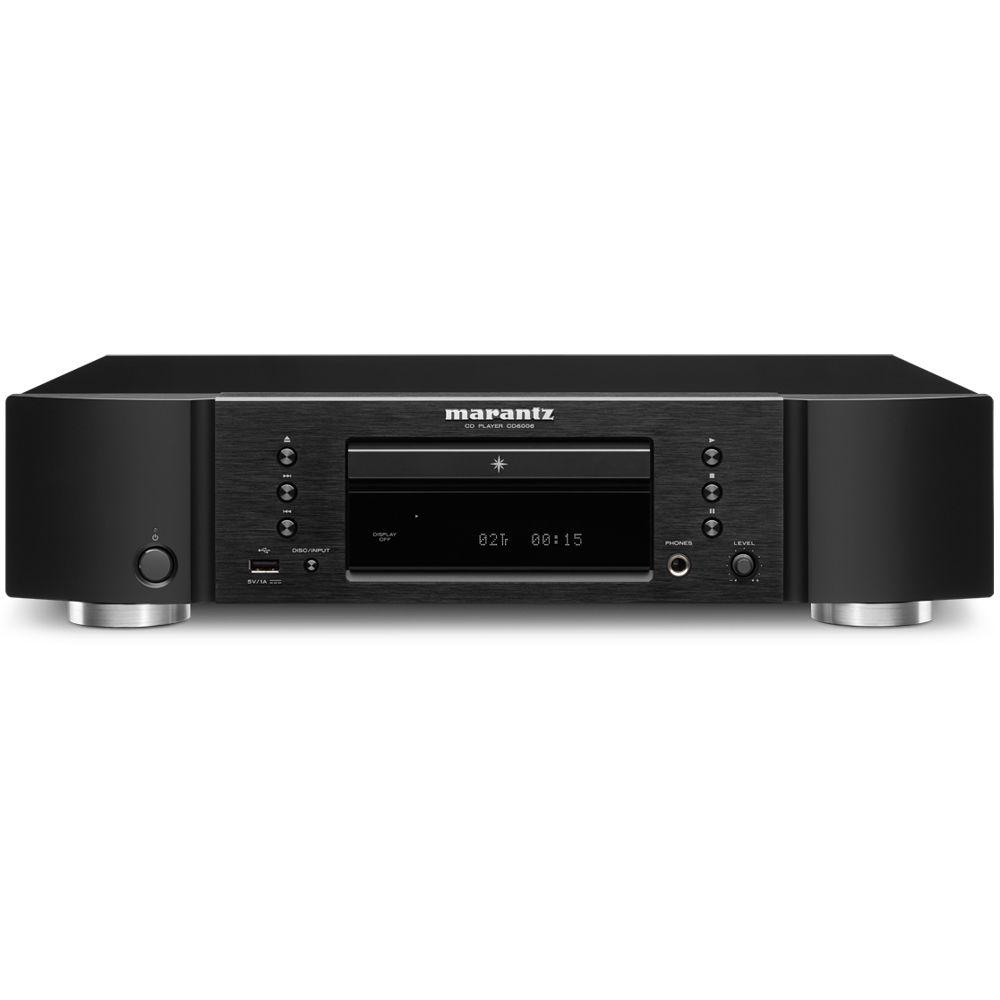

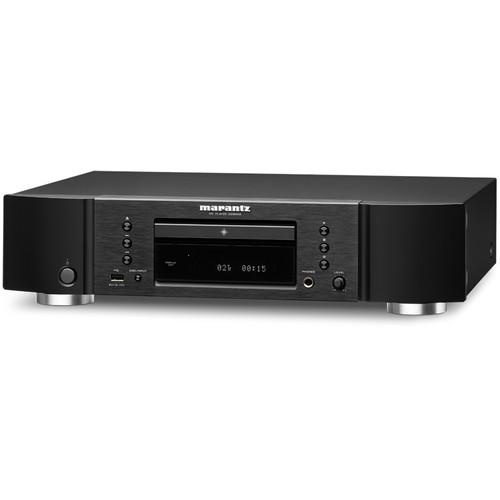

Product description Enjoy all your favorite audio CDs and files with the Marantz CD6006 CD Player. It has a front-loading tray, which will accept your CDs, CD-Rs, and CD-RWs. It also supports MP3, WMA, and AAC media on CD-R/RWs. The CD player has a USB port on the front for playing files from portable drives. For private listening, it has a 1/4" headphone output on the front panel with a volume control. It includes a stereo RCA cable, a remote cable, and a remote control. -
- CD and CD-R/RW playback with a front USB input certified "Made for iPhone/iPod"
- Support of WAV, MP3, AAC, and WMA file playback via USB devices
- 192 kHz/24-bit D/A conversion (CS4398)
- Marantz HDAM-SA2 circuits for reduced distortion
- Discrete headphone amplifier with HDAM-SA2 circuitry and gain control
- Double-layered bottom plate and rigid feet for reducing interference for purity of sound
- Gold-plated RCA and digital coaxial outputs provide an enhanced connection over nickel

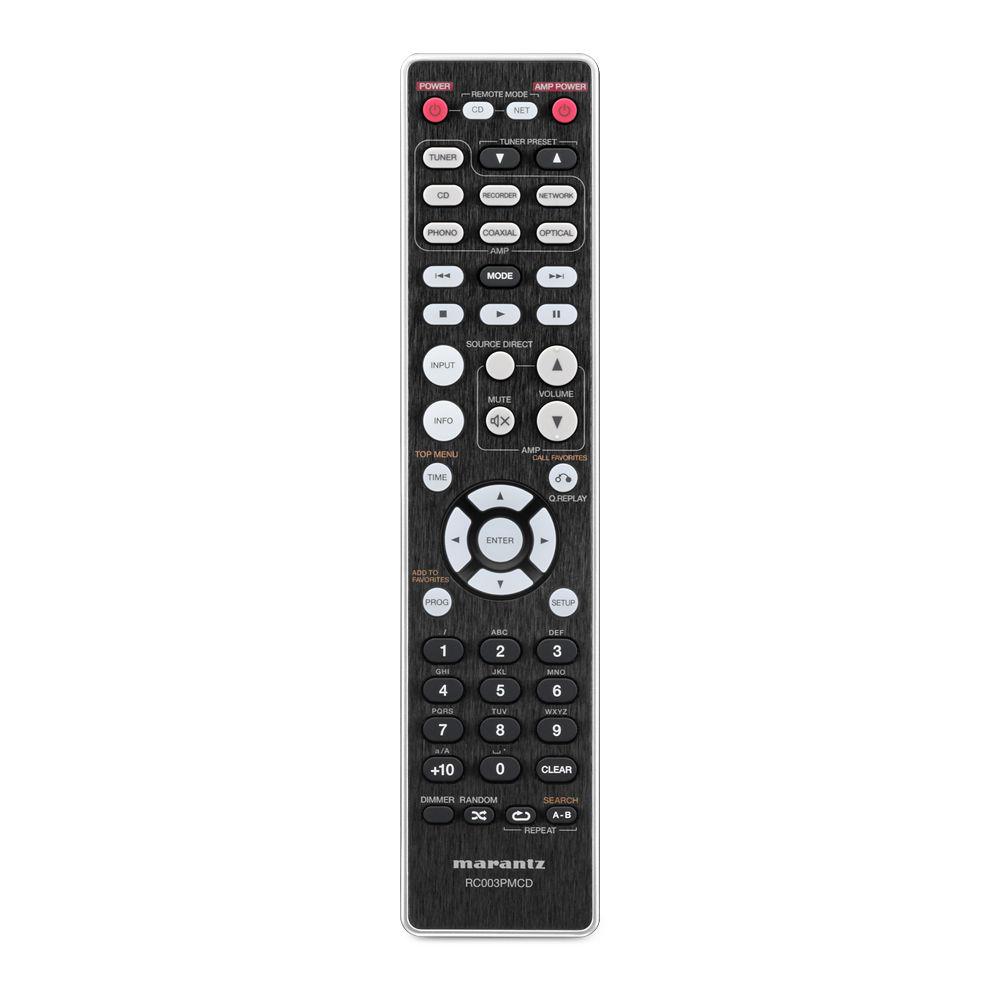

- System remote to control Marantz CD player, amplifier and network player
UPC: 699927001254 In the Box Marantz CD6006 CD Player Remote Control 2 x AAA Batteries Stereo RCA Cable Remote Connector Cable Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marantz CD6006 CD Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

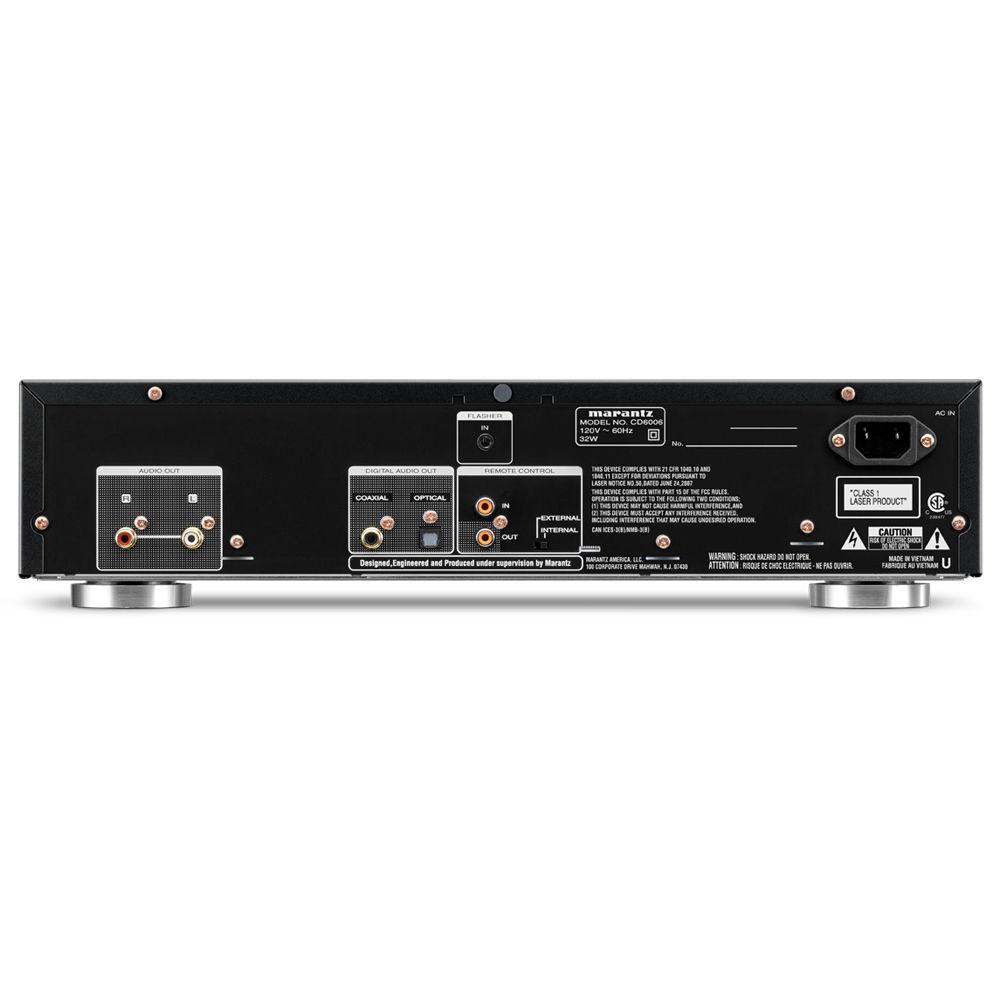

Technical parametersMarantz CD6006 Specs | Playback Formats | Disc: CD, CD-R, CD-RW, WMA, MP3, AAC
USB: MP3, WMA, AAC, iOS devices | | D/A Converter | CS4398 192 kHz / 24-bit | | D/A Conversion | Multi-bit, Delta-Sigma | | Sampling Frequency | CD: 44.1 kHz | | Frequency Range | Playable, via Analog Output: 2 Hz to 20 kHz | | Frequency Response | CD: 2 Hz to 20 kHz (±0.5 dB) | | Dynamic Range | Via Analog Output: 100 dB | | Signal-to-Noise Ratio | Via Analog Output: 110 dB | | Signal Type | CD: 16-bit linear PCM | | THD | Via Analog Output: 0.002% (1 kHz) | | Wow & Flutter | Crystal accuracy | | Input Connectors | 1 x USB Type-A 5 V / 1 A (front)
1 x Marantz Remote
1 x Flasher in | | Output Connectors | 1 x Gold-plated stereo RCA
1 x 1/4" (6.35 mm) Headphone with volume control
1 x Gold-plated digital coaxial
1 x Optical TOSLINK
1 x Marantz Remote | | Other Connectors | 1 x AC-In | | Output Level | 2.2 V RMS stereo
Headphone: 28 mW, 32 Ohms (variable maximum) | | Output Voltages | Digital Coaxial: 0.5 Vp-p / 75 Ohms
Optical: -19 dBm | | Channel Separation | 98 dB | | Laser Type | AlGaAs | | Laser Wavelength | 780 nm | | Front Panel | Metal | | Display | On/Dimmed/Off | | Operating Conditions | Temperature: 41 to 95°F (5 to 35°C)
Non-Condensing Humidity: 5 to 90% | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Typical: 32 W
Standby: ≤0.3 W | | Dimensions (W x H x D) | 17.3 x 4.1 x 13.5" (43.9 x 10.4 x 34.3 cm) | | Weight | 14.3 lb (6.5 kg) | | | | Package Weight | 19.2 lb | | Box Dimensions (LxWxH) | 20.5 x 18.6 x 7.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Marantz CD6006 CD Player
| Subject: impossible to open - impossible to insert CD | | Date: 26.02.2021 21:25:16 | Name: Ján BOHM | What can be the problem and how to fix it ? No reaction to open command.
Can you helpm with an advise please ? | | Post reply |
