User Manual for Marantz HD-CD1 High-Definition CD Player Click to enlarge the picture
Contents of the user manual for the Marantz HD-CD1 High-Definition CD Player
- Product category: CD Players & Changers Marantz
- Brand: Marantz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marantz CD Players & Changers
 |
User manual for the Marantz HD-CD1 High-Definition CD Player contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marantz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marantz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marantz product will considerably shorten its lifespan!
|
Product description The black HD-CD1 High-Definition CD Player from Marantz includes a 192 kHz/24-bit digital-to-analog converter from Cirrus Logic, system clock, and Marantz HDAM-SA2 amplifier modules. The player uses a centralized CD mechanism for playing MP3, WMA, and AAC files as well as standard CDs. Analog audio outputs and optical and coaxial digital connections enable you to connect the player directly to the HD-AMP1 amplifier (sold separately).
The HD-CD1 also incorporates the MusicLink design with an aluminum front panel, a double-layer chassis for vibration isolation, and retro-style side panels. It also includes an integral headphone amplifier with adjustable gain to drive high-end headphones for personal listening. In addition, the player also comes with a remote control. - Marantz HDAM
- The CD player features Marantz HDAM Hyper-Dynamic Amplifier Modules, which are built from separate, optimized components for enhanced sound quality. The HDAM-SA2 modules provide a wide dynamic range and wide frequency response with low distortion. The HDAM technology is also used in the headphone section with its own dedicated amplification.
- Reference-Quality Digital-to-Analog Conversion
- The HD-CD1 features a high-quality CD transport mechanism, designed for accurate disc-reading, and this mechanism sends data to the player's Cirrus Logic CS4398 digital-to-analog converter. This is used together with a crystal oscillator master clock designed for low phase noise and a low impedance capacitor designed for low noise to ensure digital data is converted into an analog sound.
- Dedicated Headphone Amplifier
- The CD player features a dedicated headphone section for connecting your headphones. It has its own volume control and HDAM-SA2 amplifier with adjustable gain settings (low, medium, and high).

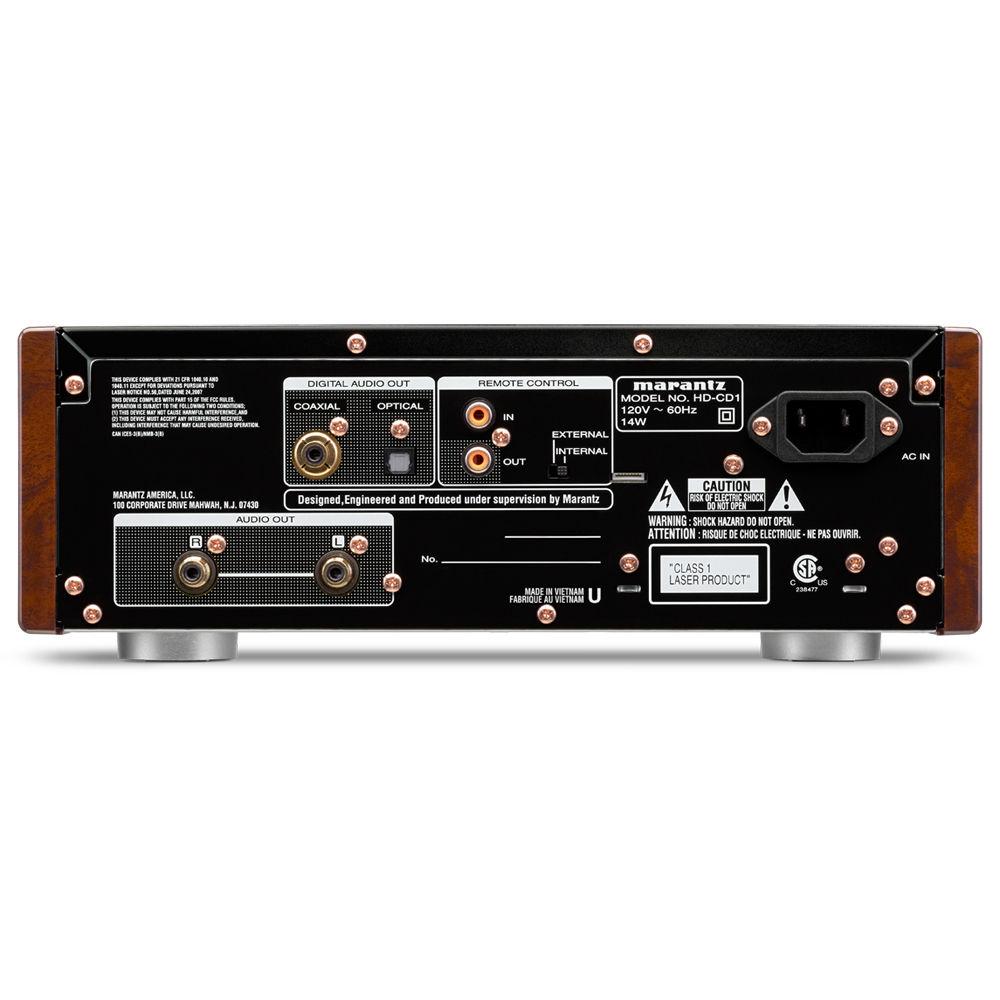

- Analog and Digital Outputs
- The CD player features analog outputs for use with HD-AMP1 amplifier or any other amplifier. Featuring both optical and coaxial digital outputs, the CD player can be used as a CD transport straight into the digital input on the HD-AMP1. Like the analog outputs, the coaxial digital connection uses a gold-plated RCA socket. In addition, the CD player also comes with a digital cable
- High-Current Power Supply and Vibration-Suppressing Chassis
- The HD-CD1 CD player employs extensive measures to suppress both electrical and mechanical interference. It features a high-current power supply, high-capacity storage capacitors, and Schottky barrier diodes. The player also features auto-standby and consumes less power when in standby mode. The HD-CD1 player is built on a double-layer baseplate for rigidity and vibration suppression. It also features compliant feet, solid aluminum fascia, and a rigid top-plate, and is finished with retro-style side-cheeks.

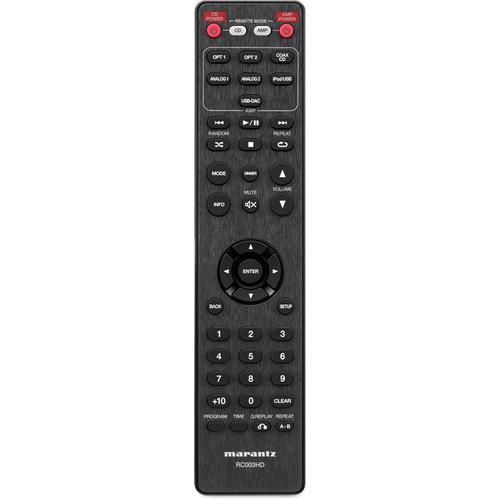

- System Remote Control
- The remote control handset supplied with the HD-CD1 player controls all the functions of player and can also drive the matching HD-AMP1 amplifier for simple system integration and convenience.
UPC: 699927031459 In the Box Marantz HD-CD1 High-Definition CD Player Power Cord RC003HD Remote Control Unit R03/AAA Batteries Coaxial Digital Cable (Black) Remote Connector Cable (Orange) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marantz HD-CD1 High-Definition CD Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarantz HDCD1 Specs | Compatible Discs | CD / CD-R/RW / WMA / MP3 / AAC | | Metadata | CD-Text / ID3 Tag / WMA Meta Tag / AAC Metadata | | Amplifier | HDAM Version: SA2 | | Transformer | Power: El | | Circuit | Circuit Layout: Symmetric
Separated rectifier circuit for analog and digital circuitry | | Digital Out Off | Yes | | Buffer | Headphone: Yes (HDAM-SA2) | | Display | Dimmer / Off | | Playback | Program Play (CD / SA-CD): 25
Repeat
Random Play | | Mechanism | CJDKT690 | | DAC Type | IC: CS4398 | | Digital Filter | CS4398 | | Noise | Noise Shaper: CS4398 | | Filter Stages | Low Pass Filter Stage: HDAM | | Headphone Amp | HDAM-SA2 + Buffer | | Supported Bit/Sample Rates | Not specified by the manufacturer | | Construction | Front Panel: Metal | | Power Consumption | 14 W
Standby: 0.3 W or less | | Power Off | Auto | | Power Cable | Detachable | | D to A Converters | Multi-bit, Delta-Sigma | | Frequency Response | 20 Hz to 20 kHz | | Dynamic Range | 100 dB | | Signal-to-Noise Ratio | 110 dB | | THD + N | 0.002% | | Channel Separation | 98 dB | | Input / Output Connectors | Analog Out (Cinch): 2-channel
Digital Optical Out: 1
Digital Coaxial Out: 1
Gold-plated cinch
D-Bus | | Headphone Connector | Headphone out
Headphone volume control | | Remote Control | RC003HD | | RAM Buffer | Not specified by the manufacturer | | Dimensions (HxWxD) | 4.3 x 12 x 12.3" (10.9 x 30.4 x 31.2 cm) | | Weight | 12.6 lb (5.7 kg) | | | | Package Weight | 17.4 lb | | Box Dimensions (LxWxH) | 17.0 x 17.0 x 9.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 93 owners. Add your rating and experience with the product.
