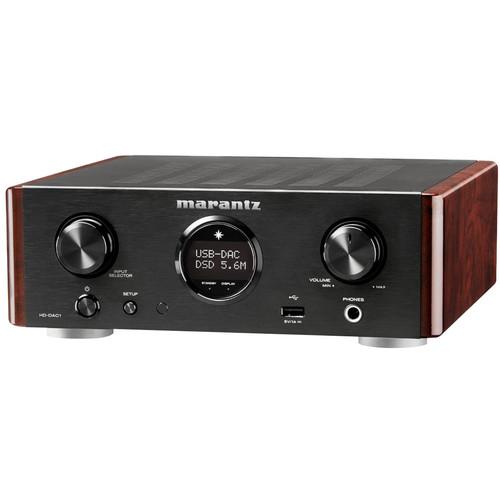

User Manual for Marantz HD-DAC1 Headphone Amplifier with DAC-Mode Click to enlarge the picture
Contents of the user manual for the Marantz HD-DAC1 Headphone Amplifier with DAC-Mode
- Product category: Headphone Amplifiers Marantz
- Brand: Marantz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marantz Headphone Amplifiers
|
User manual for the Marantz HD-DAC1 Headphone Amplifier with DAC-Mode contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marantz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marantz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marantz product will considerably shorten its lifespan!
|
Product description The Marantz HD-DAC1 Headphone Amplifier with DAC-Mode is designed to help you enjoy the most out of your audiophile or professional headphones. Using amplification technologies from the company's Premium 11 series, the unit can drive audiophile high-impedance headphones up to 600 ohms with ease or act as a source for a Hi-Fi system. A three level gain control (low, mid, high), the company's HDAM-SA2 modules, a high current CS4398 audiophile DAC, and both gold-plated fixed and variable RCA outputs combine to form a versatile headphone amplifier, or a source to drive an integrated amplifier for Hi-Fi speakers.
Optical, Coaxial, and USB-B digital inputs allow you to stream music from a PC or Mac, while a front panel USB-A input allows for connection to an iDevice (iPhone, iPad, iPod Touch). A back panel auxiliary analog input is also included. The USB type-B port can operate asynchronously to support not only 192 kHz 24-bit resolution but also DSD 2.8 MHz and DSD 5.6 MHz formats. Extensive isolation around the USB-B input helps reduce high frequency noise from the computer. A jitter remover and a dual clock design helps minimize timing errors.
A front panel display provides information on volume, input, resolution, etc. The unit's solid aluminum front is supported by a double layer bottom plate and the retro side panels make the unit worthy of tabletop display. A remote control is included. - DAC operation mode: USB / Coax / Optical
- Asynchronous mode rear USB
- Bit-perfect transmission
- DSD 2.8 and DSD 5.6 USB-B DSD Audio Streaming
- Ground isolator for DAC Mode operation
- iPod / iPhone compatible USB input
- DAC chip: CS4398
- Jitter reducer
- HDAM Version: HDAM+HDAM SA2
- High grade customized components
UPC: 699927131357 In the Box Marantz HD-DAC1 Headphone Amplifier with DAC-Mode Power Cord Remote Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marantz HD-DAC1 Headphone Amplifier with DAC-Mode in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarantz HD-DAC1 Specs | I/O | 1x 1/8" (3.5 mm) stereo aux input
1x coaxial digital input
2x ADAT optical digital input
1x USB DAC Input
1x remote control input
2x RCA (left and right stereo) fixed analog output
2x RCA (left and right stereo) variable analog output
1x 1/4" (6.35 mm) headphone output
1x remote output | | Controls | 1x headphone volume
1x headphone gain control (low, mid, high) | | Sample Rate | 192 kHz/24-bit | | USB Input | 1x front panel type-A
1x rear panel type-B (asynchronous) | | DSD Format | USB-B: DSD2.8, DSD5.6 | | Frequency Response | 2 to 20,000 Hz | | SNR | 106 dB | | THD | 0.0012% | | Output Power | 800 mW at 32 ohm | | Standby Power Consumption | 0.3 W | | Dimensions (W x D x H) | 9.84 x 10.63 x 3.54" (24.99 x 27.00 x 8.99 cm) | | Weight | 11.02 lb (5.00 kg) | | | | Package Weight | 14.9 lb | | Box Dimensions (LxWxH) | 15.2 x 13.7 x 6.7" |
