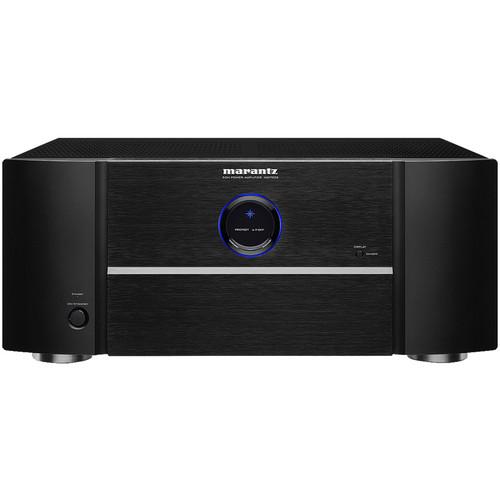

User Manual for Marantz MM7055 5-Channel Power Amplifier Click to enlarge the picture
Contents of the user manual for the Marantz MM7055 5-Channel Power Amplifier
- Product category: Amplifiers Marantz
- Brand: Marantz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marantz Amplifiers
|
User manual for the Marantz MM7055 5-Channel Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marantz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marantz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marantz product will considerably shorten its lifespan!
|
Product description The MM7055 5-Channel Power Amplifier from Marantz is designed to deliver powerful multi-channel sound. This amplifier features a discrete amplification design for robust sonic delivery. Each channel in the amplifier delivers up to 140W of power at 8 ohms and 170W at 6 ohms. It is also equipped with balanced and unbalanced input options, allowing you to connect a wide variety of pre-amplifiers and processors. This amplifier is capable of efficiently driving stereo and 5-channel home entertainment systems. - Current Feedback Discrete Power Amplifier
- This model is equipped with a current feedback amplifier section that uses the same push-pull circuit found in Marantz's SM-11S1 Hi-Fi power amplifier. This amp is designed to provide increased operating stability, and high-speed, wide-ranging, high-density playback. The current/voltage conversion amplification section in the latter part of the power amp is equipped with a Wilson current mirror circuit that amplifies to the high sound range with low distortion.
- Large Power Transformer
- The final stage of the power amp is equipped with the same LAPT (high-efficiency power transistor) that is installed in the SM-11S1 Marantz Hi-Fi power amp, providing improved instant power supply capability. The power section is equipped with a large-sized transformer. As one of the essential parts of the power section, this unit is equipped with a notable Marantz 33,000 μF / 71 V×2 block condenser. These improvements to the power supply are engineered to provide a powerful and presence-filled sound.
- High-Quality Design
- This amplifier is equipped with a chimney-shaped heat sink to efficiently process the heat emitted from each channel along with quiet cooling fans. A high-sensitivity temperature sensor IC is used to control the cooling fans, adjusting the rotation speed to match the amount of heat generated by the amp.
- Balanced and Unbalanced Inputs
- For installation flexibility and maximum compatibility, each channel on this amplifier is equipped with balanced and unbalanced inputs.
- Custom-Installation-Ready
- This amplifier has an IR flash input that supports custom installations and DC trigger input and output terminals.
- Remote Power Control
- When a Marantz AV pre-amplifier/process such as the AV8003 or AV7005 is connected to this unit, this amplifier's power can be switched On/Off together with the pre-amplifier's power supply. This connection is designed to reduce sonic interface as much as possible.
- Additional Features
-
- Marantz reference-grade filter capacitors and high-speed output transistors
- Gold-plated, high-grade loudspeaker terminals
- Flasher input, DC trigger input/output, and RC-5 remote control connectivity
- Detachable power cord (IEC320 2-pin type)
- Porthole display with blue illumination accent
- High instantaneous peak current design
- Low impedance continuous drive capability
UPC: 699927121457 In the Box Marantz MM7055 5-Channel Power Amplifier Power Cord Remote Control Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marantz MM7055 5-Channel Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarantz MM7055 Specs | Channels | 5 | | Power Output | 8 ohms Rated: 140 W per channel (20 Hz to 20 kHz, THD = 0.08%, 2-channels driven)
6 ohms Rated: 170 W per channel (20 Hz to 20 kHz, THD = 0.08%, 2-channels driven)
6 ohms Maximum: 210 W per channel (1 kHz, 2-channels driven) | | Output Bandwidth | 5 Hz to 40 kHz (8 ohm load, 0.09 %) | | Frequency Response | 8 Hz to 100 kHz (1 W, 8 ohms) (± 3 dB) | | Damping Factor | 100 | | Input Sensitivity/Impedance | 1.2 V / 22 k ohms (unbalanced)
2.4 V / 30 k ohms (balanced) | | Signal-to-Noise Ratio | 105 dB (IHF-A) | | Voltage Amplification Level | 29 dB | | Input & Output | 5 x Balanced inputs
5 x Unbalanced inputs
5 x Speaker channels
1 x IR flasher input
1 x DC control input
1 x DC control output
1 x Remote control input
1 x Remote control output | | Switch | Balanced and unbalanced | | Supply Voltage | 120 VAC, 60 Hz | | Power Consumption | Operational: 660 W
Standby: 0.2 W | | Dimensions (WxHxD) | 17.3 x 7.2 x 15.1" / 440.0 x 183.0 x 384.0 mm | | Weight | 34.6 lb / 15.7 kg | | | | Package Weight | 40.45 lb | | Box Dimensions (LxWxH) | 21.0 x 19.6 x 11.1" |
