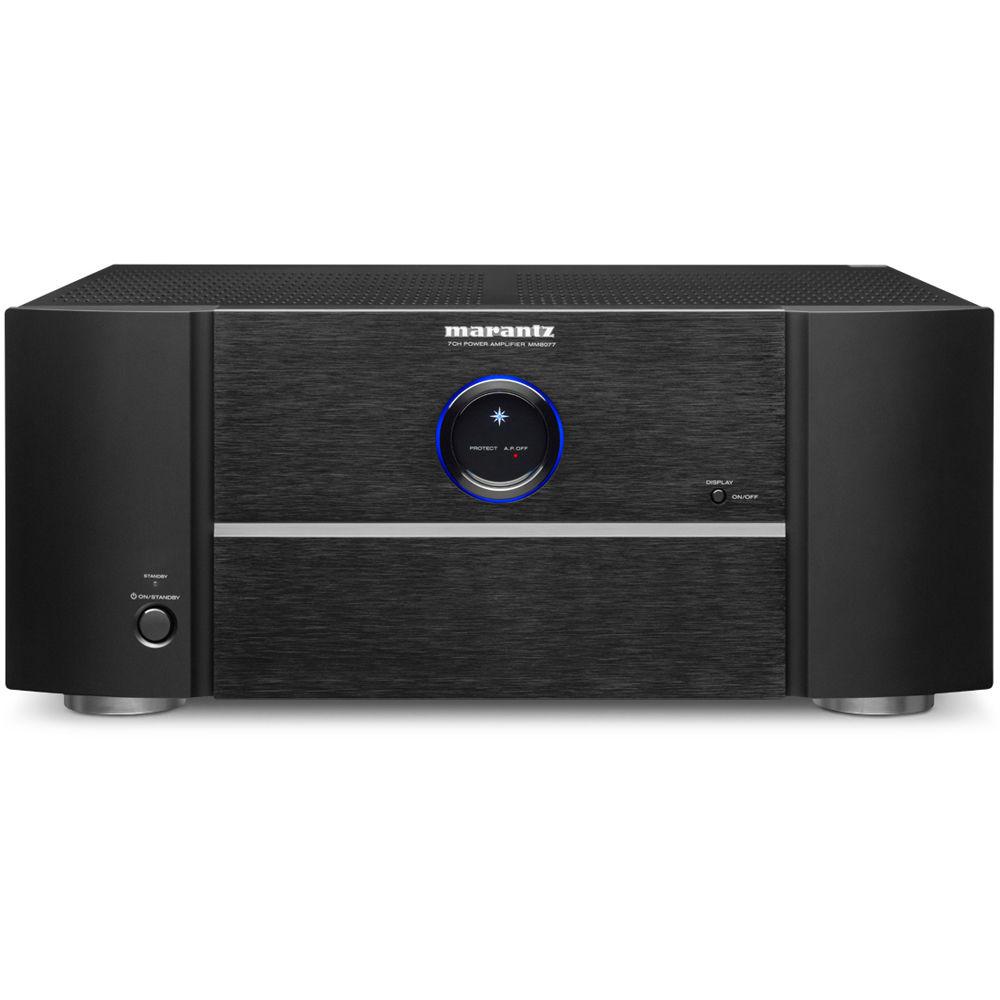

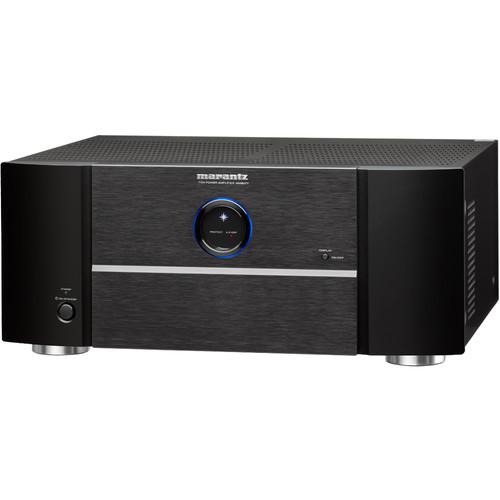

User Manual for Marantz MM8077 7-Channel Power Amplifier Click to enlarge the picture
Contents of the user manual for the Marantz MM8077 7-Channel Power Amplifier
- Product category: Amplifiers Marantz
- Brand: Marantz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marantz Amplifiers
 |
User manual for the Marantz MM8077 7-Channel Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marantz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marantz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marantz product will considerably shorten its lifespan!
|
Product description Enjoy powerful multi-channel sound with the MM8077 7-Channel Power Amplifier from Marantz. This amplifier features a discrete amplification design for robust sonic delivery. Each channel in the amplifier delivers up to 150W of power at 8 ohms and 180W at 6 ohms. It's even equipped with balanced and unbalanced input options, allowing you to connect a wide variety of pre-amplifiers and processors. Furthermore, this amplifier is capable of efficiently driving stereo, 5-channel, and 7-channel home entertainment systems, as well as being a component in larger 11-channel systems. - Current Feedback Discrete Power Amplifier
- This model is equipped with a current feedback amplifier section that uses the same push-pull circuit found in Marantz's SM-11S1 Hi-Fi power amplifier. This amp is designed to provide increased operating stability, high-speed, and wide ranging high-density playback. The current/voltage conversion amplification section in the latter part of the power amp is equipped with a Wilson current mirror circuit that amplifies to the high sound range with low distortion.
- Large Toroidal Power Transformer
- The high power, high current power supply features a massive toroidal power transformer that can handle substantial short term power peaks. The high capacity power supply capacitors, 100,000µ total, contribute to the amplifier's ability to deliver short term bursts of power when needed, which is helpful when driving difficult-to-drive lower impedance speakers.
- High-Quality Design
- This amplifier is equipped with a chimney-shaped heat sink to efficiently process the heat emitted from each channel along with quiet cooling fans. A high-sensitivity temperature sensor IC is used to control the cooling fans, adjusting the rotation speed to match the amount of heat generated by the amp.
- Balanced and Unbalanced Inputs
- For installation flexibility and maximum compatibility, each channel on this amplifier is equipped with balanced and unbalanced inputs.
- Custom Installation-Ready
- This amplifier has an IR flash input that supports custom installations and DC trigger input and output terminals.
- Remote Power Control
- When the Marantz AV8801 or AV7701 pre-amplifier is connected to the MM8077, the remote power control feature links the power on/off function of the pre-amplifier to the MM8077.
- Low-Power Standby Mode
- For environmental and energy-saving considerations, power consumption during standby mode has been reduced to less than 0.4 W
- Auto-Standby Mode
- The MM8077 automatically switches to standby mode when there has been no signal for 30 minutes. This prevents power from being wasted whenever you forget to turn the power off.
- Additional Features
-
- Porthole display with blue illumination accent
- Gold plated, high grade loudspeaker terminals
- Low impedance continuous drive capability
- Marantz reference-grade power supply filter capacitors and high current discrete power transistors
- Copper-plated chassis
UPC: 699927150051 In the Box Marantz MM8077 7-Channel Power Amplifier Power Cord Remote Control Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marantz MM8077 7-Channel Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarantz MM8077 Specs | Channels | 7 | | Power Output | 8 ohms Rated: 150 W per channel (20 Hz to 20 kHz, THD = 0.08%, 2-channels driven)
6 ohms Rated: 180 W per channel (20 Hz to 20 kHz, THD = 0.08%, 2-channels driven)
6 ohms Maximum: 210 W per channel (1 kHz, THD = 10%, 2-channels driven) | | Output Connectors | 6 to 8 ohms | | Frequency Response | 8 Hz to 100 kHz (1 W, 8 ohms) (± 3 dB) | | Damping Factor | 100 | | Input Sensitivity/Impedance | 1.2 V / 22 k ohms (unbalanced)
2.4 V / 30 k ohms (balanced) | | Signal-to-Noise Ratio | 105 dB (IHF-A) | | Voltage Amplification Level | 29 dB | | Input & Output | 7 x Balanced inputs
7 x Unbalanced inputs
7 x Speaker channels
1 x IR flasher input
1 x DC control input
1 x DC control output
1 x Remote control input
1 x Remote control output | | Switch | Balanced and unbalanced | | Supply Voltage | 120 VAC, 60 Hz | | Power Consumption | Operational: 800 W
Standby: 0.4 W | | Dimensions (WxHxD) | 17.3 x 7.3 x 15.1" / 440.0 x 185.0 x 383.5 mm | | Weight | 39.7 lb / 18.0 kg | | | | Package Weight | 45.5 lb | | Box Dimensions (LxWxH) | 21.5 x 19.5 x 11.5" |
