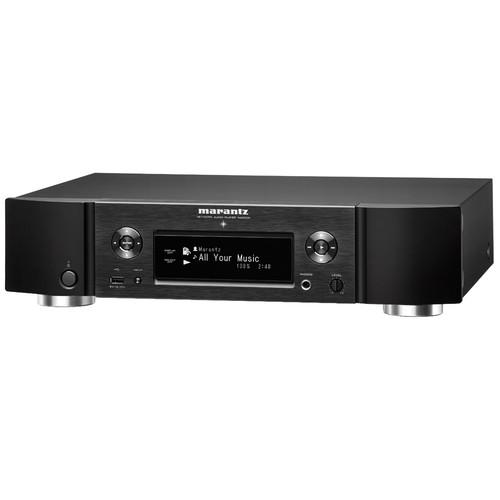

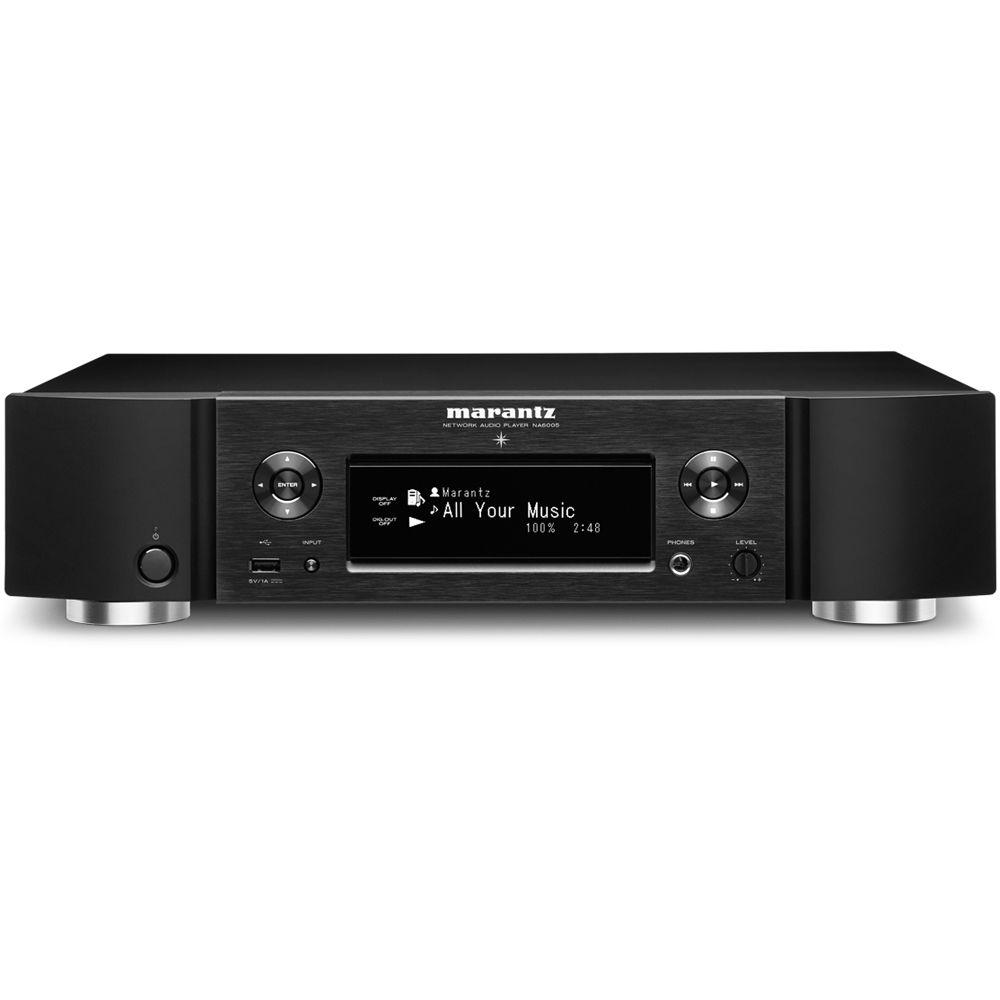

Product description The Marantz NA6005 Network Audio Player is well equipped to deliver high-quality audio from wired and wireless music sources. With built-in Bluetooth and AirPlay connectivity, the NA6005 has the ability to wirelessly stream music from devices such as iPhones, tablets, and smartphones. On-board Wi-Fi and Ethernet allow you to access a wide variety of Internet music sources and DLNA streaming content. The NA6005 uses high-quality digital-to-analog conversion for optimized audio playback and supports a wide range of high-resolution audio formats, including DSD and FLAC. Its integrated AM and FM tuners enable this player to receiver free over-the-air content.
In addition to the aforementioned wireless connectivity, this network audio player offers analog RCA and digital optical outputs for interfacing with components such as receivers and integrated amplifiers. It also offers a front-panel USB-A port that supports audio playback from iPods, iPhones, and more. This unit's digital optical input allows it to function as a standalone digital-to-analog converter. For control flexibility, the free Marantz Remote App allows you to control the NA6005 from Android or iOS smart devices. - Built-In Dual-Band 802.11n Wi-Fi & Bluetooth with Dual Diversity Antennas
- For optimum Wi-Fi and Bluetooth transmission and reception, the NA6005 boasts dual diversity antennas with individual internal wave guides, along with a powerful RF section equipped with dual-core 300 MHz DSP processors, that help to ensure solid, stable streaming and decoding, even in crowded environments.
The Wi-Fi section features dual band "N" high-speed, auto-band-switching technology that constantly seeks out the optimum channels to ensure smooth and glitch-free listening. Via the WPS and iOS Wi-Fi protected setup buttons, you can connect your device with the NA6005 in moments. Via Bluetooth, the NA6005 will remember pairing information for up to 8 devices. - Built-In Spotify Connect Music Streaming, Apple AirPlay, and Internet Radio
- The NA6005 features Spotify Connect app compatibility for users with premium Spotify accounts (a subscription is required). Owners of iOS devices, including the iPod touch, iPhone, and iPad can instantly stream their favorite tracks from their iTunes library via AirPlay, which provides one touch automatic turn-on and source selection. The NA6005 is also DLNA 1.5 certified for streaming content from your Mac or Windows PC. You can also choose from thousands of Internet radio stations from around the globe, with a wide range of music genre choices.
- Marantz HDAM Technology
- The NA6005 features multiple HDAM and HDAM-SA2 modules in critical circuit blocks, including the analog output stage and the headphone amplifier circuit. Compared to conventional IC op-amps, HDAM discrete circuit elements technology delivers high-slew rate and high-bandwidth to help ensure life-like audio sound quality.
- CS4398 Digital-to-Analog Converter
- Featuring the reference-class, high-current CS4398 D/A converter handling PCM 24-bit/192-kHz and bitstream DSD, the NA6005 delivers optimized fidelity and dynamic range with high resolution audio file formats, including PCM and DSD.
- Advanced Jitter Reduction System
- Working in concert with the CS4398 D/A converter, the NA6005's jitter reduction circuit features a dedicated timing data re-clocking system that eliminates distortion caused by poor timing stability in the incoming audio data stream.
- Standalone D/A Converter Capability
- Via the optical digital input you can use the NA6005 as an audiophile D/A converter when connected to a digital disc player or other digital audio source with an optical digital output.
- Audiophile Construction
- The substantial chassis features dual-layer chassis foundation construction. Instead of having just 1 large circuit board, the NA6005 features multiple individual circuit cards to prevent mutual interference; even the headphone output features its own dedicated circuit board. Inside, the NA6005 is packed with active and passive components, including multiple high-speed, high-current Shottky barrier diodes that boast fast recovery times and high reverse current protection, plus audiophile-grade capacitors and precision-tight tolerance resistors.
- Standby Recharging System
- Featuring smart device recharging, when a device such as a smartphone or tablet is connected to the NA6005's USB port and the NA6005 is put into standby, it continues to charge the device. Once the device is fully charged, the NA6005 enters very low power standby mode for minimal power consumption (less than 0.5W).
- Multiple Control Options

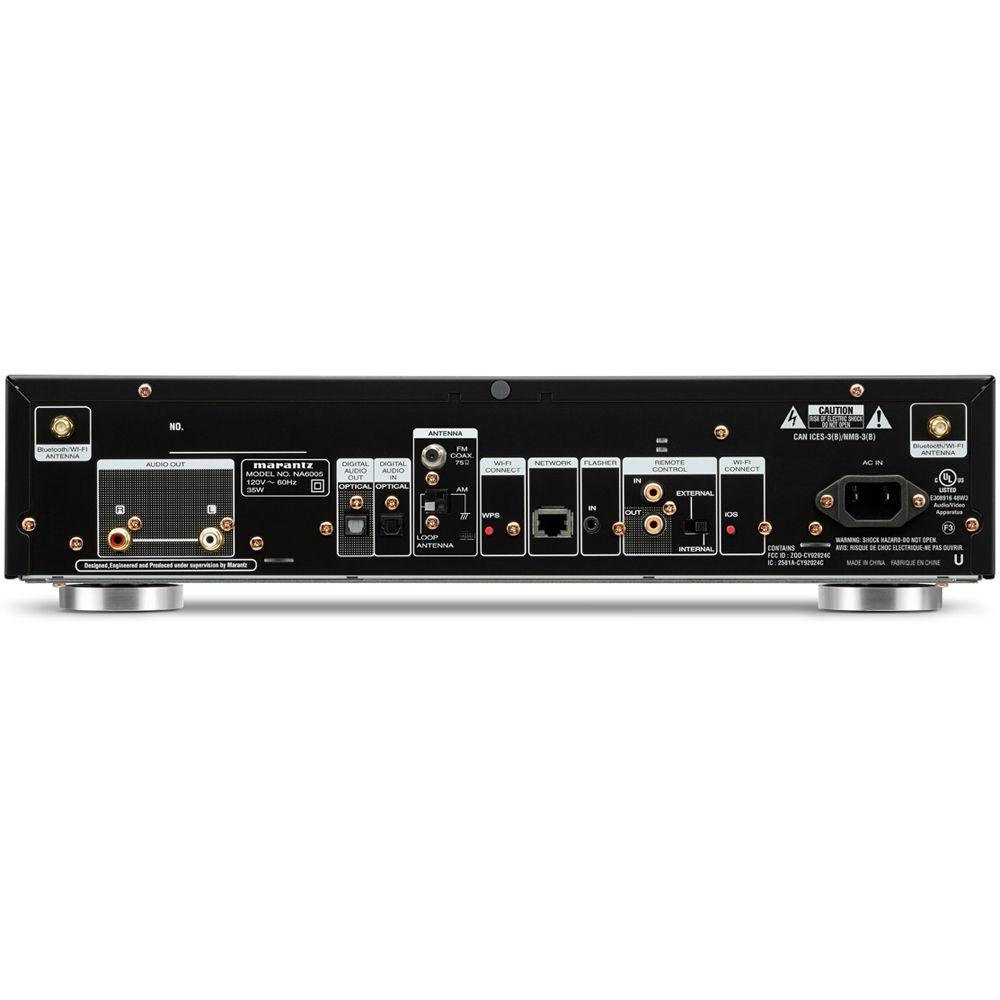

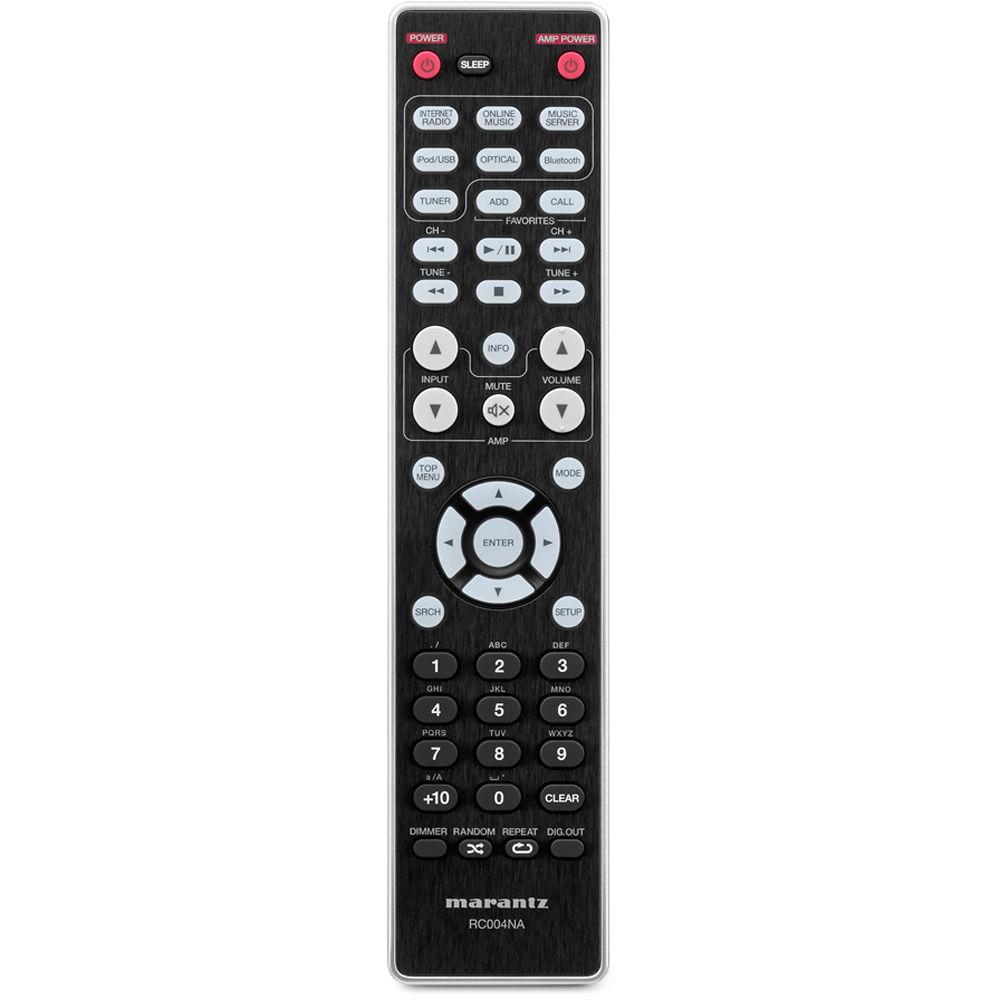

- Supplied with an ergonomic remote control that's also compatible with Marantz integrated amplifiers, the NA6005 also supports the Marantz Remote app (iOS/Android) via your home network. The rear panel includes remote control input and output ports for direct connection to a Marantz disc player and an infrared (IR) flasher input for connection to an external control device, along with an RJ-45 LAN port.
- Additional Features
-
- DLNA 1.5 network audio player with network streaming, AirPlay, internet radio, and Spotify Connect, Pandora, and SiriusXM integration
- Network Streaming: Up to DSD 2.8 MHz/5.6 MHz, FLAC 192/24, WAV 192/24, AIFF, ALAC and gapless support
- Wi-Fi sharing and WPS
- DAC mode with digital optical input and USB-A on front
- Windows Play To support
- El power transformer
- Symmetric circuit layout
- Display dimmer and off
- HDAM SA2 low pass filter stage, output buffer, and headphone amplifier
- Extra metal plate for chassis strengthening
UPC: 699927340759 In the Box Marantz NA6005 Network Audio Player Power Cord FM Indoor Antenna AM Loop Antenna Audio Cable Remote Connector Cable Remote Control Unit 2 x AAA Batteries 2 x Antenna for Bluetooth and Wi-Fi Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marantz NA6005 Network Audio Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarantz NA6005 Specs Wi-Fi | Yes | Bluetooth | Yes | AirPlay | Yes | DLNA | Yes | FM/AM Tuner | Yes | Supported File Formats | Lossy: MP3, WMA, AAC Lossless: DSD, FLAC 192/24, ALAC 96/24, WAV 192/24, AIFF 192/24 Gapless: FLAC, WAV, ALAC, DSD, AIFF | Network Audio Files Supported | WMA at 32/44.1/48 kHz and 48-192 kb/s MP3 at 32/44.1/48 kHz and 32-320 kb/s WAV at 32/44.48/88.2/96/176.4/192 kHz and 16/24 bits MPEG-4 AAC at 32/44.1/48 kHz and 16-320 kb/s FLAC at 32/44.48/88.2/96/176.4/192 kHz and 16/24 bits ALAC at 32/44.1/48/88.2/96 kHz and 16/24 bits AIFF at 32/44.48/88.2/96/176.4/192 kHz and 16/24 bits DSD (stereo) at 2.8 - 5.6 MHz | Digital-to-Analog Converter (DAC) | Type: Multi-bit, Delta-Sigma DAC IC: CS4398 Digital Filter: CS4398 Noise Shaper: CS4398 | Sample Rate | Digital Input: 192 kHz / 24-bit | Inputs | 1 x Digital optical 1 x IR flasher 1 x Remote | Outputs | 1 x Digital optical 1 x Stereo RCA 1 x Headphone (front) 1 x Remote | Other Ports | 1 x USB-A 5 V / 1 A (front) 1 x FM antenna 1 x AM antenna 2 x Bluetooth/Wi-Fi antennas 1 x Ethernet 1 x AC power | Buttons | 1 x WPS 1 x iOS | Construction | Metal front panel | Power Requirements | 120 VAC, 60 Hz | Power Consumption | 35 W | Standby Power Consumption | 0.4 W | Dimensions (WxDxH) | 17.3 x 14.6 x 4.1" / 44.0 x 37.0 x 10.5 cm | Weight | 13.2 lb / 6.0 kg | | Package Weight | 18.65 lb | Box Dimensions (LxWxH) | 20.7 x 17.5 x 8.0" |
