User Manual for Marantz NA6006 Network Audio Player Click to enlarge the picture
Contents of the user manual for the Marantz NA6006 Network Audio Player
- Product category: Digital Music Players Marantz
- Brand: Marantz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marantz Digital Music Players
 |
User manual for the Marantz NA6006 Network Audio Player contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marantz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marantz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marantz product will considerably shorten its lifespan!
|
Product description Enjoy playback of a variety of audio file types via wired or wireless connection with the Marantz NA6006 Network Audio Player. With built-in Bluetooth and AirPlay 2 connectivity, the NA6006 has the ability to wirelessly stream music from compatible devices such as tablets and smartphones. On-board Wi-Fi and Ethernet allow you to access a variety of Internet music sources and DLNA streaming content. The NA6006 uses an ESS SABRE ES9016K2M digital-to-analog converter for enhanced audio playback and supports a range of high-resolution audio formats, including DSD and FLAC.
In addition to the aforementioned wireless connectivity, the NA6006 offers optical, fixed stereo RCA, and variable stereo RCA outputs for connecting to your powered speakers, receiver, or amplifier. It also offers a front-panel USB port that supports audio playback from compatible mobile devices. The digital optical input allows the NA6006 to function as a standalone digital-to-analog converter. For control flexibility, the free Marantz Remote App allows you to control the network audio player from Android or iOS smart devices, and a variety of virtual assistants are also supported. - Amazon Alexa Voice Control
- Ask Alexa to play music from Pandora, Spotify, Amazon Music, and more. You can switch between inputs, adjust the volume, pause, mute, and play the next song, all with your voice.
- Google Assistant Voice Control
- Ask the Google Assistant built into your compatible device to control content across your listening environment. Start music in the HEOS app, then ask your Google Assistant to control volume, playback, and more.
- AirPlay 2 & Siri Voice Control
- Stream audio from your favorite music services like Apple Music and Spotify or watch videos from services like YouTube and Netflix from any iOS, Mac, or Apple TV device and hear the audio synced to your speakers with AirPlay 2. Wireless multi-room audio is also supported, allowing you to wirelessly stream content to multiple AirPlay 2-compatible devices simultaneously with enhanced audio buffering to help ensure smooth audio playback. AirPlay 2 also provides control and grouping of compatible audio devices within the Apple Music or Home App. Use AirPlay 2 in-app or with your voice via Siri.
- Josh.ai Smart Home Voice Automation
- Josh.ai is designed to offer flexible voice control for the NA6006 and the rest of your compatible smart home. It is installed by custom integrators and accessed through an app on your iOS or Android phone or tablet.
- Marantz 2016 AVR Remote App
- Download the Marantz 2016 AVR Remote app for control of the receiver and access to its setup menu for detailed adjustments from your compatible iOS, Android, and Kindle devices.
- Additional Control Options

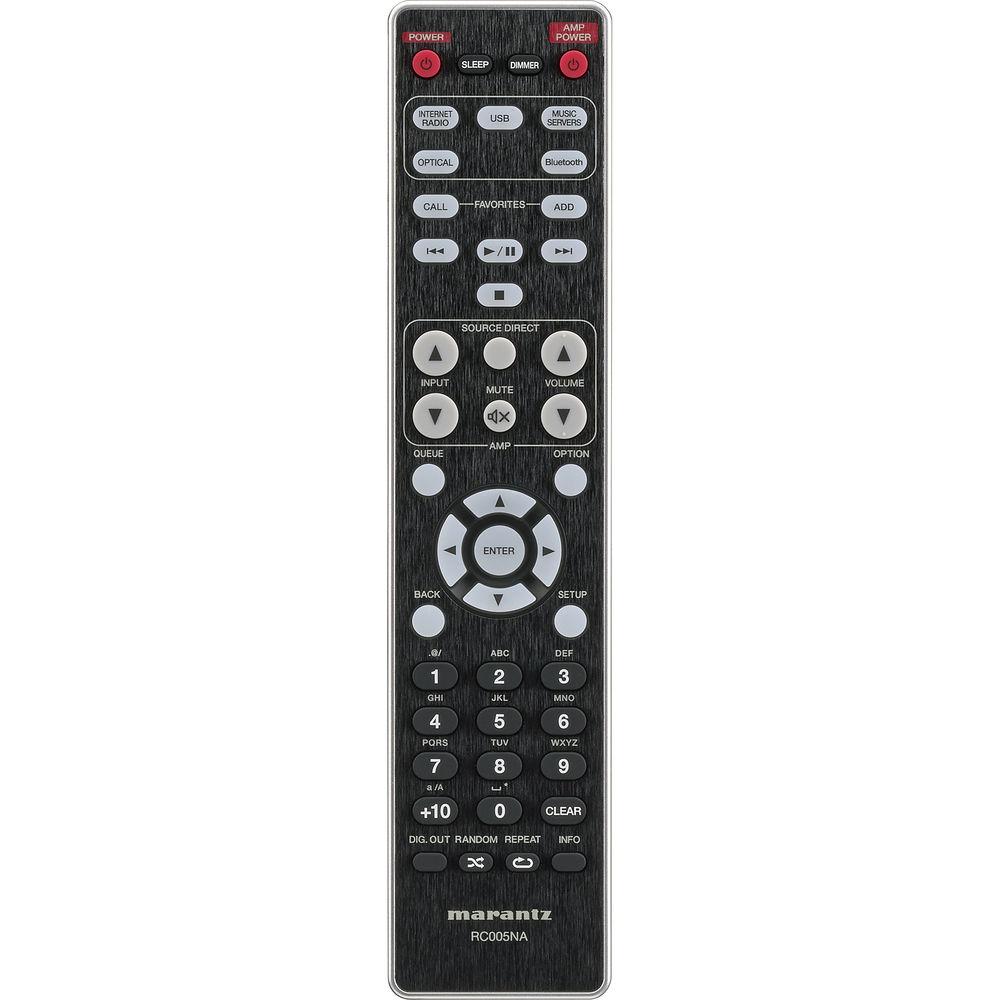

- You can control the NA6006 with the included remote control, the HEOS remote app, or via your wired control systems via the remote input and output ports.
- Enhanced Wireless Connectivity

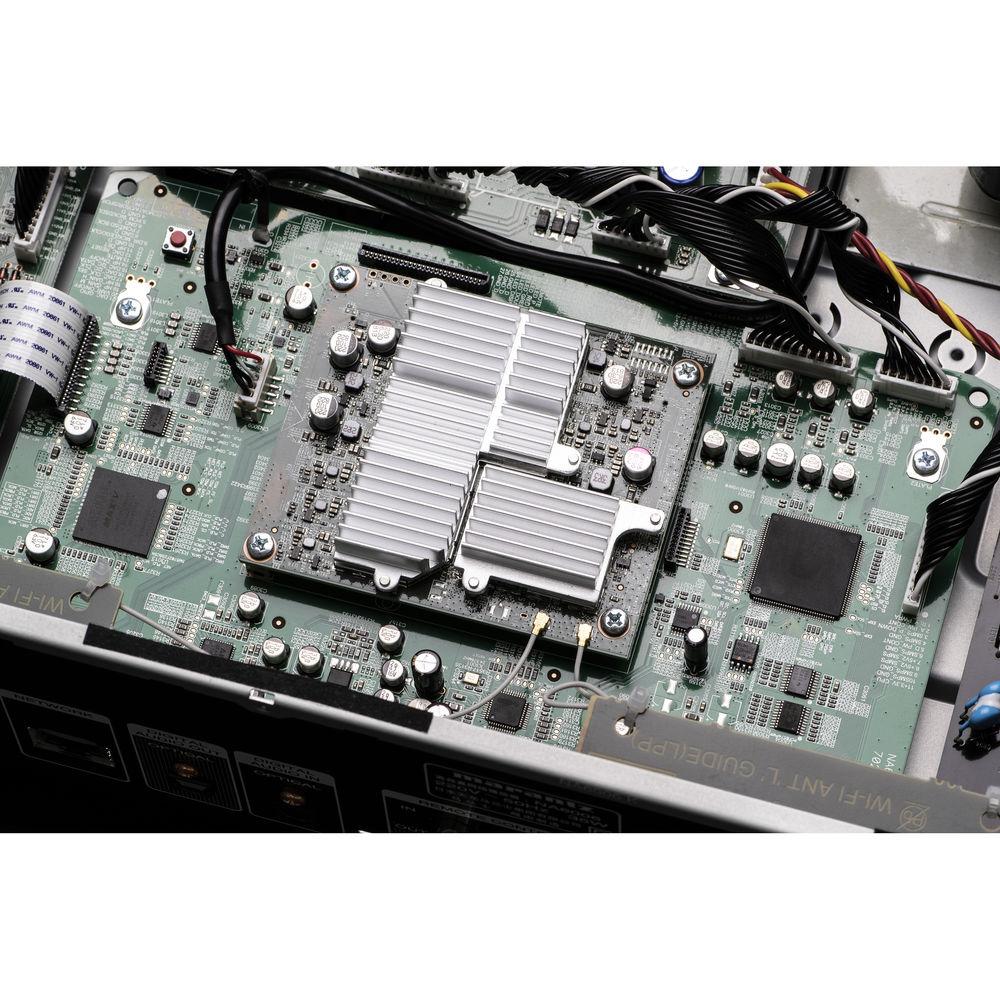

- The NA6006 is equipped with a dual-antenna system that allows streaming via Bluetooth, Wi-Fi, AirPlay 2, or the HEOS app.
- Marantz Musical Digital Filtering (MMDF)
- The NA6006 features MMDF, which is DSP technology that lets you choose from two selectable digital filter characteristics to tailor the sound to your liking. Each algorithm handles the minute details of your music, helping to provide enhanced high-resolution audio playback.
- Marantz HDAM (Hyper Dynamic Amplifier Module) and ES9016 SABRE DAC

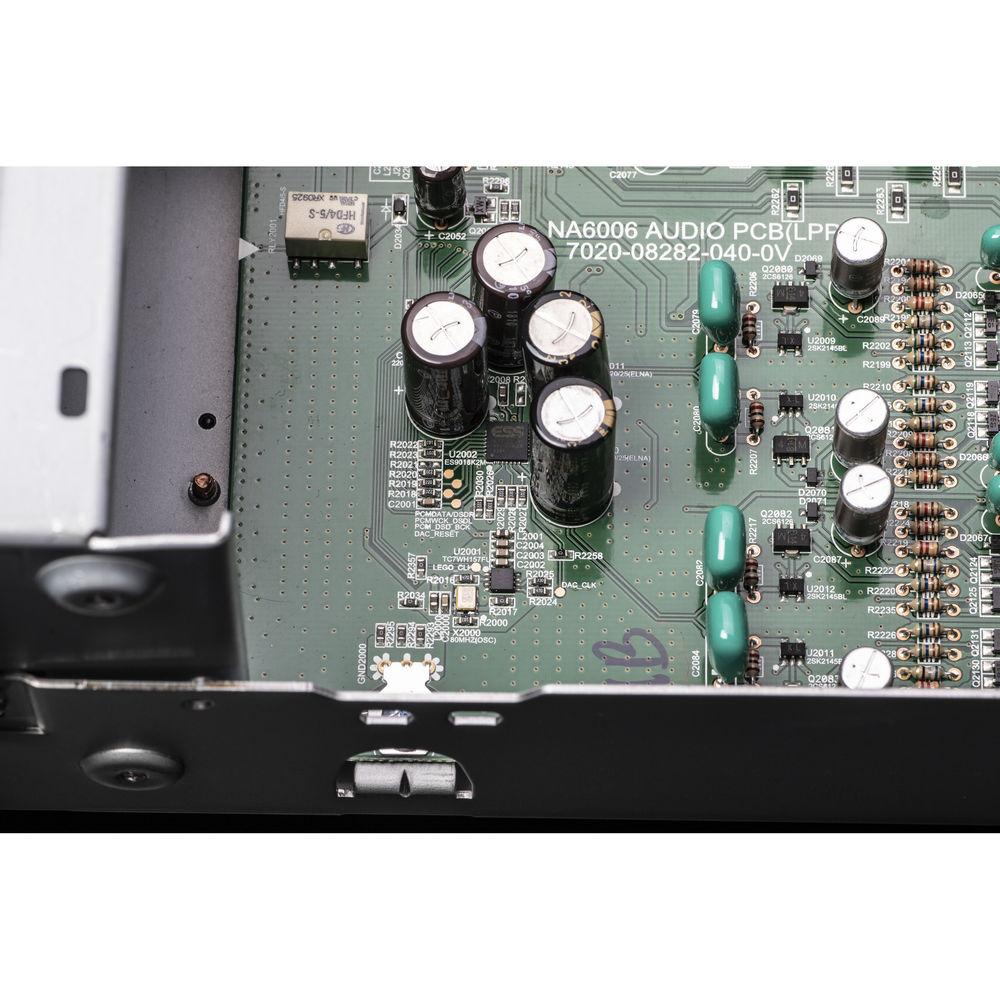

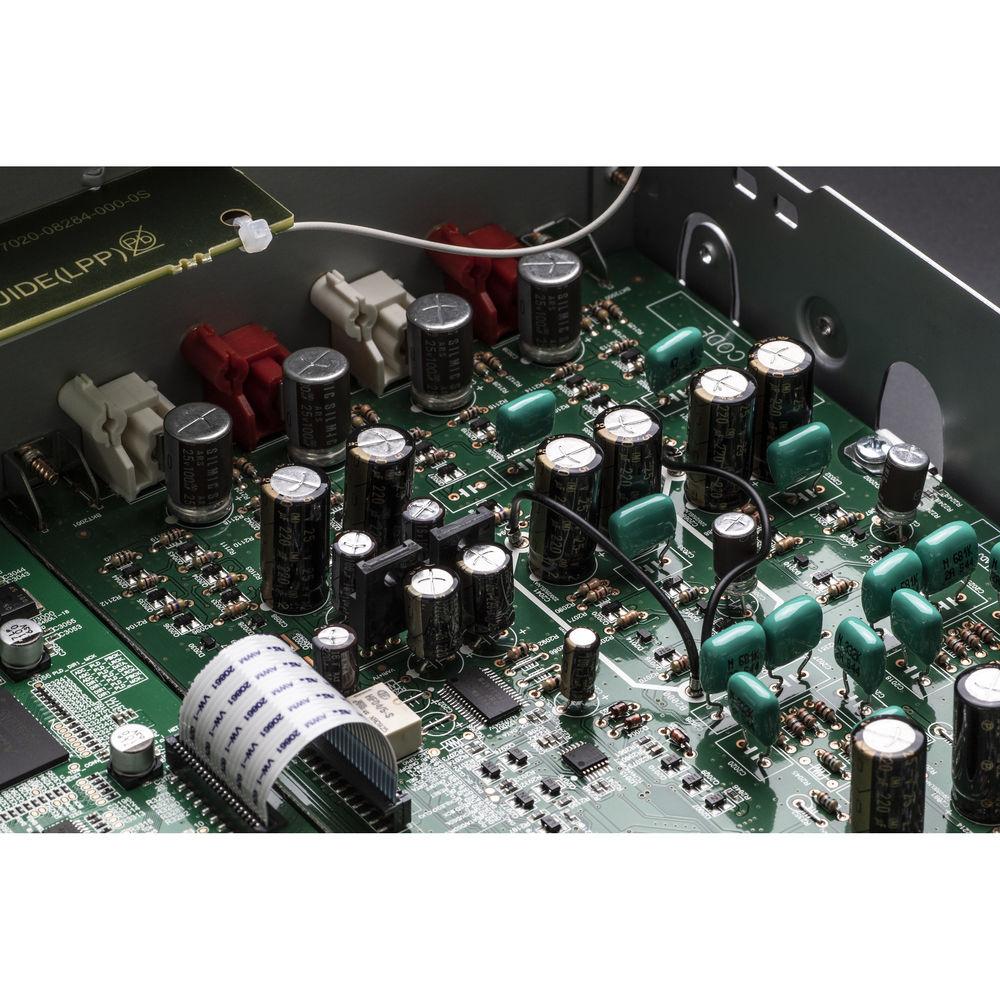

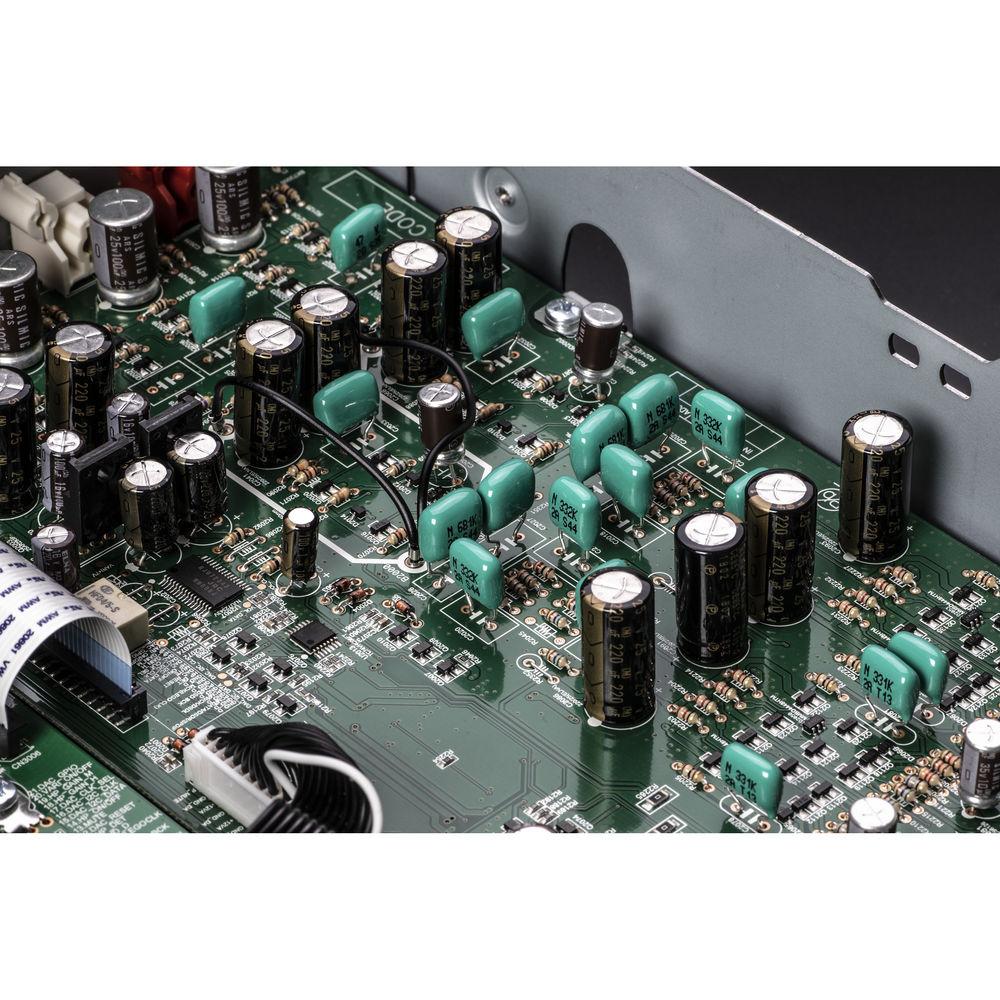

- The NA6006 features the ES9016 SABRE DAC with dual crystal clocks to help ensure accurate handling of digital signals. Included analog circuitry combined with Marantz HDAMs help provide a wide dynamic range and lower distortion.

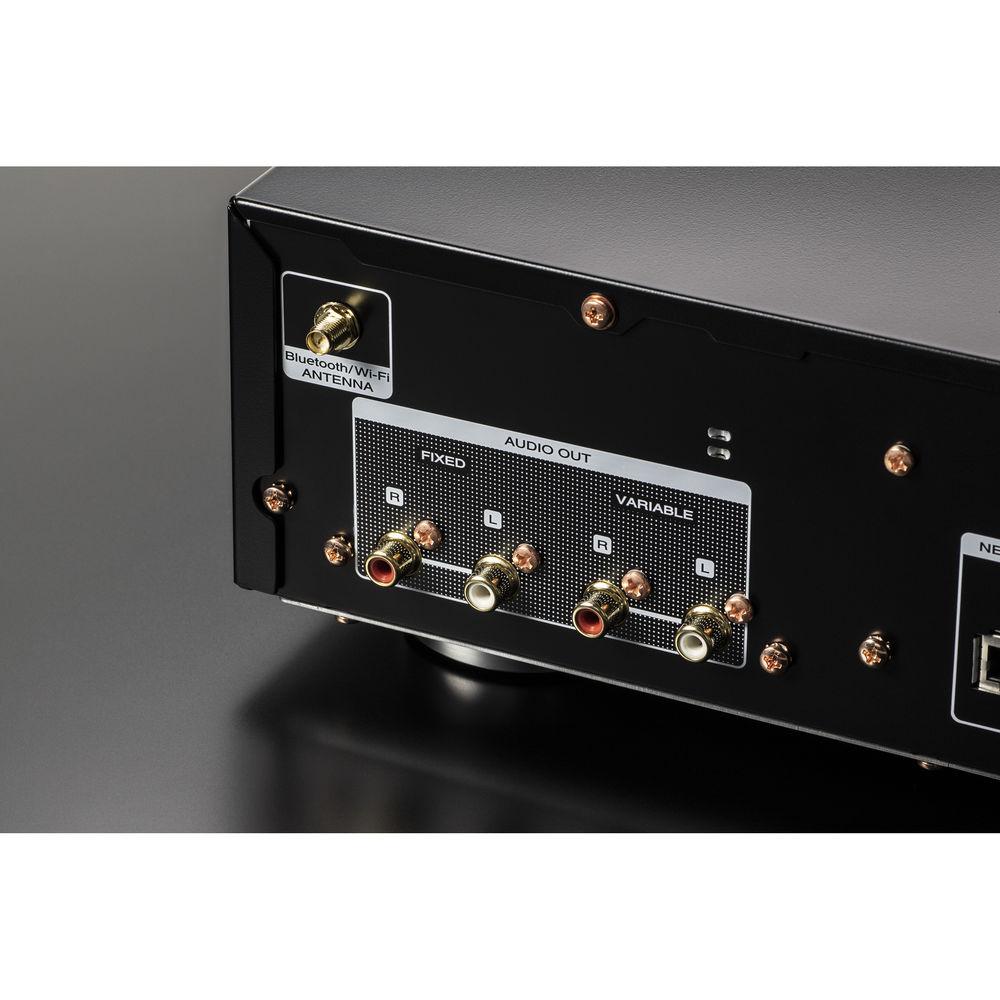

- Fixed and Variable Output Terminals
- You can output directly to powered speakers or a power amplifier for digital source player/pre-amplifier use. Control volume with the remote control or via compatible apps.
- Headphone Gain Control
- Three different gain options (+8 dB, Default, or -8 dB) make it possible to drive low- or high-impedance headphones.
- Enhanced Construction

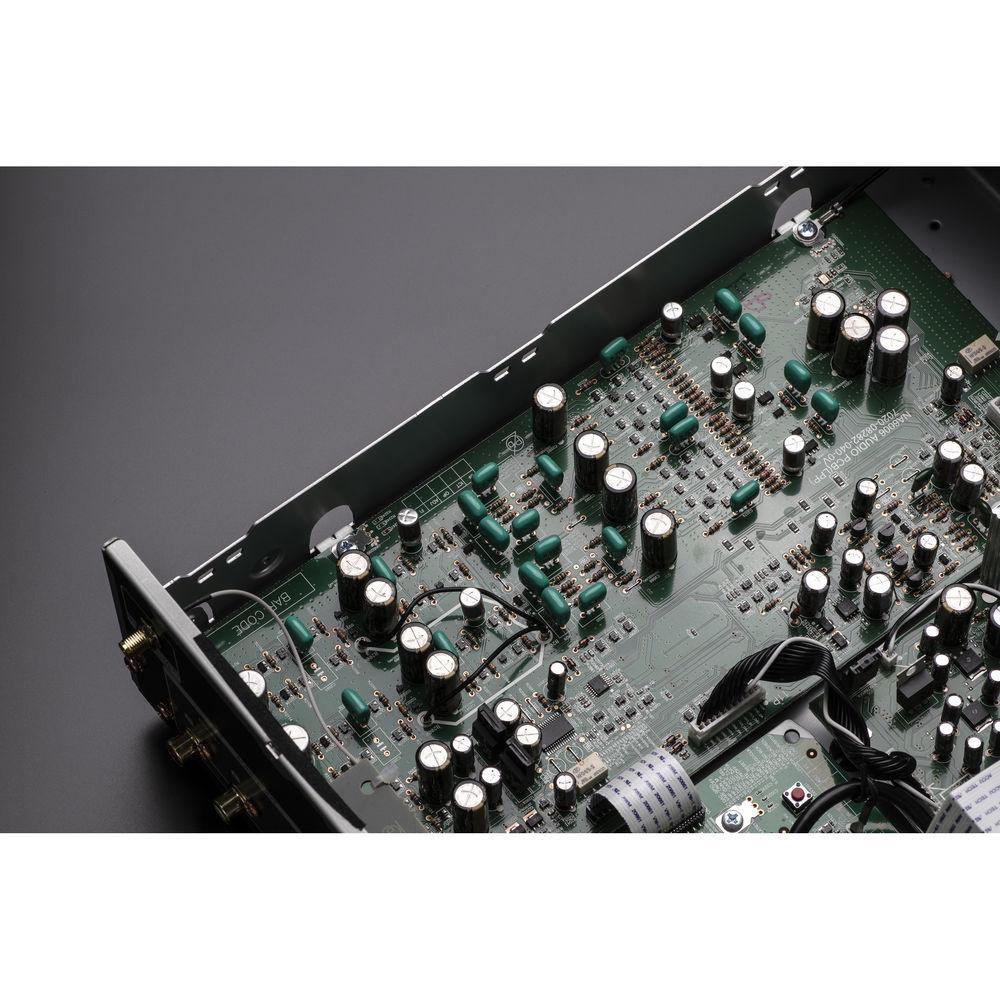

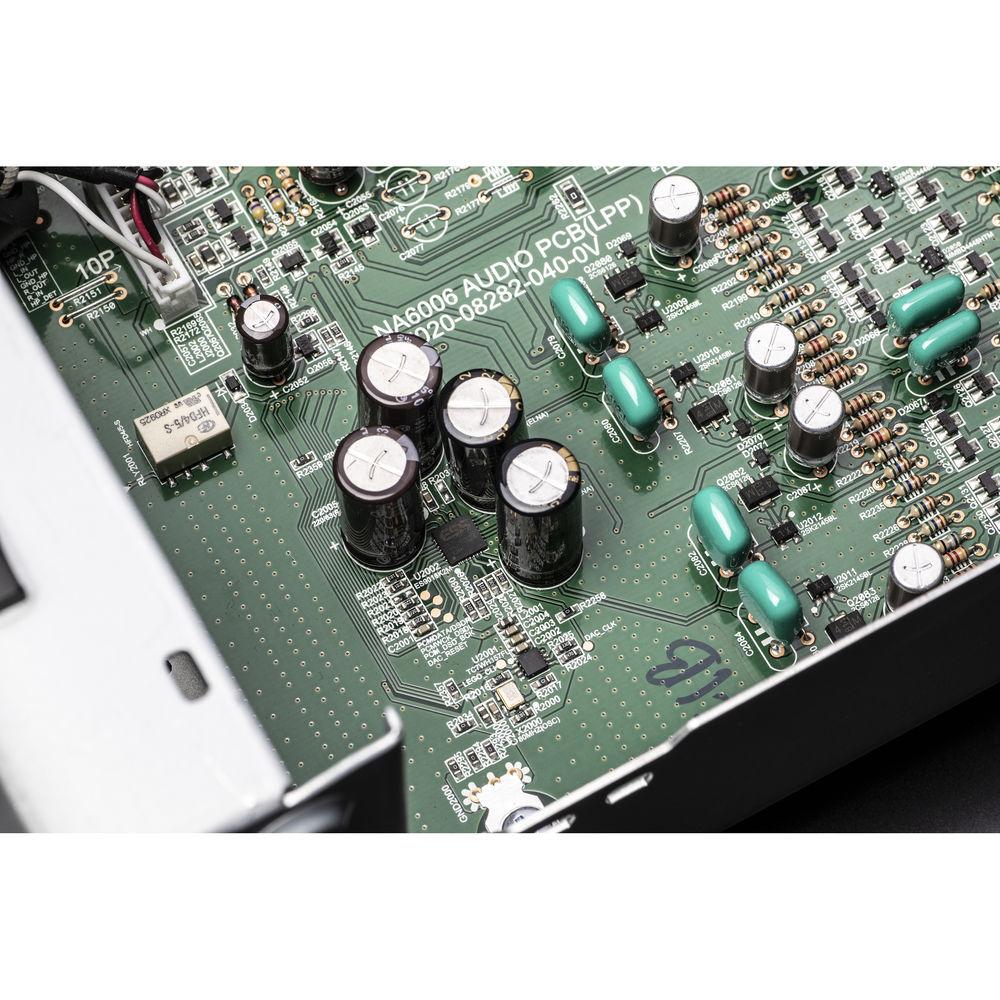

- Designed with audiophiles in mind, the NA6006 features a dual-layer chassis to help provide a solid foundation, and individual circuit boards help prevent mutual interference. Compact signal paths reduce distortion for augmented sound, while multiple high-current Schottky barrier diodes provide rapid recovery time and reverse-current protection.
- Standalone D/A Converter Capability
- Through the optical input, you can use the NA6006 as a DAC for your digitally connected components.
- Standby Recharging
- Charge your smart devices with the USB port, even if the NA6006 is in standby mode. Once your device is fully charged, the player automatically enters a low-power standby mode for minimal power consumption.
- HEOS Multi-Room Streaming
- With additional optional HEOS equipment, you can enjoy your favorite music anywhere around your home. Share music stored on your home network, Internet radio, or streaming services with optional HEOS wireless speakers or other HEOS-capable receivers throughout the house. Enjoy music from Spotify, TuneIn, SoundCloud, TIDAL, Napster, Deezer, or your local music file libraries.
- Additional Features
-
- Built-in Bluetooth & dual-band Wi-Fi support offer network stability, even in Wi-Fi crowded areas
- Stream music from Internet radio, Spotify Connect, Pandora, SiriusXM, Amazon Music, TIDAL, Deezer, and more
UPC: 699927370053 In the Box Marantz NA6006 Network Audio Player Remote Control 2 x AAA Batteries Stereo RCA Audio Cable Remote Connector Cable 2 x Wi-Fi/Bluetooth Antennas Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marantz NA6006 Network Audio Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarantz NA6006 Specs | | | Digital-to-Analog Converter (DAC) | SABRE ES9016K2M | | Digital Filter | Yes (1, 2) | | Frequency Range | DSD, Playable: 2 Hz to 100 kHz
PCM, Playable, 192 kHz Sampling Frequency: 2 Hz to 96 kHz
PCM, Playable, 44.1 kHz Sampling Frequency: 2 Hz to 20 kHz | | Frequency Response | DSD, Playable: 2 Hz to 50 kHz (-3 dB)
PCM, Playable, Sampling Frequency 192 kHz: 2 Hz to 50 kHz
PCM, Playable, Sampling Frequency 44.1 kHz: 2 Hz to 20 kHz | | Signal to Noise Ratio | DSD: 113 dB (audible range)
PCM: 115 dB | | Dynamic Range | DSD: 110 dB (audible range)
PCM, 24-Bit: 110 dB
PCM, 16-Bit: 101 dB | | Harmonic Distortion | DSD: 0.001% (audible range)
PCM, 24-Bit: 0.001%
PCM, 16-Bit: 0.0016% | | Sample Rate | Digital In: 192 kHz / 24-bit | | | | Lossless Formats | DSD Stereo (DSF, DFF): 2.8 to 5.6 MHz
FLAC 192/24: 32, 44.48, 88.2, 96, 176.1, 192 kHz, 16-bit or 24-bit
ALAC 96/24 (M4A): 32, 44.1, 48, 88.2, 96 kHz, 16-bit or 24-bit
WAV 192/24: 32, 44.48, 88.2, 96, 176.4, 192 kHz, 16-bit or 24-bit
Apple Lossless | | Lossy Formats | MP3: 32, 44.1, 48 kHz, 32 to 192 kbps
WMA: 32, 44.1, 48 kHz, 48 to 192 kbps
AAC, M4A, MP4: 32, 44.1, 48 kHz, 16 to 192 kbps | | | | Wi-Fi | Dual-band (2.4/5 GHz) Wi-Fi 4 (802.11n) | | Wi-Fi Security | WEP: 64-bit, 128-bit
WPA/WPA2-PSK: AES, TKIP | | Bluetooth | Version: 3.0 + EDR (Enhanced Data Rate)
Transmission Power: Power Class 1
Range: Up to 98.4' / 30 m with line of sight
Frequency: 2.4 GHz
Modulation Scheme: FHSS (Frequency-Hopping Spread Spectrum
Supported profiles: A2DP (Advanced Audio Distribution Profile) 1.2, AVRCP (Audio Video Remote Control Profile) 1.5
Codec: SBC

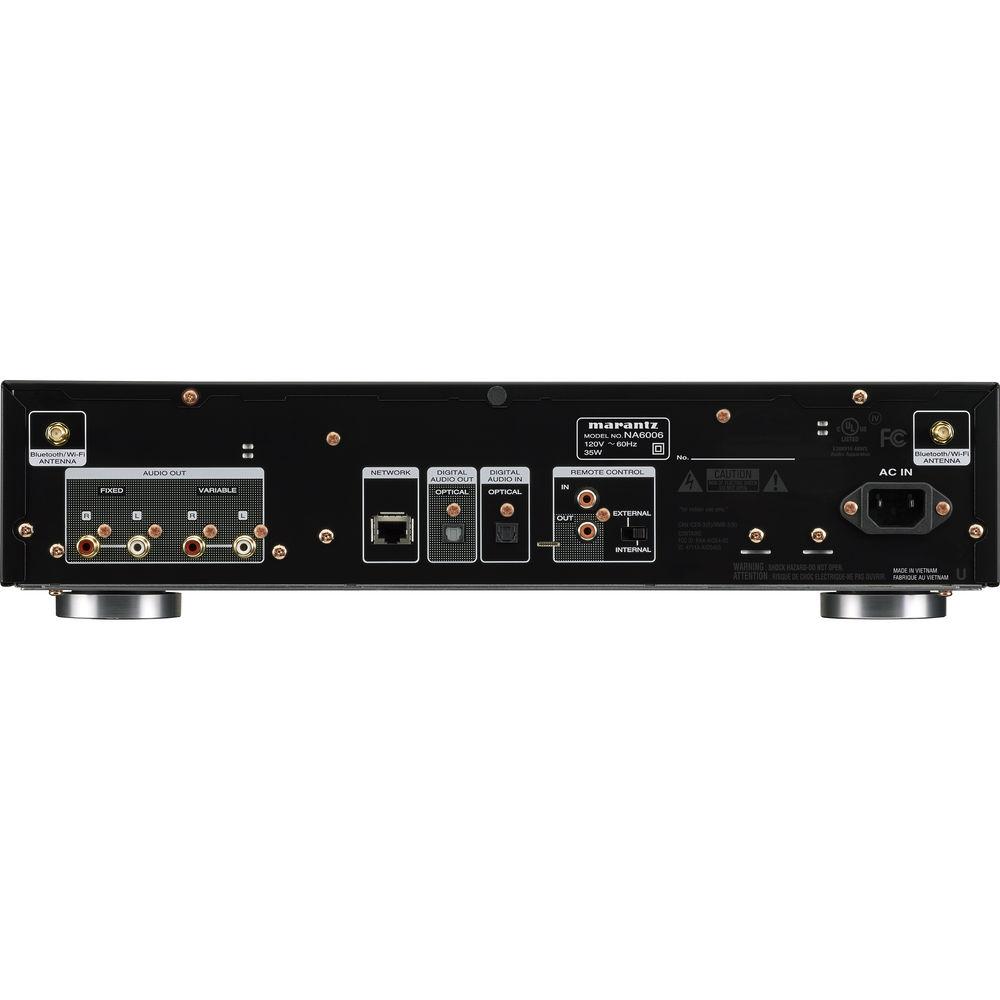

Transmission Range (A2DP): 20 Hz to 20 kHz | | AirPlay | Yes, AirPlay 2 | | DLNA | Yes | | Input | 1 x optical TOSLINK | | Outputs | 1 x optical TOSLINK
1 x fixed stereo RCA
1 x variable stereo RCA
1 x 1/4" / 6.35 mm headphone (front) | | Other Ports | 1 x RJ45 Ethernet LAN
2 x Bluetooth/Wi-Fi antennas
1 x USB 2.0 Type-A (front)
1 x RCA remote in
1 x RCA remote out | | | | Construction | Metal front panel | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption (Active) | 35 W | | Power Consumption (Standby) | 0.2 W
Network Control On: 4 W | | Dimensions (W x H x D) | 17.38 x 6.5 x 14.63" / 440 x 165 x 371 mm with antennas up
17.38 x 4.25 x 14.63" / 440 x 106 x 371 mm with antennas down | | Weight | 14.6 lb / 6.6 kg | | | | Package Weight | 18.3 lb | | Box Dimensions (LxWxH) | 20.7 x 18.5 x 9.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
