User Manual for Marantz PM5005 2-Channel Integrated Amplifier Click to enlarge the picture
Contents of the user manual for the Marantz PM5005 2-Channel Integrated Amplifier
- Product category: Amplifiers Marantz
- Brand: Marantz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marantz Amplifiers
 |
User manual for the Marantz PM5005 2-Channel Integrated Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marantz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marantz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marantz product will considerably shorten its lifespan!
|

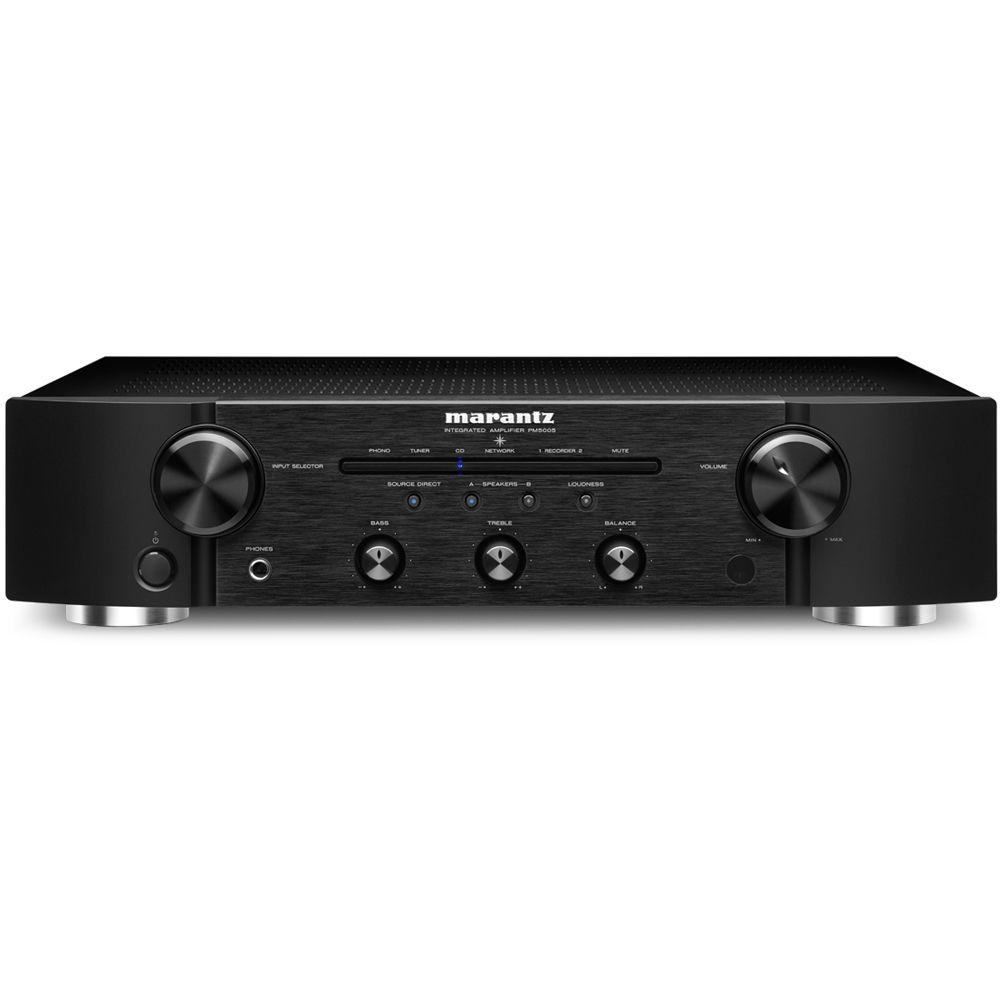

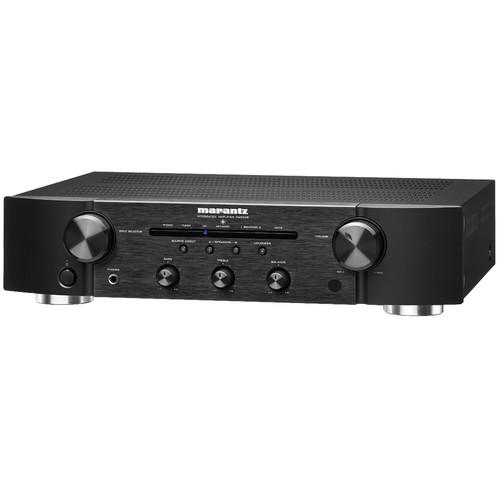

Product description The PM5005 2-Channel Integrated Amplifier from Marantz is designed to deliver high-quality stereo sound. This integrated amplifier is equipped with a discrete power amplifier design that produces up to 40W per channel at 8 ohms and 55W per channel at 4 ohms. Front-mounted bass, treble, and balance controls give you the flexibility of fine-tuning audio playback. With six stereo RCA inputs, the PM5005 allows you to connect a wide variety of analog audio sources like CD players, tuners, recorders, and network audio players. These inputs also include a direct phono input for turntable connections. - Current Feedback Discrete Power Amplifier
- The PM5005 features a power amplifier section that's based on Marantz's current feedback technology. High-current discrete power output devices mounted on a generously-sized aluminum heat sink to provide high instantaneous peak current capability, and are able to handle dynamic bursts into lower impedance 4 ohm speaker loads (the current capacity for each amplifier channel is a notable 16 amps).
- Wide Range of Connectivity Options
- The PM5005 includes multiple analog inputs including a MM (moving magnet) phono input. There are also dual recording inputs and outputs, along with a headphone amplifier jack on the front panel, and the high-grade speaker connectors can accept multiple speaker cable termination types. The audio input and output jacks are all gold-plated for maximum signal integrity.
- Source Direct Function
- To help ensure the shortest signal path and the highest fidelity, the PM5005 features a Source Direct function, which bypasses the tone control and loudness control circuitry.
- Fully Discrete Volume Amplifier Circuit
- The volume amplifier circuit features fully discrete circuitry (no op amp chips in the signal path) for wide bandwidth, low distortion, and high dynamic range.

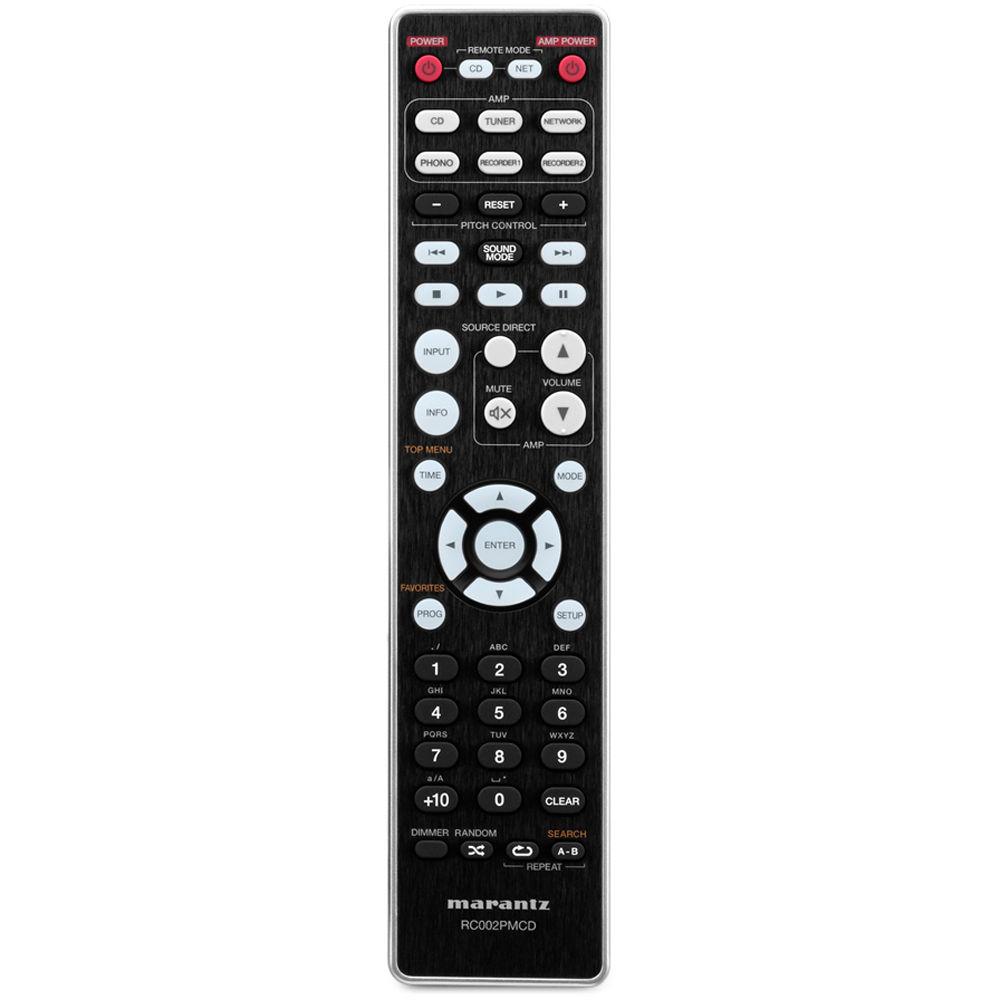

- Remote Control
- The included remote control has additional function buttons that let you control a Marantz CD player and a Marantz Network Audio Player, for total system control with a single remote.
- Versatile Remote Control Options
- The PM5005 features remote control input and output jacks that let you hard wire the amplifier directly to a Marantz CD player, which in turn can be hard wired to a Marantz Network Audio Player. For example, you can place a Marantz CD player on an open shelf for easy access, and place the PM5005 and a Marantz Network Audio Player tucked away in a cabinet and hidden from view, and control all 3 units with a single remote, which helps to eliminate component clutter.
- Additional Features
-
- Marantz proprietary HDAM-SA2 and HDAM-SA3 circuits
- High-quality speaker terminals (A / B switchable)
- EI power transformer
- Balance, bass, treble, and loudness controls
- Linear drive power supply
- Standby mode
- Auto power off
UPC: 699927130855 In the Box Marantz PM5005 2-Channel Integrated Amplifier Power Cord Remote Control 2 x AAA Batteries Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Marantz PM5005 2-Channel Integrated Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Marantz PM5005 2-Channel Integrated Amplifier can be downloaded in PDF format at the link stated below.
Technical parametersMarantz PM5005 Specs | | | Channels | 2 | | RMS Power Output | 8 Ohms: 40 W
4 Ohms: 55 W | | Total Harmonic Distortion | 0.01% | | Damping Factor | 100 | | Frequency Response | 10 Hz - 50 kHz | | Input Sensitivity and Impedance | Phono: 2.2 mV / 47 k ohms
High Level: 200 mV / 20 k ohms | | Signal-to-Noise Ratio | Phono: 83 dB
High Level: 103 dB, 2 V input | | | | Inputs | 1 x Phono MM Stereo RCA
5 x Stereo RCA
1 x IR flasher
1 x Remote control | | Output | 2 x Stereo RCA
1 x Headphone (front)
1 x Remote control | | Other Connectors | 1 x AC power
2 x Switched outlet
1 x Unswitched outlet | | Speaker Connectors | Front Left A
Front Right A
Front Left B
Front Right B | | | | Construction | Metal front panel | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | 350 W | | Standby Power Consumption | 0.3 W | | Dimensions (WxDxH) | 17.3 x 14.6 x 4.1" / 439.9 x 370.1 x 104.9 mm | | Weight | 14.8 lb / 6.7 kg | | | | Package Weight | 19.35 lb | | Box Dimensions (LxWxH) | 20.5 x 18.7 x 7.5" |
