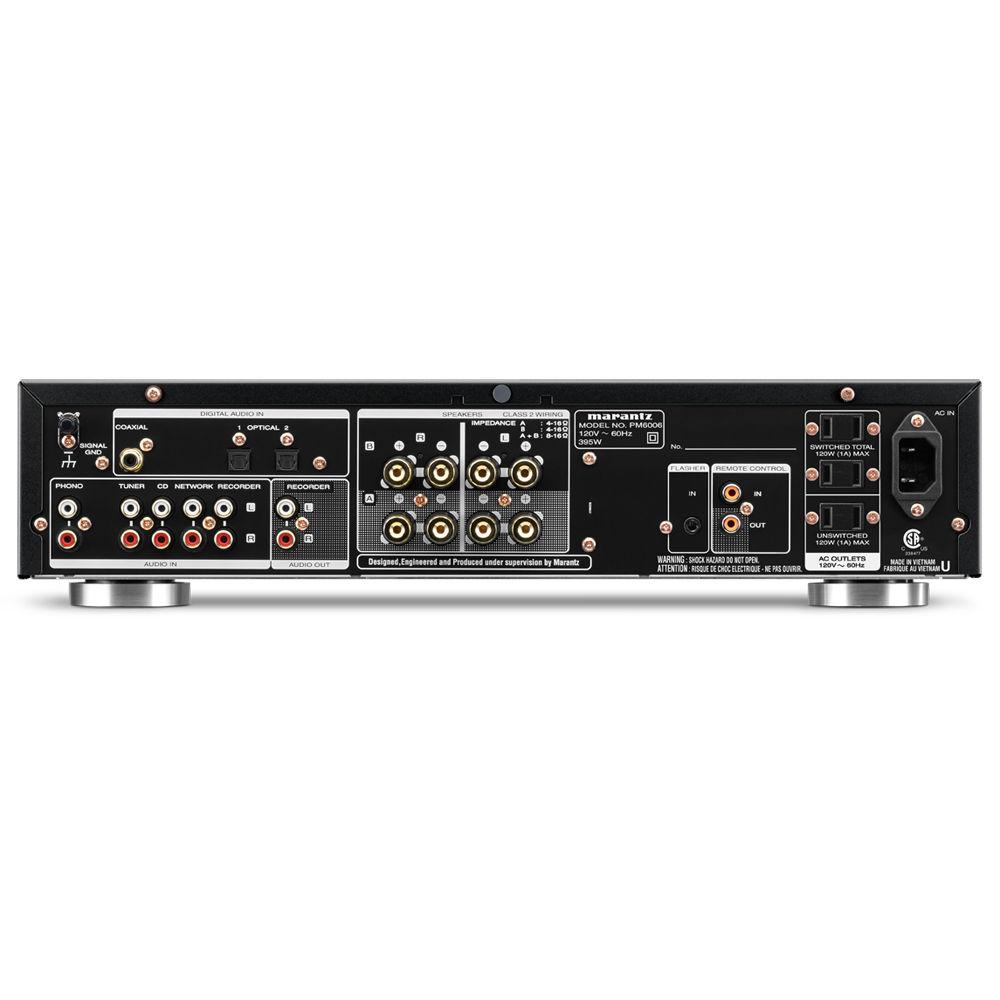

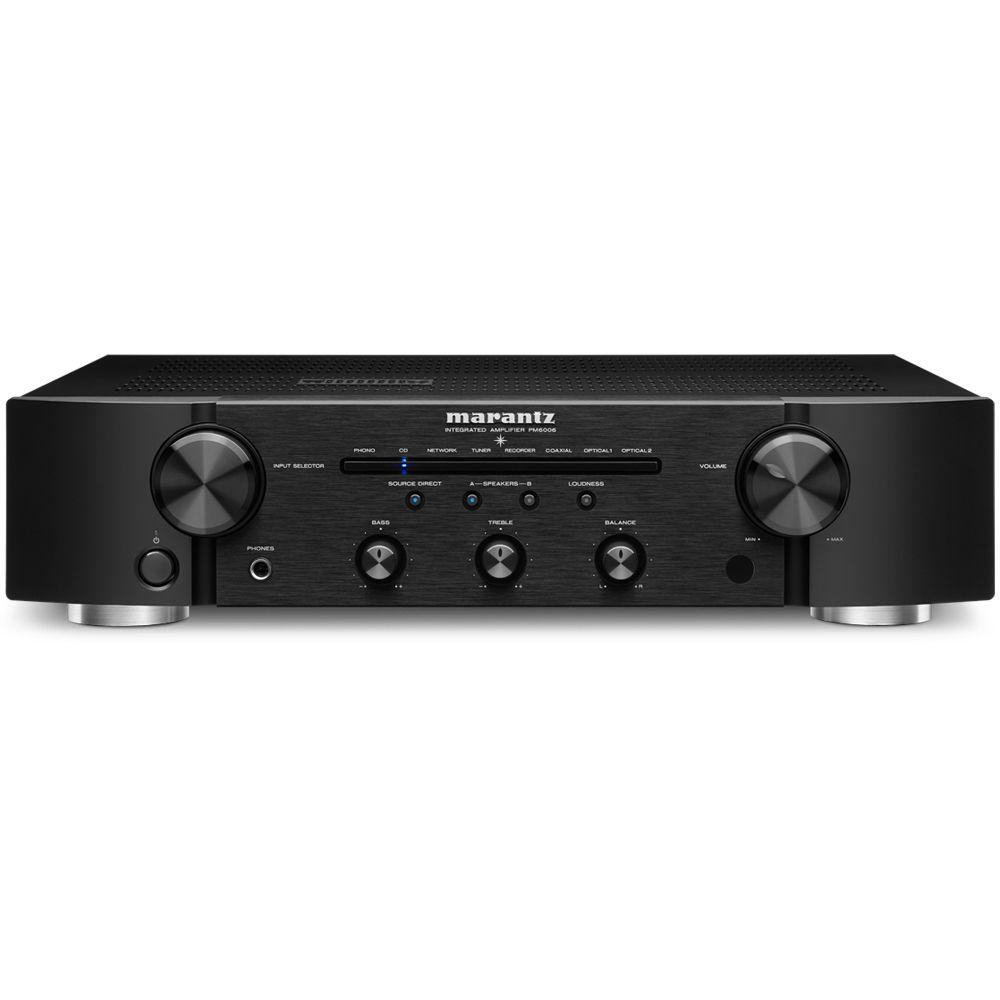

User Manual for Marantz PM6006 2-Channel 80W Integrated Amplifier Click to enlarge the picture
Contents of the user manual for the Marantz PM6006 2-Channel 80W Integrated Amplifier
- Product category: Amplifiers Marantz
- Brand: Marantz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marantz Amplifiers
 |
User manual for the Marantz PM6006 2-Channel 80W Integrated Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marantz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marantz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marantz product will considerably shorten its lifespan!
|
Product description Enjoy enhanced quality audio with the Marantz PM6006 2-Channel 80W Integrated Amplifier. It outputs 40W per channel RMS and can connect to two pairs of speakers in an A/B configuration, which it can switch between. Its rigid feet are designed to reduce resonance, and its shielded DAC is designed to decrease interference. The amplifier has five stereo RCA inputs, including one reserved for a turntable. It also has two optical inputs and a digital coaxial input. - Integrated Current Feedback Amplifier with 40W per Channel at 8 Ohms RMS
- Designed to provide enough power for medium-sized rooms.
- Two Optical Inputs and One Digital Coaxial Input
- For extended connectivity and High Resolution Audio support (192 kHz/24-bit PCM)
- CS4398 DAC and Marantz HDAM SA2
- Designed to provide enhanced audio quality from digital inputs.
- Fully Shielded DAC Unit with Copper-Plated Screws and Rigid Feet
- Added shielding is designed to help eliminate interference for purity of sound.
- Gold-Plated Inputs and Outputs
- Gold plating provides an enhanced connection for external sources.
- Marantz HDAM-SA3 Circuits
- Designed to provide a wide dynamic range with low distortion for the output stage.
- Toroidal Transformer with Customized Components
- Designed to deliver more power while causing less interference.
- A / B Switchable
- Have your audio play in one or two areas.
- Additional Features
-
- Aluminum extrusion heat sink
- Balance, bass, treble, and loudness controls
- Linear drive power supply
- Schottky diodes
- Source Direct
- Standby Mode
UPC: 699927141158 In the Box Marantz PM6006 2-Channel 80W Integrated Amplifier Remote Control 2 x AAA Batteries Power Cord Limited 3-Year Warranty Manual PDF 1.4mbtccxwabxvqzv Table of Contents
|
Upload User Manual
Have you got an user manual for the Marantz PM6006 2-Channel 80W Integrated Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarantz PM6006 Specs | | | Number of Channels | 2 | | Power Rating | 40 W per channel @ 8 Ohms RMS
55 W per channel @ 4 Ohms RMS | | Frequency Response | 10 Hz to 70 kHz | | Signal to Noise Ratio | Phono (MM): 83 dB
CD, Tuner, Network, Recorder: 102 dB (2 V input, rated output) | | Total Harmonic Distortion (THD) | 0.08% | | Damping Factor | 100 | | Audio DAC | CS4398 | | Tone Control | Bass (50 Hz): ±10 dB
Treble: 15 kHz): ±10 dB | | | | Input | 5 x RCA stereo L/R (1 phono)
2 x Optical TOSLINK
1 x Digital coaxial | | Output | 1 x 1/4" (6.35 mm) Headphone
1 x RCA stereo L/R | | Speaker Connectors | 4 x Binding post pairs | | Other Connectors | 1 x Remote in
1 x Remote out
1 x Flasher in
1 x AC power inlet
2 x Switched power outputs
1 x Unswitched power output
1 x Ground terminal | | Input Sensitivity | MM 2.2 mV / 47 kOhms | | Phono Input | Max Level: 100 mV | | | | Front Panel | Metal | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Operational: 395 W
Standby: 0.3 W | | Dimensions (W x H x D) | 17.3 x 4.1 x 14.6" (43.9 x 10.4 x 37.1 cm) | | Weight | 17.2 lb (7.8 kg) | | | | Package Weight | 21.9 lb | | Box Dimensions (LxWxH) | 20.5 x 18.6 x 7.6" |
