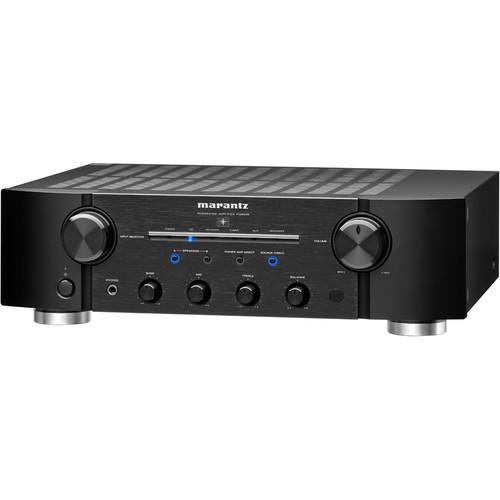

User Manual for Marantz PM8006 Stereo 140W Integrated Amplifier Click to enlarge the picture
Contents of the user manual for the Marantz PM8006 Stereo 140W Integrated Amplifier
- Product category: Amplifiers Marantz
- Brand: Marantz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marantz Amplifiers
 |
User manual for the Marantz PM8006 Stereo 140W Integrated Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marantz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marantz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marantz product will considerably shorten its lifespan!
|

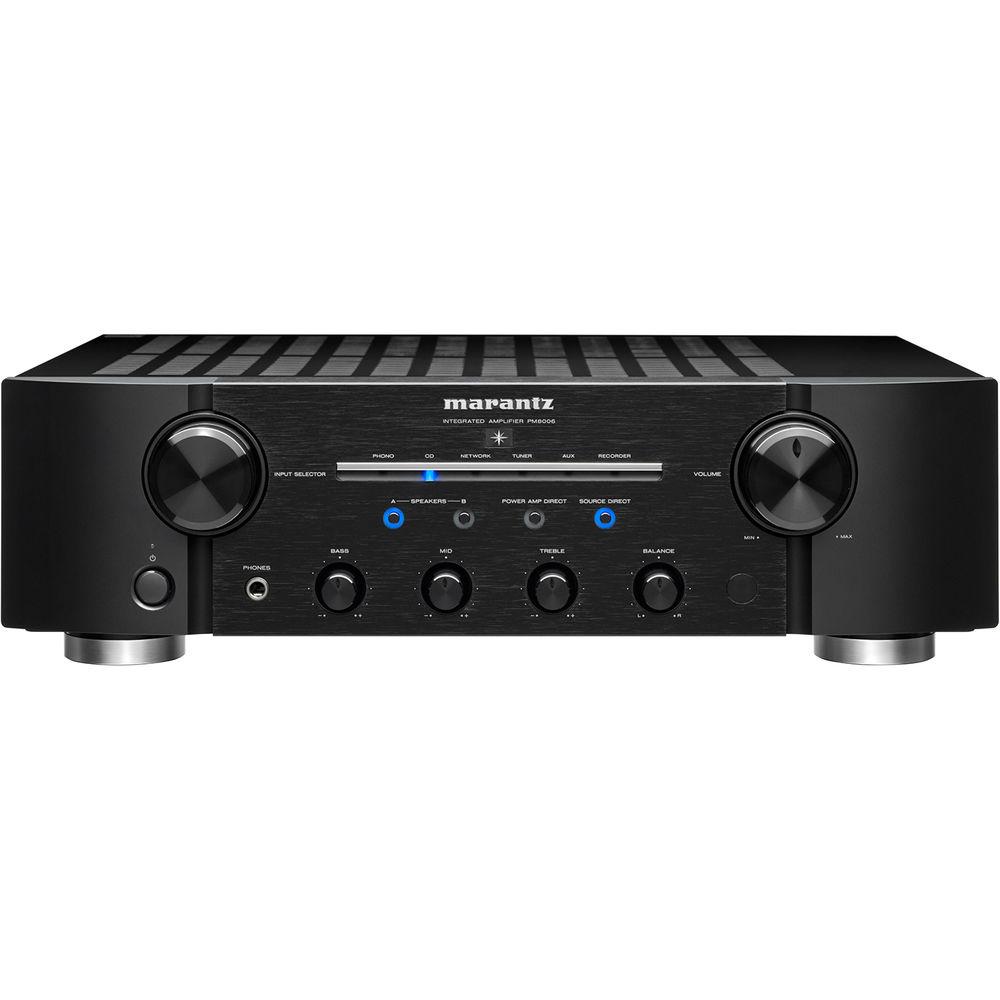

Product description Enjoy enhanced quality audio with the Marantz PM8006 Stereo 140W Integrated Amplifier. It outputs up to 70W per channel RMS at 8 Ohms and can connect to two pairs of speakers in an A/B configuration, which it can switch between. Its triple-layer bottom plate is designed to reduce unwanted vibration. The amplifier has six stereo RCA inputs, including one reserved for a turntable. It includes a remote control for added convenience. - Integrated Current Feedback Amplifier with 70W per Channel at 8 Ohms RMS
- Designed to provide enough power for medium- to large-sized rooms.
- Electric Volume Circuit
- Engineered to produce high linearity and enhanced channel separation.
- Marantz Musical Phono EQ Stage
- Fashioned to provide a pure signal from your vinyls by reducing noise levels.
- Marantz HDAM-SA3 Circuits
- Designed to provide a wide dynamic range with low distortion for the output stage.
- Triple-Layer Bottom Plate
- The additional layering is engineered to reduce vibration.
- Gold-Plated Inputs and Outputs
- Gold plating provides enhanced connectivity for external sources.
- Double-Shielded Toroidal Transformer
- The toroidal design of the transformer is designed to deliver clean power for pure amplification.
- A / B Switchable
- Have your audio play in one or two areas.
- Additional Features
-
- Current feedback topology
- SA3 & SA2 HDAM
- Symmetrical PCB layout
- Aluminum extrusion heat sink
- Tri-tone control (bass, mid, treble)
- Balance control
- Linear drive power supply
- Schottky diodes
- Input buffer amp
- Solid heat sinks
- Source Direct
- Power Amp Direct
- Standby Mode
- Auto power off
- Detachable power cable
UPC: 699927141356 In the Box Marantz PM8006 Stereo 140W Integrated Amplifier Remote Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marantz PM8006 Stereo 140W Integrated Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarantz PM8006 Specs | | | Number of Channels | 2 | | Power Rating | 70 W per channel @ 8 Ohms RMS
100 W per channel @ 4 Ohms RMS | | Frequency Response | 5 Hz to 100 kHz | | Signal to Noise Ratio | MM: 87 dB
High Level: 106 dB (2 V input)

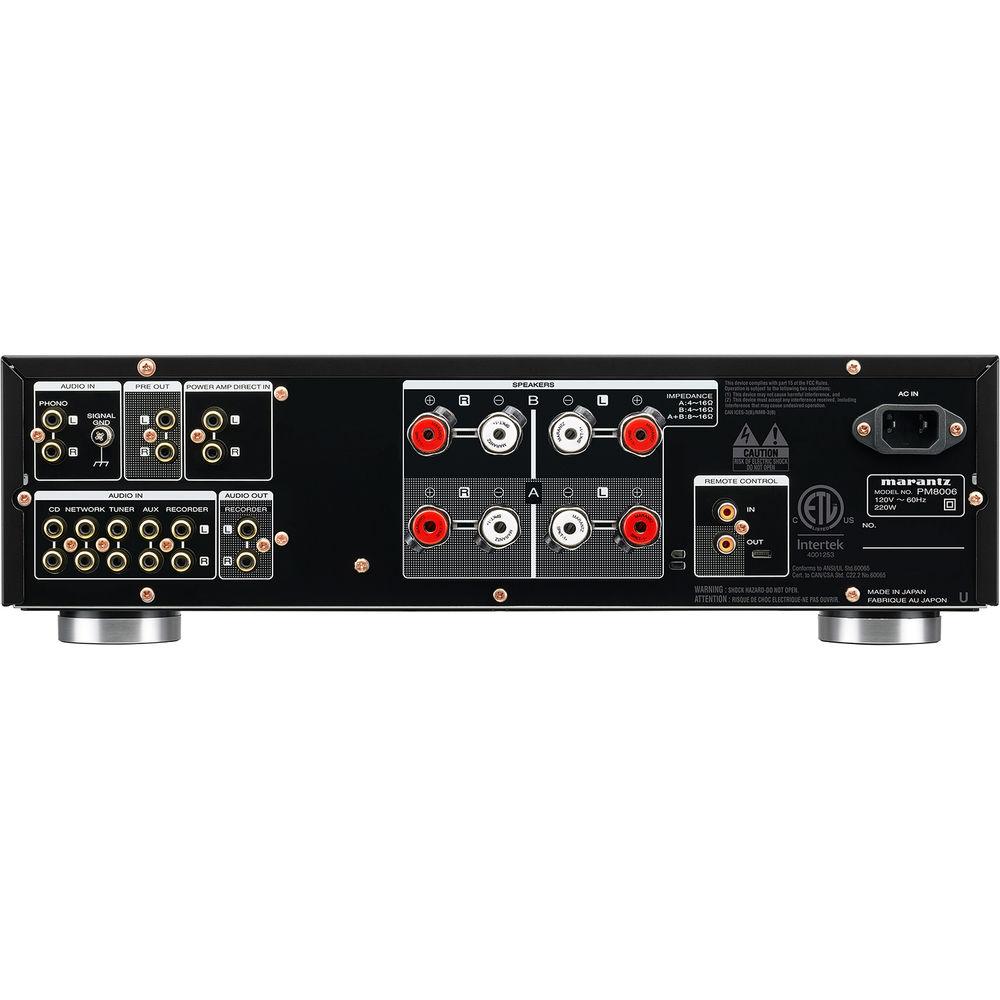

Power Amp Direct In: 125 dB | | Total Harmonic Distortion (THD) | 0.02% | | Damping Factor | 100 | | | | Input | 6 x stereo RCA L/R (1 MM phono)
1 x stereo RCA L/R power amp direct | | Output | 1 x 1/4" (6.35 mm) headphone (front)
1 x stereo RCA L/R
1 x stereo RCA L/R pre-out | | Speaker Connectors | 4 x binding post pairs | | Other Connectors | 1 x RCA remote in
1 x RCA remote out
1 x AC power inlet
1 x ground terminal | | Input Sensitivity | MM: 2 mV / 47 kOhms
High Level: 200 mV / 20 kOhms
Power Amp Direct In: 1.6 V / 15 kOhms | | | | Front Panel Construction | Metal | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Operational: 220 W
Standby: 0.2 W | | Dimensions (W x H x D) | 17.3 x 5 x 14.9" (440 x 128 x 379 mm) | | Weight (Approximate) | 26.5 lb (12 kg) | | | | Package Weight | 38.4 lb | | Box Dimensions (LxWxH) | 21.25 x 18.25 x 8.75" |
