User Manual for Marantz Professional 6-Channel DSLR Recorder with up to 96 kHz 24-Bit Resolution Click to enlarge the picture
Contents of the user manual for the Marantz Professional 6-Channel DSLR Recorder with
- Product category: Portable Digital Recorders Marantz Professional
- Brand: Marantz Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marantz Professional Portable Digital Recorders
 |
User manual for the Marantz Professional 6-Channel DSLR Recorder with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marantz Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marantz Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marantz Professional product will considerably shorten its lifespan!
|

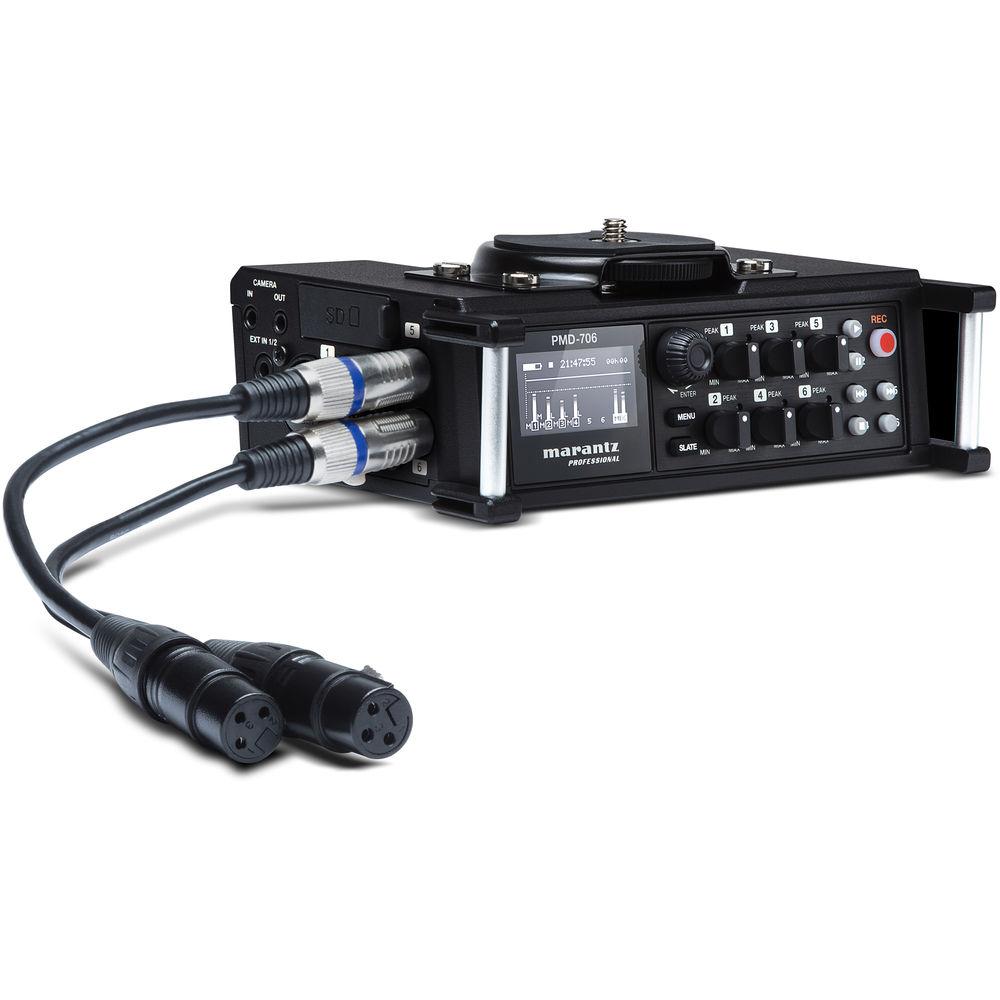

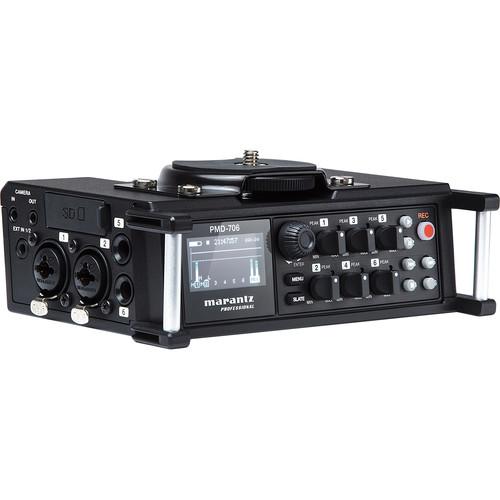

Product description The Marantz Professional PMD-706 is a six-channel recorder designed for professionals working with DSLR cameras. Recording audio at sample rates and resolutions up to 96 kHz/24-bit, it’s designed to attach to a camera, a camera rig, or to double as a dedicated, unattached field recorder. The device accepts SD, SDHC, and SDXC cards, housing up to 128GB of recorded audio. Its battery lasts approximately 5.5 hours in the field (with phantom power off). Marantz Professional’s high-definition, discrete microphone preamps are provided, as are four combination XLR-1/4” input jacks that can handle mic- and line-level sources—with or without phantom power. Two 1/4" TRS jacks are also supplied, in addition to a 3.5mm TRS input that further expands its functionality.A dual-recording function allows you to record two tracks, one at a hotter level, and the other at a reduced level; in this manner, you can safeguard against accidental clipping, such as when a person in the shot starts yelling without warning, or for no reason whatsoever. You can utilize this dual-recording feature to create a total of three safety tracks. Included with the PMD-706 are breakout cables for converting 1/4" to balanced female XLR connections; these can be used with the unit’s TRS jacks. - Key Features at a Glance
-
- 6-channel recording up to 96 kHz/24-bit
- SD/SDHC/SDXC recording media

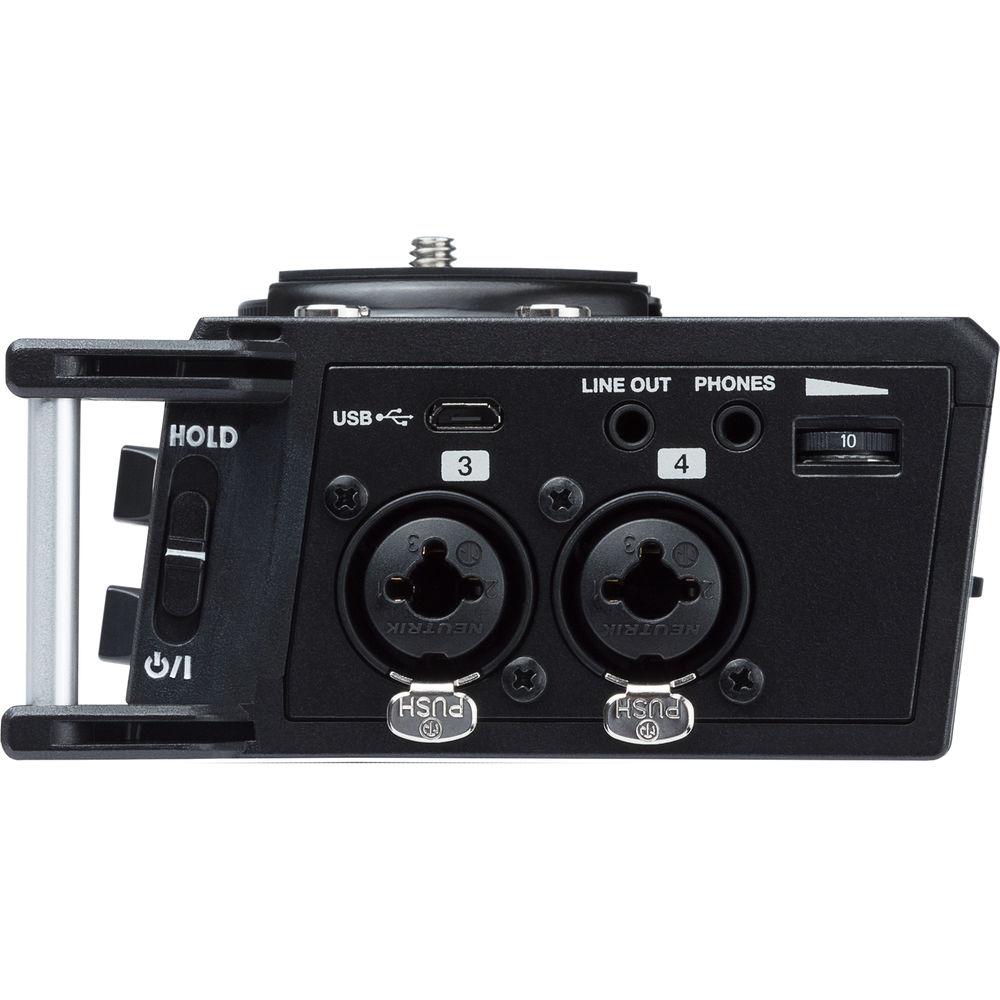

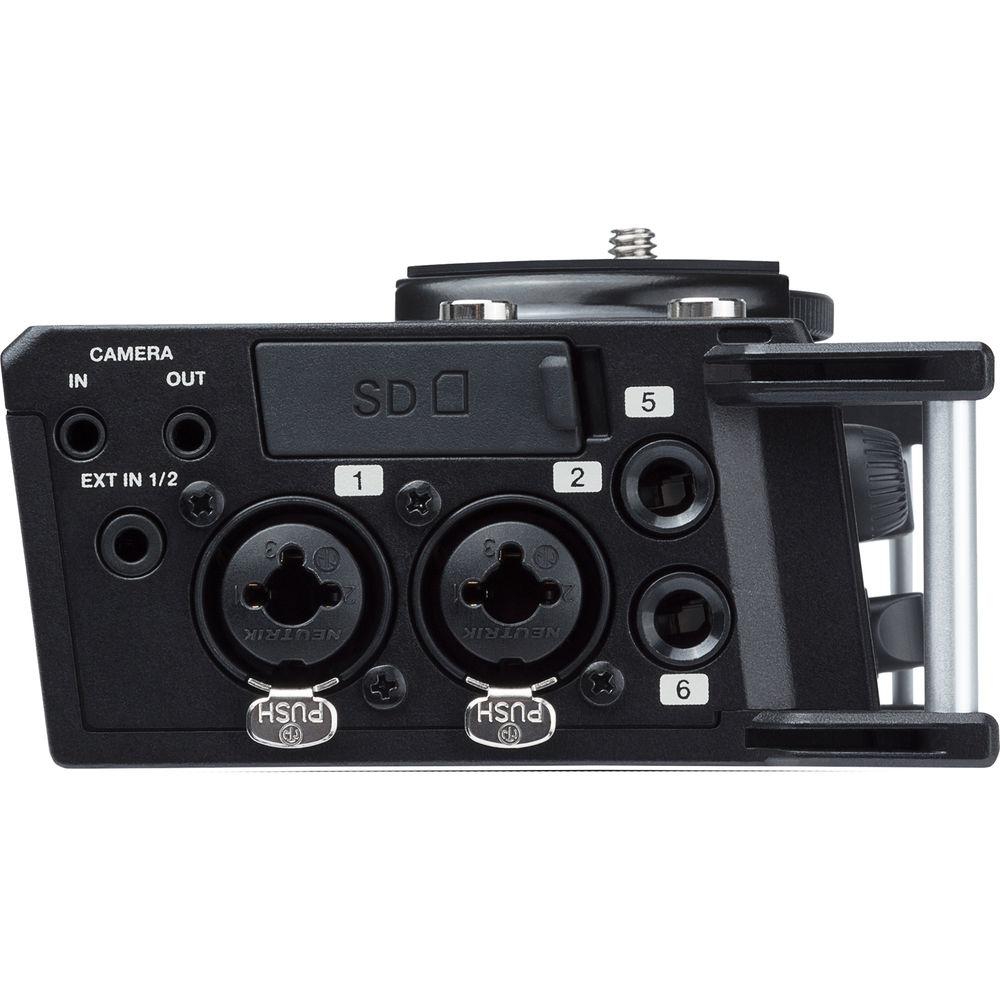

- 4 x XLR/TRS combo jacks for mic- and line-level inputs
- High-definition, discrete microphone preamps
- 2 x 1/4" TRS jacks for line-level inputs
- 48V phantom power for condenser microphones
- Low-cut filter (5 positions), limiting function, and M/S microphone decoding
- Dual-recording mode creates a duplicate track at a reduced level (safety track); a total of three safety tracks is possible
- 3.5mm stereo jack with plug-in power for consumer microphones
- DSLR camera-mounting bracket
- Tripod-mounting socket on bottom of recorder

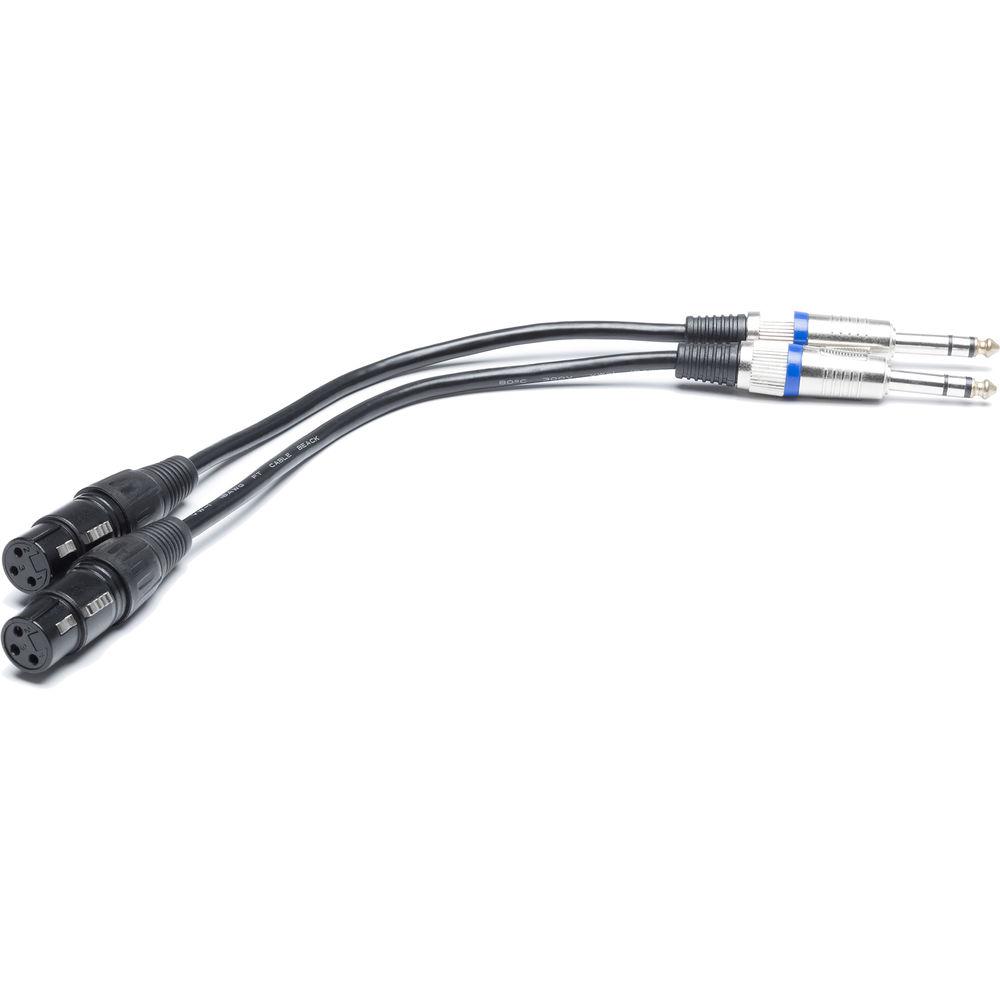

UPC: 694318020135 In the Box Marantz Professional 6-Channel DSLR Recorder with up to 96 kHz/24-Bit Resolution Set of 1/4" to XLRF Breakout Cables DSLR Camera-Mounting Bracket Tripod-Mounting Socket Limited 3-Year Warranty User Manual PDF 8.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Marantz Professional 6-Channel DSLR Recorder with up to 96 kHz 24-Bit Resolution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarantz Professional PMD-706 Specs | | | Number of Tracks | 6 | | Max Sample Rate/Resolution | 96 kHz / 24-Bit | | Built-In Speaker | No | | Memory Card Support | SD (64 MB to 2 GB)
SDHC (4 to 32 GB)
SDXC (48 to 128 GB) | | | | Audio File Formats | BWF, WAV | | Sample Rates | WAV:
44.1 / 48 / 96 kHz | | Bit Depth | 16/24-Bit | | Timecode | No | | | | Analog I/O | 4 x Combo XLR / 1/4" Input
2 x 1/4" TRS Input
2 x 1/8" / 3.5 mm Input
3 x 1/8" / 3.5 mm Output | | Phantom Power | +24 / 48 V ± 4 V | | Phantom Power Current | 10 mA per Channel | | Host Connection | 1 x Micro-USB (USB 2.0) | | | | Frequency Response | 20 Hz to 20 kHz
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
